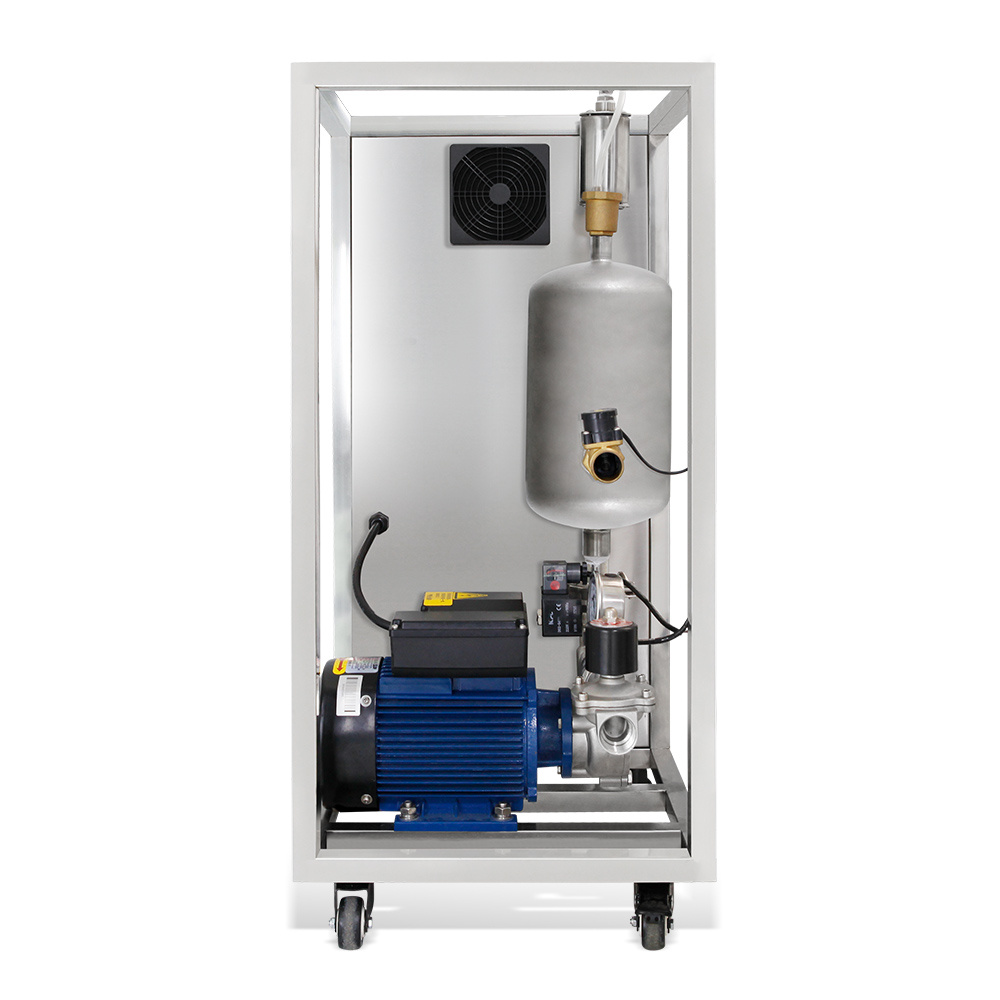

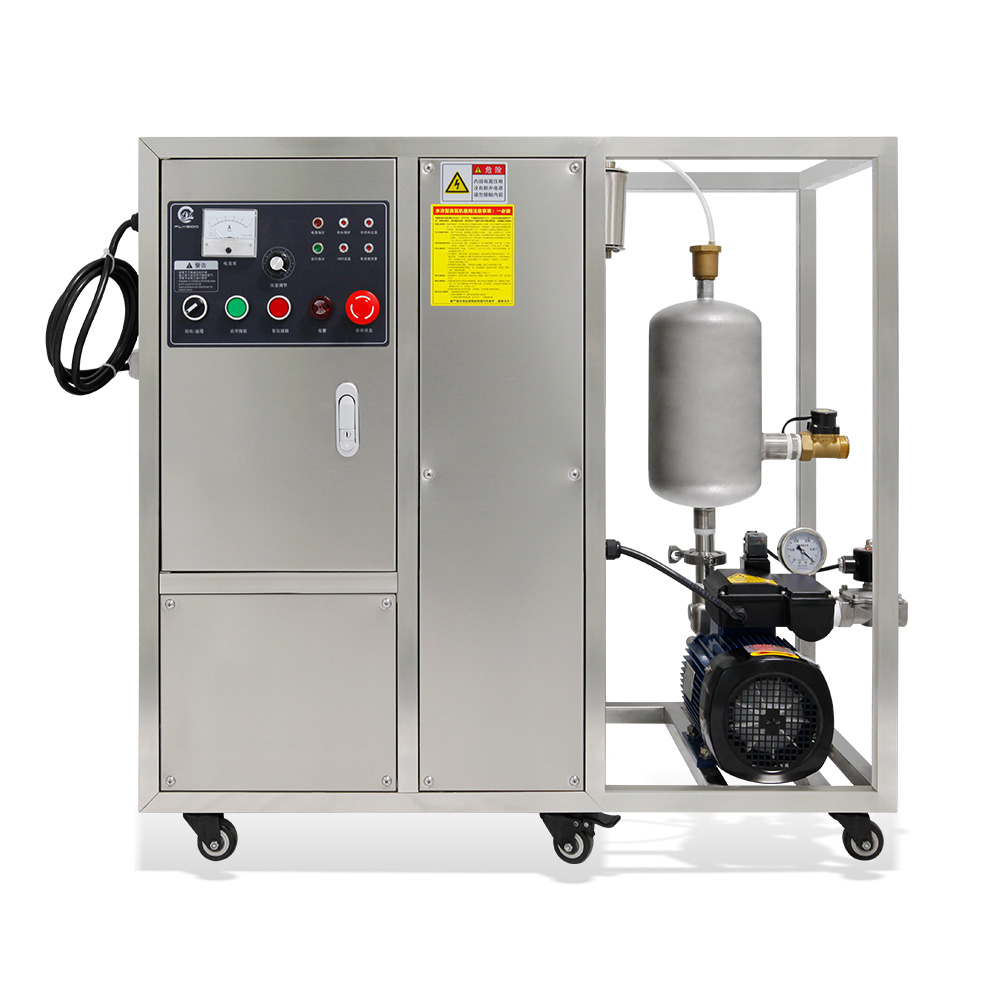

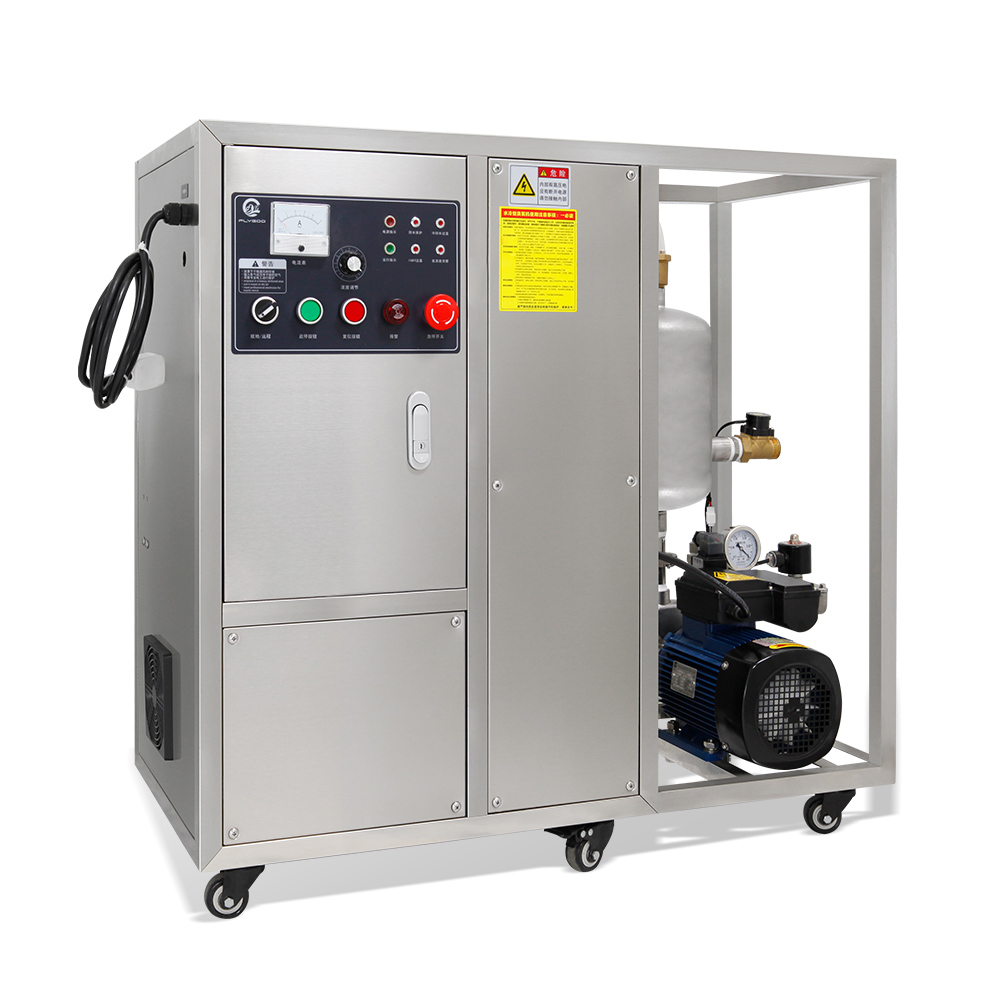

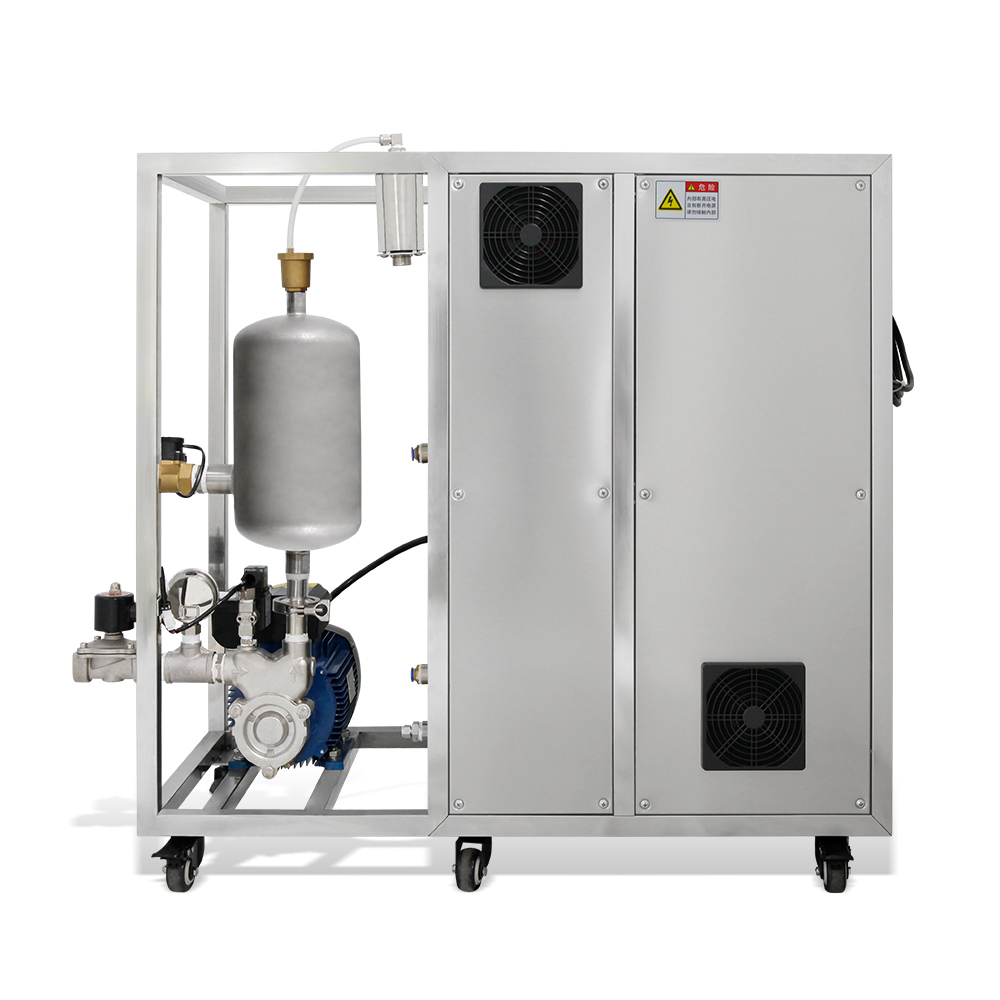

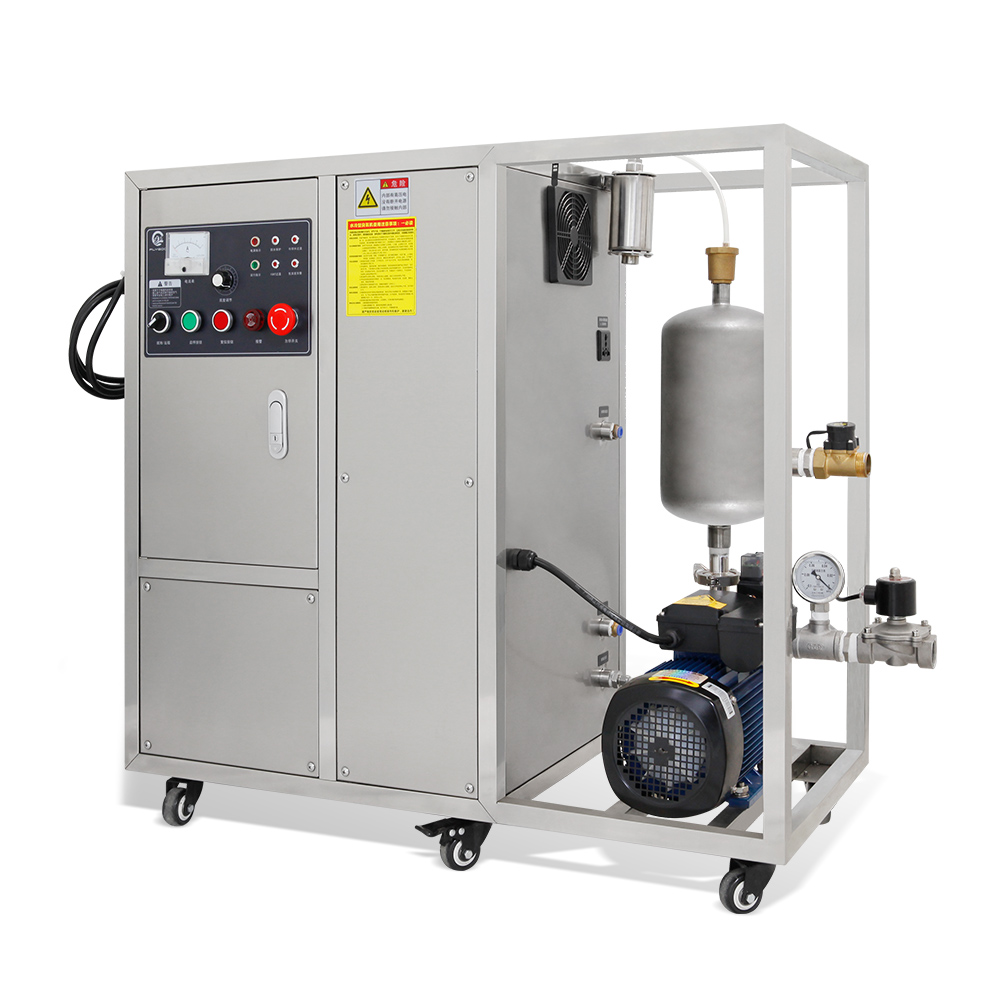

Water Treatment Machinery Industrial O3 Ozone Generator for Water Purifier

The FG-OWS series Ozonated Water System (OWS) is an integrated oxygen ozone generator, CNP gas-liquid mixing pump, SUS304 contact tank and water back flow protection device all in one system. It is a convenient and installation-friendly system to give you minimum installation work, it is a content normal water inlet and ozonated water outlet.
Availability:
Quantity:
Inquire Add to Basket

  • FG-OWS

  • FLYGOO

Product Description

This system can control output of ozone dissolved water with concentrations from 2mg/l to 8mg/l via ozone concentration rate controller. The water flow rate depends on the client's demands. The system instantly turns normal water into ozonated water for your application, like water purification, swimming pool, vegetable washer, and so on.

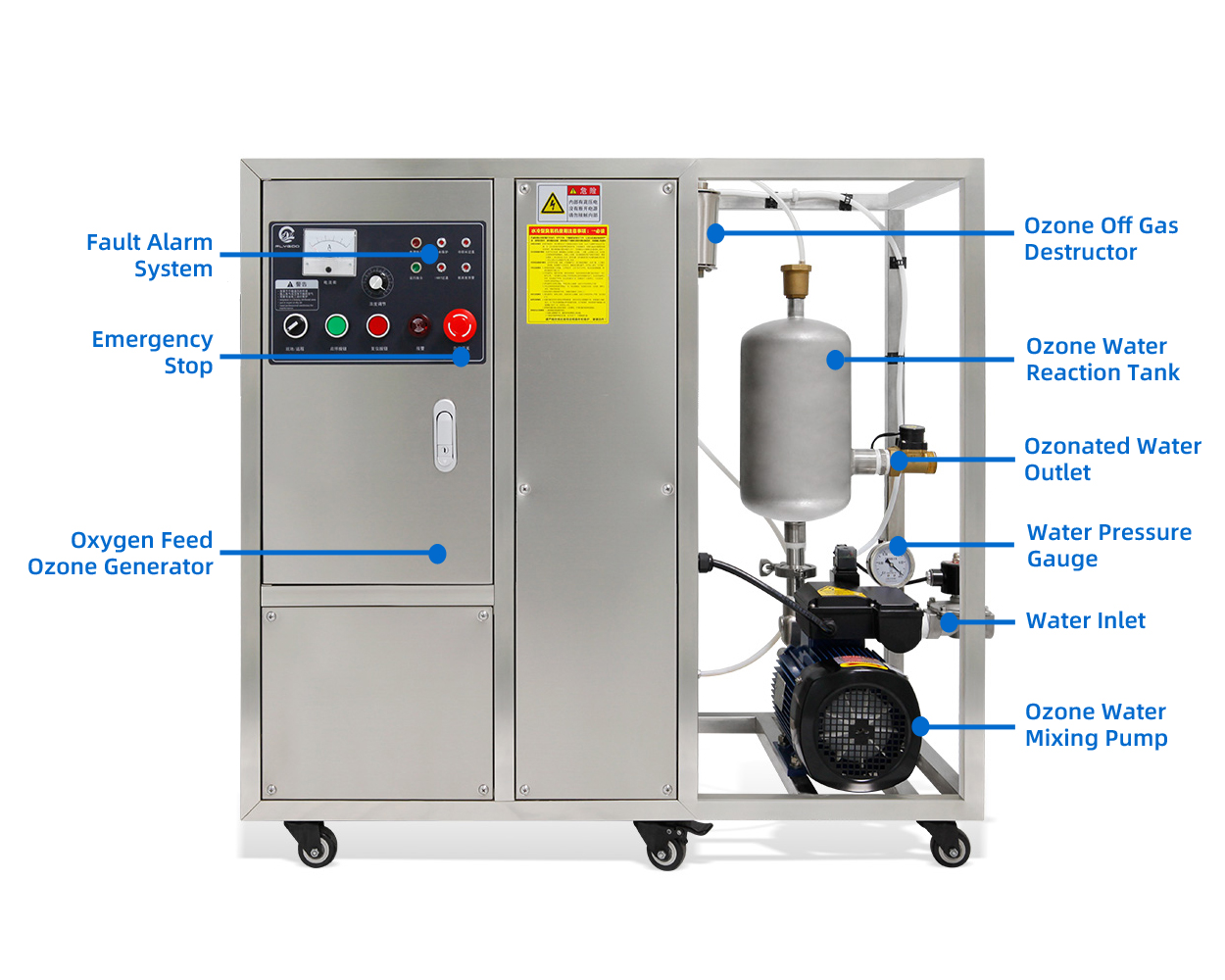

ozone purification system.jpg

Item

Unit

FG-OWS-20G

FG-OWS-30G

FG-OWS-50G

Water Flow Rate

M3/H

1.2

2-4

6-8

Power

kw

1.0

1.6

4.15

Electric

VAC/Hz

220V/50(60)Hz/1P

220V/50(60)Hz/1P

380V/50(60)Hz/3P

Weight

Kg

82

90

110

Dissolved Ozone

PPM

3-8PPM

Ozone Concentration

mg/L

Oxygen Source:80-120mg/L

Size(L*W*H)

mm

900*420*880

900*420*880

980*420*1080

Supply Gas

---

Oxygen

Oxygen

Oxygen

Inlet / Outlet Size

Inch

3/4''

1''

1.5''

Humidity

%

<70

<70

<70

Ambient Temperature

ºC

<40

<40

<40

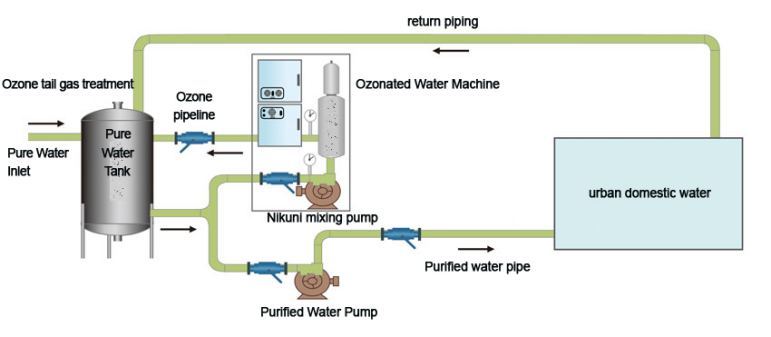

ozone generator for water.png

FLYGOO OZONE WATER SYSTEM

Swimming Pools & SPA; Bottled/Drinking Water

Food Processing; Agricultural irrigation

Waste Water; Greenhouse; Equipment Washing

Surface Sanitization; Municipal sewage

industrial wastewater; Barrels Washing

best ozone machine.png

To learn more about ozone generators , please contact Flygoo Ozone Sales :

info@flygoo-ozone.com
