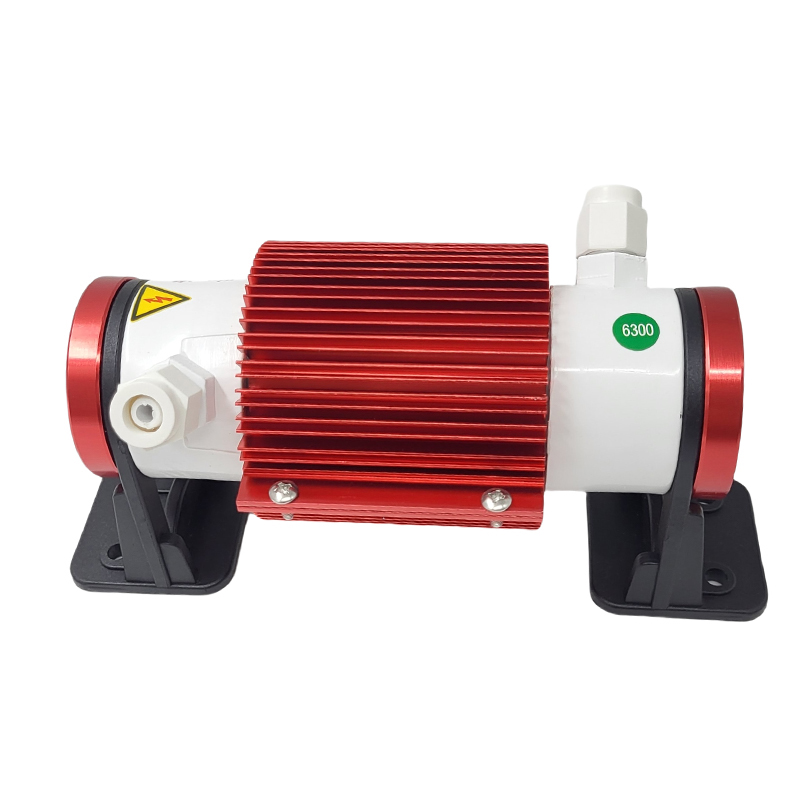

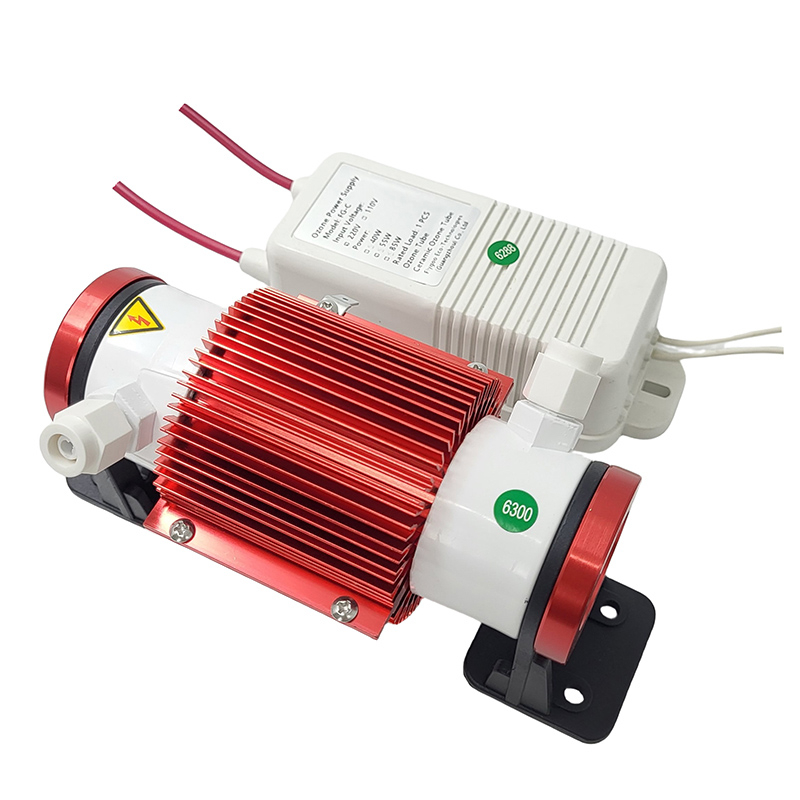

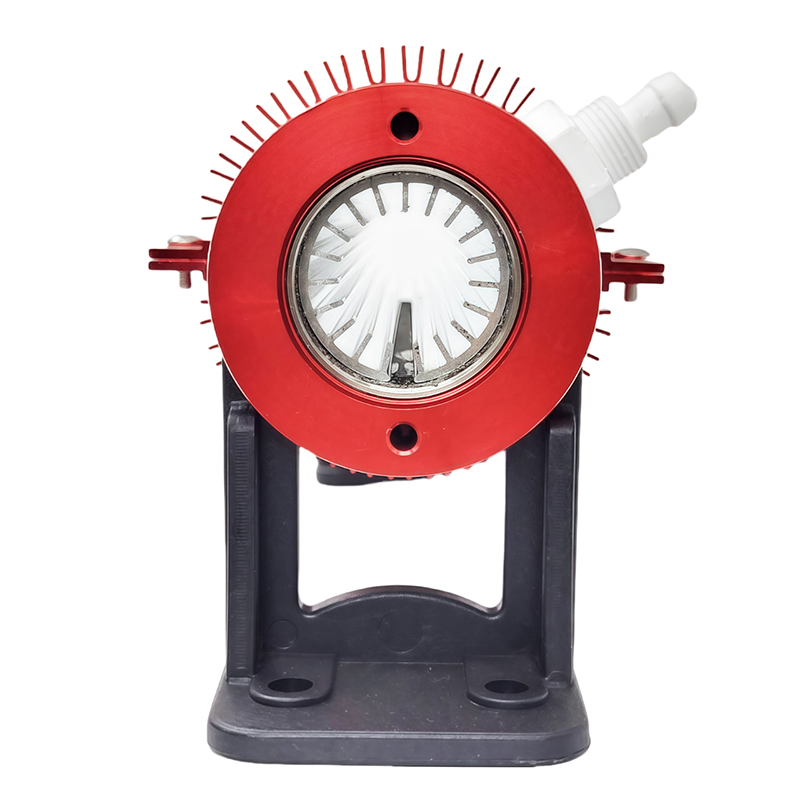

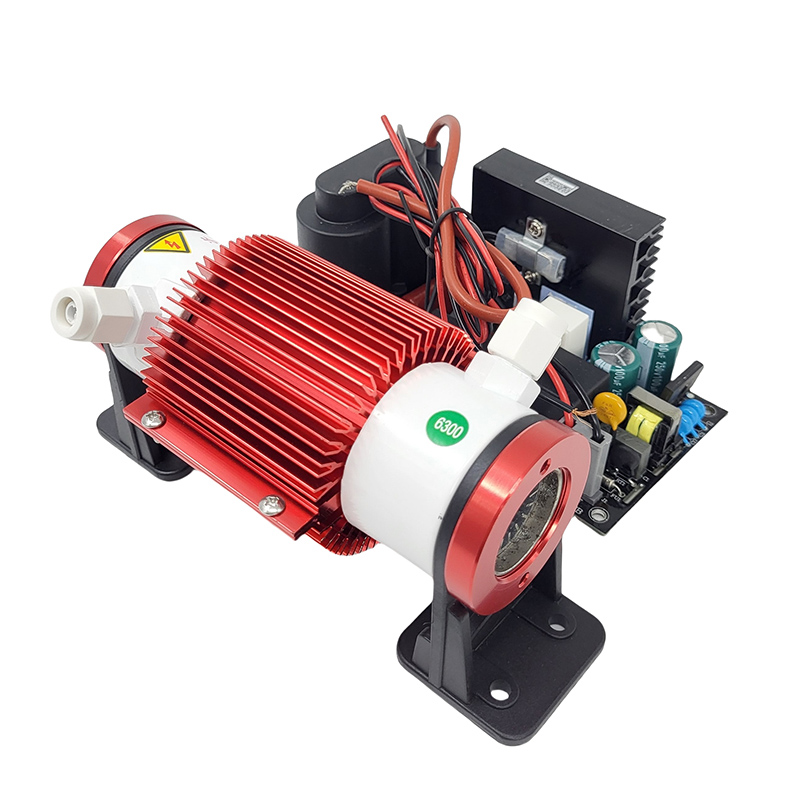

Flygoo Ozone Ceramic Tube Ozone Generator Parts Ozone Kits

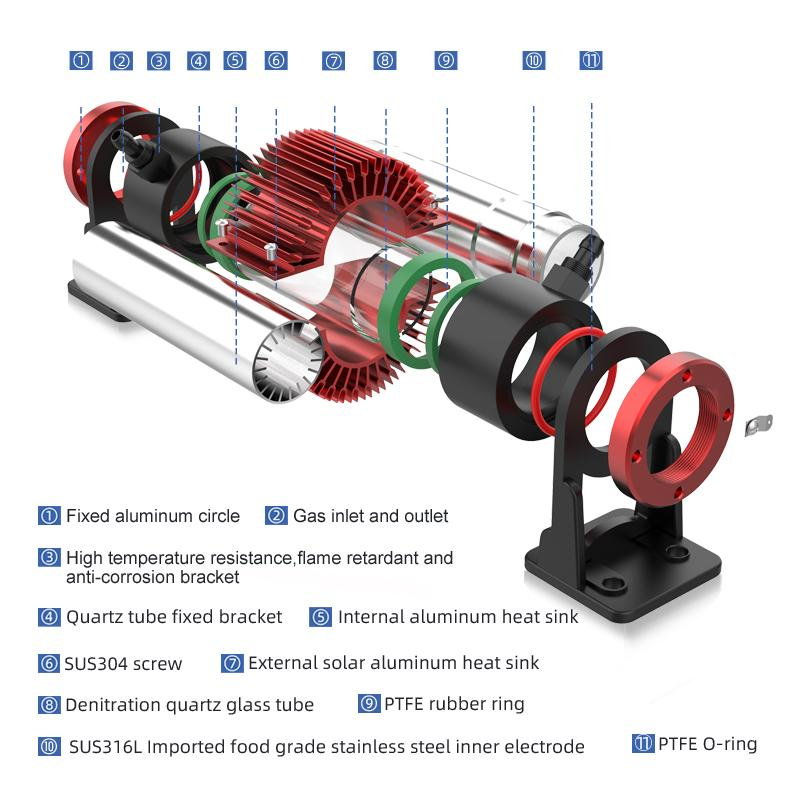

Flygoo ozone module use the latest corona discharge technology. With a high performance, we use accurate CERAMIC tube and 316L stainless steel electrode for the generator part, we sure a stable unit will help you win more business. Imported material of high quality glass, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.
Availability:
Quantity:
Inquire Add to Basket

Product Description


PRODUCTS FEATURE

  • Extremely low rate of ozone decay & high ozone concentration Ozone concentration can be around.30~90Mg/L, which is much higher than conventional products.

  • Domestic patent product-got domestic patent in 2021

Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.  Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

  • Small and Compact

It saves Cace effectively. The size is 1/4smaller than similar products.

  • Easy to maintain and install; Ceramic tube can be easily cleaned, should it become contaminated.

  • Power supply is using IGBT inverter technology, with over current,over voltage and over temperature protection.

  • Ozone output is adjustable : 20-100% (model FG-SP-1)

PRODUCT PARAMETERS

Item

Unit

FG-C

Model

/

1G

3G

5G

7G

Oxygen flow rate

L/min

0.3L-0.6L-1.0L

1L-2L-3L-5L

1L-2L-3L-5L

1L-2L-3L-5L

Ozone concentration

Mg/L

49~40~30

60-36-29-18

68-41-32-21

78-56-41-28

Ozone output

g/h

0.88-1.8

3.6~5.4

4.08~6.3

4.68~8.4

Power

W(±5%)

25

35

45

55

Input power

/

AC220V 50Hz/60Hz/AC110V 50Hz/60Hz

Cooling method

/

Air cooling

Fitting size for air & ozone

mm

ED6

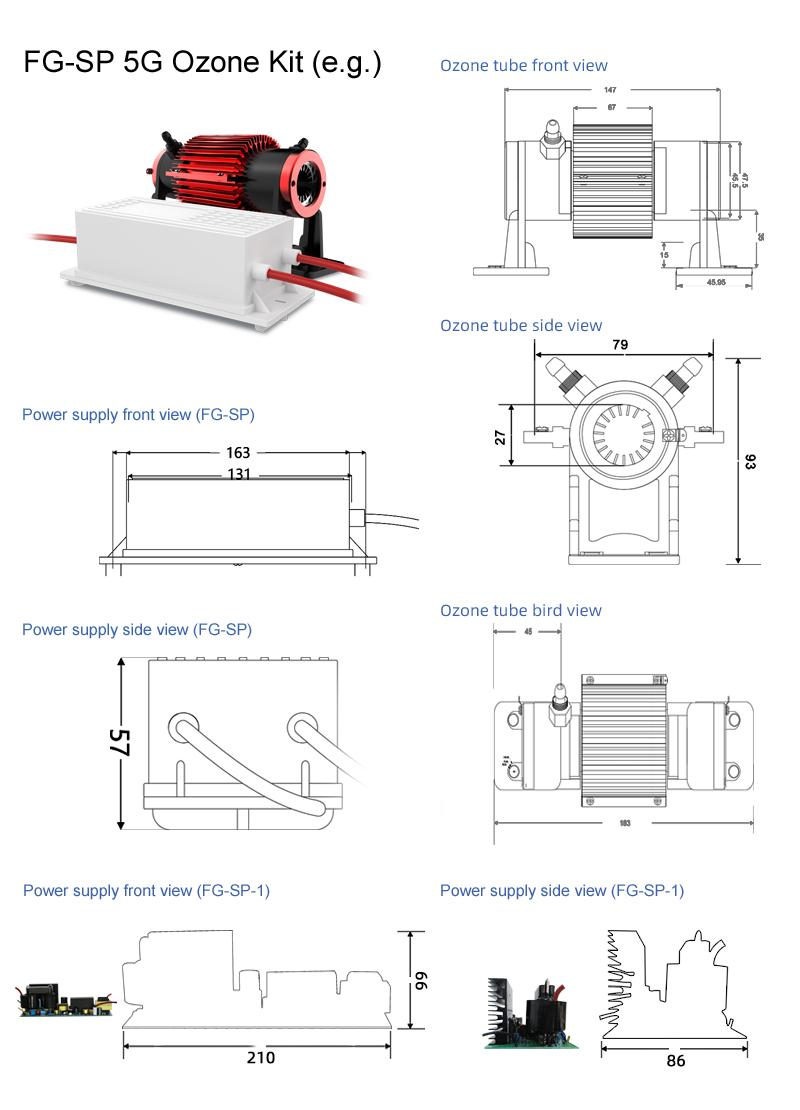

Ozone tube size

mm

125*50*50mm

165*85*93

mm

185*85*93

mm

215*85*93

mm

Ozone tube weight

kg

0.2

0.55

0.65

0.8

Power supply size

mm

96*47*32

160*63*45

Power supply weight

kg

0.15

0.55

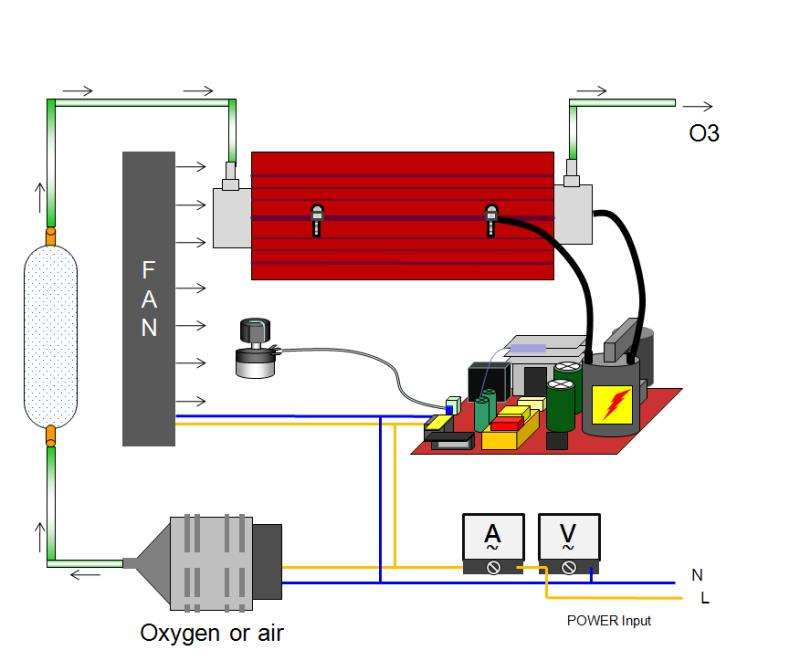

SCHEMATIC DIAGRAM

Good products come from precise control of quality and every manufacture detail.Flygoo Ozone takes advanced technology as the core, strives for excellence product,and strictly controls product quality.

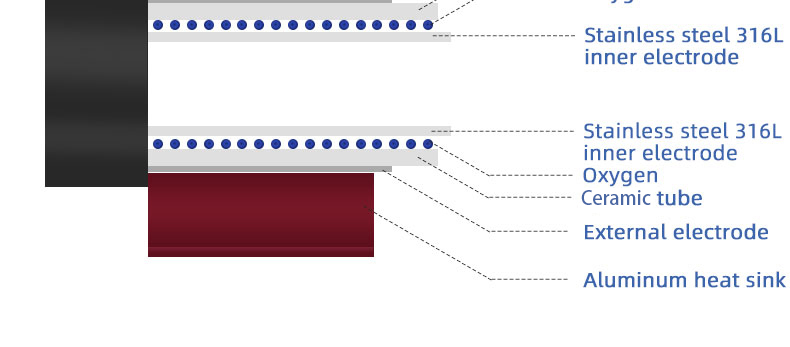

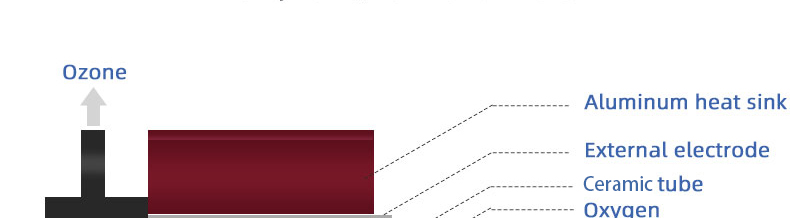

WORKING PRINCIPLE

An oxygen source (either ambient air or concentrated oxygen) is fed into the tube. Electrical power is applied, creating a high-voltage discharge (such as a corona discharge) inside the tube. This electrical energy breaks apart oxygen molecules (O₂), allowing the individual oxygen atoms to recombine into ozone molecules (O₃). The generated ozone gas is then ready to be directed out of the tube for application. The purity of the input oxygen directly impacts the concentration of the ozone produced.


Work Environment: Ambient

Temperature: 20°C, Oxygen Purity>94%,Dew Point>-45°C
