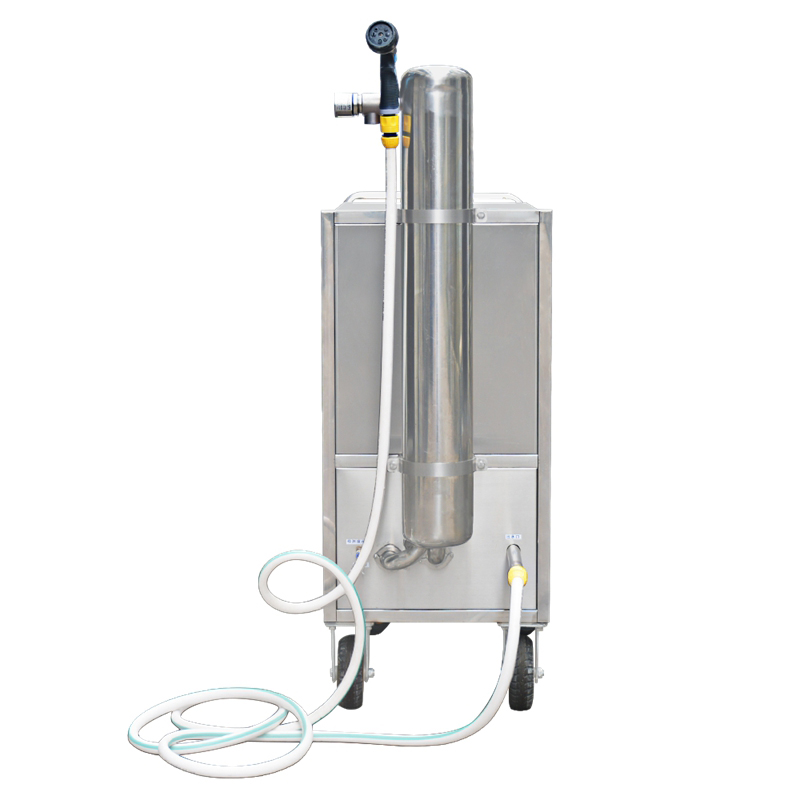

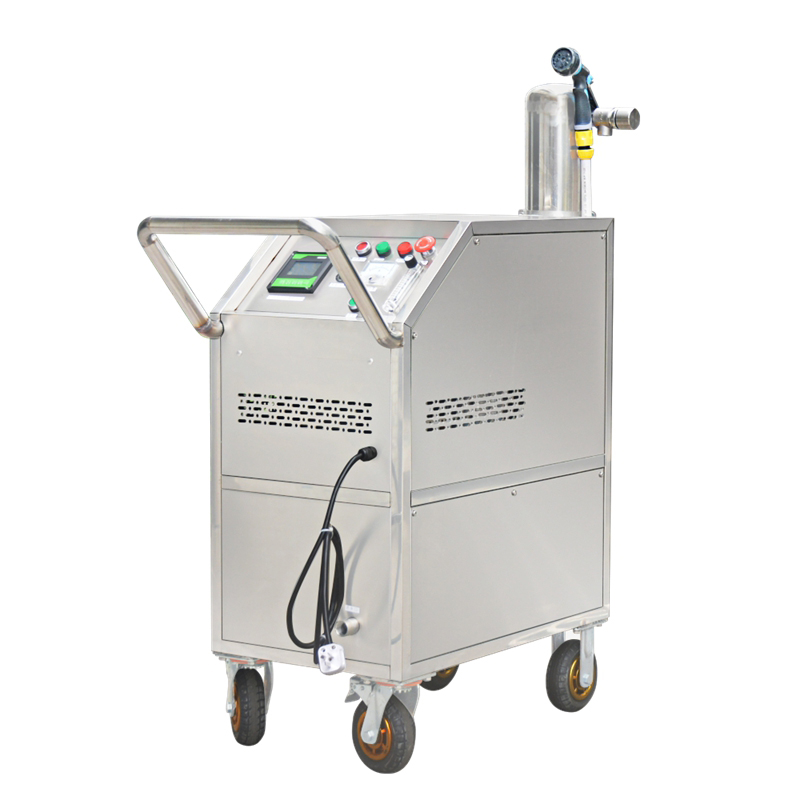

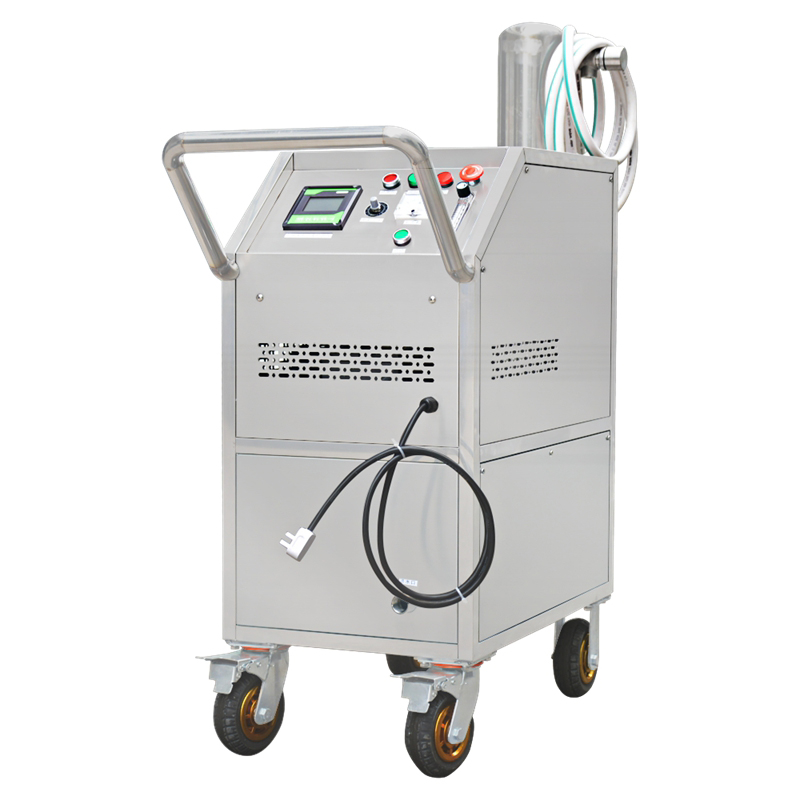

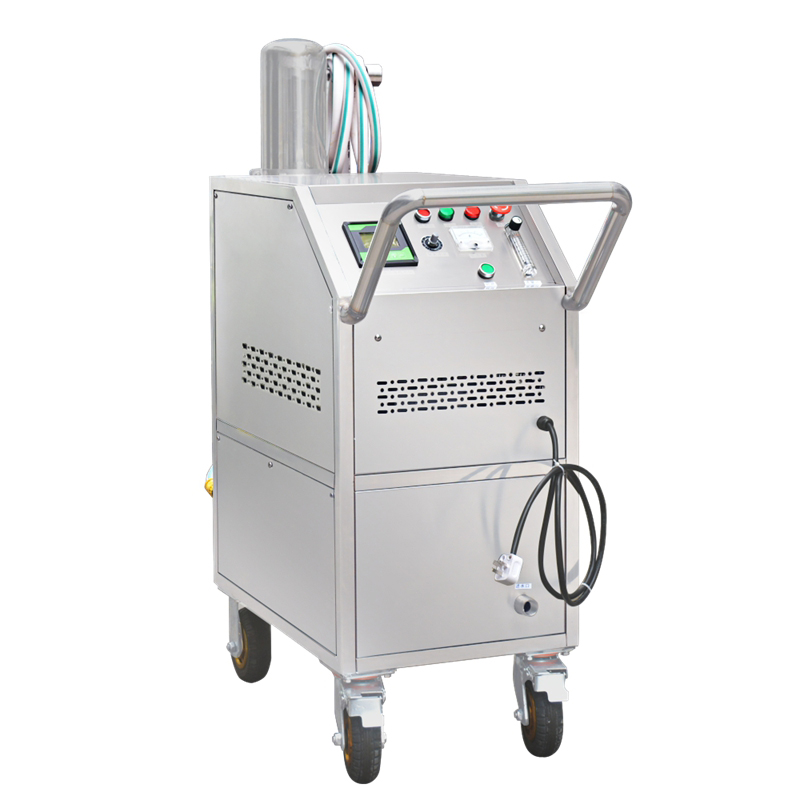

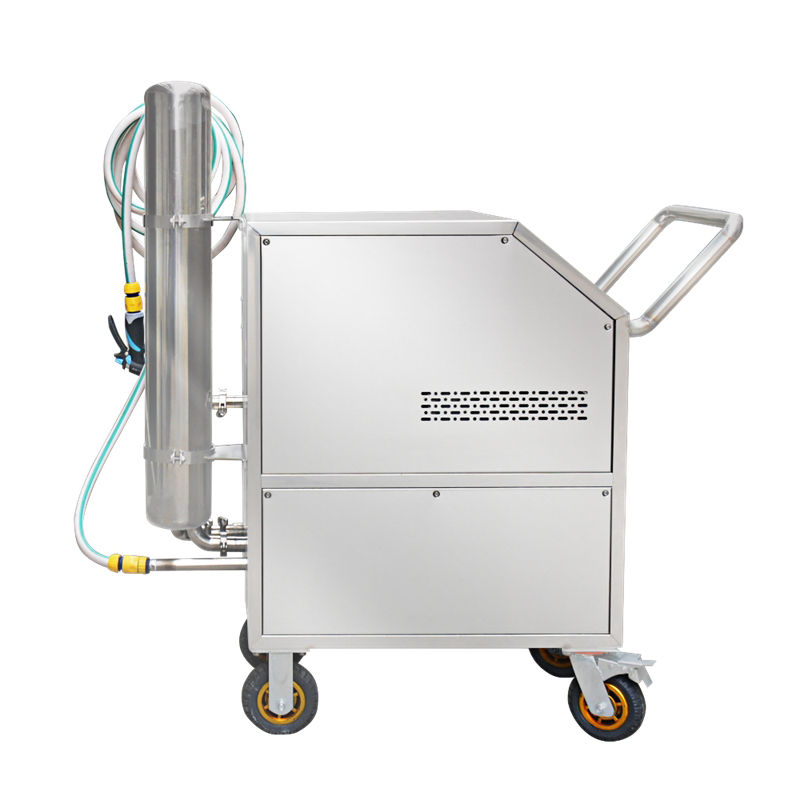

Flygoo Commercial CIP Ozone Water Generator Machine for Surface Cleaning

The Flygoo FG-OWS-Series mobile disinfection cart comes standard with a separately controlled ozone gassing feature. This supply of ozone gas offers you greater disinfection options and is typically used to gas and preserve stored barrels instead of Sulfur Dioxide.This system can control output of ozone dissolved water with concentration from 5mg/l via ozone concentration rate controller. Water flow rate depends on client’s demands.Originally developed for the wine industry, the FG-OWS Series is ideal for barrel washing, tank sanitization, surface disinfection, and clean-in-place (CIP) of tanks and piping. This Series is also being applied in a growing range of food and beverage applications in dairy, brewing, beverage, produce, seafood, processed foods, meat and poultry.

Availability:

Quantity:



Inquire Add to Basket

Product Description

FEATURES:

Easy to use push button controls – full system monitoring indicators
Microprocessor controlled ozone system with built-in soff start and self-diagnosttcs
Rotary vane booster pump – boosts low pressure water supplies for better coverage
Ozone production up to 45 grams/hour via gas outlet
Typical ozone dosage rate is 8.0 ppm at 10 ppm (higher flow with side stream)
Separately controlled ozone and oxygen gas outlet (user programmable)
Built-in oxygen concentrator delivering 94.4% oxygen
Typical ozone dosage rate up to 5.0 ppm at water recirculation
Welded stainless steel tubing frame and water safe stainless exterior
Built-in oiless air compressor
Designed for easy service access or maintenance
Critical parts are fully-contained for water safe operation
Welded stainless steel tubing frame and water safe stainless exterior
Ozone/oxygen gas flow meter

COMPONENTS

Air-Cooled Ozone Reactor Cell

Built in Oxygen Concentrator

Inner Oilfress Air Compressor

Onboard Side Stream Injector and Static Mixer

Dissolved Ozone Analyzer

Ozone Destructor

Water Return Preventor

Onboard Injector Pump

SUS304 Contact Tank

Over-Temperature Protection

APPLICATIONS:

Final rinse/surface disinfection of:

Barrels
Tanks
Bottling equipment
Floors/walls
Transfers lines
Drains
Pumps
Apple washing
Valves
Process equipment
Barrel and tank gassing and
preservation (replacement of Sulfur Dioxide)
Micro-oxy source (replacement of oxygen tank)
Environmental disinfection
with ozone gassing to control
airborne contaminants

PRODUCT PARAMETERS

Item	Unit	FG-OWS
Power	w	1000W
Electric	VAC/Hz	220V/50,60Hz/1PH
Weight	kg	85kg
Size	mm	44011001270mm
Designed Water Flow Rate	m3/h	1-2
Dissolved Ozone in Water Rate	PPM	5-8
Ozone Concentration Rate	mg/h	Oxygen supply:100~120
Enclosure	/	Stainless steel
Cooling Way	/	Air Cooling
Supply Gas	---	Built-in Oxygen Concentrator
Water Inlet & Outlet Fittings	Inch	1/2''
Max. Reactor Pressure	PSI (Bar)	12 (0.8)
Hose and Wash Gun	---	Yes
Inner Residual Ozone Destructor	---	Yes
Required Ambient Humidity	%	<70
Required Ambient Temperature	°C	<40
Warranty	months	12

How it works?

The system begins with compressed air (approximately 50 PSI) being supplied to the ozone generator. The generator first removes nitrogen from the air, providing a gas stream consisting of about 95% pure oxygen. It then converts up to 10% of this oxygen into ozone (O₃) via electrical discharge. The resulting ozone-oxygen mixture is injected into the water stream using a venturi injector. A pump creates the necessary water pressure differential to drive the venturi, which pulls the ozone gas into the water via vacuum and initiates mixing.

This water-ozone mixture then enters a dedicated contact tank. Inside the tank, baffles are employed to enhance the mixing and maximize the mass transfer of ozone into the water, while also providing crucial contact time for the ozone to react. The tank design maintains system water pressure during operation. Treated water, now containing dissolved ozone, exits the tank and is directed to the point of use. Any unused, off-gassed ozone from the contact tank can be either recirculated or safely destroyed by an optional ozone destruct unit.
