FG-AF
FLYGOO
FEATURES
Air-cooling, Corona discharge(CD) technology
LCD display
Main components from Import (IGBT,IGBT power module)
Over voltage protection and over temperature protection
Variable ozone control (20-100%)
Stainless steel enclosure
Wall mountable and vertical
External oxygen feed (optional*)
Stainless steel
CE Approved
The whole gas circuits work in a low pressure which
makes the machine safe and reliable
PRODUCT PARAMETERS
tem | Unit | FG-AF | ||
Ozone Output | g/hr | 3 | 5 | 10 |
Power | W | 65 | 100 | 130 |
Electric | VAC/Hz | 220~240/50~60 ; 110/60 | ||
Ozone Control | % | 20-100 | ||
Air Flow Ratel | L /Min | 16 | 32 | 40 |
Ozone Concentration | mg/l | Air supply: 5-10 | ||
External Case | / | Stainless steel | ||
Size(L*W*H) | Mm | 340*190*480 | ||
Weight | kg | 8 | 8.5 | 9.5 |
Cooling System | / | Air Cooling | ||
Inner Air Pump | Yes/No | YES | ||
Ambient Humidity | % | <70 | ||
Ambient Temperature | °C | <40 | ||
Accessories | / | check valve *1 ; silicon tube *1 ; air stone *1 | ||

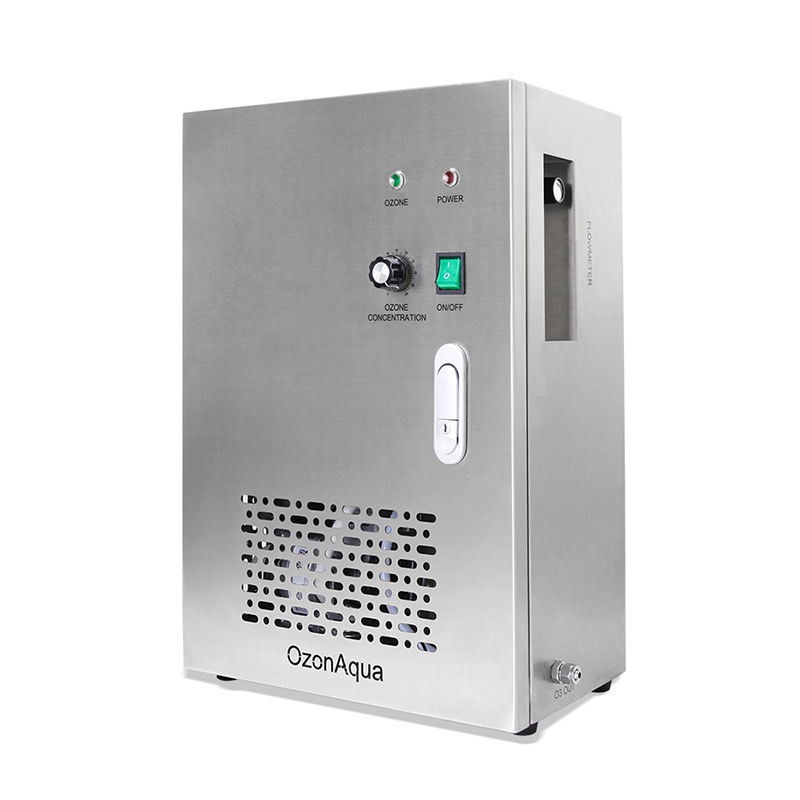

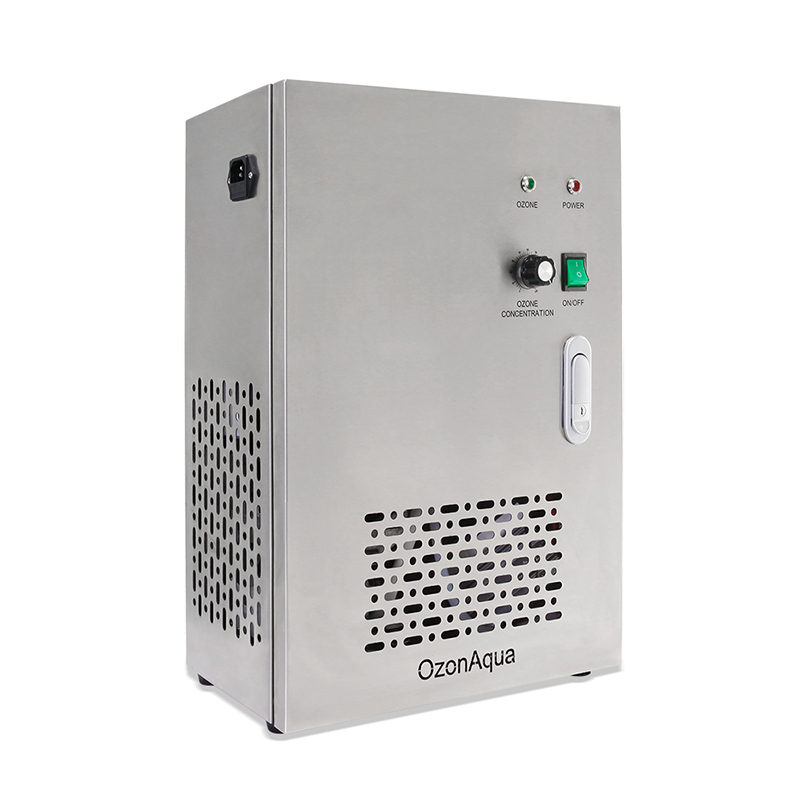

PRODUCT OVERVIEW & KEY FEATURES
1. Integrated Turnkey System: The generator is a complete, ready-to-use unit featuring both the ozone generator and an integrated air dryer/pump within a single cabinet, simplifying setup and operation.

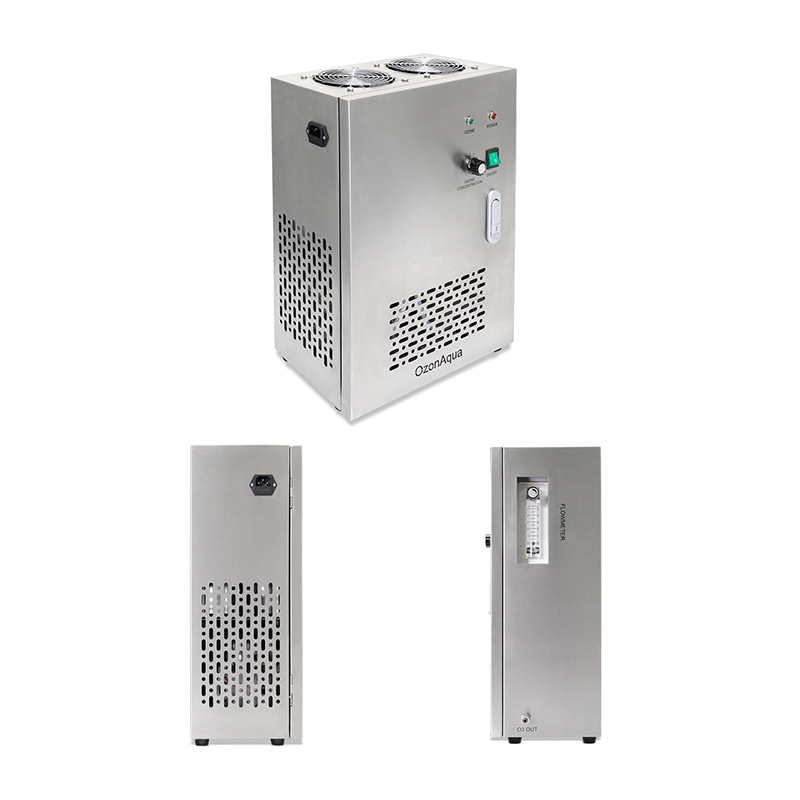

2. Flexible Installation: Designed for versatility, it supports multiple installation options: it can be wall-mounted, placed on the floor, or used as a standalone unit.
3. Stable & Durable Design: The equipment is engineered for extreme stability and a long service life. It features high discharge efficiency and is built to resist damage from potential backwater incidents.
4. Effective Cooling System: A powerful radiator fan is integrated to ensure efficient cooling, which is critical for maintaining stable and continuous operation of the ozone-generating components.
5. Adjustable Output: The system offers user control over key parameters
Ozone Concentration: The ozone output concentration can be set and adjusted on demand to suit different application requirements.
Gas Flow: An oxygen flow meter is included, allowing for the adjustment of different gas flow ranges.

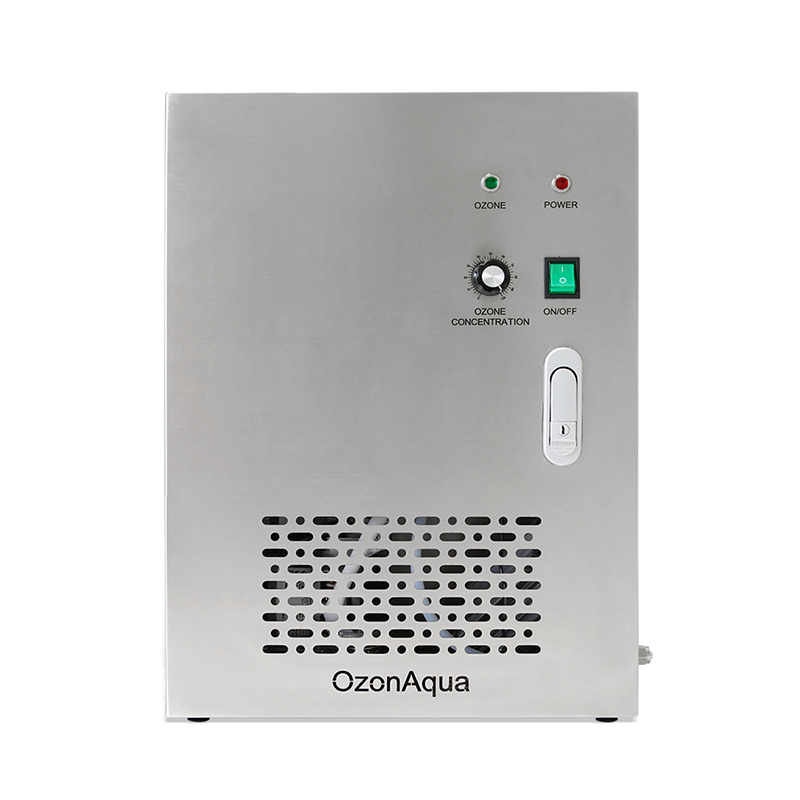

6. Control Panel & Indicators: The unit includes a user-friendly interface with an ozone indicator light, a main power switch, a concentration adjustment button, and a cabinet lock for safety and controlled access.
7. Connection: The generated ozone is delivered via a dedicated ozone outlet port, ready for connection to the application point (e.g., for water treatment as indicated by the "OzonAqua" branding).
INSTALLATION INSTRUCTIONS

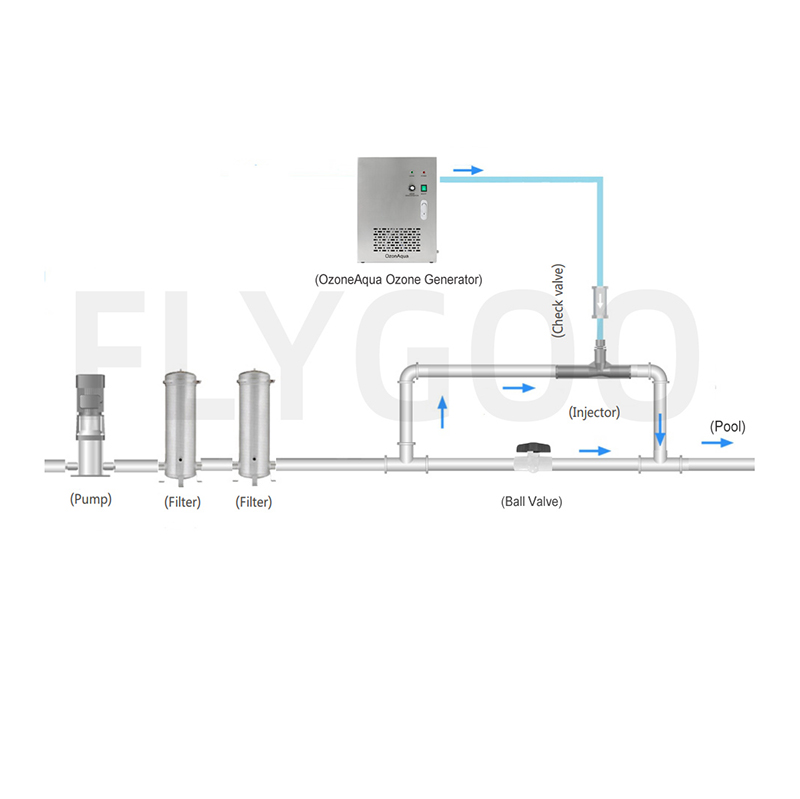

How it works?
Water is drawn from the swimming pool by a pump. It first passes through one or more filters to remove particulates and debris. The filtered water then flows past an injector (venturi), which creates a vacuum. This vacuum draws ozone gas produced by the OzoneAqua Ozone Generator into the water stream, where it is thoroughly mixed. A check valve prevents water backflow into the ozone generator. The ozone-enriched water is then returned to the pool for disinfection and oxidation. A ball valve is typically included in the line to regulate or shut off the water flow for maintenance.
OzonAqua Water Application
Ozone generators offer versatile and powerful oxidation capabilities across numerous industries. Their primary applications include disinfecting and sanitizing water in Swimming Pools & Spas, and purifying Bottled/Drinking Water.
In the industrial and commercial sectors, they are essential for Food Processing preservation and sanitation, as well as for treating Waste Water by breaking down contaminants.
Furthermore, they effectively Remove Odors & Bacterial in the air and on surfaces, and are used in Commercial Laundry operations to sanitize linens and eliminate stubborn odors without the use of high-temperature water or harsh chemicals.
