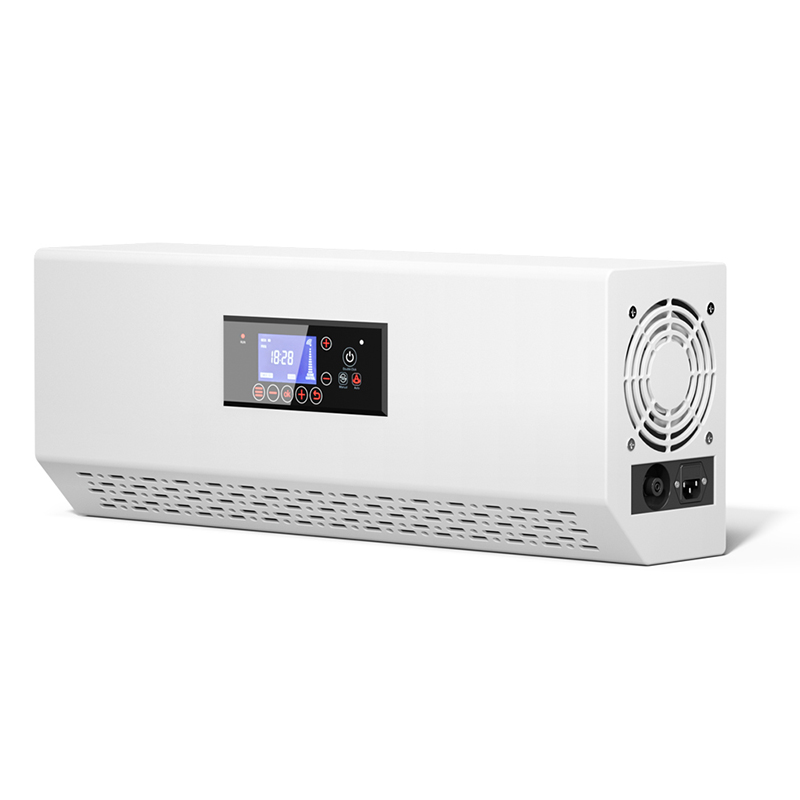

Flygoo Air Purifier Ozone Generator 10g for School Classroom And Laboratory

The FG-W series products are corona discharge type ozone generators, with advanced Insulated Gate Bipolar Transistors (IGBT) power supply and generation chambers utilizing dehydroxylation quartz structure dielectric. The Flygoo wall-mounted ozone generators can be destroyed bacteria, purified air, and eliminated peculiar smells in the air. The unit features timer remote control, LCD display, IOT WiFi control, and weekly programmable timer. Ozone generators create O3, or ozone, which disburses into the space to be treated. O3 attacks odor causing substances at their source to permanently remove odors in the treatment area.

Availability:

Quantity:



Inquire Add to Basket

Model:
FG-W
Brand:
FLYGOO

Product Description

PRODUCTS FEATURES

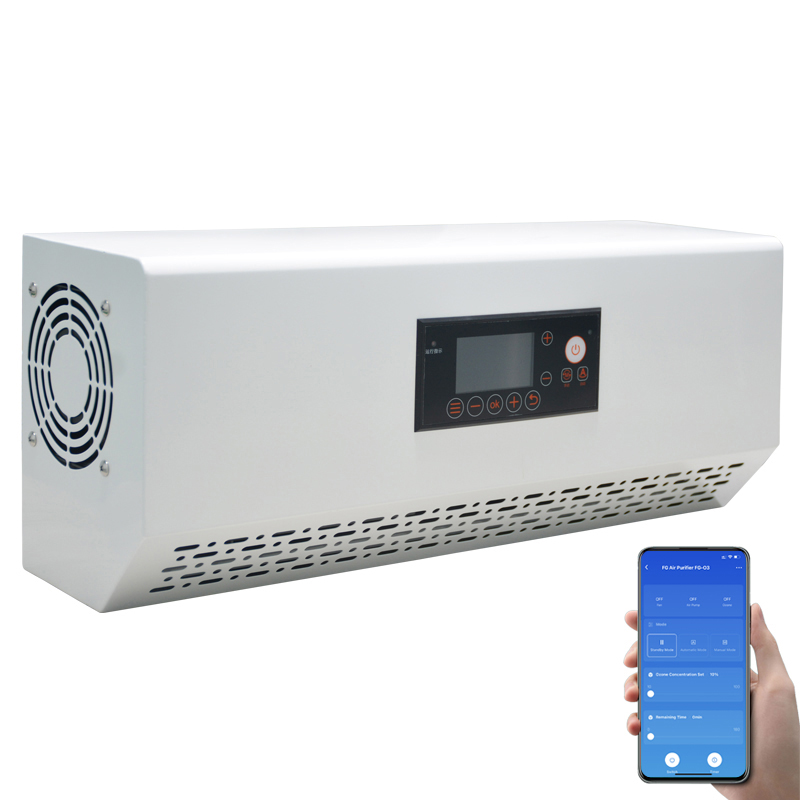

Wall-mounted Installation and Air-cooling

Corona discharge principle and surface discharge method

Designed and produced with ceramic plates and long-life discharge electrode

Stainless steel enclosure

Special driving power, highly efficient and reliable

Plug-in programmable control timer

CE Certification

PRODUCT PARAMETERS

Item	Unit	FG-W
Ozone Output	g/hr	3	5	10
Ref. Disinfection Area*	m3	30-100	90-150	200-300
Power	w	5.7	6	7.7
Electric	VAC/Hz	220~240/50~60; 110/60
Gas Feed	/	Dry Clean Air
Ozone Concentration	mg/l	Air supply:5~15
Size(LWH)	mm	500220160		580240180
Weight	kg	5.7	6	7.7
Cooling Way	/	Air-cooled
Inner Air Pump	Yes/No	Yes
Ambient Humidity	%	<70
Ambient Temperature	ºC	<40

APPLICATIONS

Air Treatment/Remove Odors/Bacteria

Sterilization and disinfection: restaurant, hospital, packing workshop, food factory,cold room,etc

Food fresh keeping: refrigerated storage

Deodorization: basement, garage, store room, hotel

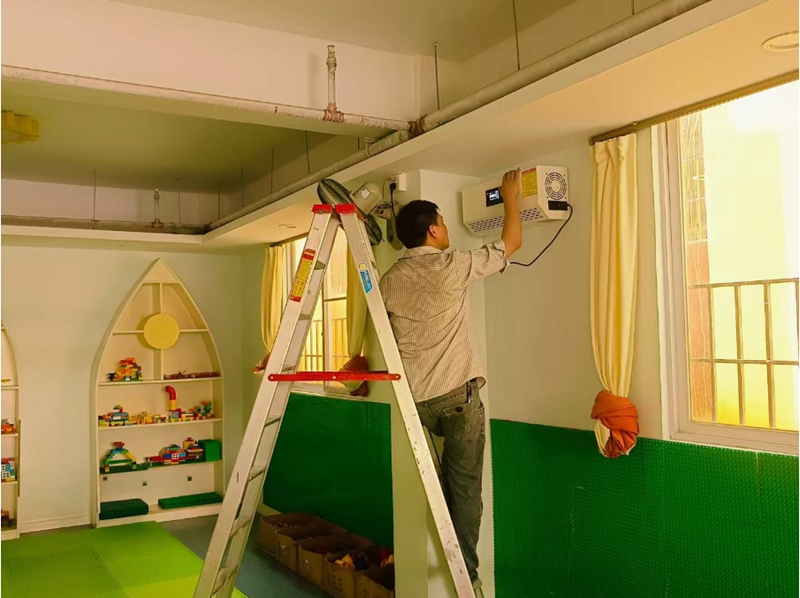

Kindergarten School

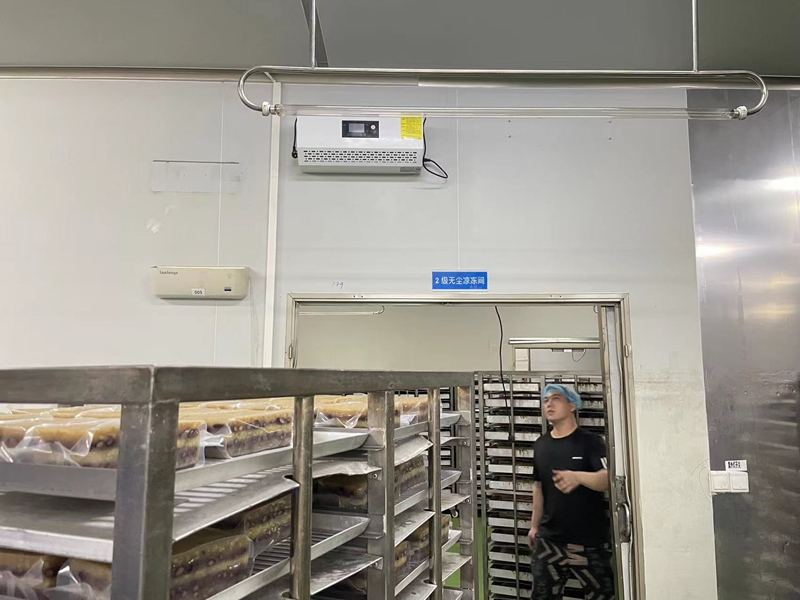

Food Factory

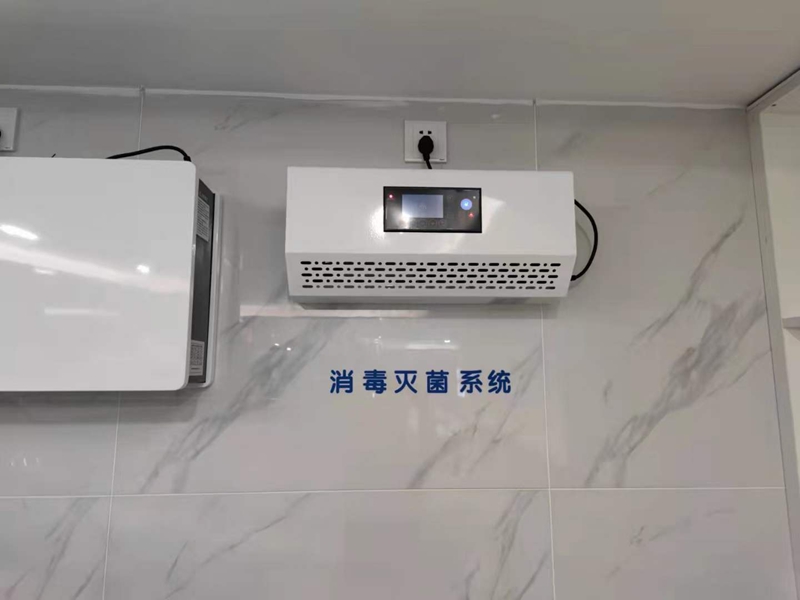

Fire Station

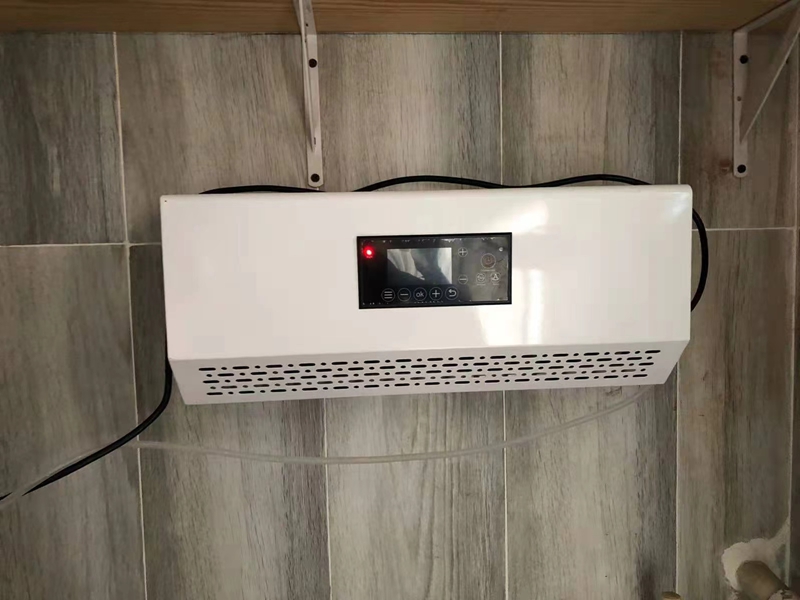

Swimming Pool

CORE TECHNOLOGY

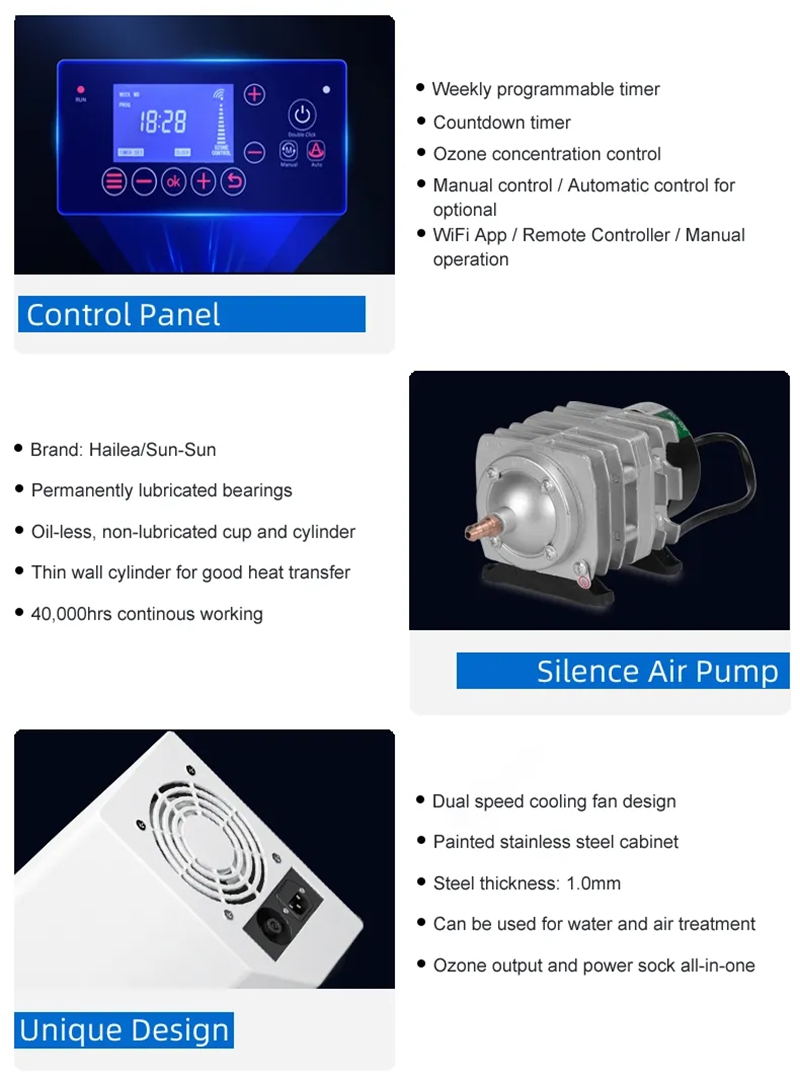

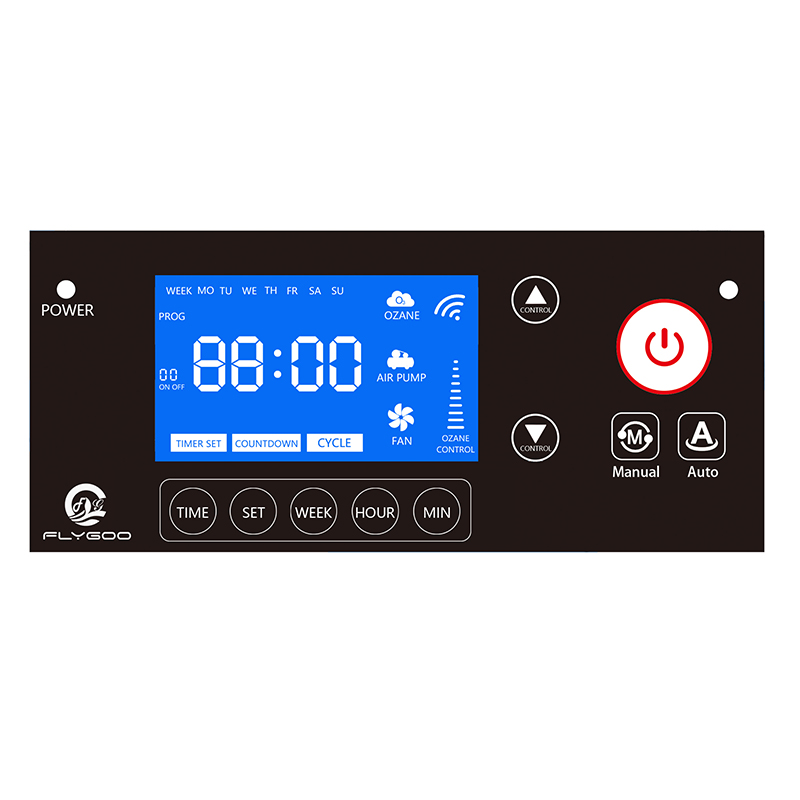

This ozone generator system features an IGBT power supply with an imported module, offering optional variable output and comprehensive protection. Its core utilizes a micro-gap discharge air-cooled chamber with a long-life quartz structure and 316L stainless steel electrode, achieving stable ozone concentrations up to 120mg/L. The unit is equipped with a programmable control panel for timer, concentration settings, and manual/automatic/WiFi operation. It includes a durable, oil-less silence air pump capable of 40,000 hours of operation. The system is housed in a painted stainless steel cabinet with a dual-speed cooling fan and is designed for versatile water or air treatment applications.
