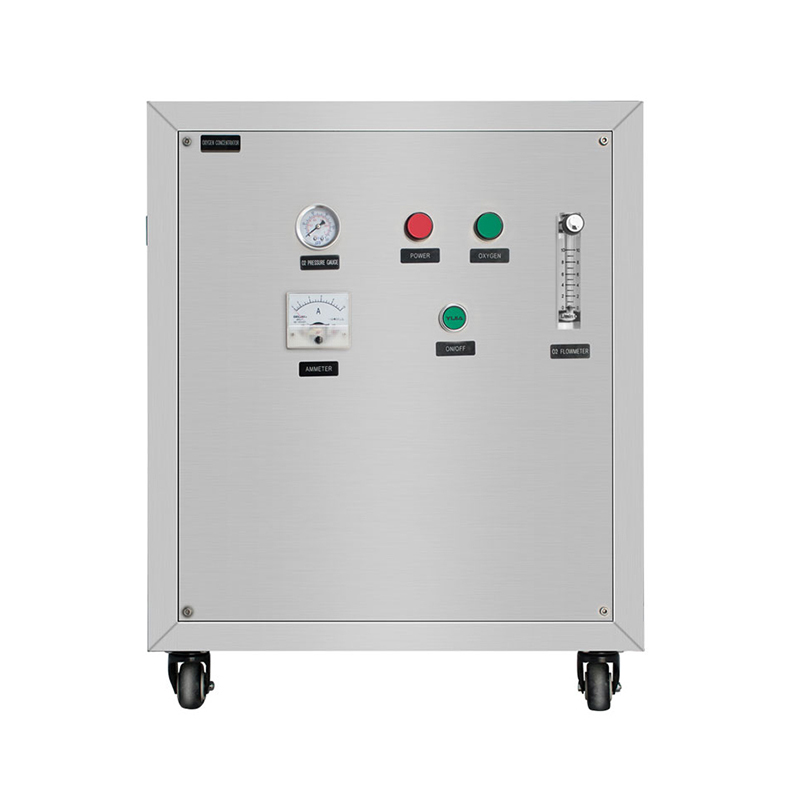

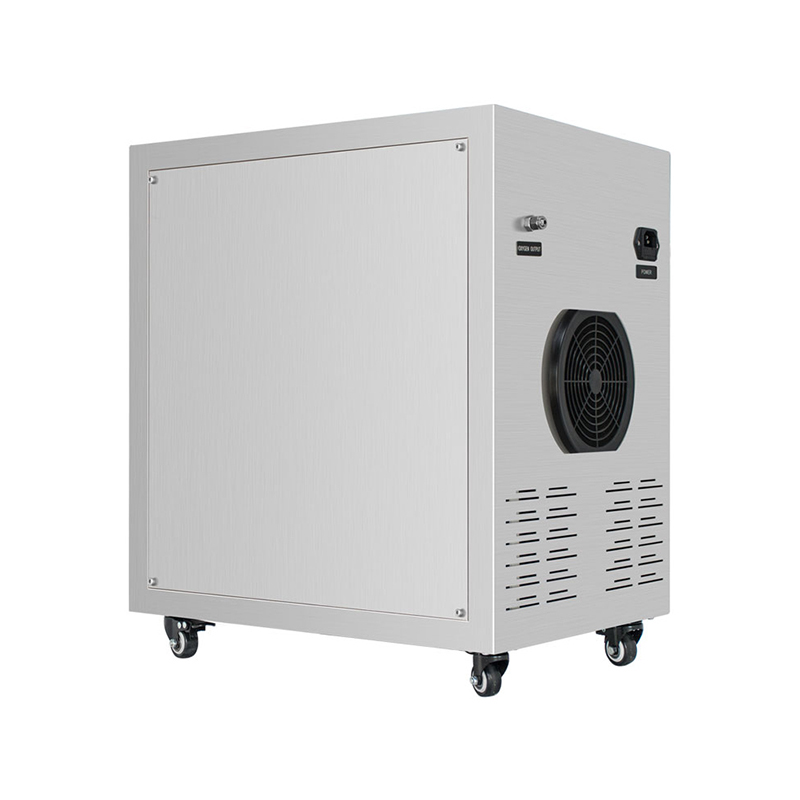

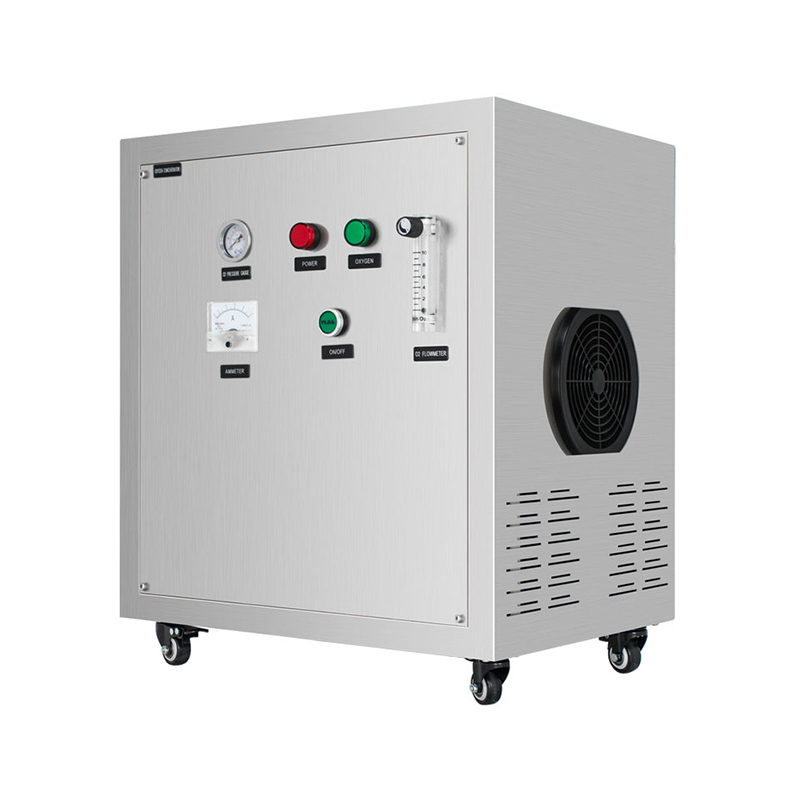

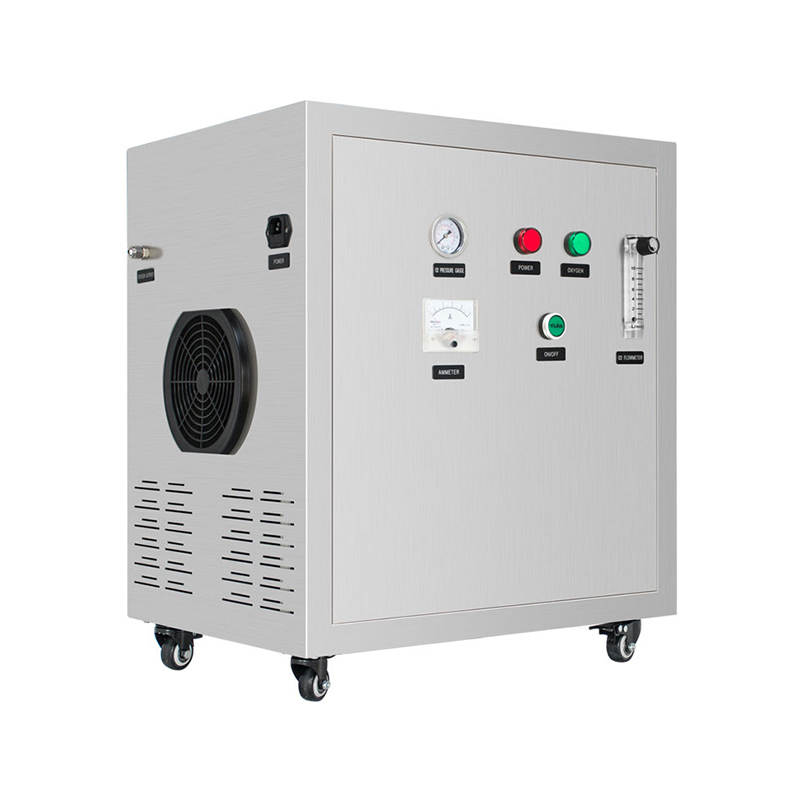

FG-OX
FLYGOO
TECHNOLOGY
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs significantly from
cryogenic distillation techniques of gas separation. Specific adsorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbed material.
FEATURE
● Highly automated, fast generation of oxygen, a single press on the switch can start or stop the equipment, and oxygen can be generated in 2 minutes
● Air feeding input with no additive required and low power consumption which ensures lower total cost
● Highly purified and convenient, output oxygen purity is only influenced by output flow and can be adjusted in the ranged of 90%~95%
● Adjustable oxygen flow meter
● The whole gas circuits work in low pressure which makes it safe and reliable
● Stainless steel enclosure and Teflon tube for SUS304 oxygen outlet
PRODUCT PARAMETERS
Item | Unit | FG-OX | |||
Oxygen Capacity | LPM | 3 | 5 | 8 | 10 |
Power | w | 550 | 600 | 610 | 650 |
Electric | VAC/Hz | 220~240/50~60; 110/60 | |||
Output Pressure | Mpa | 0.04-0.08Mpa | |||
Oxygen Purity | % | 92%-94.4% | |||
Size(L*W*H) | mm | 500*400*625 | |||
Weight | kg | 32 | 33 | 33.5 | 34.5 |
Inner Air Compressor | Yes/No | Yes | |||
Air with Dust Content | <=20mg/m3 | ||||
Air with H2S,SO2 | <=5PPM | ||||
Air with CO2 | <=250PPM | ||||
Air with C2H2 | <=0.5PPM | ||||
Air with CmHm | <=20ppm | ||||
Ambient Humidity | % | <70 | |||
Ambient Temperature | ºC | <40 | |||

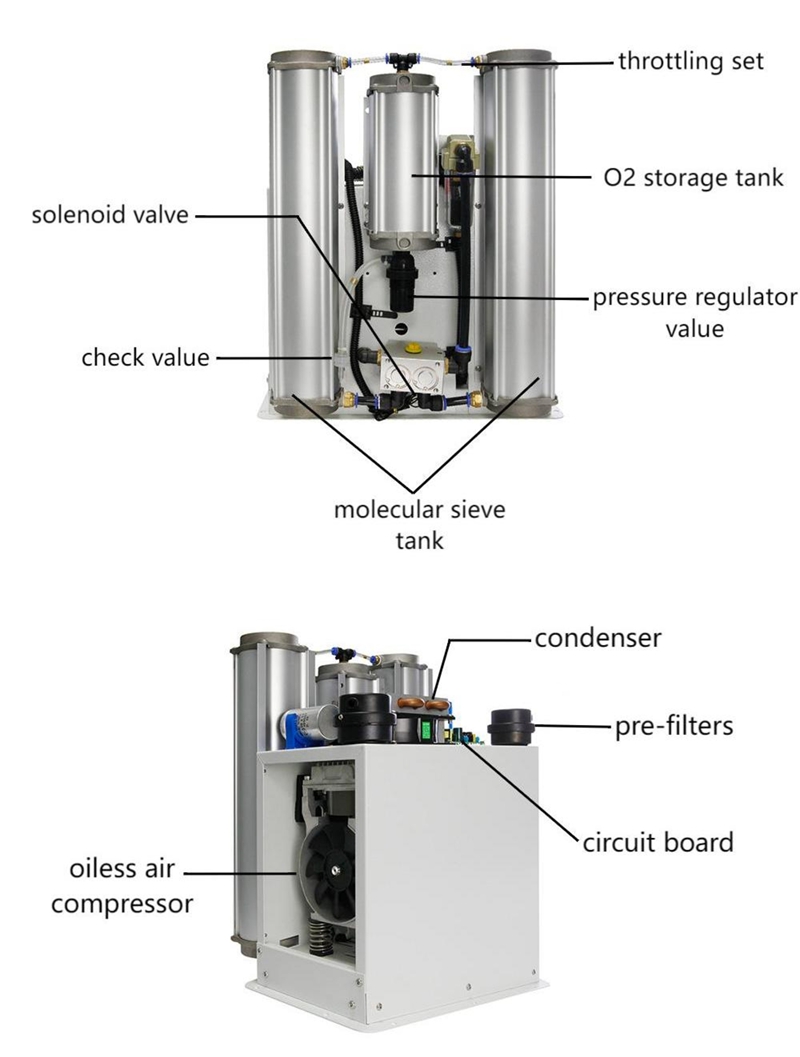

COMPONENTS
● A-B tower oxygen generation units (France CECA modular sieve) module
● Gas water separator
● Switching board
● Moisture separator
● Ultra-filters
● O2 outlet pressure

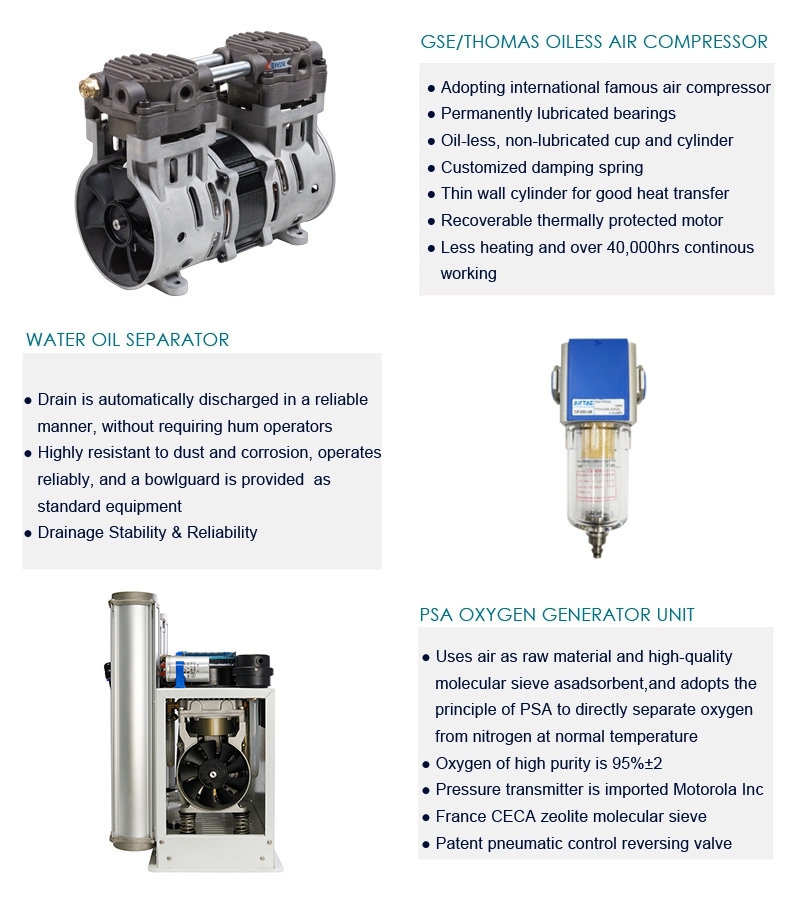

● Built-in GSE (Thomas for option) Oil free air compressor
STRUCTURE
PSA oxygen generator uses air as raw material and high-quality molecular sieve asadsorbent, and adopts the principle of pressure swing adsorption (PSA) to directly separate oxygen from nitrogen at normal temperature Oxygen of high purity is 95%±3 Pressure transmitter is imported Motorola Inc France CECA zeolite molecular sieve Patent pneumatic control reversing valve
Typical Applications:
Manufacturing
-Glass Work/Blowing
-Brazing/Sodering/Jewelry
Environmental
-Ozone (Generator) Feed Gas
-Environmental Remediation
Additional
-Fish Farming
-Laboratory Experiments
-Aquaponics
-Hydroponics

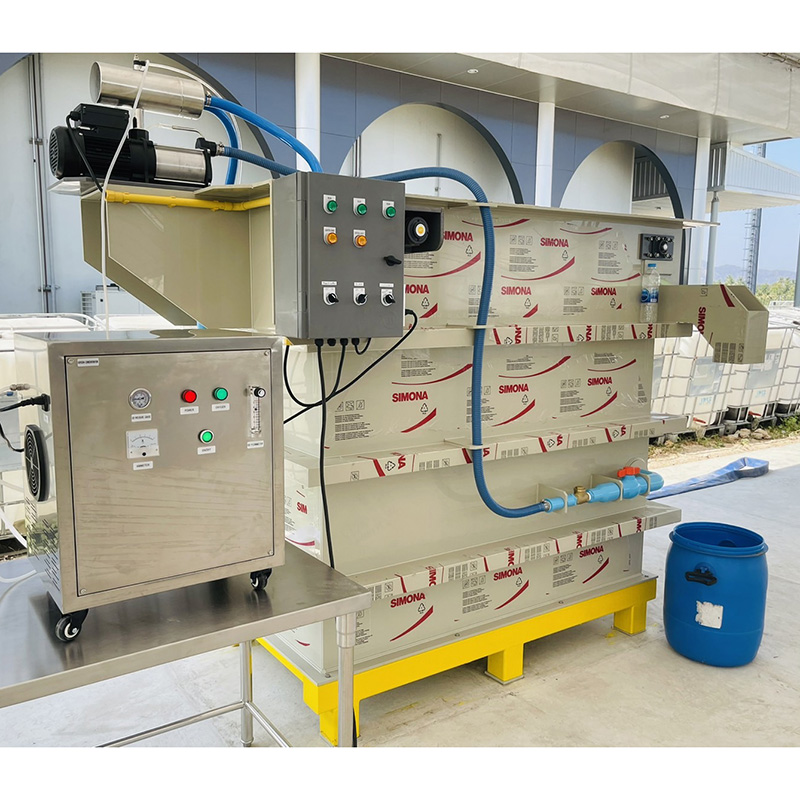

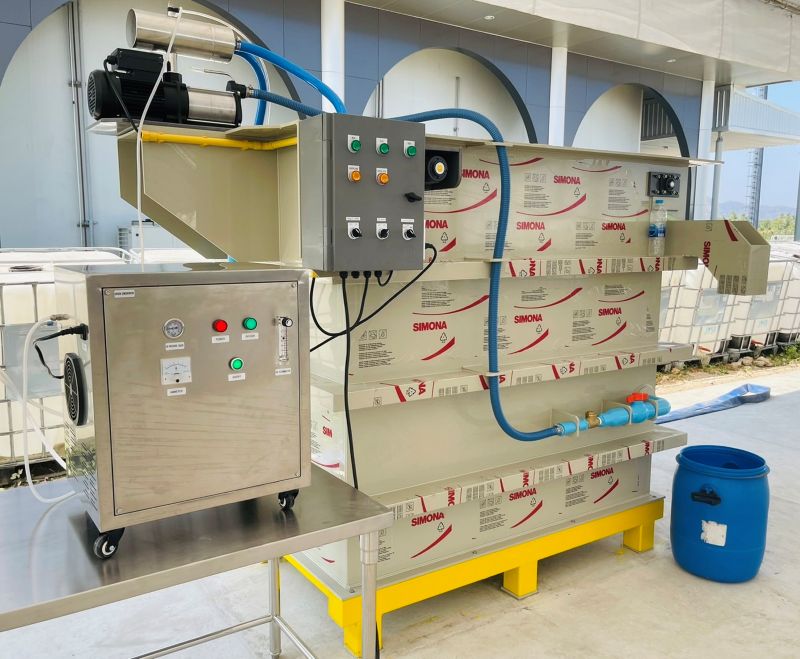

DAF System

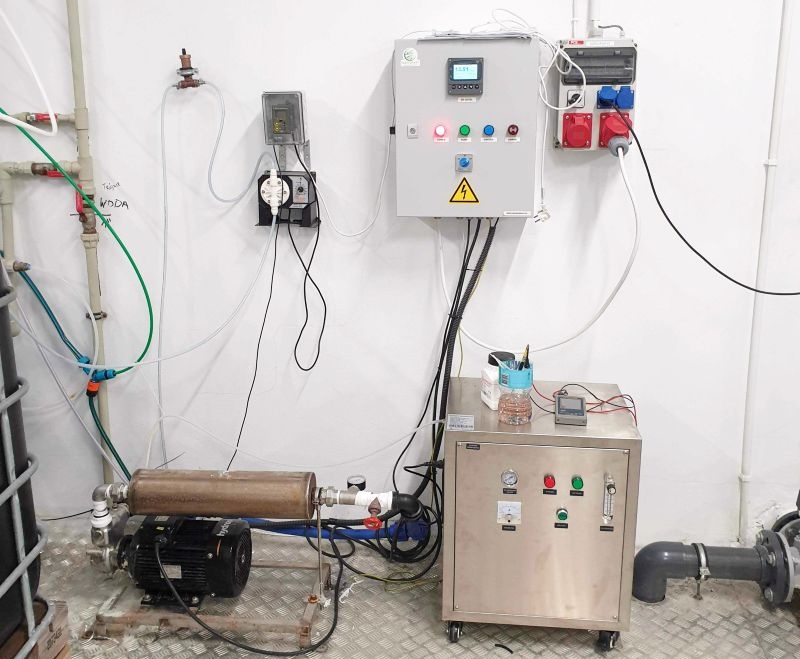

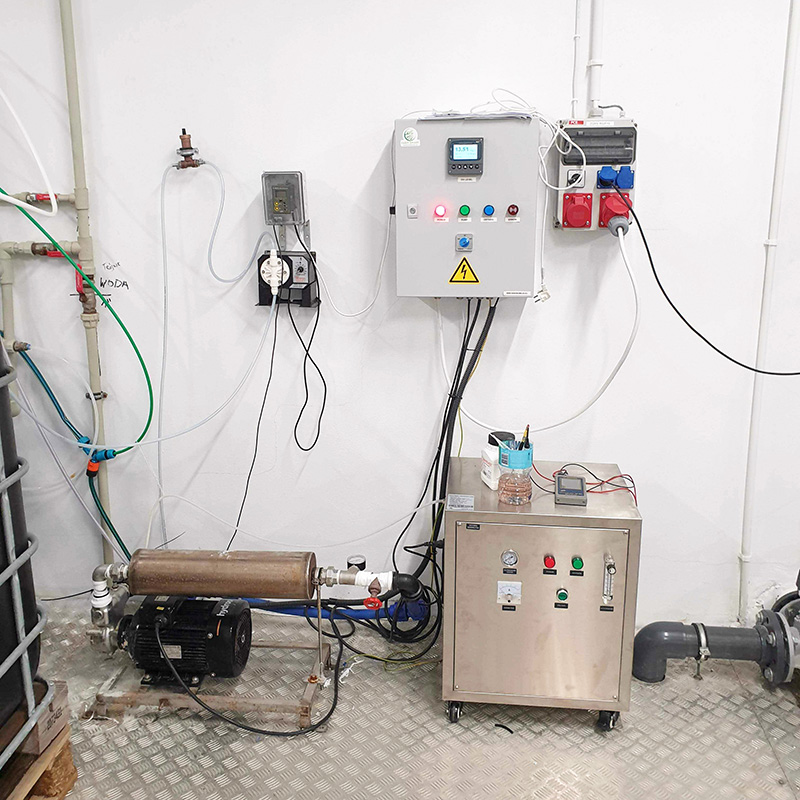

Agricultural Water

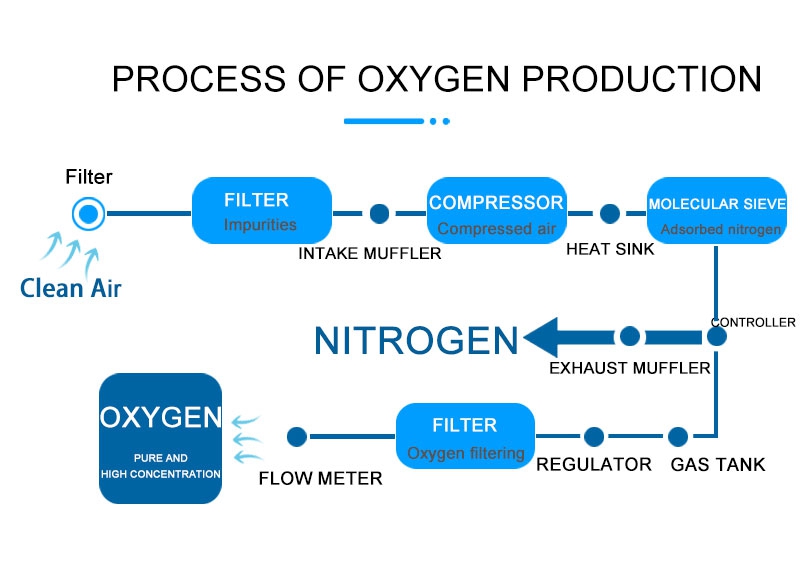

How an Oxygen Concentrator Works?
Air is 21% oxygen and78% nitrogen.An oxygen concentrator separates the oxygen in Air, from the nitrogen using Pressure Swing Adsorption (PSA) technology. Molecular Sieve (Zeolite) is an inert material that adsorbs nitrogen and water vapor under pressure and lets the oxygen pass through.
