Flygoo Low Cost 3L 5L 8L 10L Psa Oxygen Generator Spare Parts


The FG-OX series of equipment is used France CECA zeolite molecular sieve adsorbent, separating oxygen from nitrogen in the air using pressure swing adsorption (PSA) principle, and filter harmful substances in the air, so as to obtain a high concentration oxygen in line with medical oxygen standards.PSA oxygen generating equipment provide you with the purity of 90%-95% oxygen to meet all requirements; The installation and operating costs fan less than bottled or liquid oxygen.
Availability:
Quantity:
Inquire Add to Basket

Product Description


PRODUCT FEATURES

  • Highly automated, fast generation of oxygen, a single press on the switch can start or stop the equipment, and oxygen can be generated in 1 minute

  • Air feeding input with no additive required and low power consumption which ensures lower total cost

  • Highly purified and convenient, output oxygen purity is only influenced by output flow and can be adjusted in the ranged of 90%~95%

  • Adjustable oxygen flow meter

  • The whole gas circuits work in low pressure which makes it safe and reliable

  • Stainless steel enclosure and SUS304 oxygen outlet

TECHNOLOGY

Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation. Specific absorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbed material.

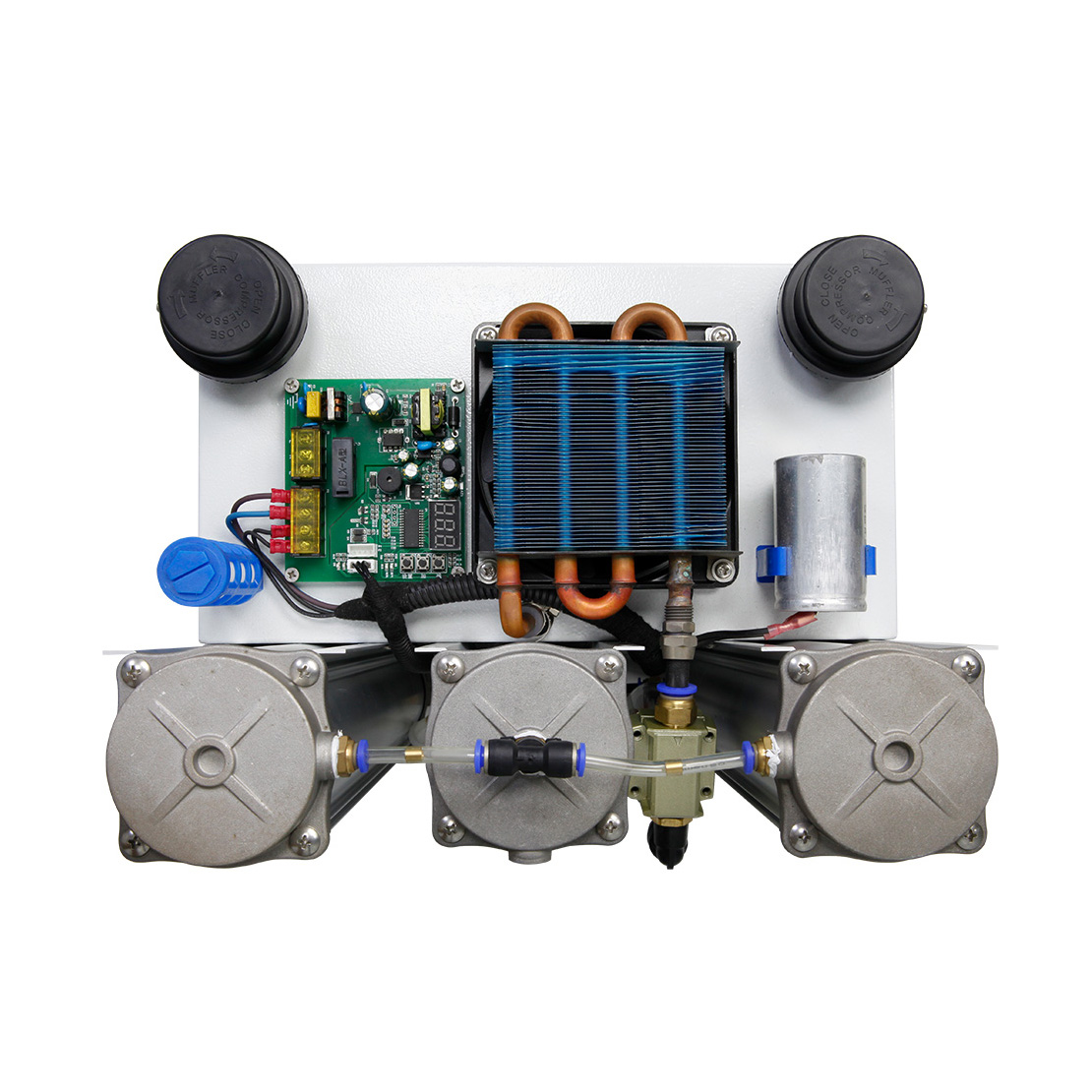

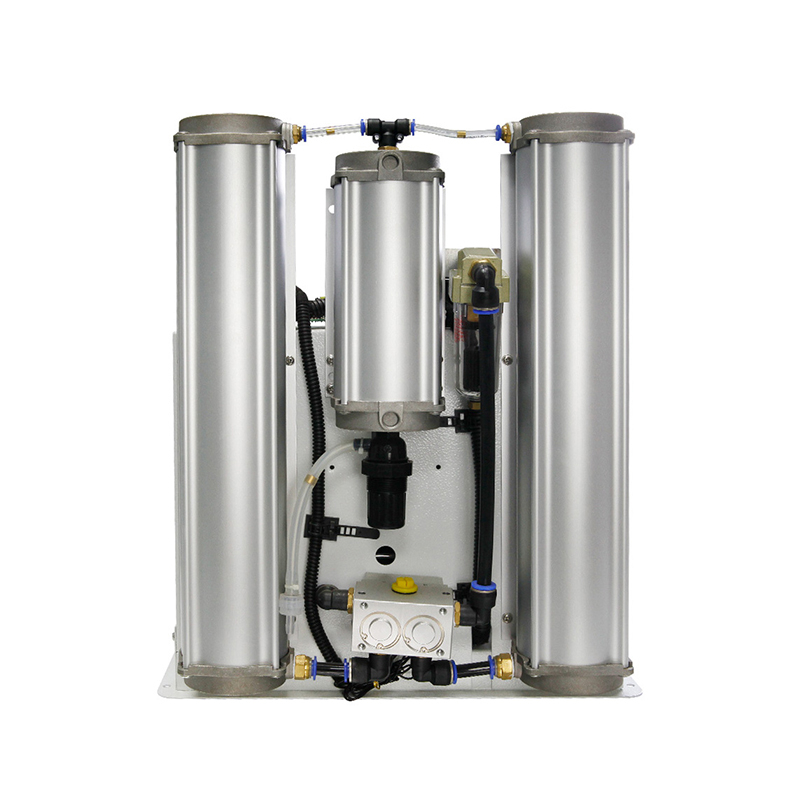

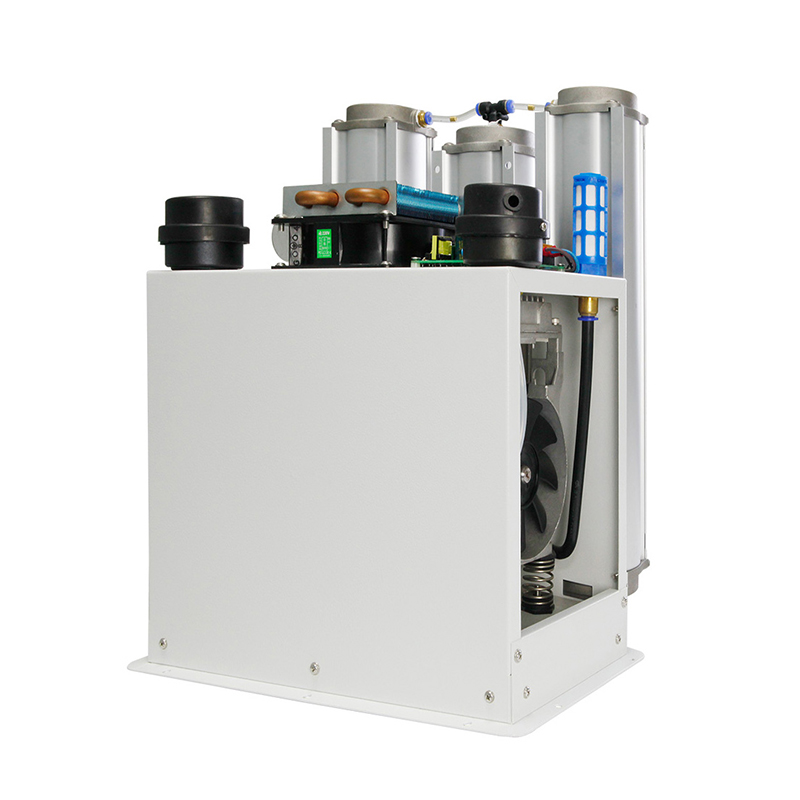

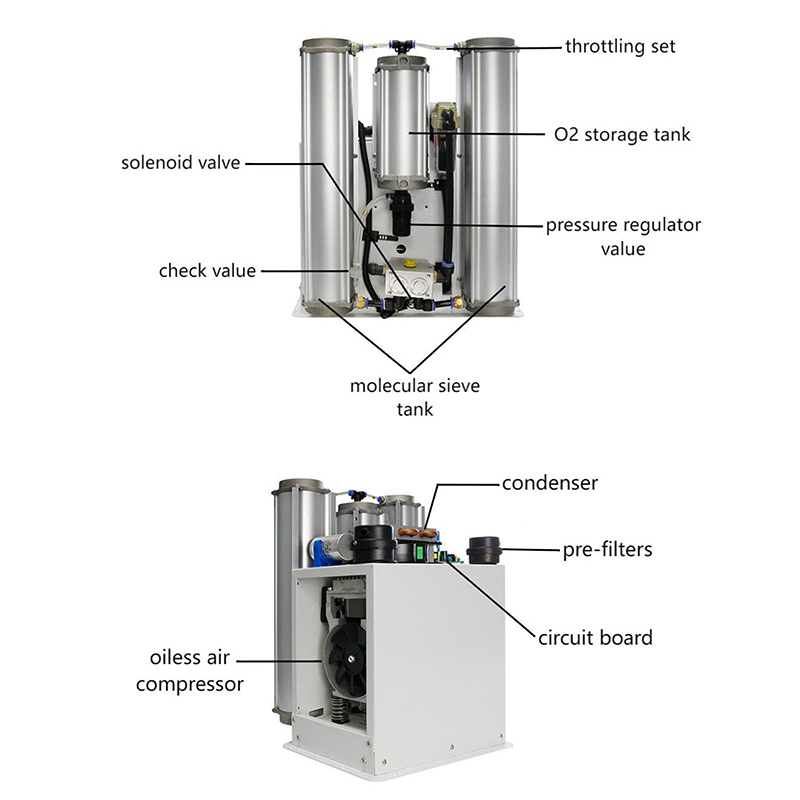

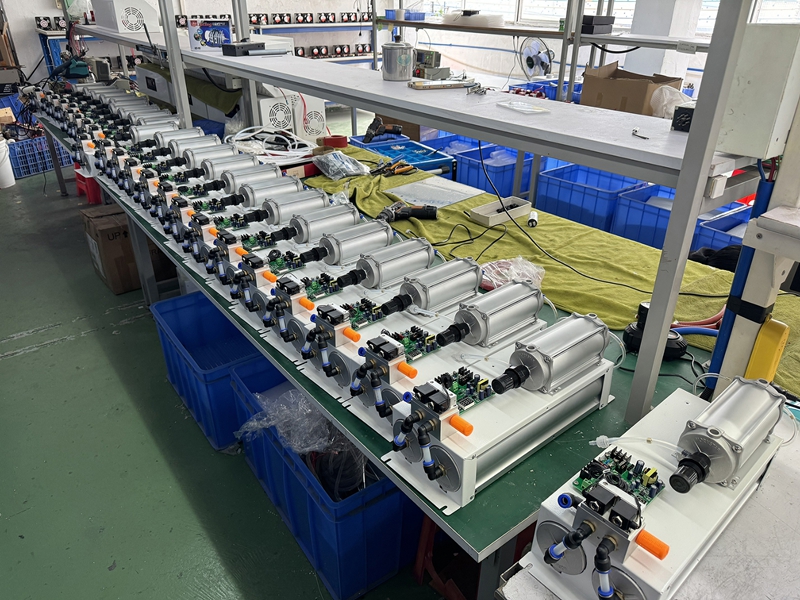

COMPONENTS

A-B tower oxygen generation units (France CECA modular sieve) module Gas water separator Switching board

Moisture separator

Ultra-filters

O2 outlet pressure

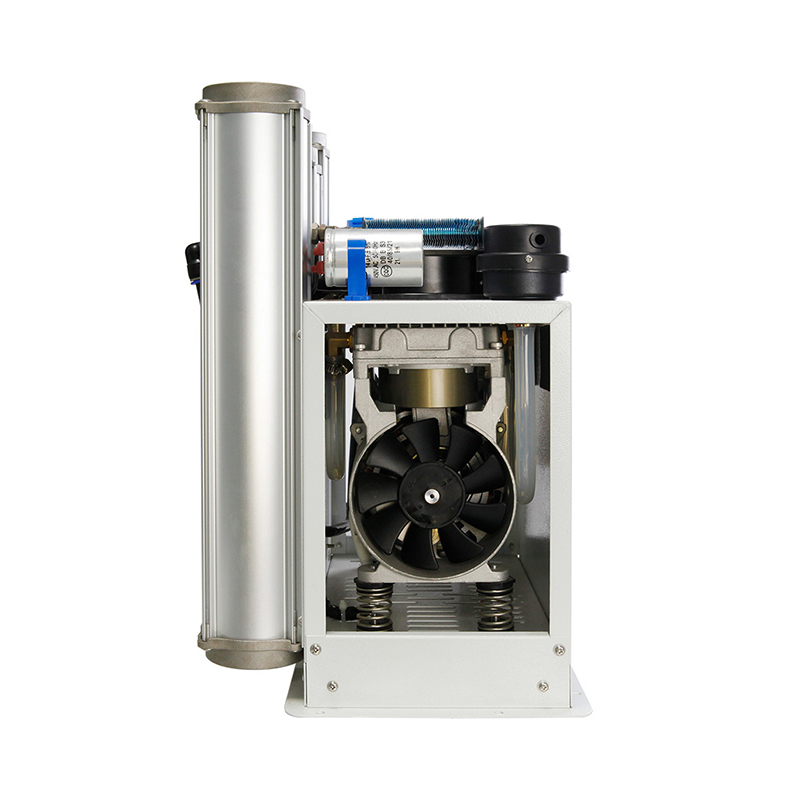

Built-in Oil free air compressor


TECHNICAL DATA

Item

Unit

FG-OXSP-1

Oxygen Capacity

LPM

3

5

8

10

Power

w

400

500

510

550

Electric

VAC/Hz

220~240/50~60; 110/60

Output Pressure

Mpa

0.04-0.08Mpa

Oxygen Purity

%

92%-94.4%

Size(L*W*H)

mm

402*285*370

Weight

kg

16

18

19

20

Inner Air Compressor

Yes/No

Yes

Air with Dust Content

<=20mg/m3

Air with H2S,SO2

<=5PPM

Air with CO2

<=250PPM

Air with C2H2

<=0.5PPM

Air with CmHm

<=20ppm

Ambient Humidity

%

<70

Ambient Temperature

ºC

<40


Typical Applications:

Manufacturing

-Glass Work/Blowing

-Brazing/Sodering/Jewelry

Environmental

-Ozone (Generator) Feed Gas

-Environmental Remediation

Additional

-Fish Farming

-Laboratory Experiments

-Aquaponics

-Hydroponics

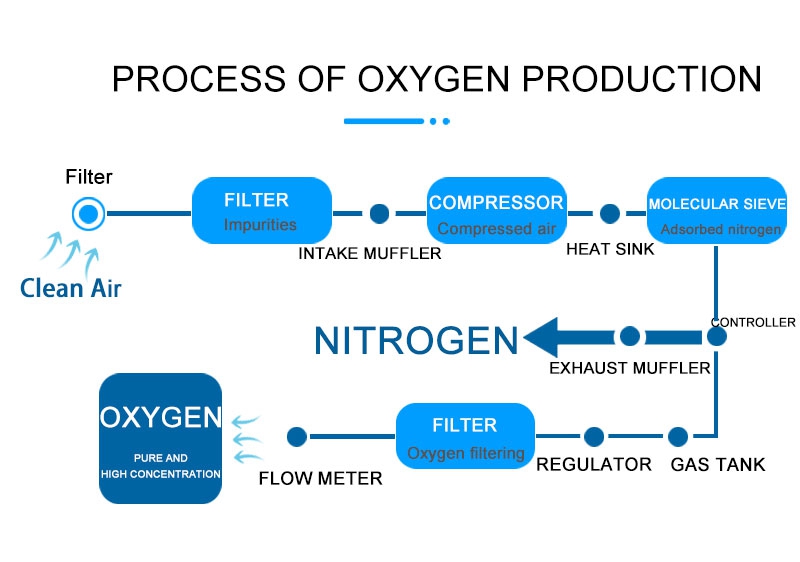

How an Oxygen Concentrator Works?

Air is 21% oxygen and78% nitrogen.An oxygen concentrator separates the oxygen in Air, from the nitrogen using Pressure Swing Adsorption (PSA) technology. Molecular Sieve (Zeolite) is an inert material that adsorbs nitrogen and water vapor under pressure and lets the oxygen pass through.
