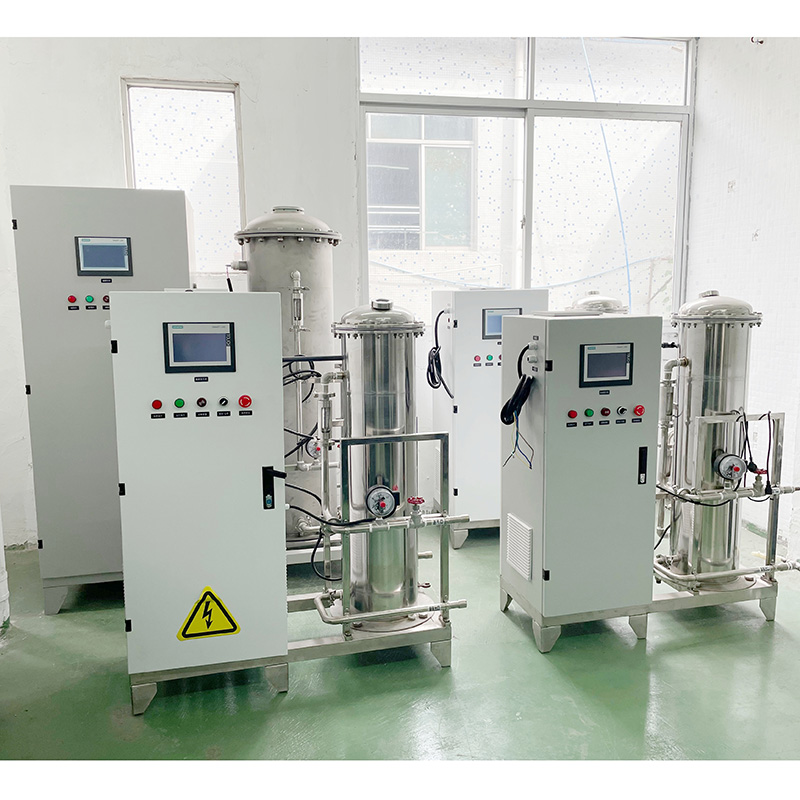

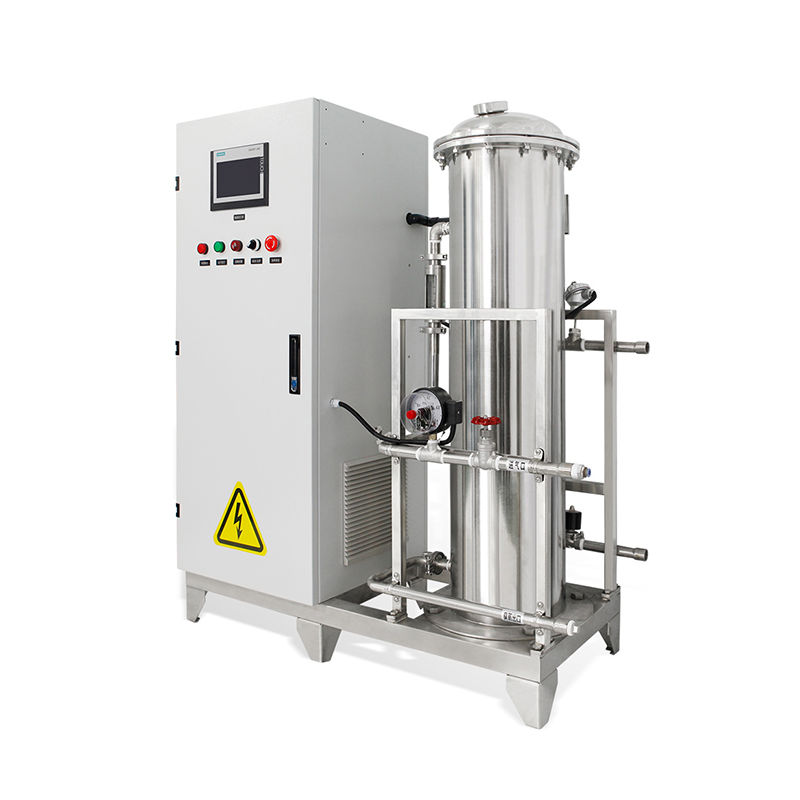

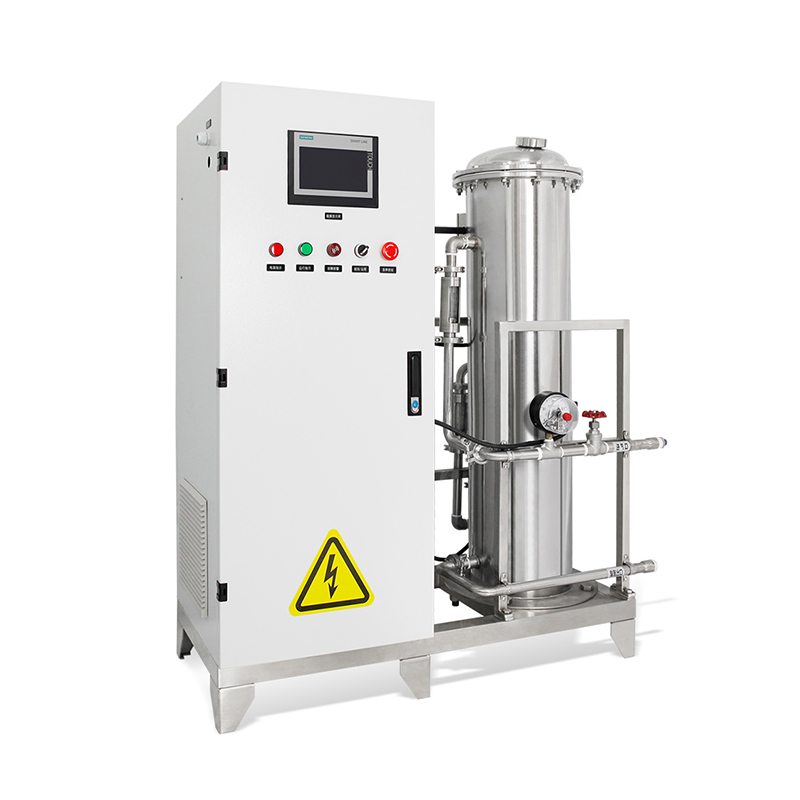

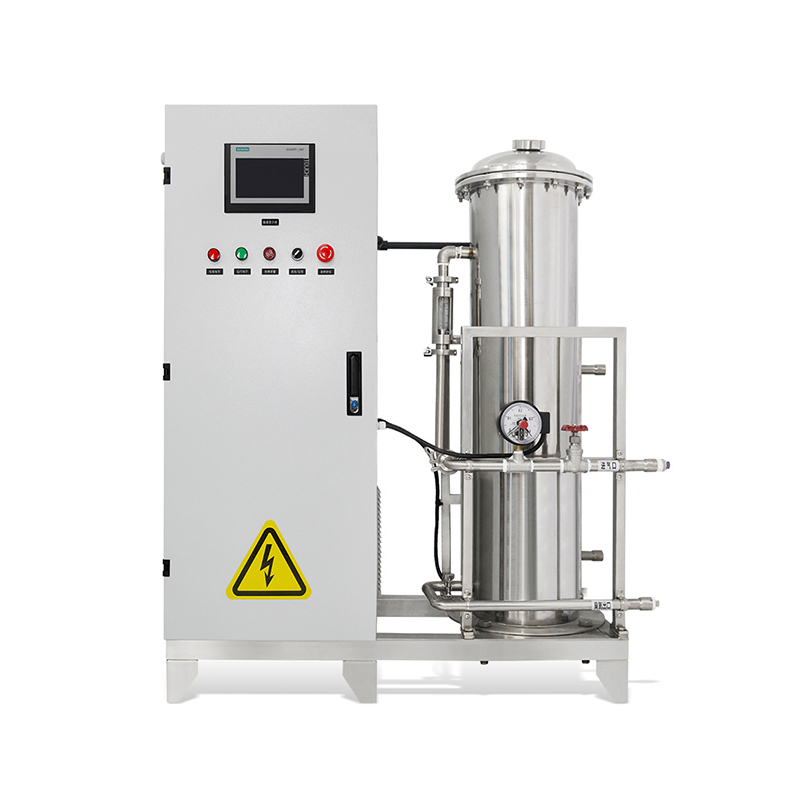

Flygoo 400g 500g 1kg 2kg Corona Discharge Industrial Ozone Generator for Water Treatment

This large ozone generator features an automated control system with HMI interface and an English LCD display for real-time monitoring and parameter adjustment. Its PLC control system (Siemens optional) can be customized to site requirements. Each ozone module is equipped with an independent high-voltage fuse to ensure reliable operation of the discharge chamber, which is easily removable for low-cost maintenance. Constructed with 316L stainless steel external electrodes, the generator supports long operating hours and stable ozone production through efficient cooling, offering flexible module arrangements and reduced maintenance costs.

The medium ozone generator is characterized by high ozone concentration, a compact design, and robust durability. It allows for both local and remote start/stop control, with a display indicating operational status. The system includes automatic shutdown in case of ozone leakage, self-destruction of residual ozone, and regulated control of cooling water and air supply to adjust ozone output automatically. Enhanced safety is ensured by high-voltage fuses that trigger promptly in the event of electrode failure, maintaining system reliability.

Availability:

Quantity:



Inquire Add to Basket

Product Description

FEATURES

Multi-point malfunction monitoring, main board temperature detection, high voltage transformer temperature detection, cooling water temperature detection, IGBT over temperature protection, PSA input air temperature detection, back flow water of the corona discharge tube detection.
The equipment stop operation and the corresponding fault indicator on the control panel lights up when a fault is detected. The equipment utilized large power IGBT modules,extremely stable,high efficiency ,long lifespan dehydroxylation quartz glass structure,water cooling parts ,world-class essential components and world-leading intelligent design.
4-20 mA interface for automatic output control
Variable Ozone Output 10-100%
High Voltage, High Frequency Corona Discharge Technologyl
Stainless steel case and SUS304 ozone outlet
Main components from Siemens (IGBT, IGBT module)

PRODUCT PARAMETERS

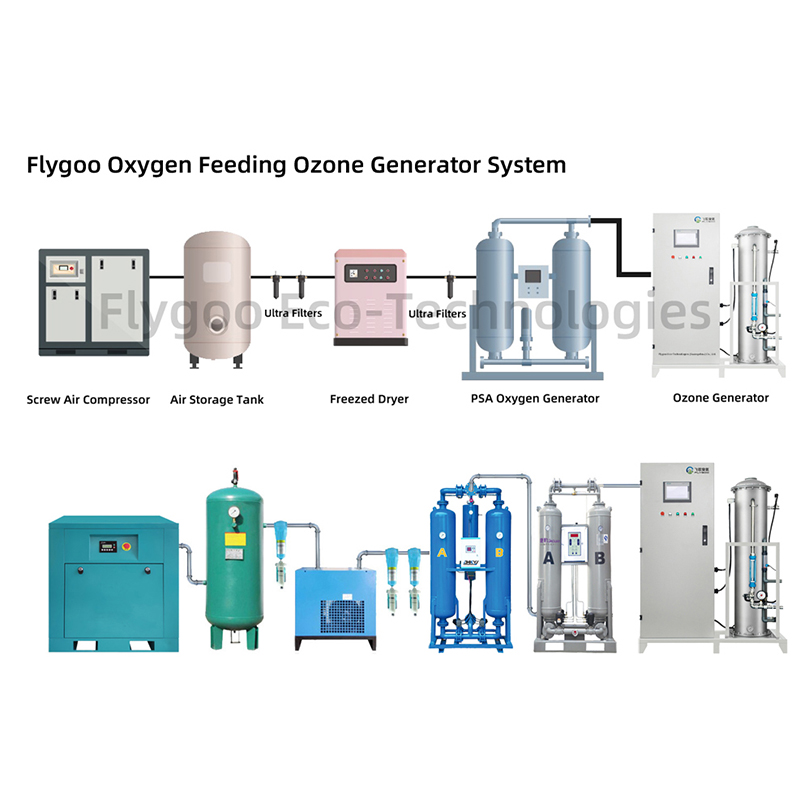

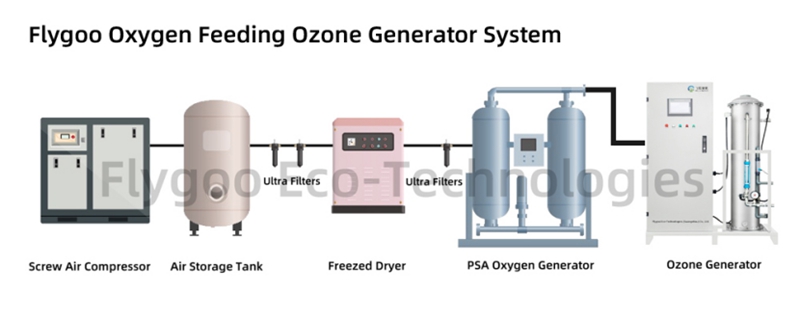

500G Oxygen Feed Ozone Generator
Ozone Model	FG-OF-500G	Cooling Water Flow Rate	1-1.5m3/h
Weight	160kg	Ozone Output	500g/h
Electric	380V/50(60)Hz/3PH	Ozone Concentration	80-120mg/L
Power Consumption	5.5 kw	Dimension	11004201340mm
PSA Oxygen Generator
Ozone Model	FG-OX	Power Consumption	0.2kw
Weight	/	Dimension	115011001720mm
Oxygen Flow Rate	5m3/h	Oxygen Purity	92-94%
Adsorption Air Dryer
Model	FG-20	Power Consumption
Weight	60kg	Dimension
Air flow rate	3m3/min	Gas source dew point
Air Storage Tank
Model	FG-C-0.3	Working pressure	1.2Mpa
Weight	75kg	Dimension	550*1590mm
Screw Air Compressor
Model	FG-15A	Power Consumption	15kw
Weight	231kg	Dimension	10807501000mm
Air flow rate	2.2m3/min	Method	Screw Type
Water Chiller
Model	FG-WC	Power Consumption	2.5KW
Weight	69kg	Dimension	670470890mm
Cooling Power	5.17KW	Refrigerant	R410A

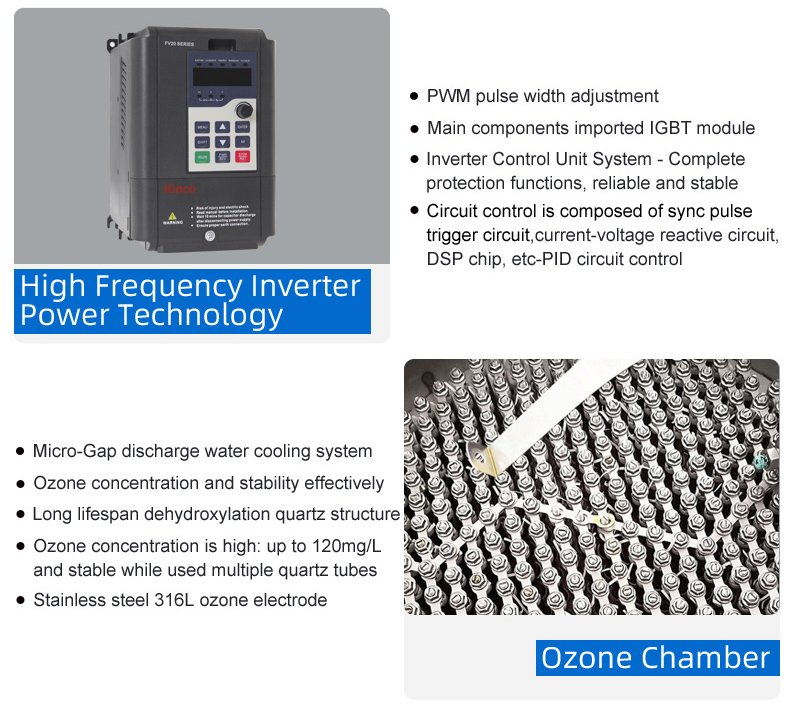

CORE TECHNIQUE

This ozone generator integrates advanced high-frequency inverter power technology utilizing imported IGBT modules and PID circuit control (with DSP chip) for stable operation. Its core employs a micro-gap discharge water-cooling system with dehydroxylation quartz tubes and 316L stainless steel electrodes, achieving high ozone concentrations up to 120mg/L.

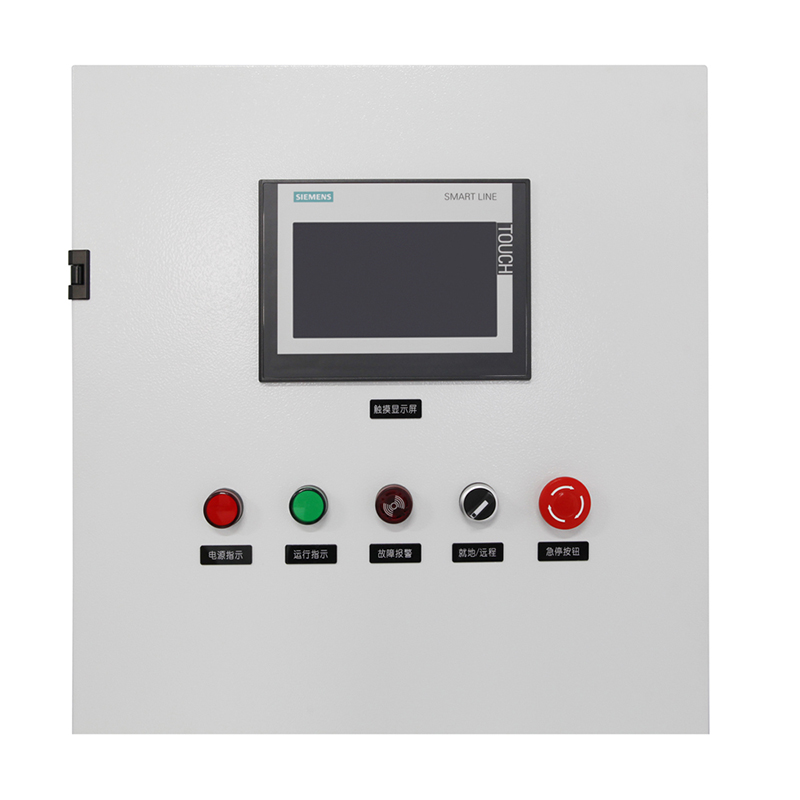

The system is controlled by a SIEMENS PLC with an HMI touchscreen for real-time monitoring and local/remote operation. It features comprehensive stainless steel construction (304 body & pipings, 316L inner electrodes) and includes multi-point fault monitoring, emergency stop, and customizable control options.

核心技术1

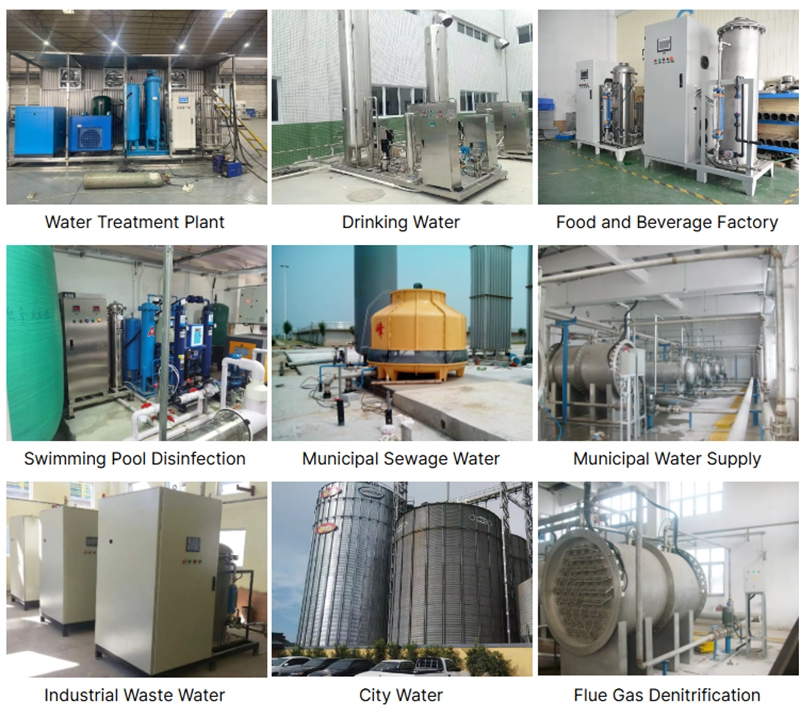

Ozone Application

This versatile system provides essential treatment across numerous applications, including municipal and industrial settings such as water treatment plants, municipal water supply, sewage, and industrial wastewater. It also supports specific uses in drinking water production, food and beverage factories, and swimming pool disinfection, along with air purification applications like flue gas denitrification.
