It is ideal for use in various applications, including water treatment plants, swimming pools, and food processing facilities. It is also useful in monitoring the quality of drinking water to ensure that it is free of contaminants and safe for human consumption. With the Online Dissolved Ozone Meter Water Ozone Analyzer, users can quickly detect any issues with the water quality and take appropriate action to correct the problem.
> No membrane dissolved ozone three electrode method, sensitive reaction. It can be compared
with DPD method.
> IP65 dustproof and waterproof grade, all-weather stable operation.
> Simple menu design, convenient operation, fast calibration.
> Two 4~20mA isolated current output, efficient transmission.
>Strong anti-interference ability, suitable for complex industrial site environment.
> Password protection: Prevent unauthorized change Settings
> Two relay switch control, set relevant parameters respectively,efficient control.
>Wall hanging or dial installation, convenient field application. Standard RS485 communication
With the third relay cleaning/alarm function: users can set the cleaning frequency and time.
>Switching power supply 85~260VAC or 12~36VDC.
PRODUCTS FEATURE
Standard 1/4 DIN casing, easy installation.
IP65 rated: high luminance LED backlight, applicable to harsh environment.
Adopt integrated switching power supply module; high protection against electromagnetic interference.
Menu-driven program that simplifies set-up.
Instant browsing all the settings in measurement mode, easy to master your working state
Scaleable isolated 0/4-20mA Outputs
Two relay circuits, users can select high-low control freely. Separately adjustable high and low set-point hysteresis(dead bands) prevent chattering of relays around the set points.
Third relay Cleaning/Alarm function; users sets the cleaning frequency and time
Temperature value offset adjustment.
Optional nanoampere electrode (80mA, 400mA)
-485 output
PRODUCT PARAMETERS
Model | FG-DOZ5000 (Versatile) | FG-DOZ5500 | |
(Wall Mounting) | |||
Dissolved Ozone | Measuring range | 0.000 -2.000 mg/L or 0.00-20.00 mg/L | |
Resolution | 0.001 mg/L or 0.01mg/L | ||
Measuring Accuracy | 1%+-1 LSD | ||
Temperature | Temperature range | -10.0~110.0 °C | |
Resolution | 0.1°C | ||
Measuring Accuracy | -0.3 | ||
Temperature input | 22KΩ / PT1000 | ||
Temperature compensation | automatic | ||
Signal output | Output range | 4~20 mA (adjustable) | |
Current accuracy | 1%F.S. | ||
Output loading | <500 Ω | ||
Data interface | RS485 | RS485 Modbus protocol | |
On off control | Control method | 2 SPST relay | |
Other | Load capacity | 2.5A 230 VAC | |
Cleaning/alarm relay | optional | ||
Working power supply | 85~260VAC or 12~36VDC | ||
Working temperature | 0~60°C | ||
Working humidity | < 90% | ||
Levels of protection | IP65 | ||
Method of installation | Panel mounting | Wall-mounting | |
Outline dimension | 108×108×156 mm | 158×188×108 mm | |

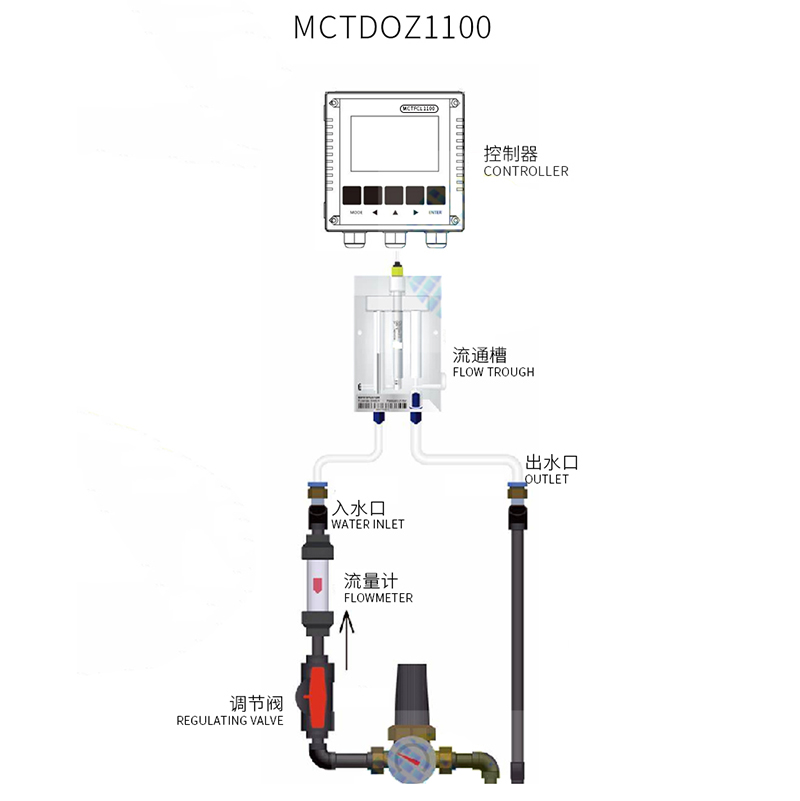

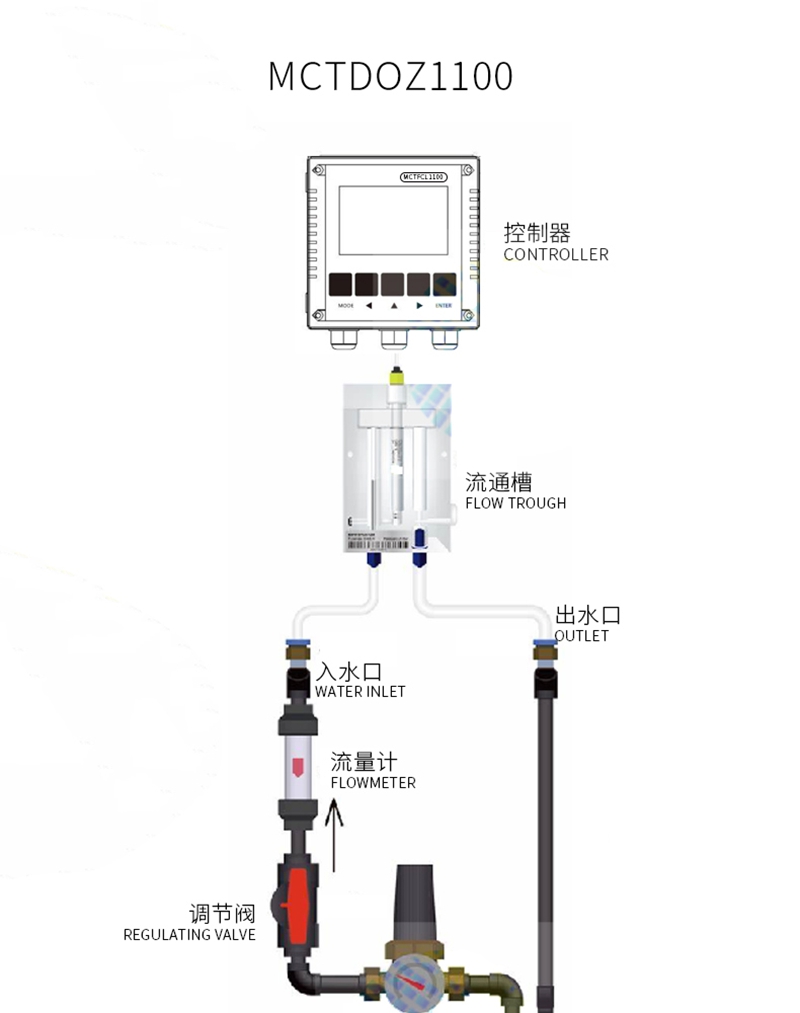

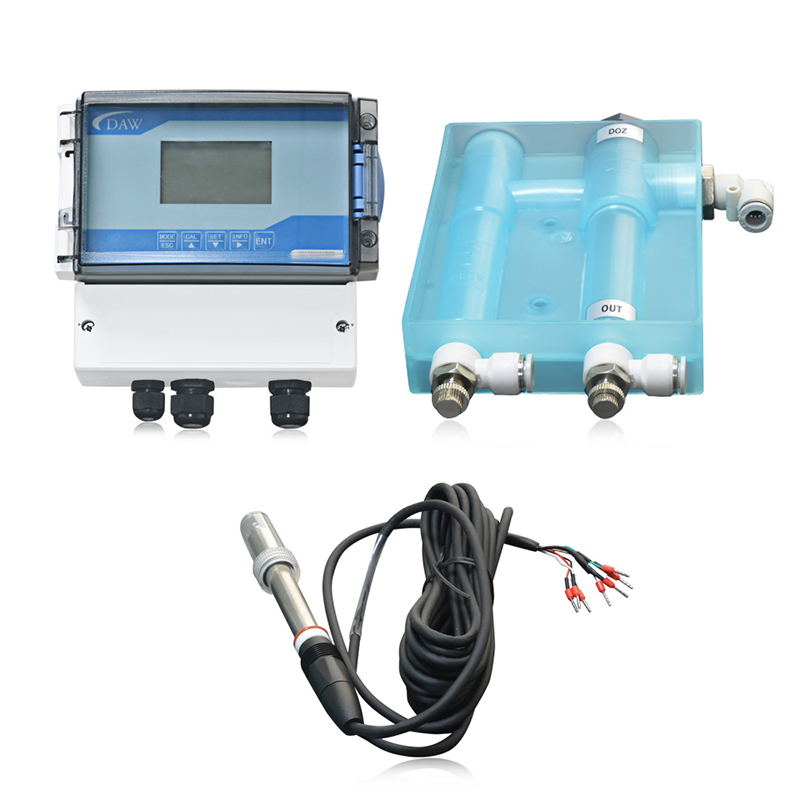

The ozone detector operates by having water flow sequentially through its integrated components. The water first enters the flow-through chamber, where an internal sensor measures the ozone concentration. A flowmeter monitors the water rate, while a regulating valve adjusts the flow as needed. The controller processes the sensor data and displays the readings. Finally, the analyzed water exits through the outlet. This setup allows for continuous, real-time monitoring of ozone levels in the water stream.
