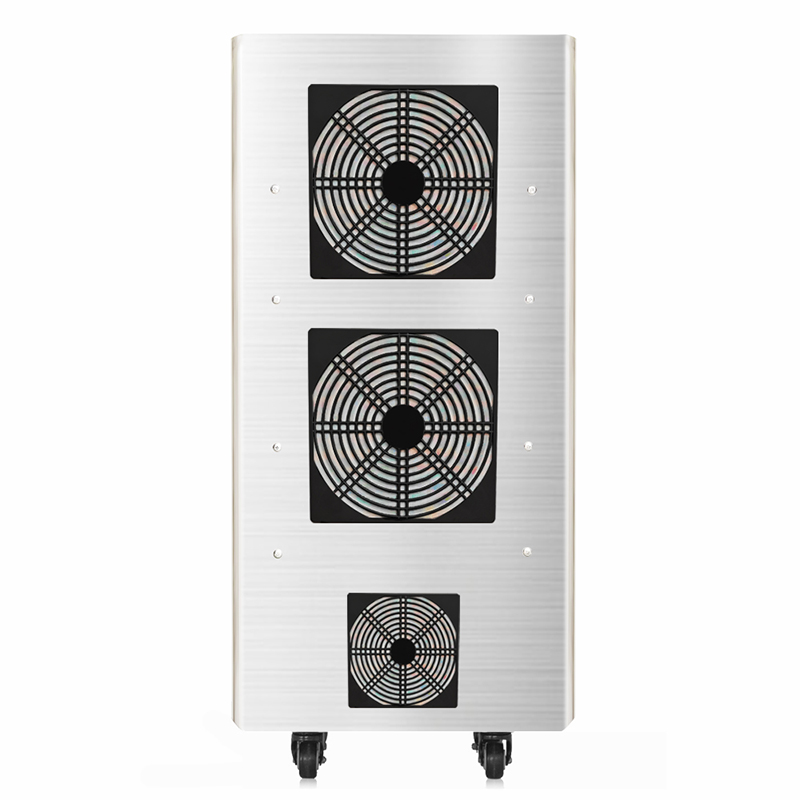

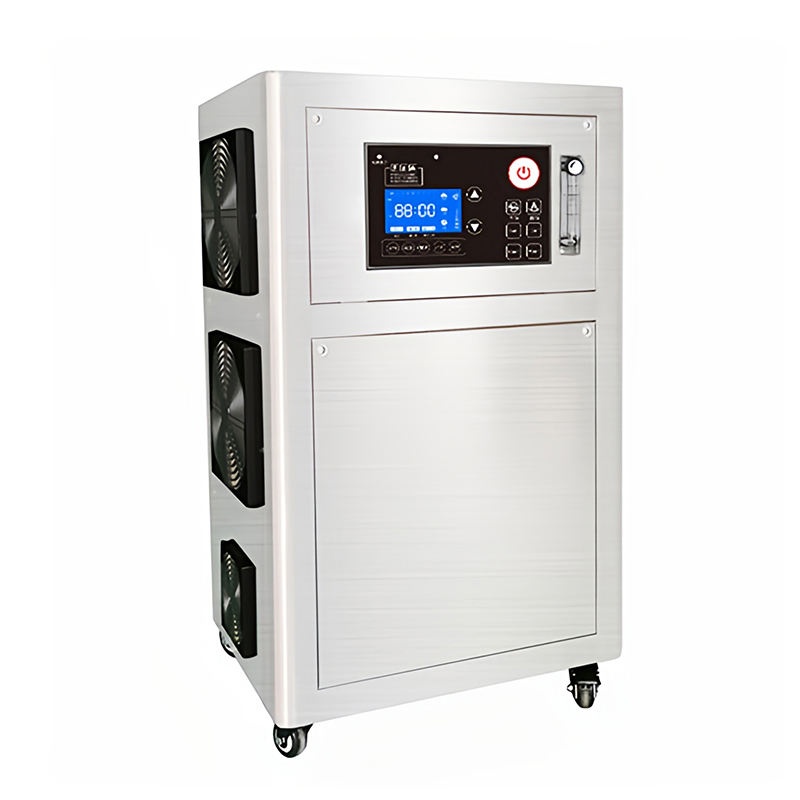

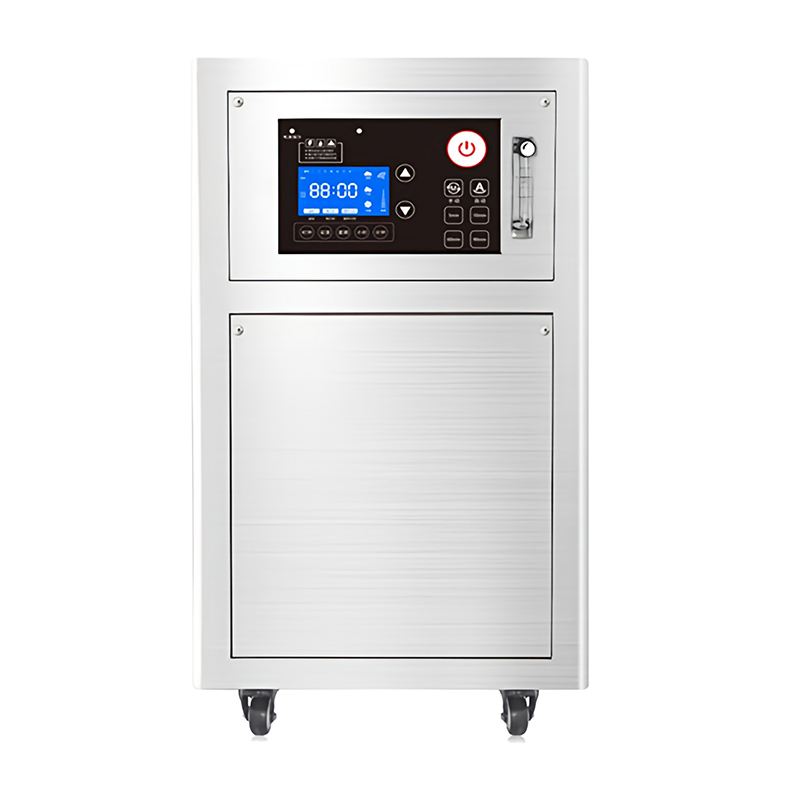

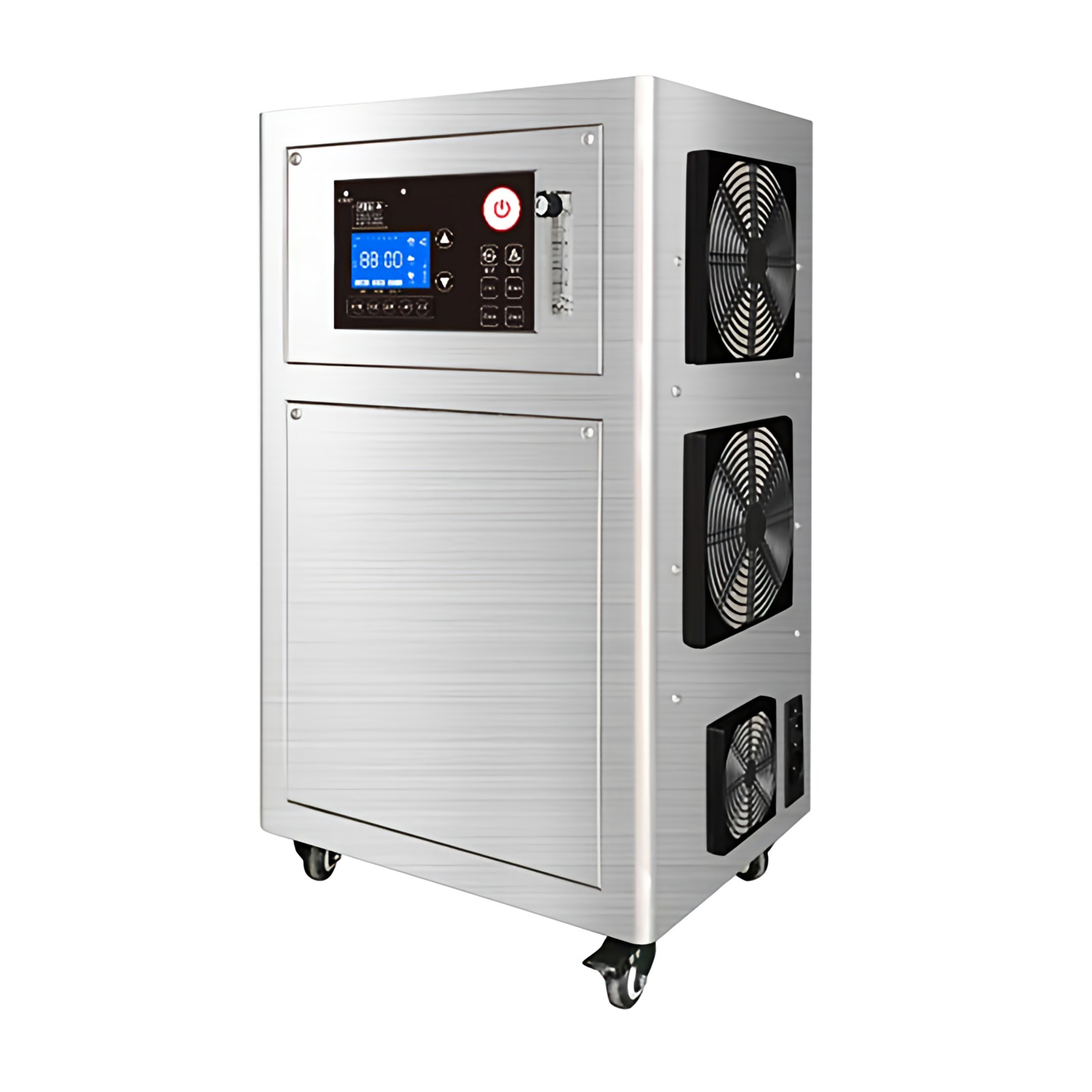

Flygoo High Concentration Ozone Generator Machine for Water Treatment

The FG-OF series of unit utilize oxygen from the internal oxygen generator as gas source, and high concentration ozone is generated by the CD ozone generation technology. The equipment has integrated oil-free air compressor, filtering system, PSA oxygen generator, condenser, multi-point malfunction monitoring system, etc.The units generating components are housed in an all stainless steel enclosure and touch screen are easy to use and view.The unit feature: timer remote control, LCD display, IOT WiFi control, various ozone output(10-100%).

Availability:

Quantity:



Inquire Add to Basket

Product Description

FEATURES

-Variable timing control

-Stainless steel enclosure

-Remote control and Wi-Fi control

-CE, ROHS Certification

-Multi-point malfunction detection of power supply:

Over voltage, over current and over temperature protection

-Air cooling system (Recommend working time: 1 hour/time)

-Corona discharging ozone technology

-Air cooling ozone generation tube; Utilize large power IGBT modules

-PSA Oxygen generator unit, molecular sieve from France CECA

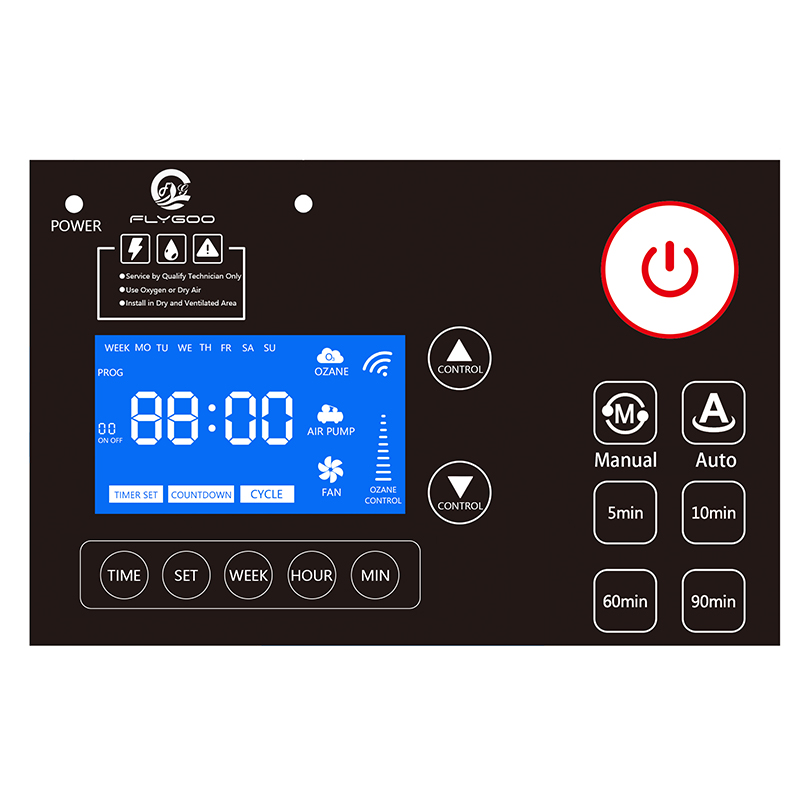

-Independent R&D digital control panel, with timing control and ozone amount continuous adjustable

-With condenser and air dryer for remove water which can protect the ozone unit for long service life in good working condition

PRODUCT PARAMETERS

Item	Unit	FG-OF
Ozone Output	g/hr	3	5	10	15	20
Power	w	530	550	600	700	750
Electric	VAC/Hz	220~240/50~60 ; 110/50,60
Ozone Concentration	mg/l	Oxygen supply:60~90
Oxygen Concentration	%	90-94.4
Oxygen Flow Rate	L/Min	3	3	3	5	5
Size(LWH)	mm	500370880
Weight	kg	42	43	44	44.5	45
Cooling Way	/	Air Cooling
Inner Air Compressor	Yes/No	Yes
Ambient Humidity	%	<70
Ambient Temperature	ºC	<40
Warranty	Year	1

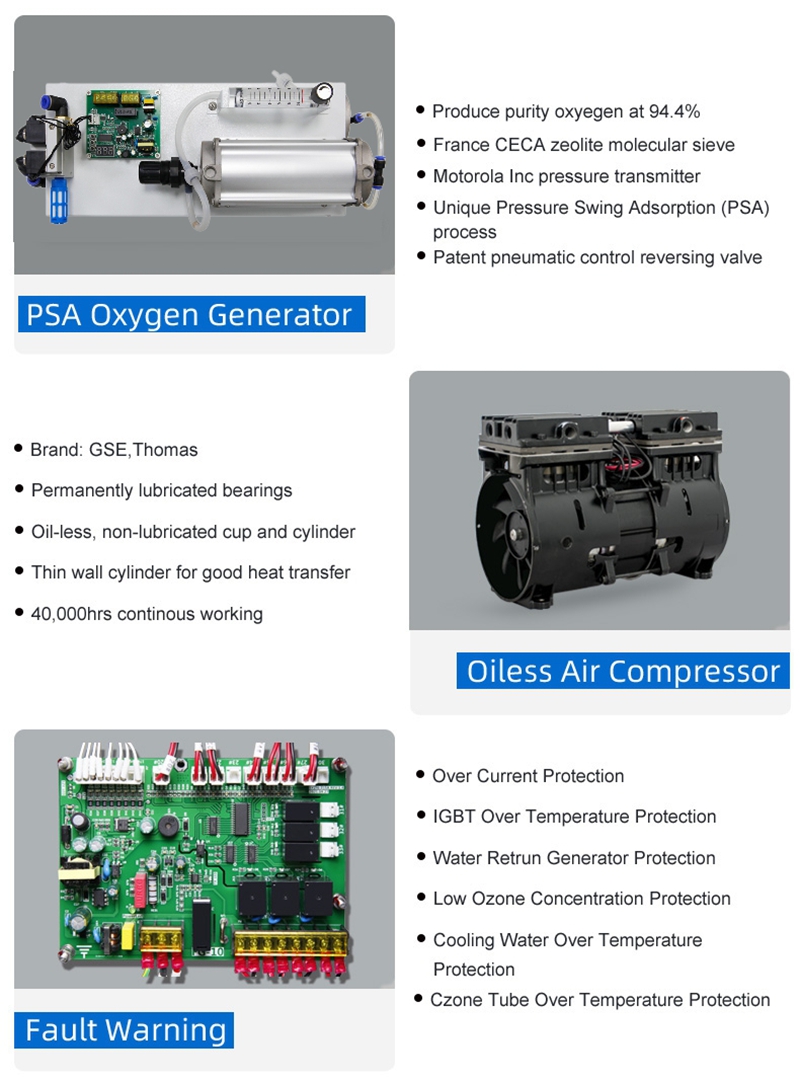

CORE TECHNIQUE

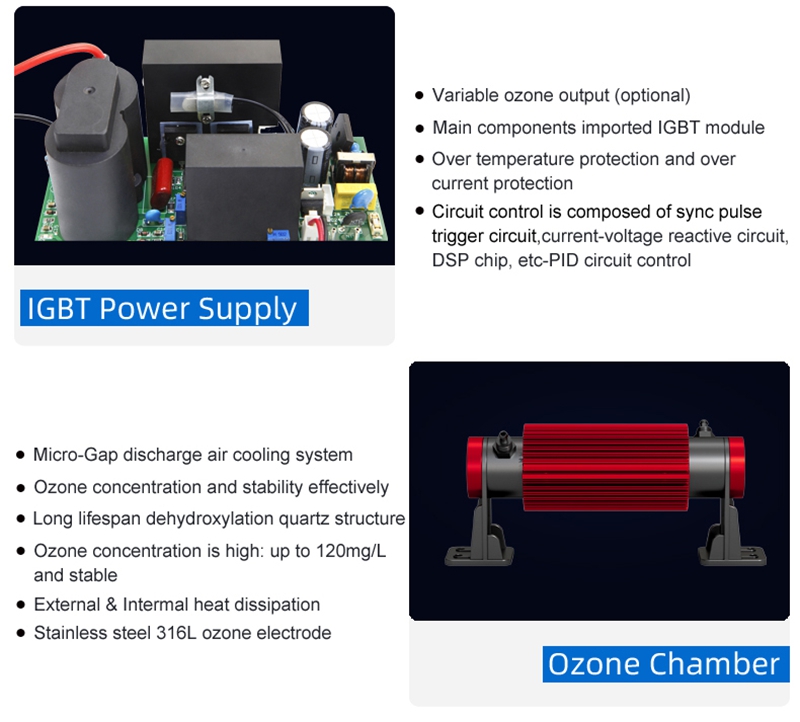

This product features a high-performance ozone generation system. The air-cooled ozone chamber utilizes a Micro-Gap discharge design with a long-life dehydroxylation quartz structure and a 316L stainless steel electrode, achieving stable ozone concentrations up to 120mg/L. It is powered by an imported IGBT module with PID circuit control (DSP chip) and offers optional variable ozone output. For oxygen-fed models, the system integrates a PSA Oxygen Generator producing 94.4% pure oxygen using a France CECA zeolite molecular sieve and a patent pneumatic valve, paired with an oil-less air compressor capable of 40,000 hours of continuous operation. Comprehensive fault protection includes over-temperature, over-current, low concentration, and cooling system warnings.

Ozone Application

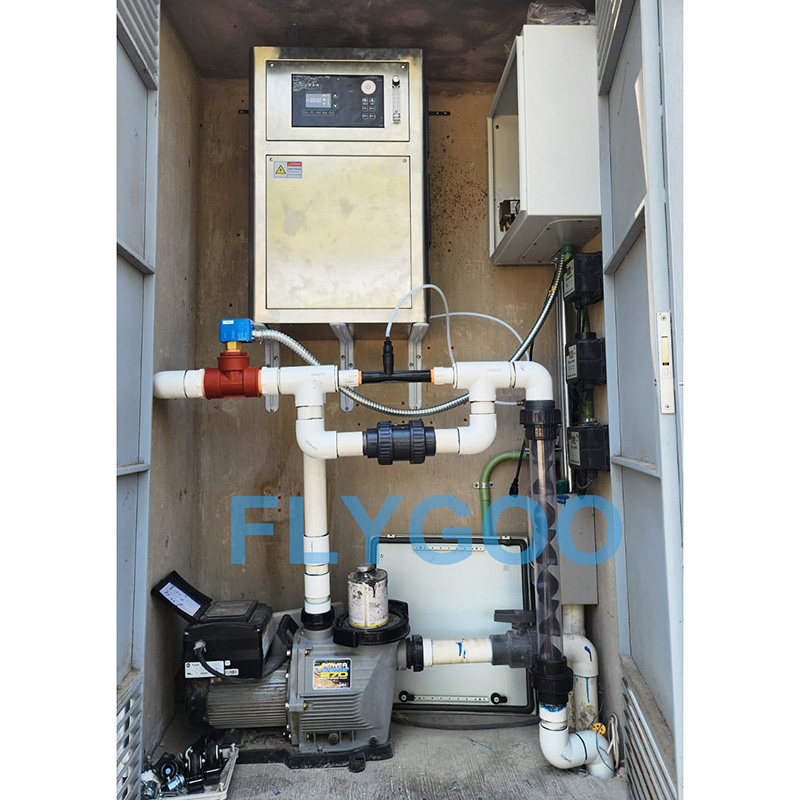

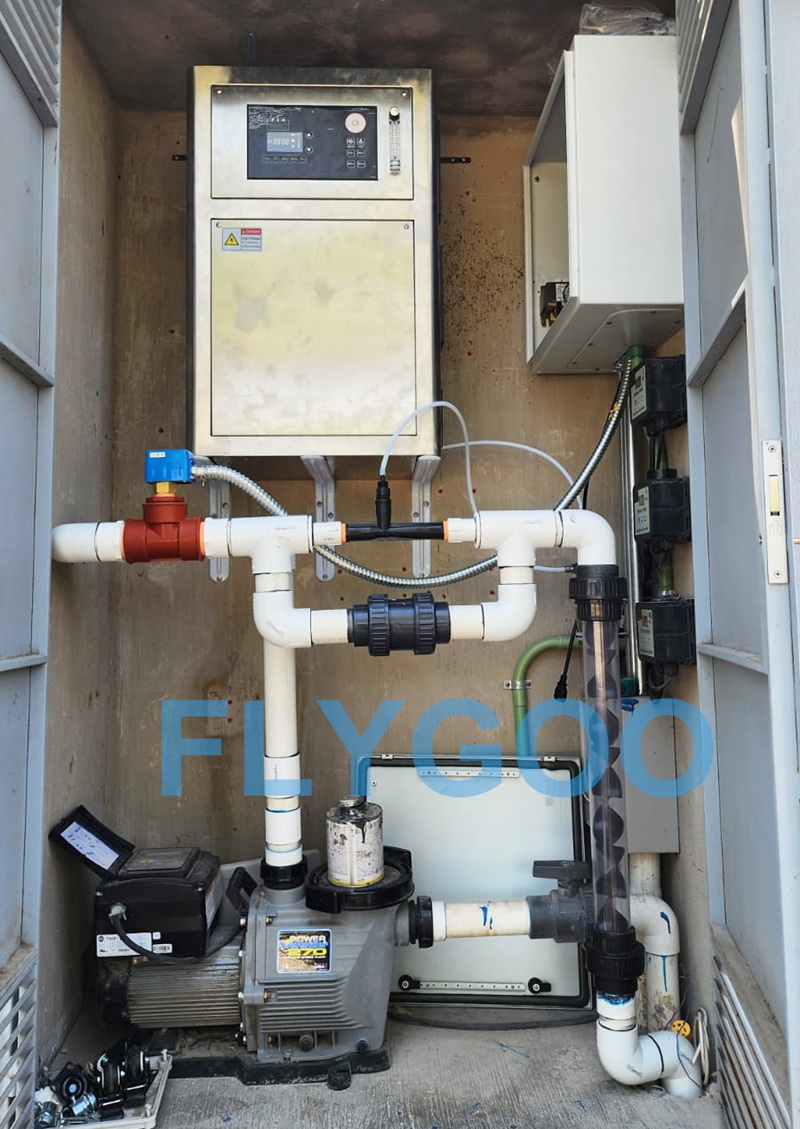

This ozone generator offers versatile applications in both water treatment and space disinfection for environmental protection, requiring no consumables. It is effectively used for drinking water disinfection, aquaculture water treatment, and food preservation. Additionally, it serves purposes such as workshop sterilization, formaldehyde removal, and farm air purification.
