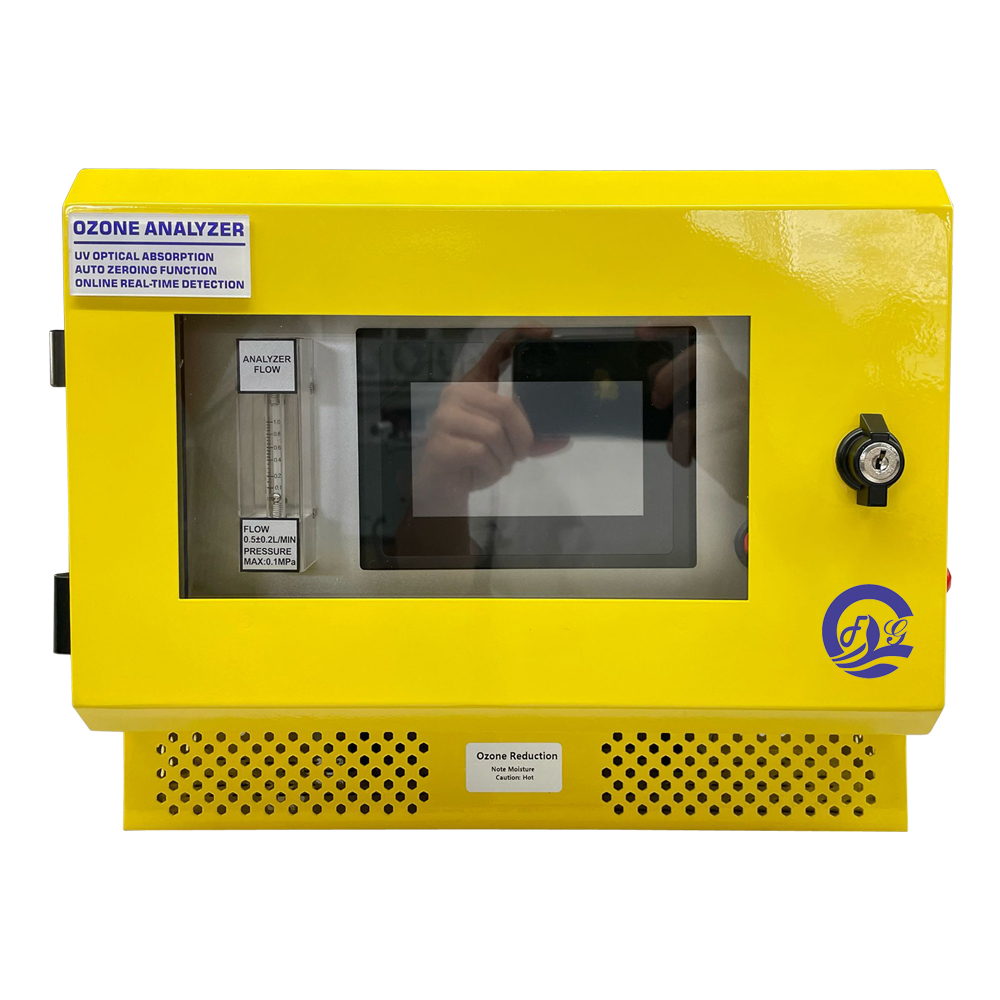

UVOZ-3300C
FLYGOO
The ozone analyzer has a touch screen operation interface, which shows the real-time ozone concentration. And the touch screen is also with the pressure &temperature compensation display. For the high concentration (g/Nm3) range, it has the function of flow input, which can display the output of the ozone generator in real time.
Detection Range | 0-300mg/L ; 0-200mg/L ; 0-100mg/L ; 0-50mg/L |
Measurement method | UV light double optical receiver with high precision measurement |
Ozone Concentration Unit | mg/L , g/Nm3, %wt, PPM |
Resolution | 0.01 mg/L |
Precision | 0.5% |
Input gas flow | 0.5L±0.2L/min |
Input pressure | <0.1Mpa |
Concentration Error | Max. 0.5% |
Line Deviation | Max. 0.2% |
Zero Shift | <±0.3%.FS |
Voltage | 110V-240V / 50Hz,60Hz |
Response Time | signal 0.03s, display 0.3s |
Gas Input and Output Diameter | Φ6 (6mm*4mm) |
Dimension | 160mm(height)×260mm(width)×300mm(depth) |
Net Weight | 8.0kgs |
Warranty | 12 months |
Communication mode | RS485 |
Output Signal | 4-20mA (double way alarm of low and high concentration);printer interface; |
Relay Signal | High alarm point relay signal; Low alarm point relay signal |
Remarks | 1mg/L=1g/Nm3=467PPM |
Packing List | 01* ozone analyzer ; 01* ozone destructor; 01* gas filter |
The Range: 0-300g/Nm3
The Principle: dual beam UV photometer absorption method, used to detect the outlet ozone concentration of generator or tail gas.

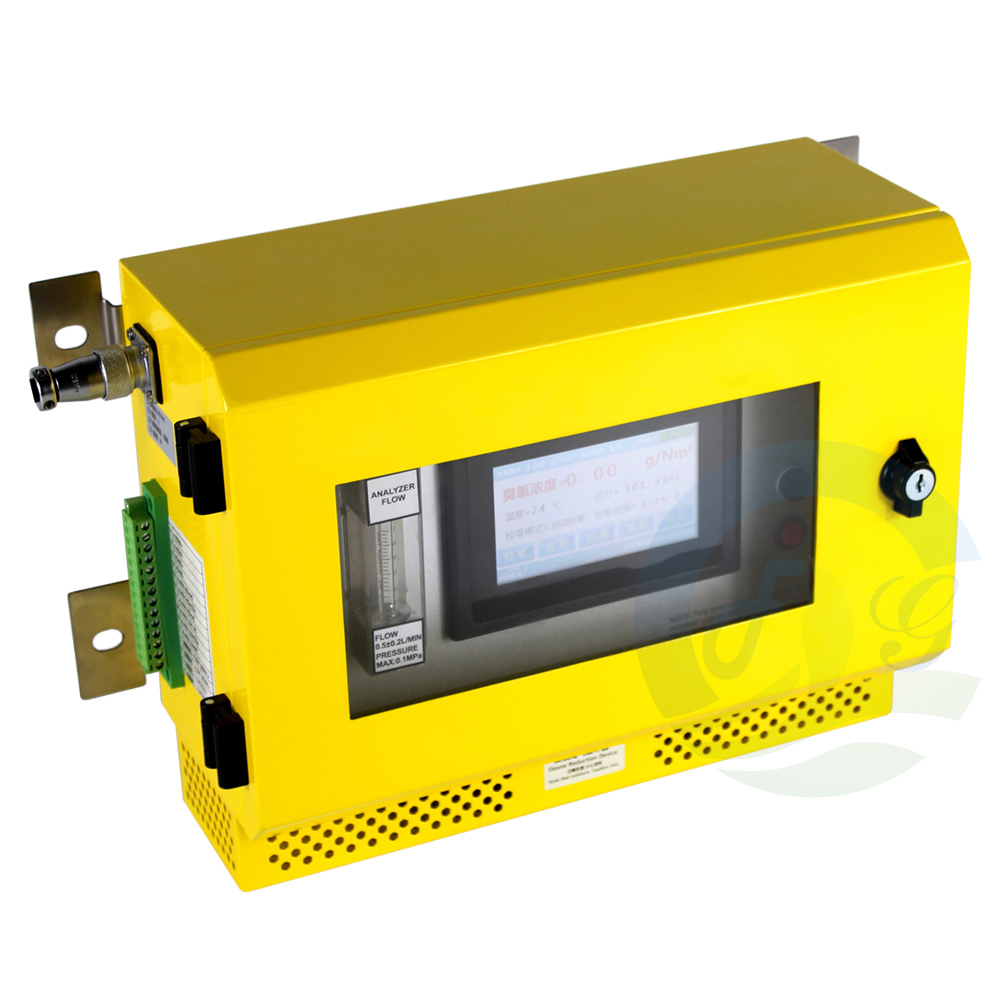

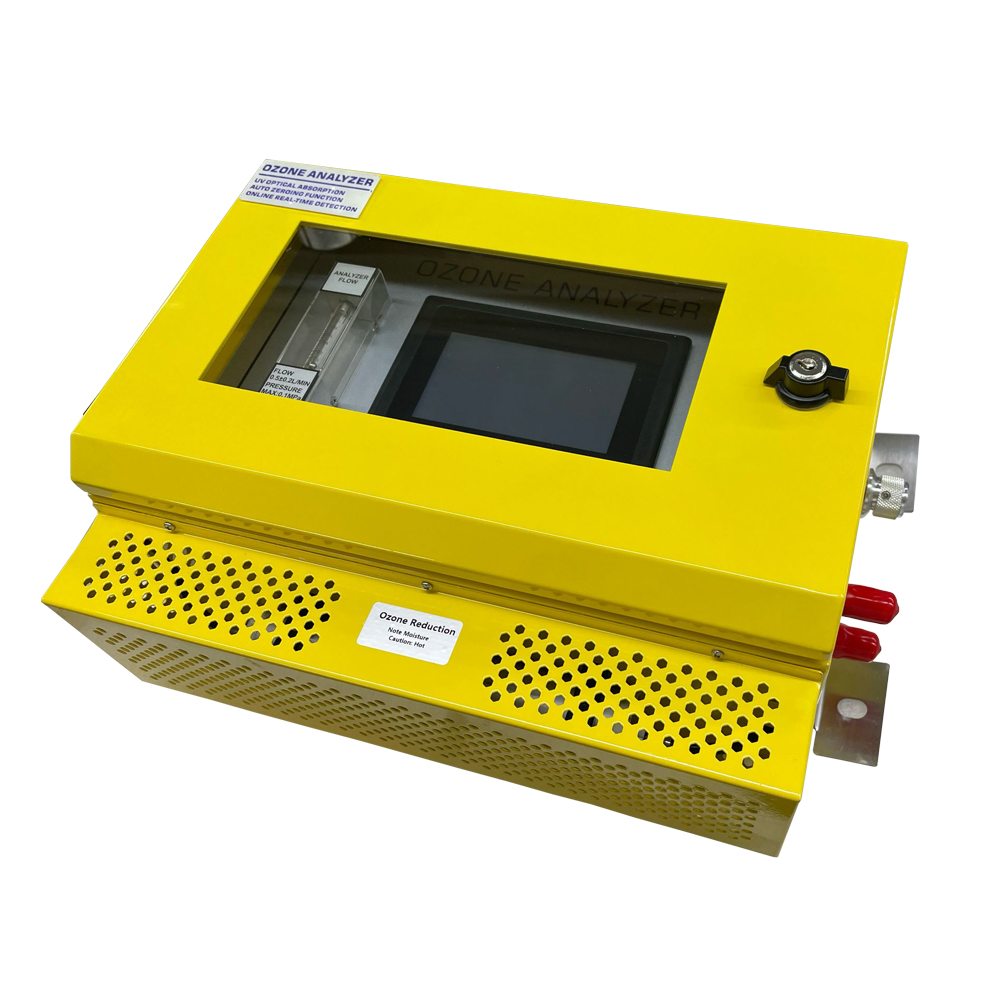

The Features: This wall mounting type analyzer can continuously running and automatic zeroing to ensure the stability of the detection.

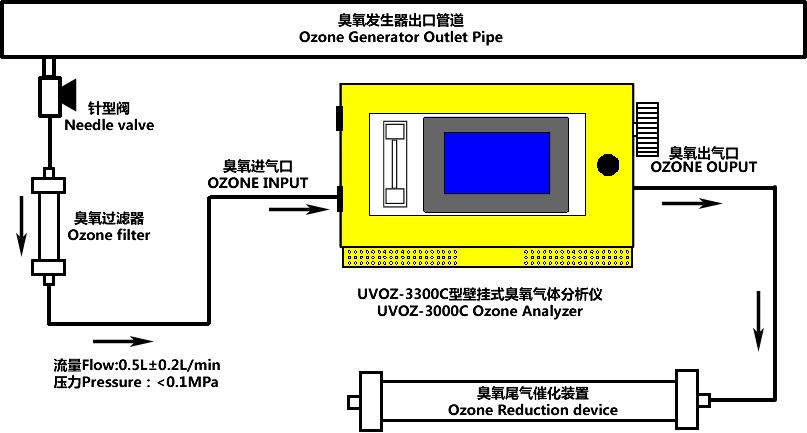

UVOZ-3300C ozone analyzer-pumping sampling process diagram
Product Features
Detection Method：dual beam UV photometer absorption method, long life light source system, high measuring accuracy.
Principle：according to Lambert Bill law, measure precisely by photometric absorption principle.
Light Source System：imported long life uv light source system (wavelength 253.7nm), free warranty for 3 years.
Using Method：indoor installation and use, configure power and signal terminals.
Cuvette System：seperated optical cuvette with no leakage and anti high-pressure, high-flow rate, pmpact of sampling gas.
Intelligent Compensation：built in temperature and pressure compensation and display, with automatic compensation function of light source.
Operation Method：the user can select manual zeroing mode or automatic zeroing calibration according to the running state, and can set up automatic zeroing time.
Display Unit：g/Nm3，mg/NL，%WT，ppm ，mg/Nm3(optical)
Display Data：high definition color touch screen, setting the into-gas mass flow about high concentration range, real-time display the generator production.
Output Function：4-20mA、RS485 communication, two sets of alarm point output, electronic flowmeter input, etc.
Standard Configuration：anti-corrosive flowmeter, ozone tail gas destroyer, gas in-putting filter.

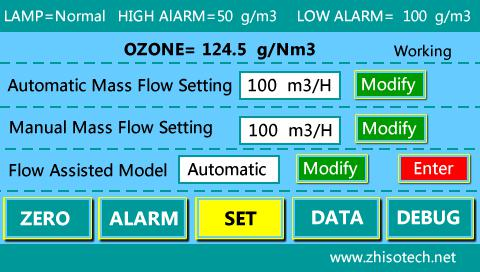

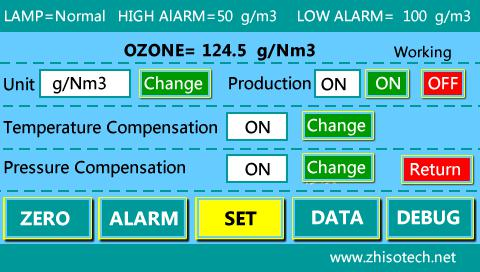

Touch-Screen Program Demo
The core component adopts long-life uv light system with the high light transmittance quartz to prevent zero drifting from affecting the detection accuracy. And no need to close ozone inputing at zeroing to ensure the equipment can run continuously 24 hours.
Application areas: ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry food and drinking water industry, space disinfection industry, swimming pool disinfection industry, etc.
