FGUVOZ-180W
FLYGOO

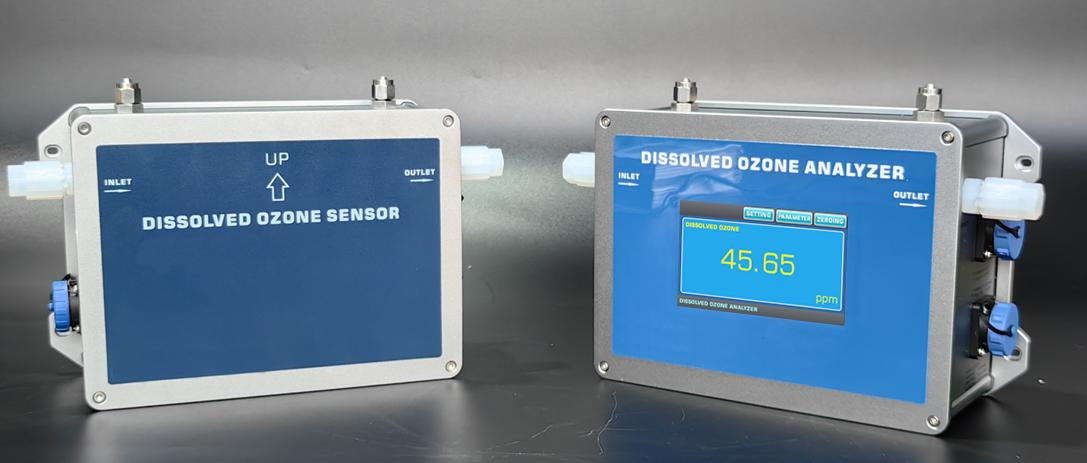

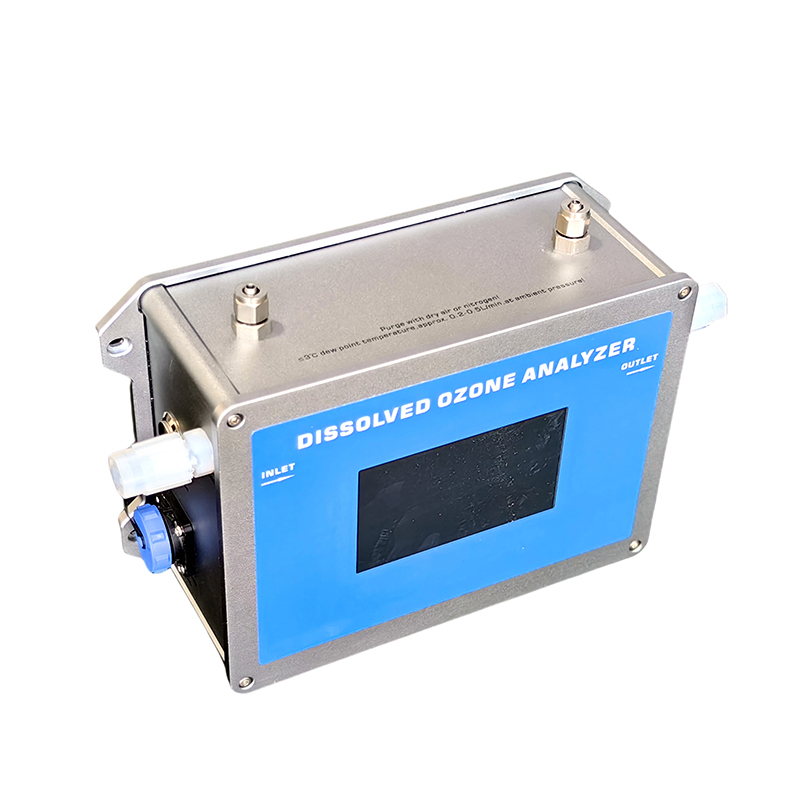

This UV optical ozone water concentration analyzer can operate continuously without stopping for 24 hours. Detection principle: UV dual path absorption method, used for analysis and detection of dissolved ozone water concentration in tap water, pure water, or semiconductor industry.Measurement range: 0-20ppm; 0-50ppm; 0-100ppm; 0-120ppm; 0-180ppm; 0-200ppm.The gas interface above the UV dissolved ozone water analyzer is used for compressed air interface. If the temperature of the ozone water is too low, it is recommended to introduce compressed air to the instrument to prevent condensation in the internal ozone water pipeline of the instrument.
Model | FGUVOZ-180W(200W) |
Screen | Touch screen |
Dimension | 200*150*80mm |
Test Range | 0-20ppm; 0-50ppm; 0-100ppm; 120ppm; 180ppm; 0-200ppm |
Display Resolution | 0.01g/m3 or 0.01ppm |
Display Unit | g/Nm3 ; ppm (optional) |
Sampling Method | positive pressure sampling, pumping sampling(optional) |
Content Interface | dissolved ozone concentration rate |
Display Interface | 4.3 inch touch screen operation interface |
Interface method | Ferrule (PTFE) with optional 1/4 PFA interface |
Sampling Flow | 200-300mL/min |
Input Pressure | <0.1MPa |
Concentration Error | < 0.3%FS |
Line Deviation | < 0.2%FS |
Zero Drifting | <±0.3%.FS |
Communication Mode | RS-485 |
Output Mode | 4-20mA |
Environmental temperature | 0~50°C |
Relay Signal | high alarm, low alarm |
Power supply | 24VDC |
Weight | 3KG |
This dissolved ozone analyzer has an automatic adjustment system function with a UV light source, which can adjust the brightness of the UV LED light source in real-time according to the reference light data to maintain constant zero point data, ensuring the stability of the zero point. It is a patented product of our company. This UV optical ozone water concentration analyzer can operate continuously without stopping for 24 hours.

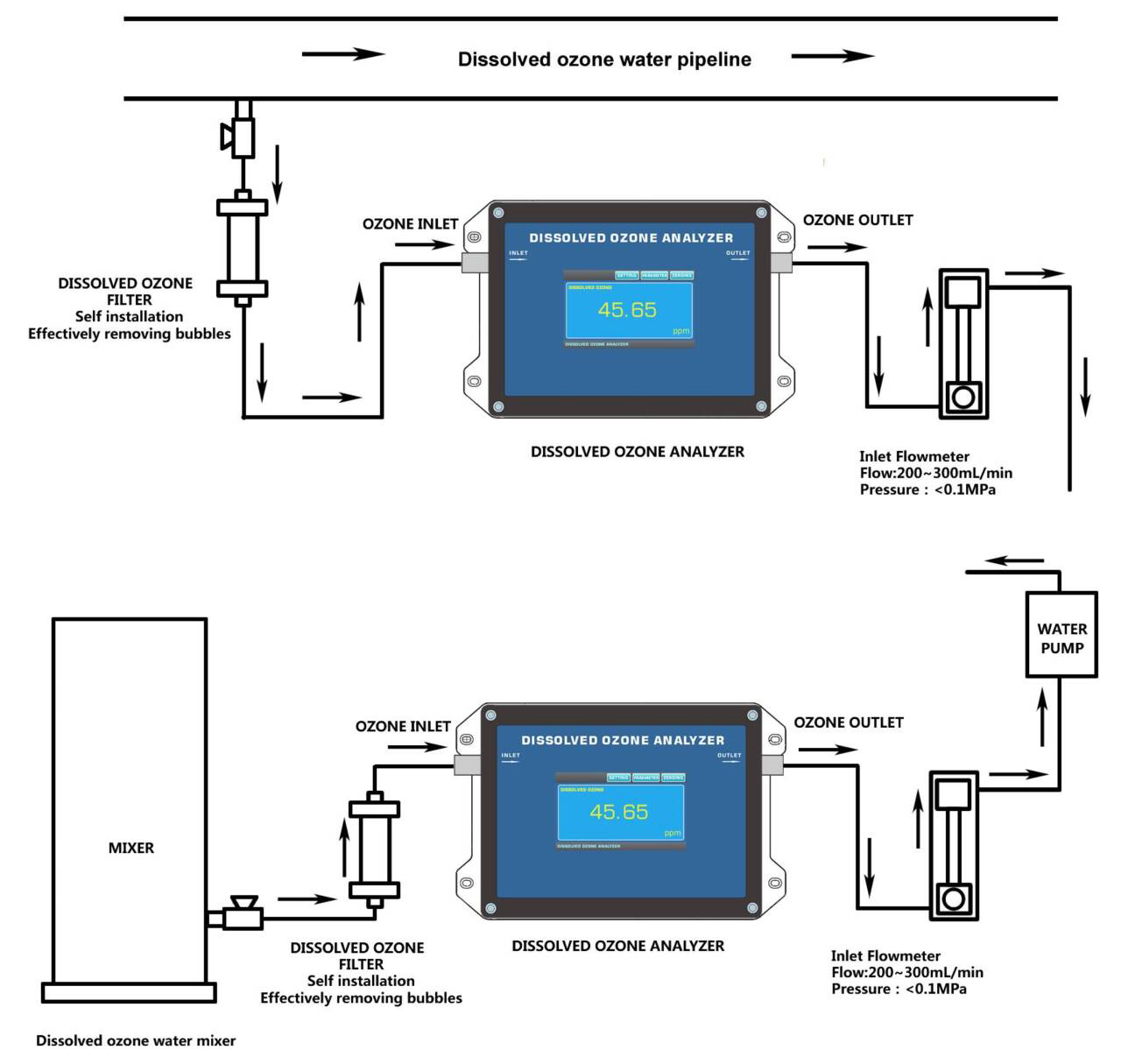

Dissolved ozone analyzer - Product connection process diagram

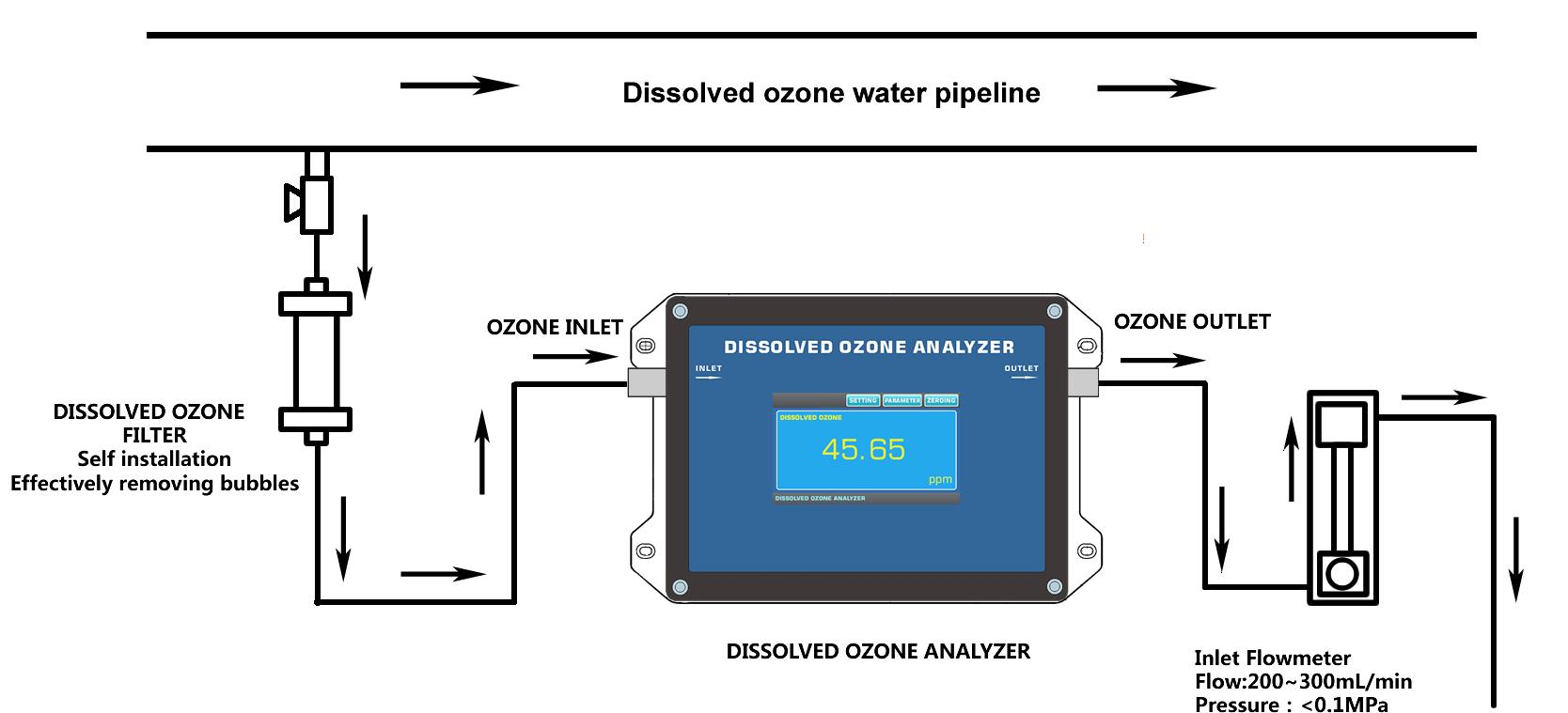

Dissolved ozone analyzer - positive pressure branch sampling connection diagram(It is recommended to use this connection process for split sampling. Note that the flow meter needs to be installed at the outlet of the dissolved ozone water analyzer.)

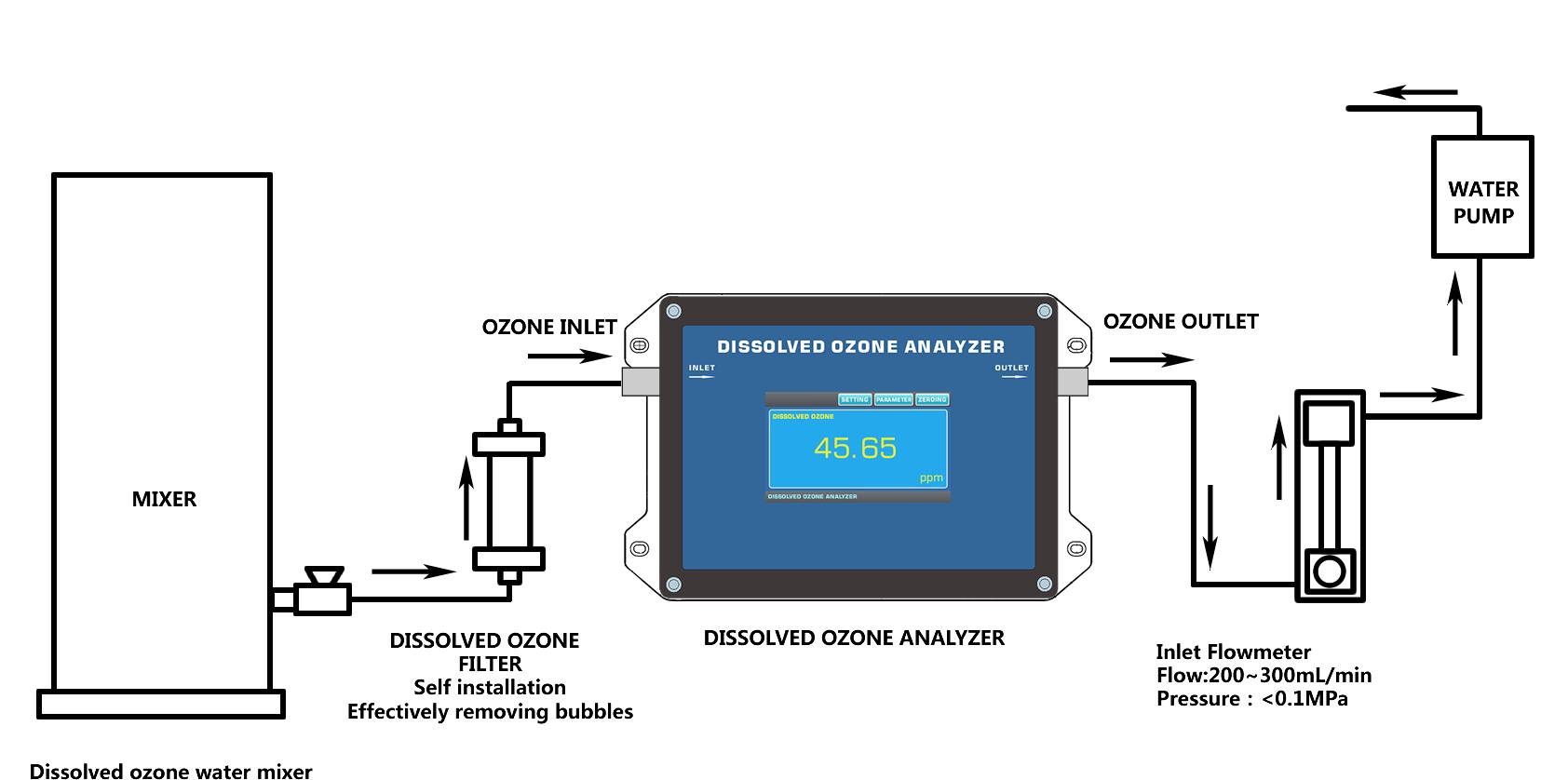

Dissolved ozone analyzer, negative pressure water pump sampling connection diagram (It is recommended to use this connection process for split sampling. Note that the flow meter needs to be installed at the outlet of the dissolved ozone water analyzer.) Note: The manufacturer of the dissolved ozone water flow meter is a standard
configuration accessory, and the negative pressure water pump is an optional product. You can consult the manufacturer to purchase it separately.
Product features: This UV dissolved ozone analyzer has an internal light source automatic adjustment function, which can adjust the brightness of the LED light source in real-time based on the reference light data of the zero point to ensure the stability of the zero point. This UV optical ozone water concentration analyzer can be connected in parallel or series to the dissolved ozone water pipeline, mainly used for the analysis and detection of dissolved ozone water concentration in tap water, pure water, or semiconductor industries.
