FG-SM
FLYGOO

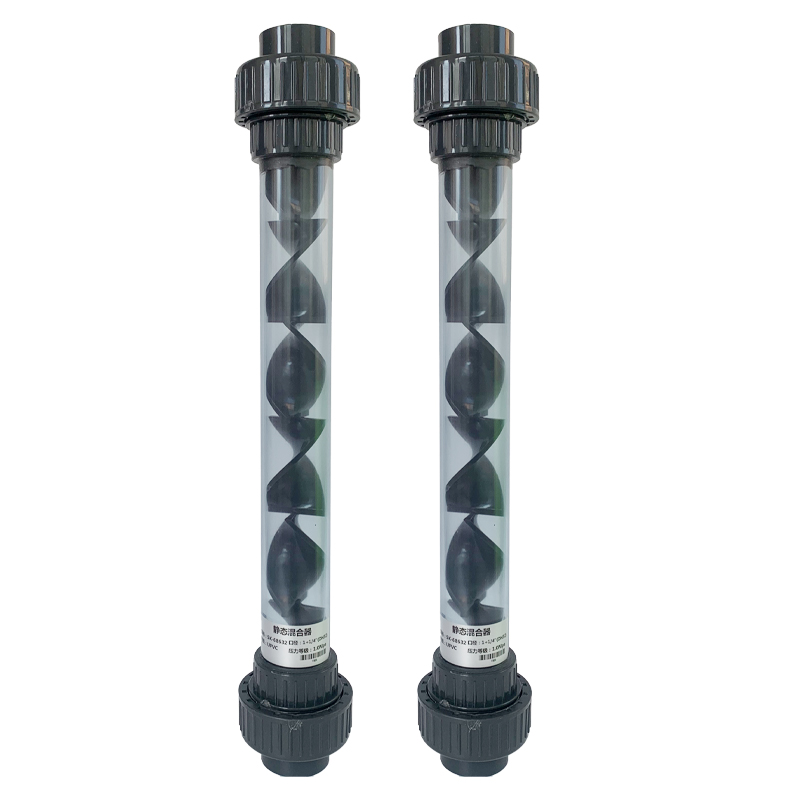

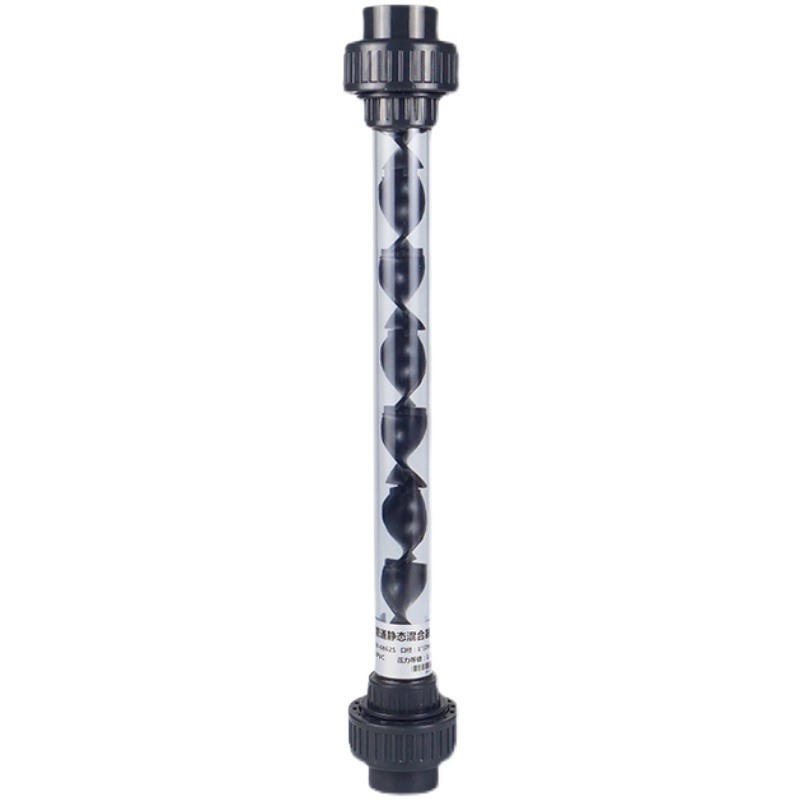

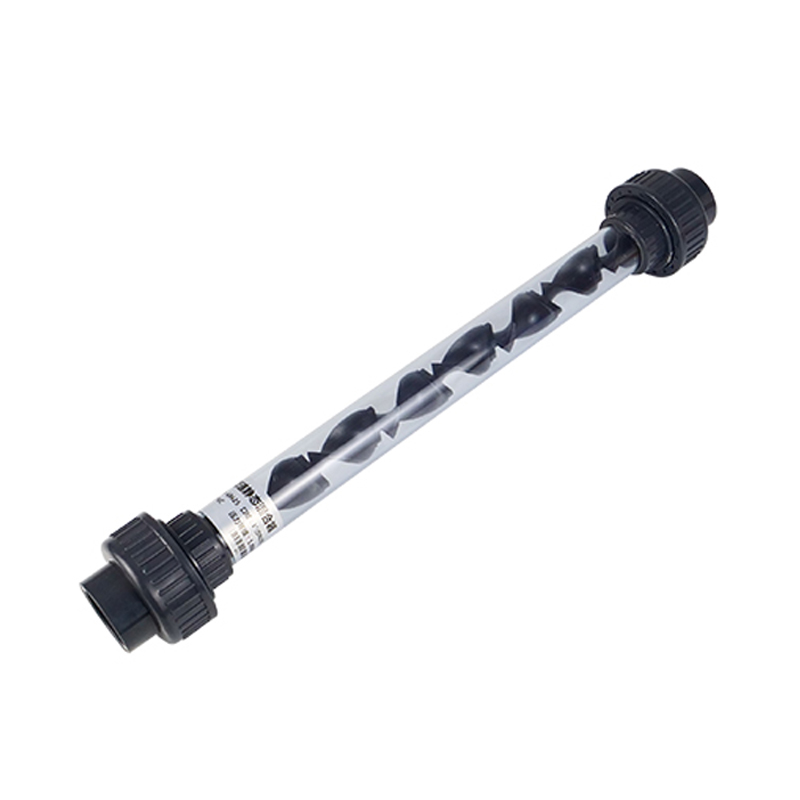

UPVC static mixers have flow elements that deliver two streams of fluids (or gases) into the static mixer. As the streams move through the mixer, the non-moving elements continuously blend the materials. Complete mixing depends on many variables including the fluids’ properties, tube inner diameter, number of elements and their design. The housed-elements mixer’s fixed, typically helical elements can simultaneously produce patterns of flow division and radial mixing. We also supply clear static mixers allow for process monitoring and assist in process optimisation, especially in dissolution systems involving a gas phase.

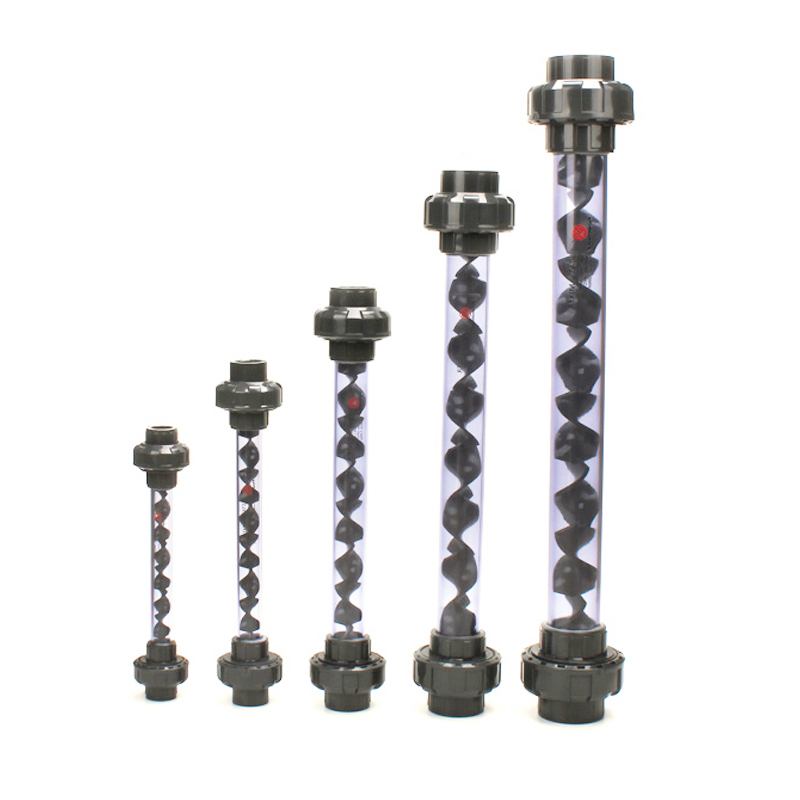

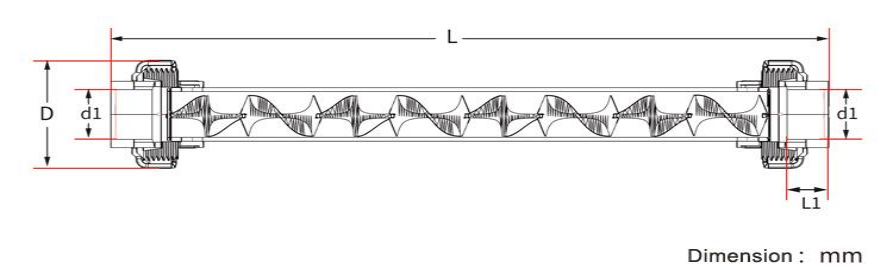

Size | Diameter | Water Flow Rate (m3/h) | d1 (mm) | L1 (mm) | D (mm) | L (mm) |
1/2” | 20mm (DN15) | 0.4-1.0 | 20.25 | 23 | 54 | 260 |
3/4” | 25mm (DN20) | 0.6-1.2 | 25.25 | 26 | 63 | 323 |
1” | 32mm (DN25) | 1.0-3.2 | 32.25 | 29 | 73.5 | 400 |
1.25” | 40mm (DN32) | 1.4-6.0 | 40.25 | 33 | 84.5 | 515 |
1.5” | 50mm (DN40) | 2.2-8.0 | 50.25 | 35.5 | 98 | 625 |
2” | 63mm (DN50) | 3.5-18 | 63.25 | 38.5 | 119 | 760 |
3” | 90mm (DN80) | 13-60 | 90 | - | - | 870 |
4” | 110mm (DN100) | 25-120 | 110 | - | - | 1020 |

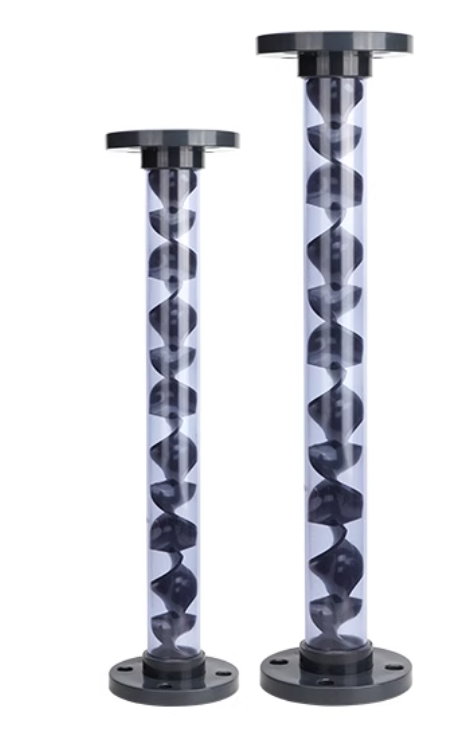

Remark: 3” and 4” inch static mixer are Transparent and Flange Joint.

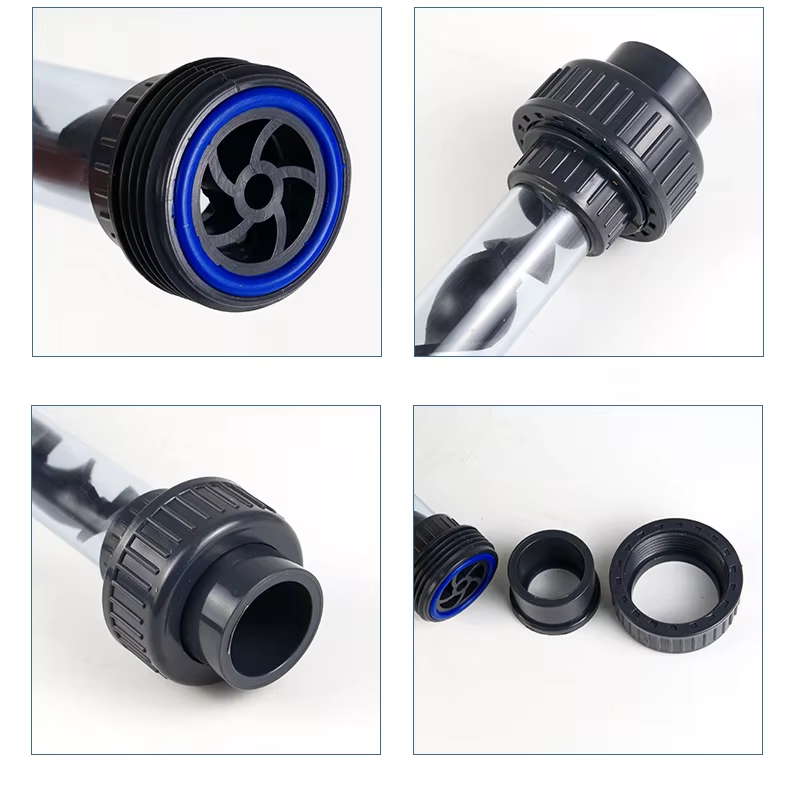

Static mixers are used to efficiently mix gas with liquid or both liquids after a Venturi syringe.The device consists of a mixer element built into a cylindrical (tube) housing.Spiral structure, better mixing effect.The whole system design, one gas or two liquids to the static mixer, when the liquid through the mixer, fixed in the tube of the mixing unit internal parts, so that two or more fluids cut, shear, rotate and remix, to achieve the purpose of good dispersion and full mixing between the fluids.
