Swimming Pool Sand Filters Fiberglass Water Filtration Ozone Reactor for Water Treatment

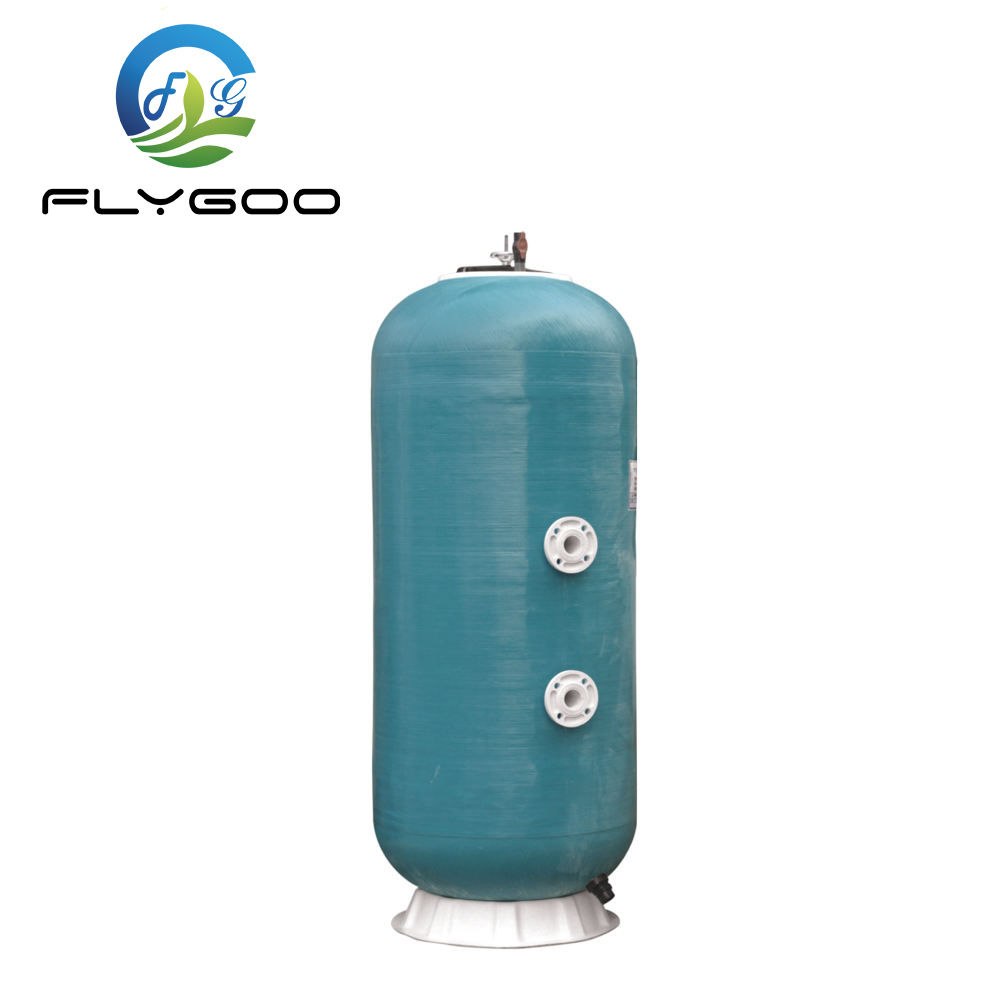

Flygoo professional swimming pool sand filter is a high‑rate filtration unit that uses specially graded silica sand or alternative filter media to trap suspended particles, debris, and contaminants from pool water as it passes through the filter bed. Its key features include durable fiberglass or stainless steel construction, a multiport valve for easy backwashing and rinsing, corrosion‑resistant internals, and the ability to handle high flow rates with minimal pressure drop. The sand filter reliably removes down to 20‑40 micron particles, ensuring clear water and reducing chemical demand.

Availability:

Quantity:



Inquire Add to Basket

Product Description

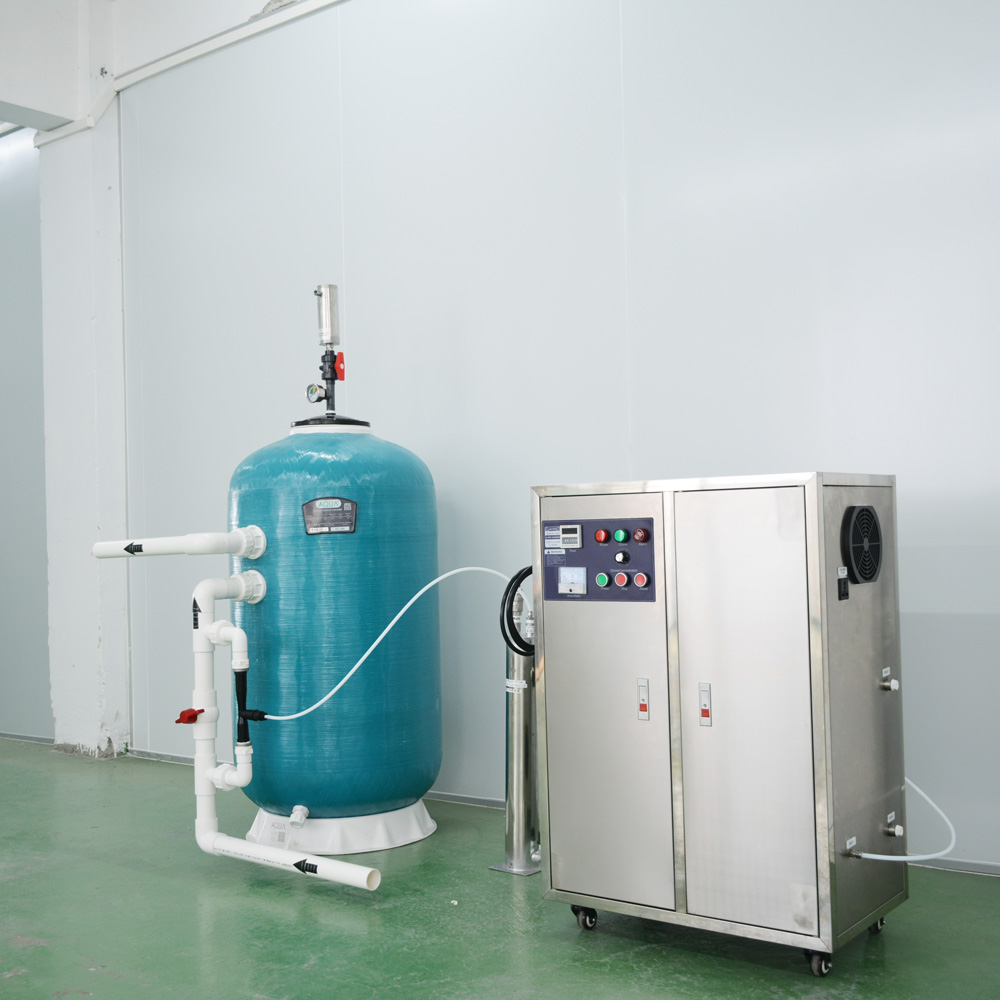

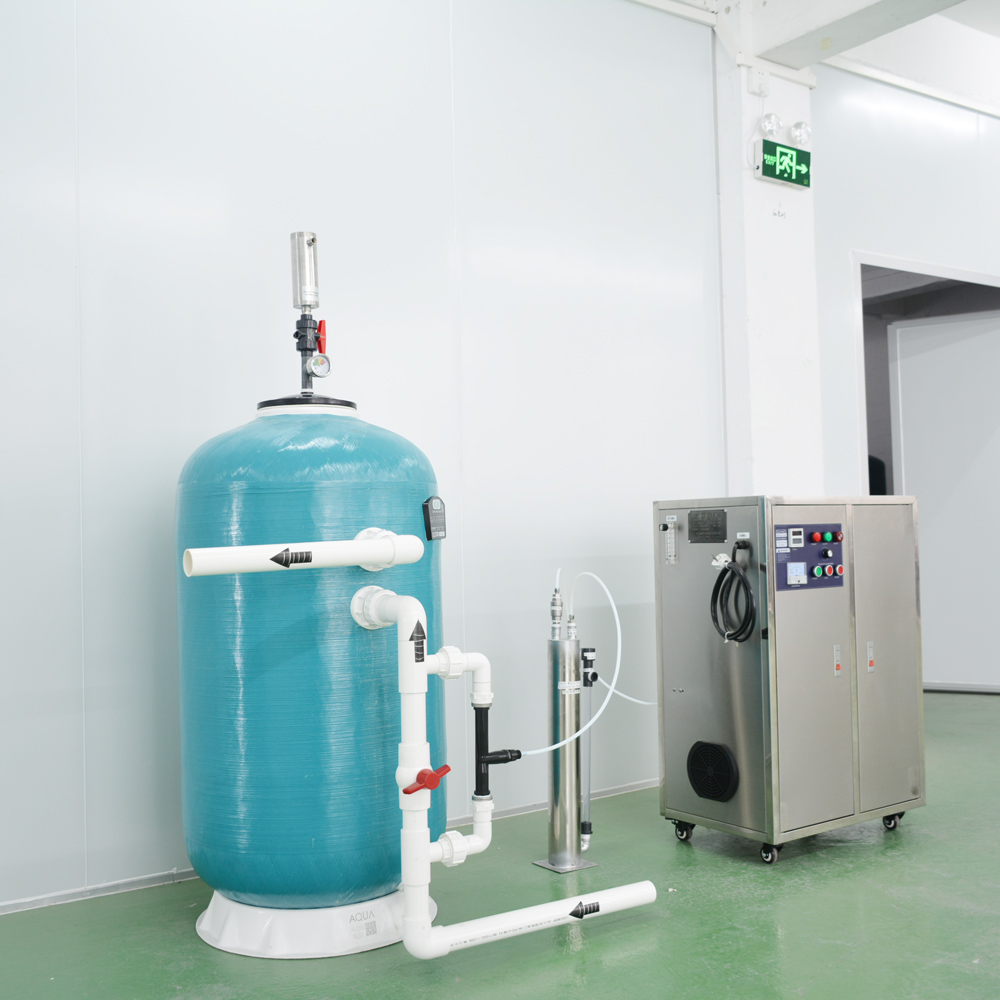

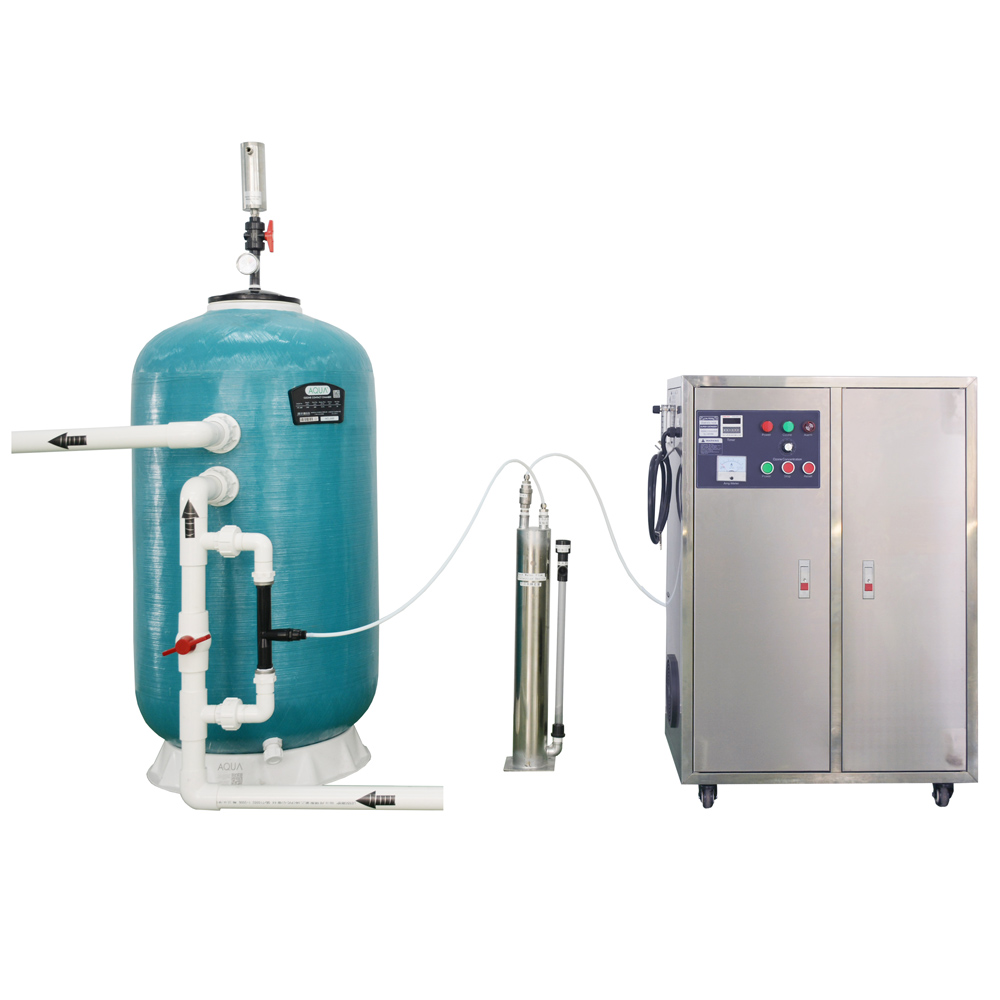

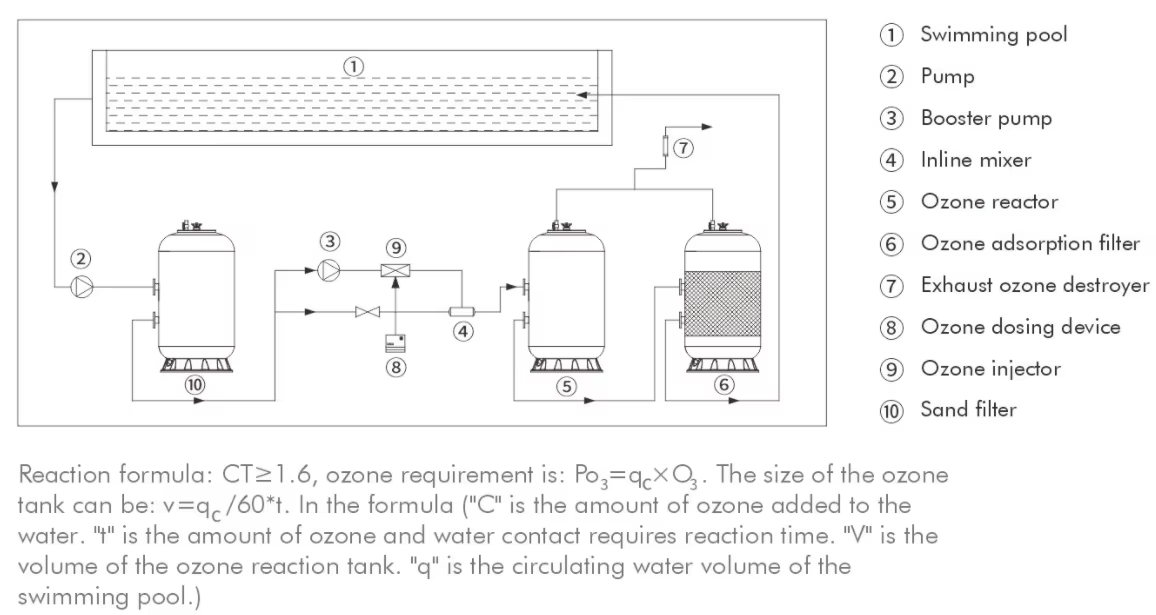

The sand filter is designed to work seamlessly with an ozone sanitation system: ozone generated by the ozone generator is injected into the return water line after the sand filter, so that the filter first removes physical impurities, then the ozone oxidizes dissolved organics, bacteria, and viruses without the filter media consuming or degrading the ozone. This integration combines mechanical filtration with powerful oxidation, significantly improving water clarity and hygiene while lowering chlorine levels and extending filter run cycles.

Model	Diameter (mm)	Height (mm)	Volume(m3)
2 inch Flange interface or union interface
HO3-13600	600	1300	0.35
H03-15800	800	1500	0.63
H03-15900	900	1500	0.91
HO3-151000	1000	1500	1.12
HO3-151200	1200	1500	1.53
HO3-20800	800	2000	0.88
H03-20900	900	2000	1.22
HO3-201000	1000	2000	1.51
H03-201200	1200	2000	2.1
3 inch Flange interface
HOs-151000	1000	1500	1.12
HO3-151200	1200	1500	1.53
HO3-151400	1400	1500	2.2
HO3-201000	1000	2000	1.51
HO3-201200	1200	2000	2.1
H0s-201400	1400	2000	2.95
