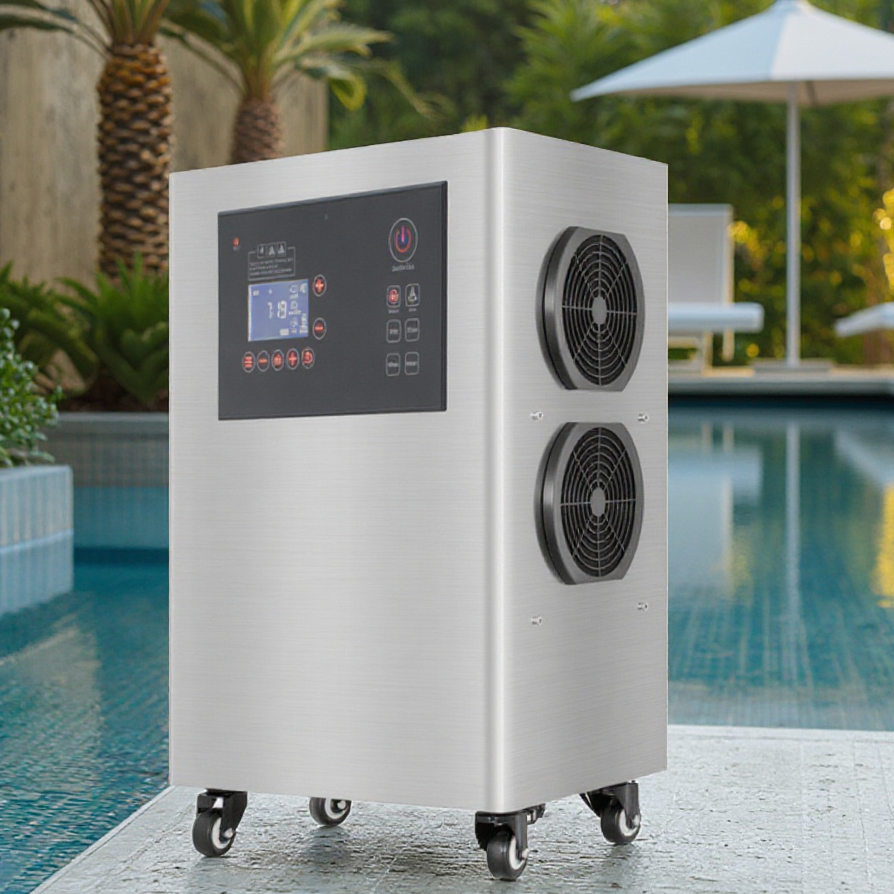

Powerful Ozone Generator Machine for Food Plant Air Water Disinfection

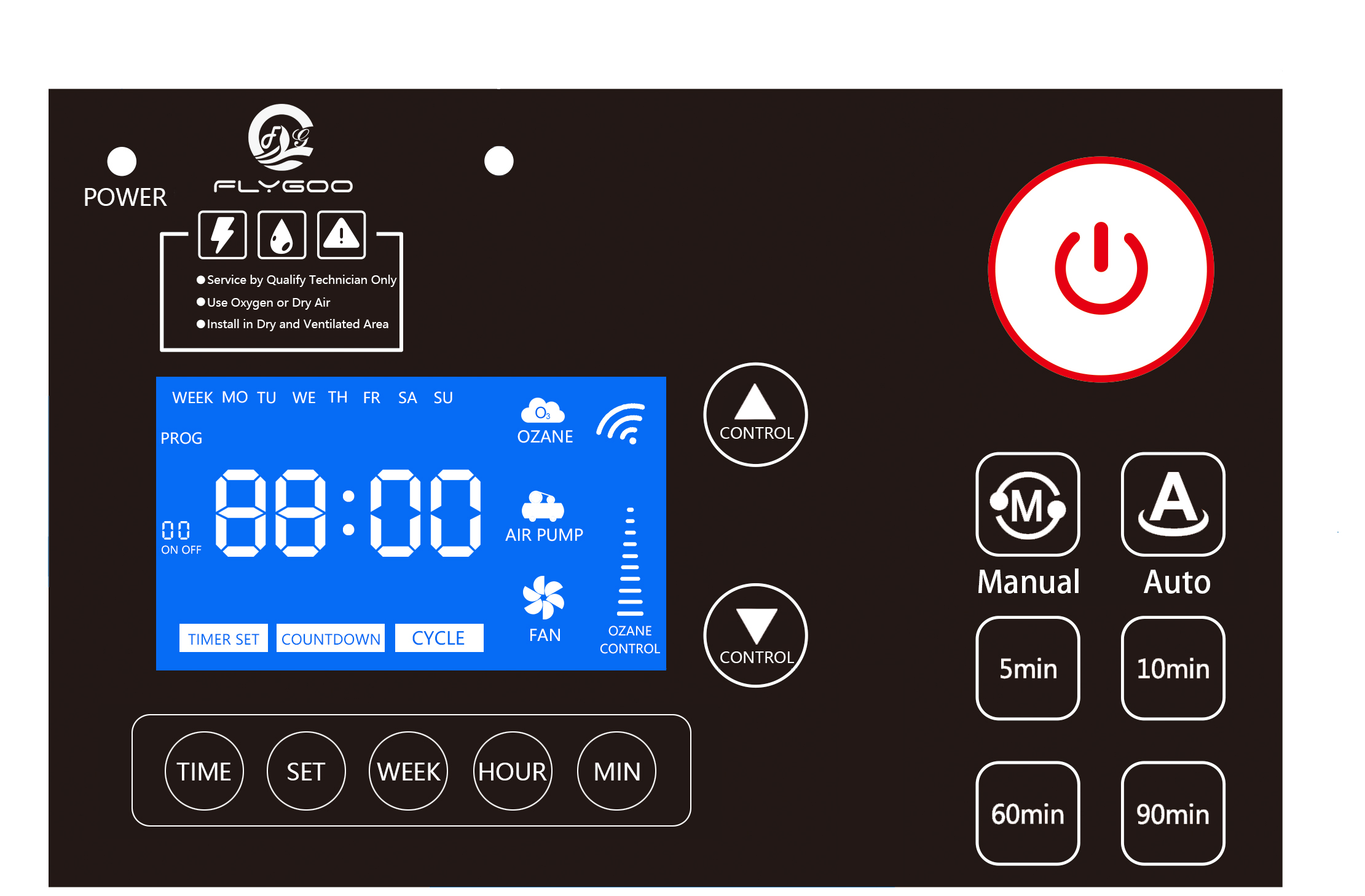

The FG-AF series units are designed for heat-resistant quartz glass structure dielectric (patent), with large power IGBT modules.The structure is extremely stable, long lifespan and high discharge efficiency. The units are air-cooled and feature in-built in air pump. The units generating components are housed in an all stainless steel enclosure and touch screen are easy to use and view.The unit feature: timer remote control, LCD display, IOT WiFi control, various ozone output(10-100%).

Availability:

Quantity:



Inquire Add to Basket

Model:
FG-AF
Brand:
FLYGOO

Product Description

Engineered for demanding industrial environments, this integrated system ensures consistent high-purity ozone output with minimal maintenance. The smart IOT connectivity allows remote monitoring and scheduling, while the durable construction guarantees reliable operation for years. Whether for wastewater treatment or air disinfection, this unit delivers efficient, chemical-free oxidation with user-friendly control.

Item	Unit	FG-AF
Ozone Output	g/hr	15	20
Ref. Disinfection Area*	m2	150-250	200-350
Power	w	260	360
Electric	VAC/Hz	220~240/50~60; 110/60
Gas Feed	/	Dry Clean Air
Ozone Concentration	mg/l	Air supply:5~15
Size(LWH)	mm	390290660
Weight	kg	18	19
Cooling Way	/	Air-cooled
Inner Air Pump	Yes/No	Yes
Ambient Humidity	%	<70
Ambient Temperature	ºC	<40

Ozone Generator Features:

1. Multi-point malfunction detection. Over voltage, over current and over temperature protection

2. The equipment will be stopped operation and the corresponding fault indicator on the circuit board lights up when a fault is detected;

3. The equipment utilized large power IGBT modules, high efficiency, long lifespan quartz structure with air cooling parts;

4. Ozone amount continuous adjustable (20~100%);

5. Corona discharging ozone technology;

6. Variable timing control;

7. Stainless steel enclosure;

8. Remote control and Wi-Fi control;

9. External oxygen feeding is available (optional);

10. CE, ROHS Certification

ozone purifier machine

Is ozone treatment safe?

Yes, when used correctly. Ozone is highly effective but must be controlled to avoid overexposure, which can be harmful to humans if inhaled. Proper ventilation and monitoring are essential.

How long does ozone last in water?

Ozone has a short half-life (about 20-30 minutes in water) and decomposes back into oxygen. This means it must be generated on-site and used immediately.

What types of water can ozone treat?

✔ Drinking water

✔ Wastewater

✔ Swimming pools & spas

✔ Industrial process water

✔ Bottled water

✔ Aquaculture & hydroponics
