FG-DOZ5500
Flygoo
It is perfect for a number of uses, such as food processing facilities, swimming pools, and water treatment plants. In order to make sure that drinking water is safe for human use and free of contaminants, it is also helpful in monitoring its quality. Users may swiftly identify any problems with the water quality and take the necessary steps to address them with the Online Dissolved Ozone Meter Water Ozone Analyzer.
> No membrane dissolved ozone three electrode method, sensitive reaction. It can be compared
with DPD method.
> IP65 dustproof and waterproof grade, all-weather stable operation.
> Simple menu design, convenient operation, fast calibration.
> Two 4~20mA isolated current output, efficient transmission.
>Strong anti-interference ability, suitable for complex industrial site environment.
> Password protection: Prevent unauthorized change Settings
> Two relay switch control, set relevant parameters respectively,efficient control.
>Wall hanging or dial installation, convenient field application. Standard RS485 communication
With the third relay cleaning/alarm function: users can set the cleaning frequency and time.
>Switching power supply 85~260VAC or 12~36VDC.
●Standard 1/4 DIN casing, easy installation.
●IP65 rated: high luminance LED backlight, applicable to harsh environment.
●Adopt integrated switching power supply module; high protection against electromagnetic interference.
●Menu-driven program that simplifies set-up.
●Instant browsing all the settings in measurement mode, easy to master your working state
●Scaleable isolated 0/4-20mA Outputs
●Two relay circuits, users can select high-low control freely. Separately adjustable high and low set-point hysteresis(dead bands) prevent chattering of relays around the set points.
●Third relay Cleaning/Alarm function; users sets the cleaning frequency and time
●Temperature value offset adjustment.
●Optional nanoampere electrode (80mA, 400mA)
●-485 output

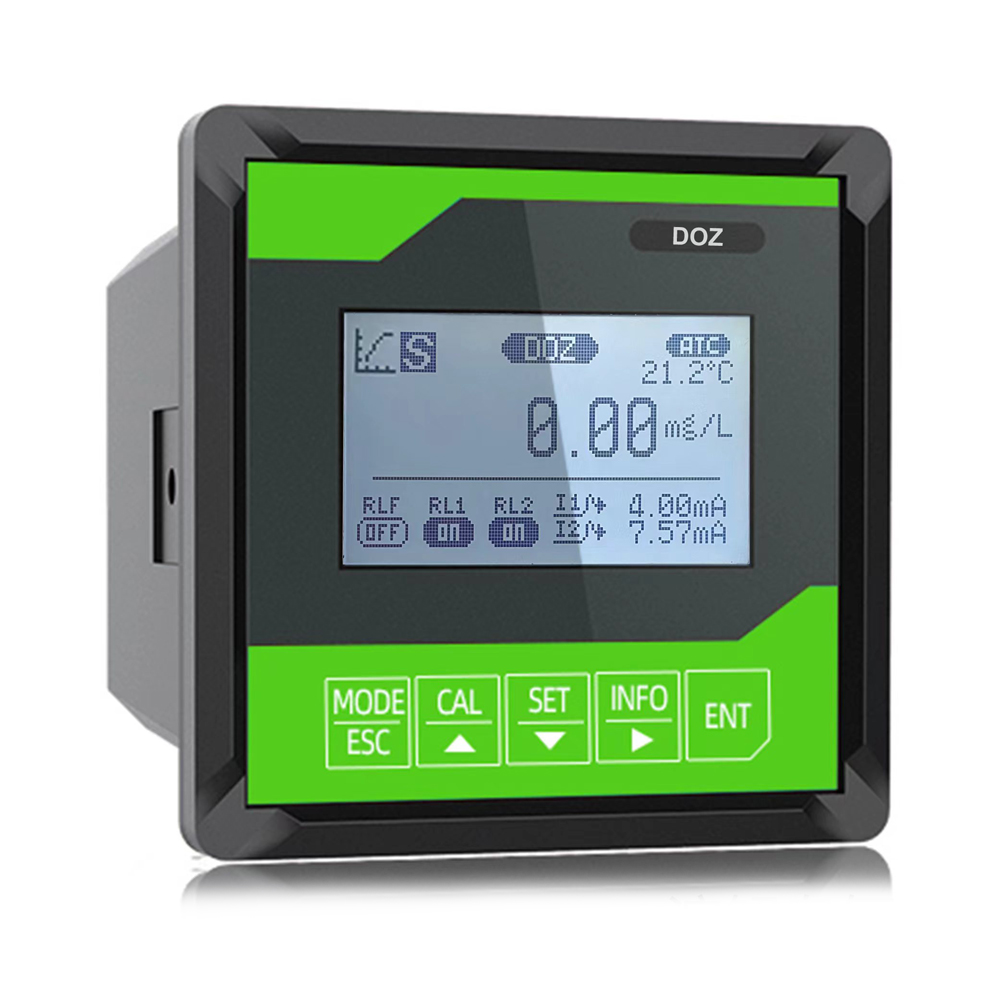

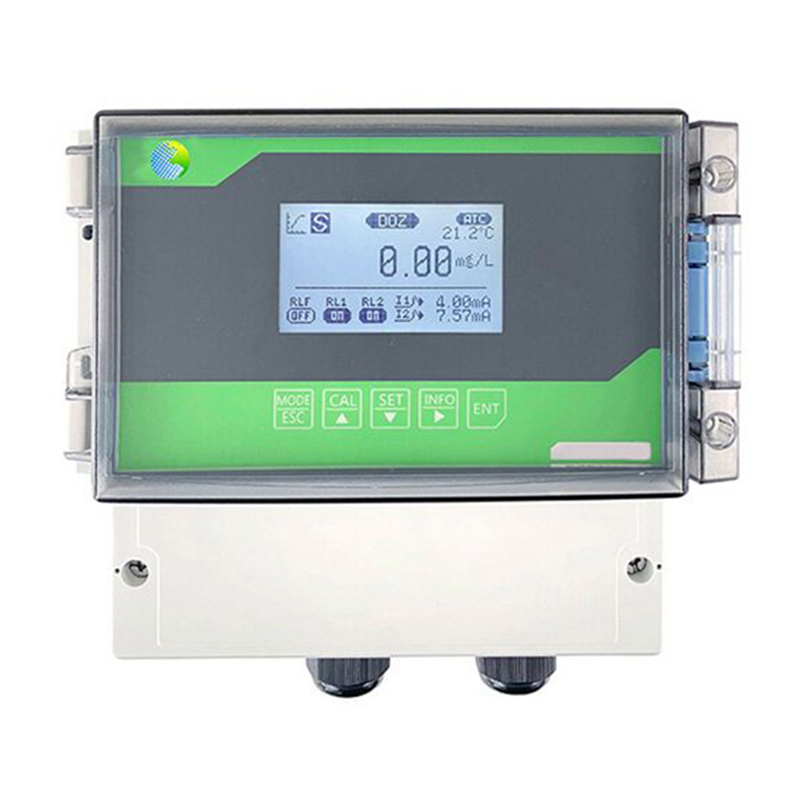

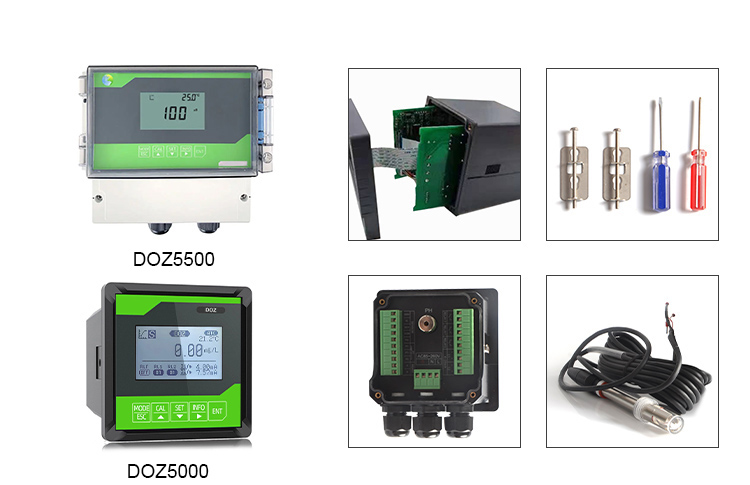

Model | FG-DOZ5000 | FG-DOZ5500 | |
| (Versatile) | (Wall Mounting) | ||
Dissolved Ozone | Measuring range | 0.000 -2.000 mg/L or 0.00-20.00 mg/L | |
Resolution | 0.001 mg/L or 0.01mg/L | ||
Measuring Accuracy | 1%+-1 LSD | ||
Temperature | Temperature range | -10.0~110.0 °C | |
Resolution | 0.1°C | ||
Measuring Accuracy | -0.3 | ||
Temperature input | 22KΩ / PT1000 | ||
Temperature compensation | automatic | ||
Signal output | Output range | 4~20 mA (adjustable) | |
Current accuracy | 1%F.S. | ||
Output loading | <500 Ω | ||
Data interface | RS485 | RS485 Modbus protocol | |
On off control | Control method | 2 SPST relay | |
Other | Load capacity | 2.5A 230 VAC | |
Cleaning/alarm relay | optional | ||
Working power supply | 85~260VAC or 12~36VDC | ||
Working temperature | 0~60°C | ||
Working humidity | < 90% | ||
Levels of protection | IP65 | ||
Method of installation | Panel mounting | Wall-mounting | |
Outline dimension | 108×108×156 mm | 158×188×108 mm | |

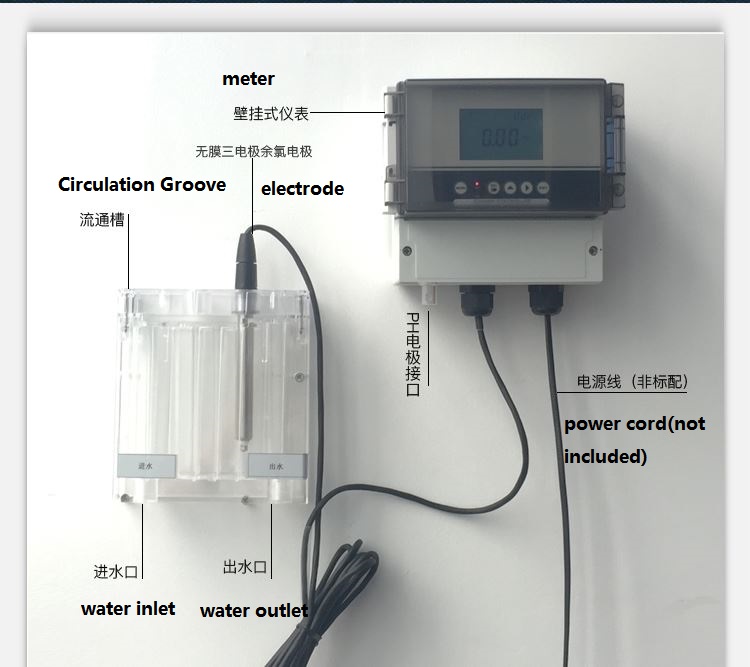

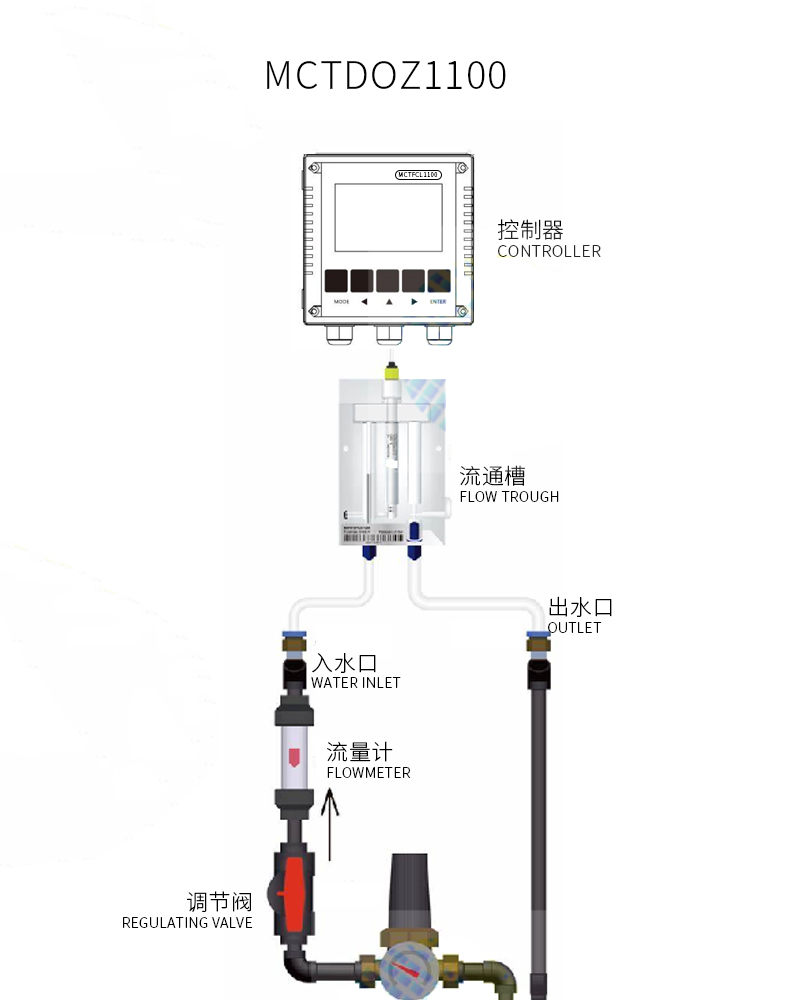

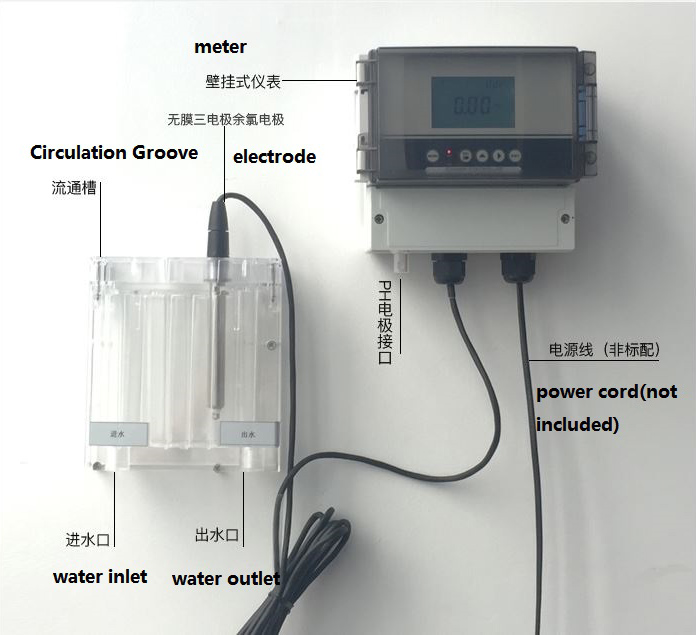

Water flows through the integrated components of the ozone detector in a sequential manner. An inbuilt sensor detects the amount of ozone in the water as it first enters the flow-through chamber. A regulating valve modifies the flow as necessary, while a flowmeter keeps track of the water rate. After processing the sensor data, the controller shows the readings. Ultimately, the outlet is where the examined water leaves. This configuration makes it possible to continuously monitor the water stream's ozone levels in real time.
