Ozone Concentration Analyzer Dissolved Online Ozone Tester PH ORP Ozone Water Monitor

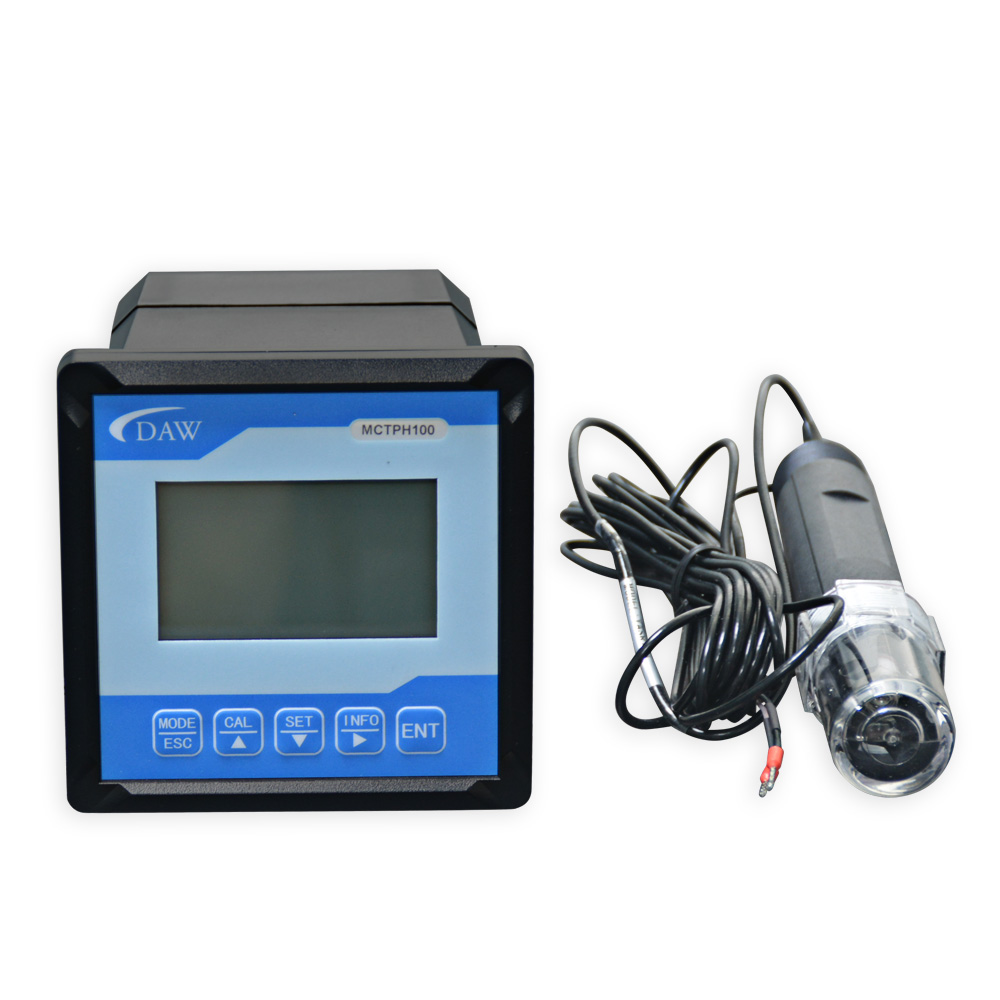

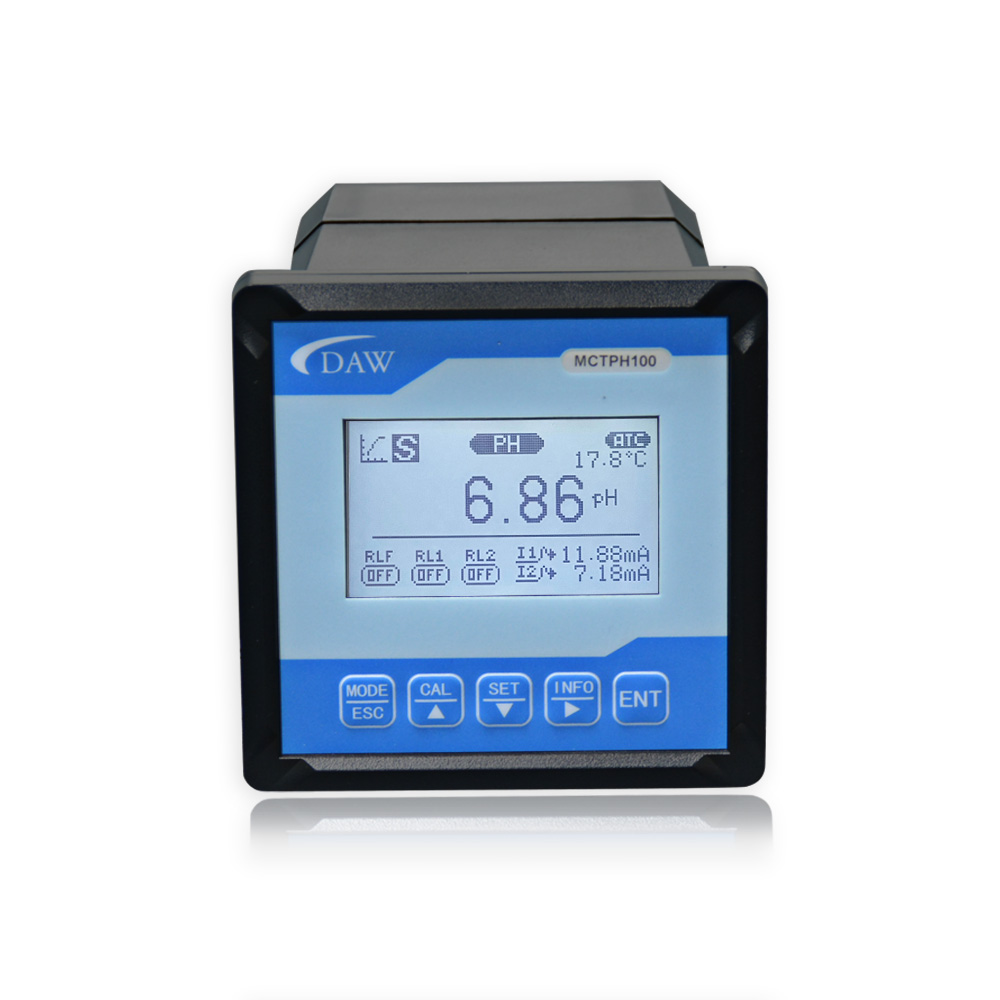

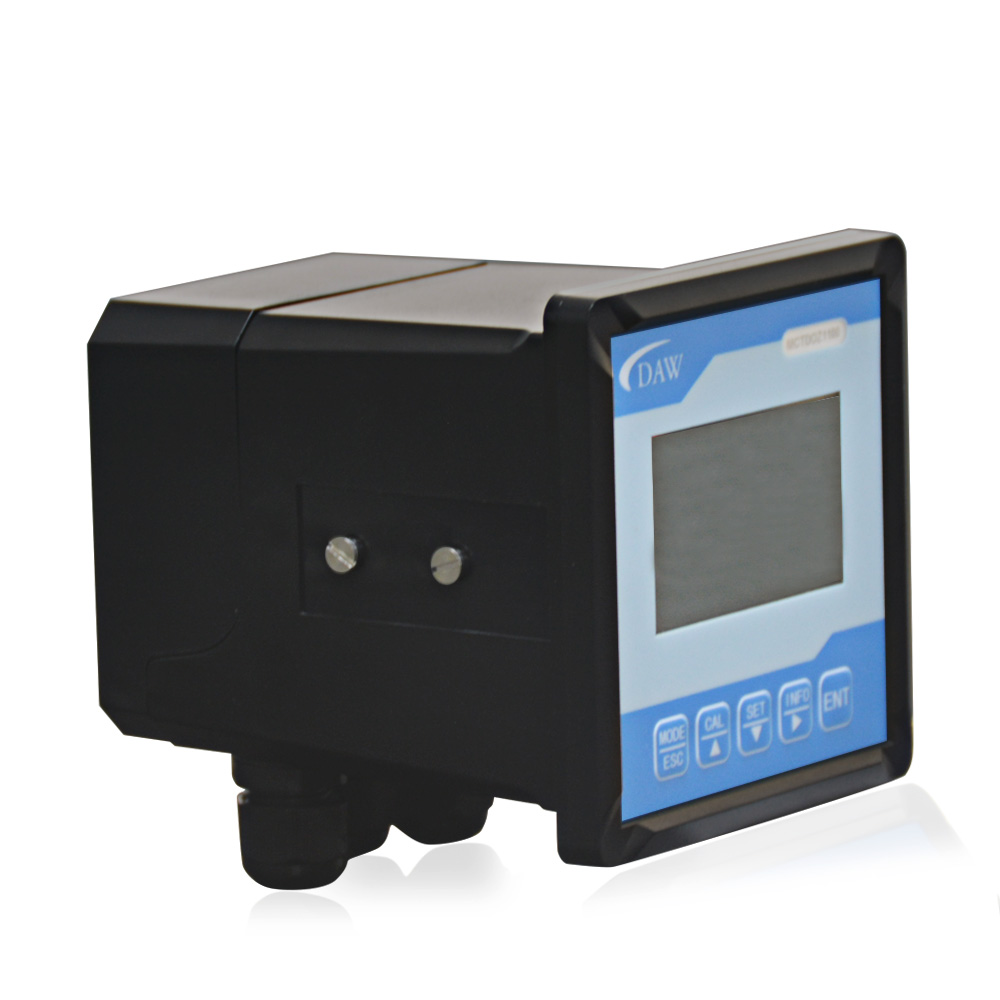

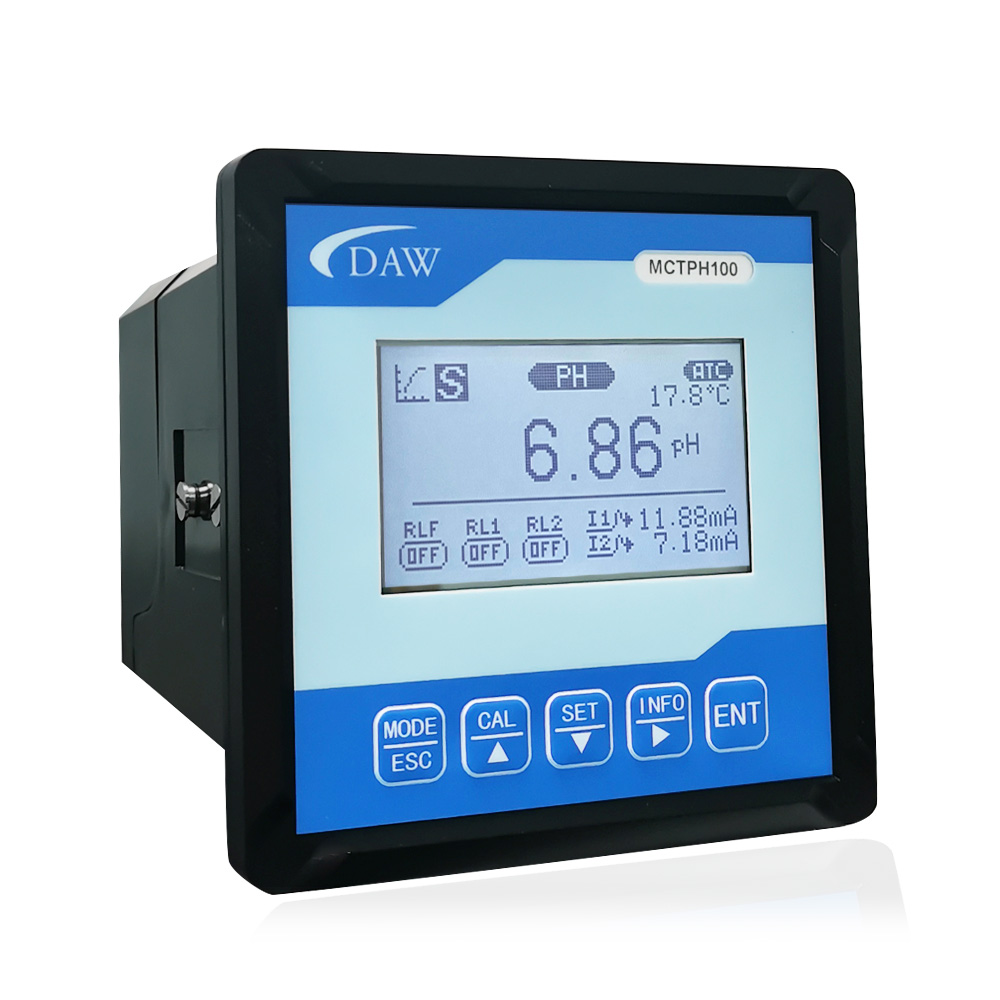

An model FG-MCTPH100 online pH/ORP controller is an industrial instrument designed for the continuous,real-time measurement and regulation of a solution’s pH level or oxidation-reduction potential (ORP).
Availability:
Quantity:
Inquire Add to Basket

  • FG-MCTPH100

  • FLYGOO

Product Description

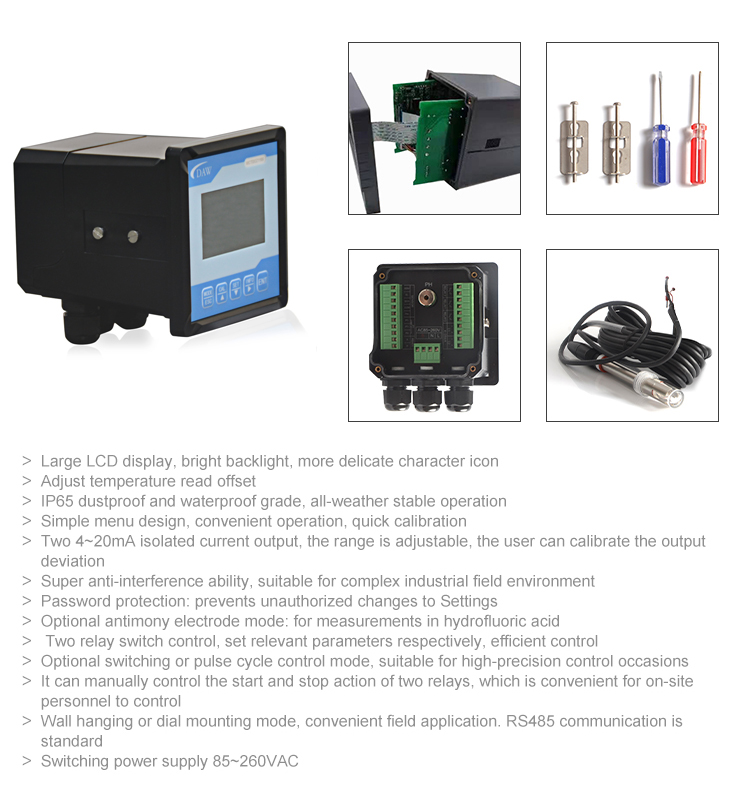

> Large LCD display, bright backlight, more delicate character icon

> Adjust temperature read offset

>IP65 dustproof and waterproof grade, all-weather stable operation

> Simple menu design, convenient operation, quick calibration

> Two 4~20mA isolated current output, the range is adjustable, the user can calibrate the output deviation

> Super anti-interference ability, suitable for complex industrial field environment

> Password protection: prevents unauthorized changes to Settings

> Optional antimony electrode mode: for measurements in hydrofluoric acid

>Two relay switch control, set relevant parameters respectively, efficient control

> Optional switching or pulse cycle control mode, suitable for high-precision control occasions

> It can manually control the start and stop action of two relays, which is convenient for on-site personnel to control

> Wall hanging or dial mounting mode, convenient field application. RS485 communication is standard

>Switching power supply 85~260VAC

Model

FG-MCTPH100

PH

Measuring range

-2~16 pH

Resolution

0.01pH

Measuring accuracy

±0.01pH

Input impedance

≥1012 Ω

ORP

Measuring range

–2000~2000mV

Resolution

1mV

Measuring Accuracy

±1mV

Temperature

Measuring range

–10.0～130.0 °C

Resolution

0.1°C

Measuring Accuracy

±0.3°C

Temperature input

22KΩ/PT1000

Temperature compensation

Automatic/Manual

Signal output

Output range

4～20 mA (adjustable)

Current accuracy

Less than ±0.05mA

Output loading

＞500Ω

Data interface

RS485

RS485 Modbus protocol

On off control

Control method

2 SPST relay

Other parameters

Working power supply

85~260VAC or 12~36VDC

Working temperature

0～60°C

Working humidity

＜90%

Levels of protection

IP65

Method of installation

Panel mounting

Outline dimension

（H×W ×D)108×108×132 mm

Hole size

92.5 ×92.5 mm

Weight

0.65kg

APPLICATION

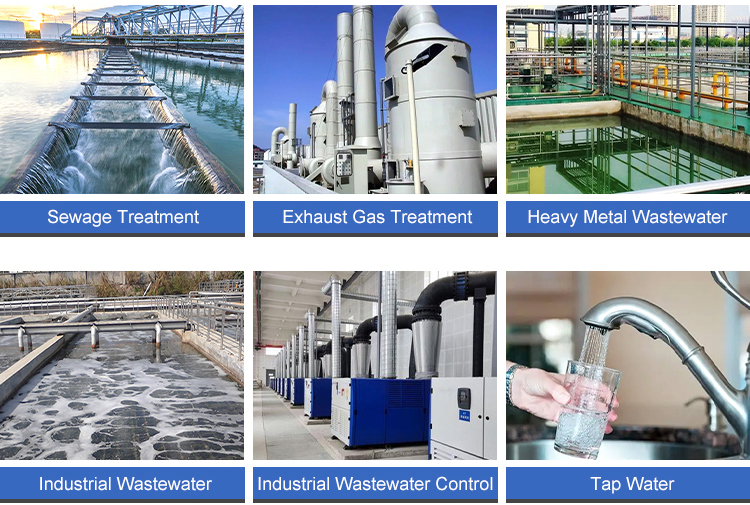

It is suitable for municipal upstream and downstream water, industrial waste water, environmental monitoring, biopharmaceutical, food and beverage, industrial process water, circulating cooling water, daily chemical textile, flue gas desulfurization and other industries
