FG-AF
FLYGOO
The Flygoo OzonAqua Series 12G and 16G models are the newest additions to our line of compact, air-cooled ozone generators, designed for large swimming pools, commercial drinking water treatment, and demanding industrial water applications. These units deliver 12 and 16 grams of ozone per hour, respectively, with adjustable output from 20% to 100% and a standard 4-20 mA signal output for seamless integration with automated control systems. Whether you are managing a resort pool, a bottled water plant, or a wastewater facility, the OzonAqua 12G/16G delivers reliable, chemical-free disinfection with minimal maintenance.
Item | Unit | FG-AF | |
|---|---|---|---|
Ozone Output | g/hr | 12 | 16 |
Power | W | 150 | 180 |
Electric | VAC/Hz | 220/240 or 110/120 VAC 50/60 Hz | |
Ozone Control | % | 20-100 | |
Recommended O2 Flow Rate | L/Min | 5 | |
Ozone Concentration | mg/l | Oxygen: 25-45; Air: 5-15 | |
External Case | / | Mild Steel | |
Size (L*W*H) | mm | 330*250*435 mm (13.0*9.8*17.1 inch) | |
Weight | kg | 11.5 | 12.0 |
Cooling System | / | Air Cooling | |
Signal Output | / | 4-20 mA | |
Ambient Humidity | % | <70 | |
Ambient Temperature | °C | <40 | |
Accessories | / | Check valve *1; PTFE hose *1; air stone *1 | |

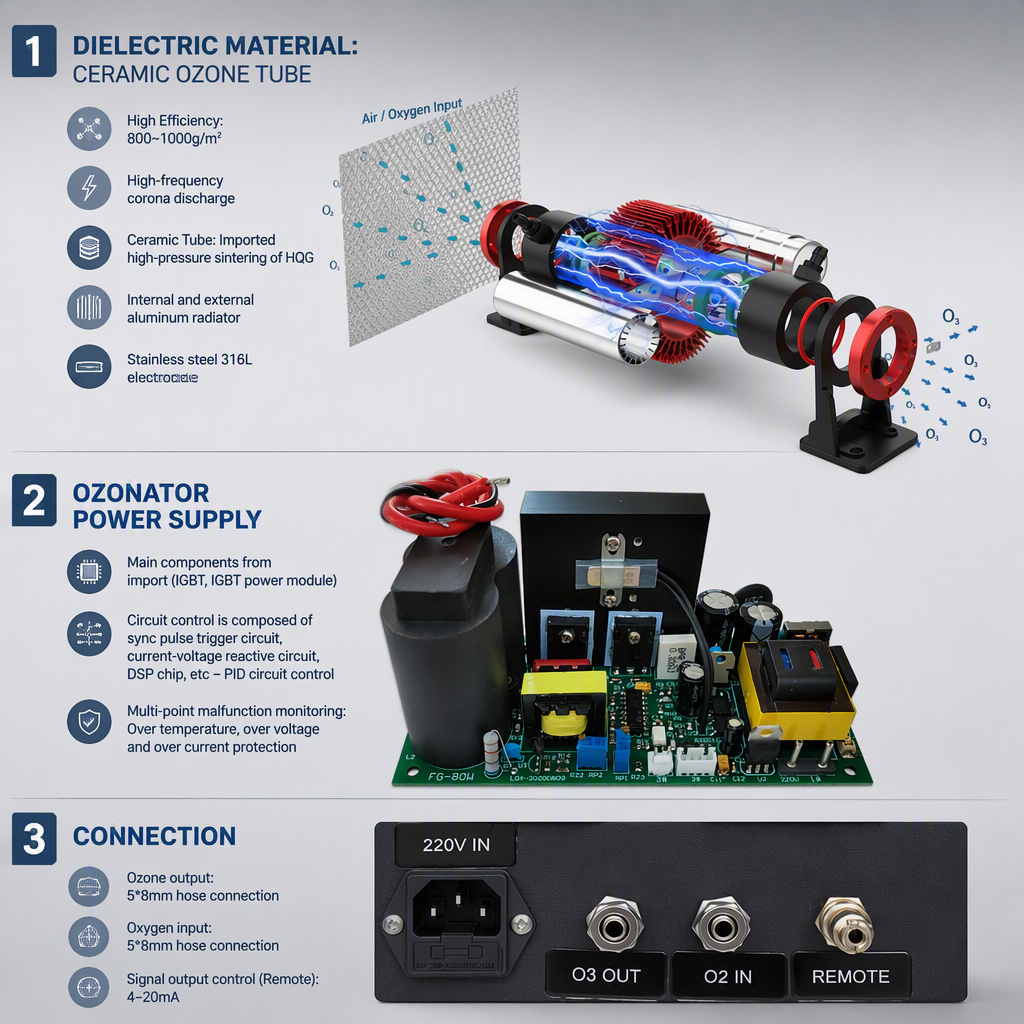

The OzonAqua 12G and 16G utilize advanced Corona Discharge (CD) technology with a high-frequency ceramic ozone tube. The dielectric material features imported HQG high-pressure sintering, internal and external aluminum radiators, and a stainless steel 316L electrode, achieving a high efficiency of 800~1000 g/m². The units are powered by imported IGBT power modules with a circuit control system composed of a sync pulse trigger circuit, current-voltage reactive circuit, and DSP chip with PID circuit control.

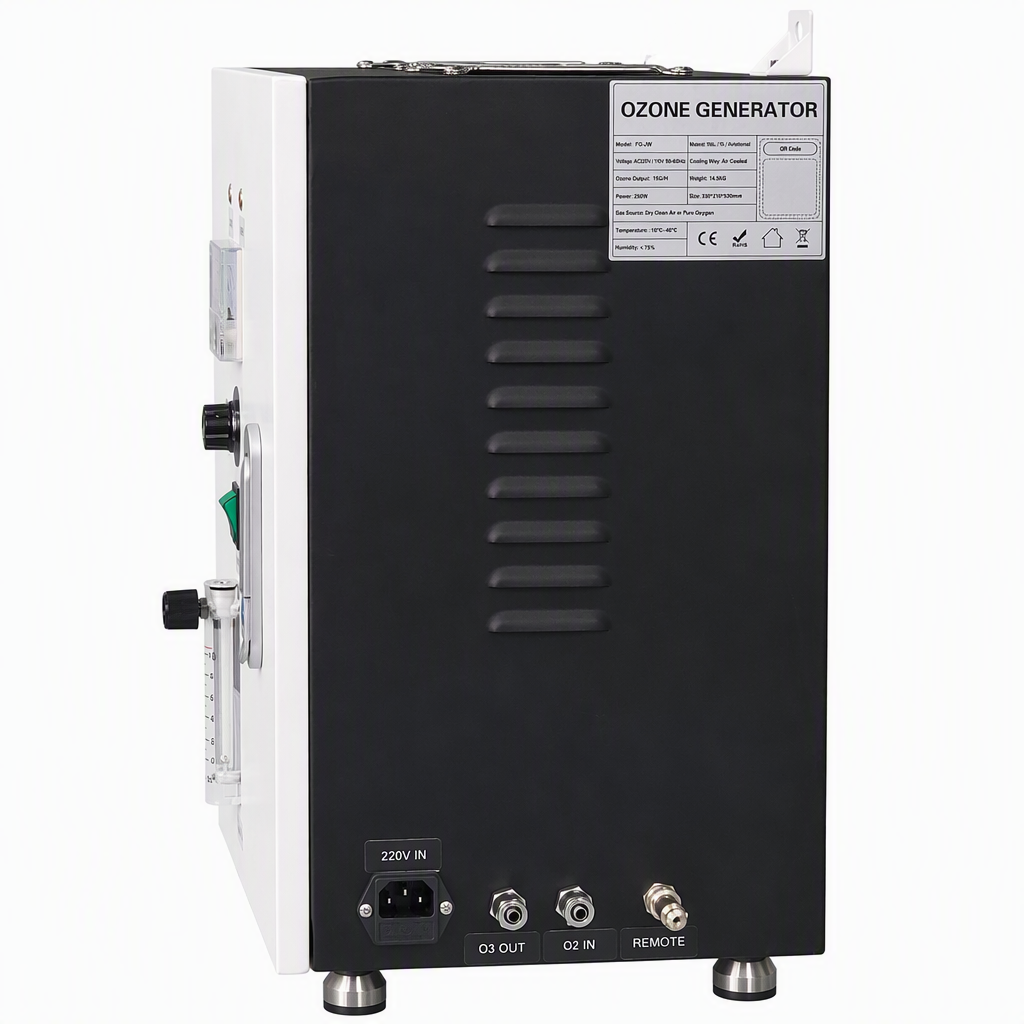

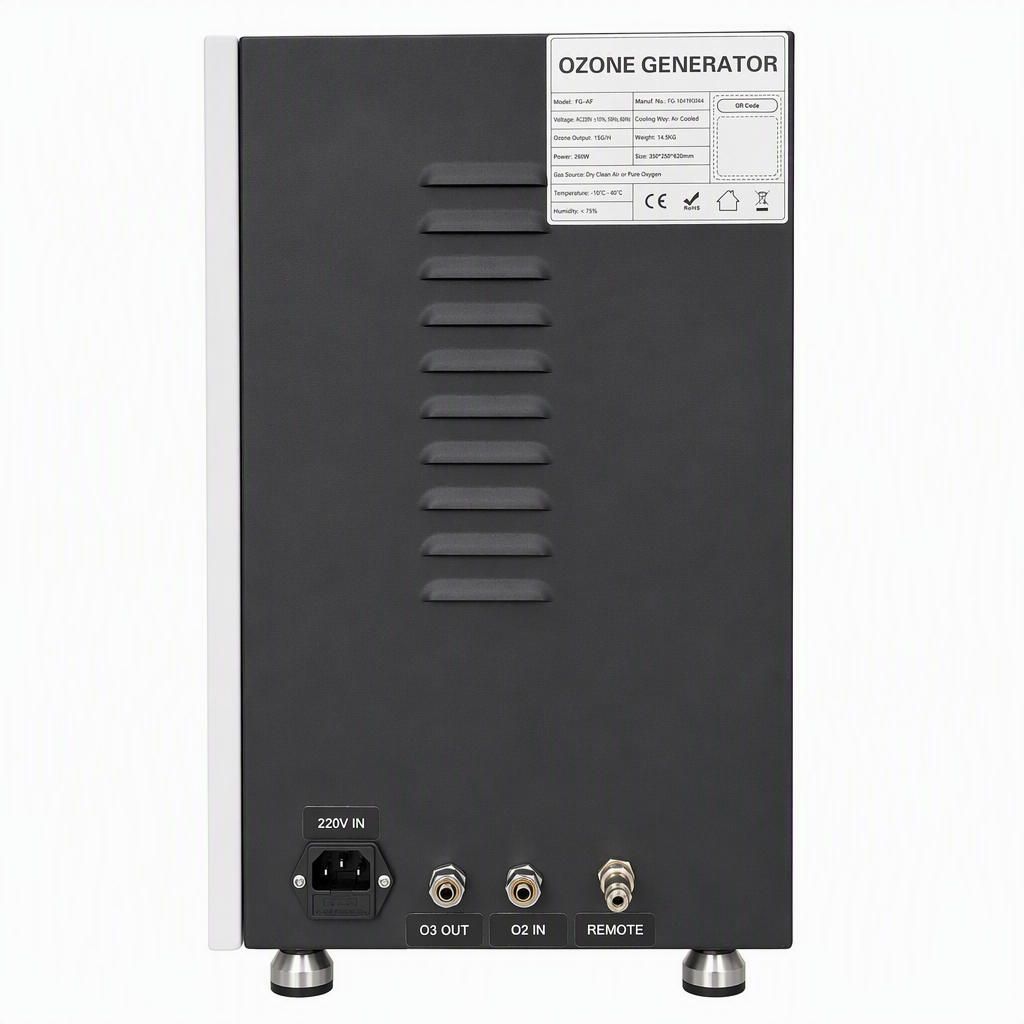

Multi-point malfunction monitoring provides over-temperature, over-voltage, and over-current protection. The whole gas circuit operates at low pressure, ensuring safe and reliable performance. The mild steel enclosure houses a SUS304 ozone outlet and oxygen inlet, with all connections using 5*8 mm hose fittings for easy installation.
High Ozone Output (12G/16G): The 12G model produces 12 grams of ozone per hour, ideal for large pools and commercial water treatment. The 16G model delivers 16 grams per hour for industrial-scale applications requiring higher oxidation capacity.

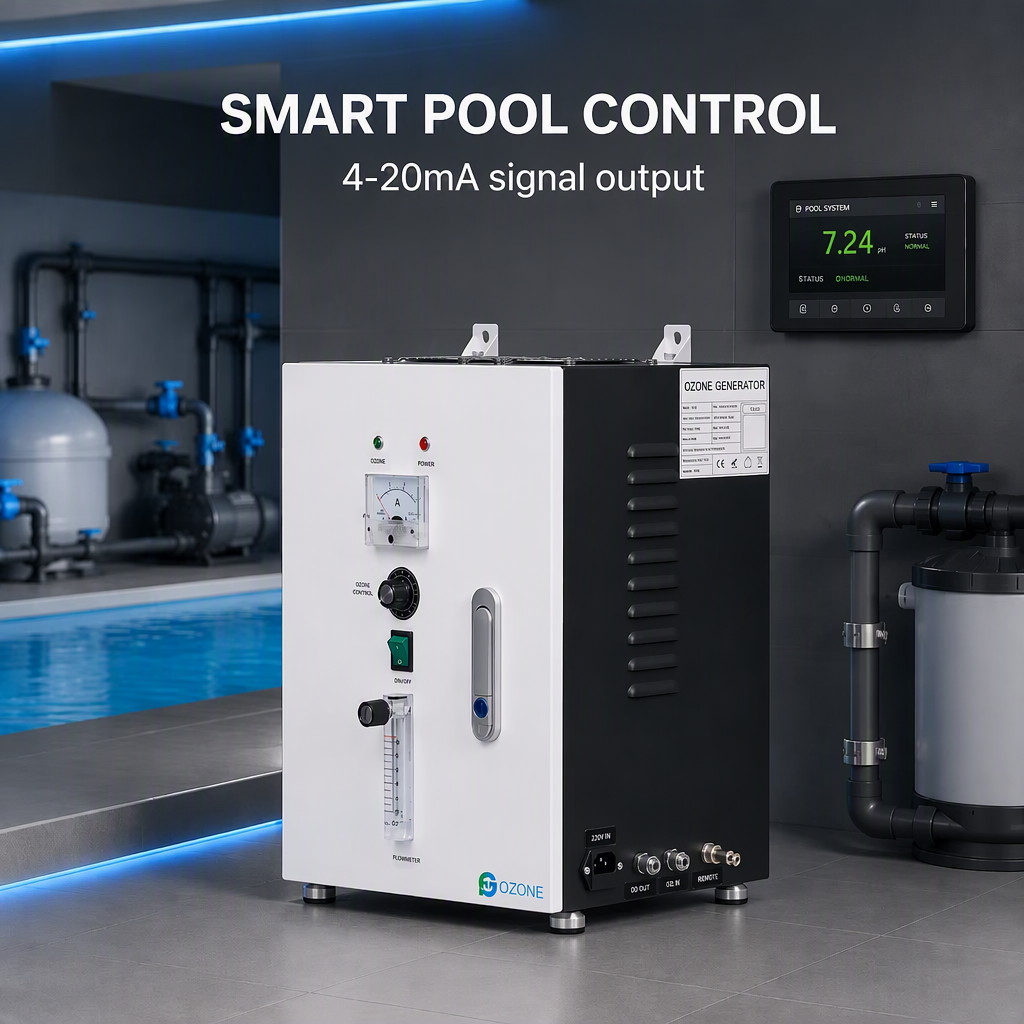

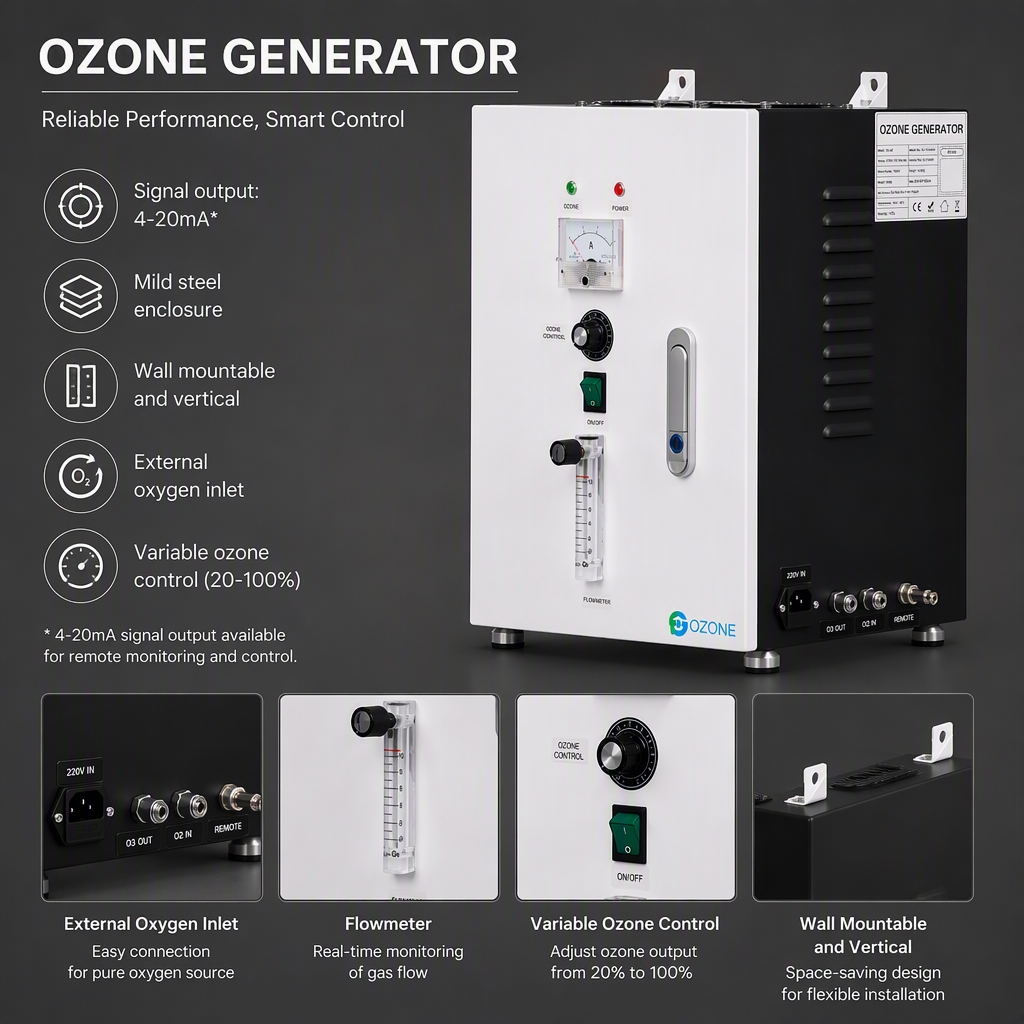

4-20 mA Signal Output: Standard on all models, this feature enables remote monitoring and integration with PLC, SCADA, or building management systems. You can adjust ozone output from 20% to 100% without being on-site—a feature rarely found in compact ozone generators.
Adjustable Ozone Output (20-100%): The ozone concentration knob allows precise control for different water volumes, contamination levels, and treatment requirements.
External Oxygen Inlet: Connect an optional oxygen generator (FG-OX 5LPM) to boost ozone concentration up to 25-45 mg/L, ideal for demanding water treatment applications.
Air-Cooled & Low Noise: No water cooling required. The air-cooled design ensures stable performance and low noise operation, suitable for continuous use.
Compact & Wall-Mountable: The compact footprint (330*250*435mm) and wall-mount design save valuable floor space, fitting easily into tight pump rooms or equipment areas.

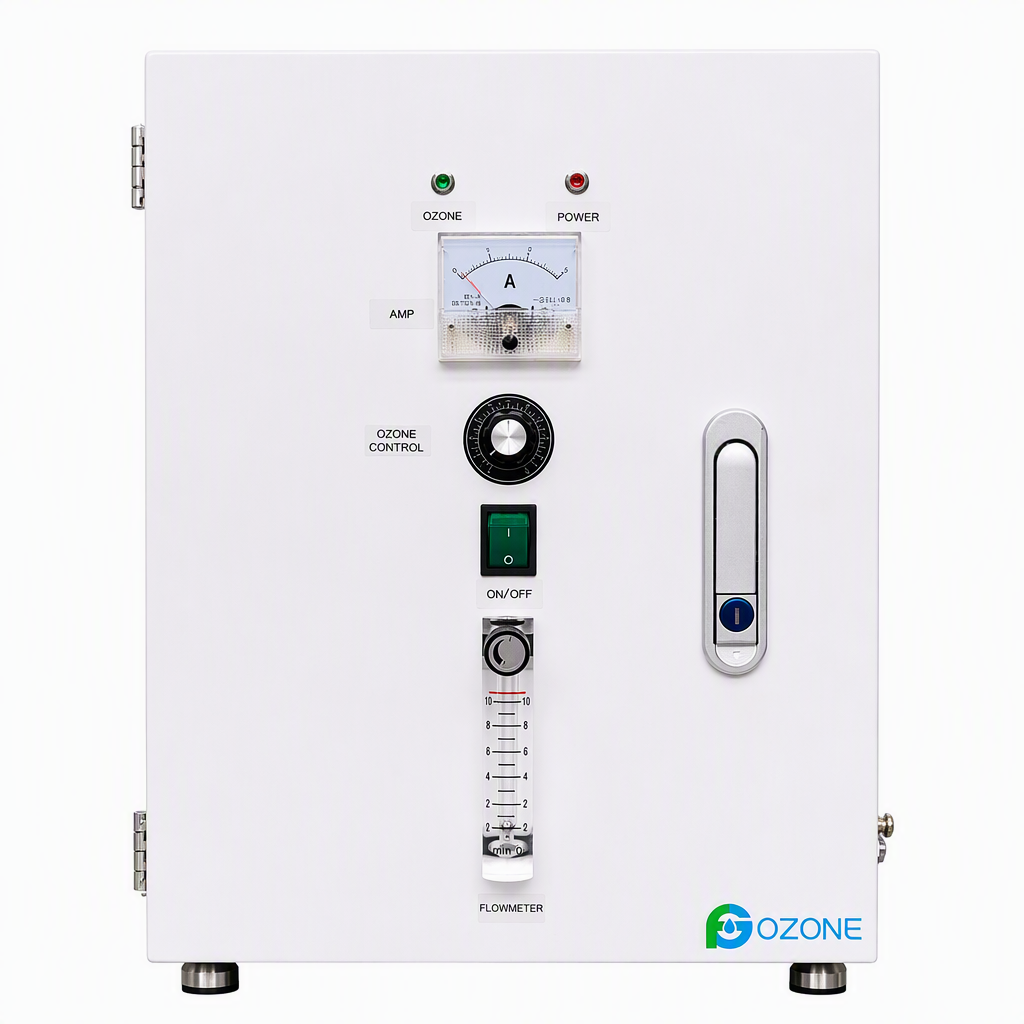

Multi-Point Safety Protection: Over-temperature, over-voltage, and over-current protection with fault indicator lights on the control panel ensure safe operation.
CE Approved: Meets European safety and quality standards for global market access.

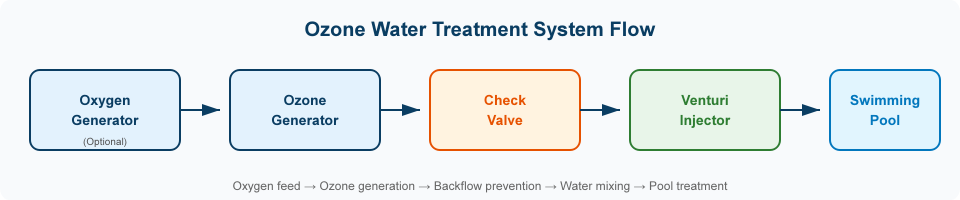

The OzonAqua 12G/16G follows a precise sequence to produce ozonated water for disinfection and oxidation:
Step 1: Air/Oxygen Intake—Ambient air enters through the integrated air pump, or external oxygen is connected via the O₂ IN port for higher concentration. The flow meter provides real-time gas flow monitoring.
Step 2: Ozone Generation—The gas passes through the ceramic ozone tube, where high-frequency corona discharge converts oxygen (O₂) into ozone (O₃). The amp meter shows real-time current consumption.
Step 3: Ozone Output—Ozone exits through the O3 OUT port, with a check valve preventing backflow into the ozone tube. The output can be adjusted from 20% to 100% via the control knob.

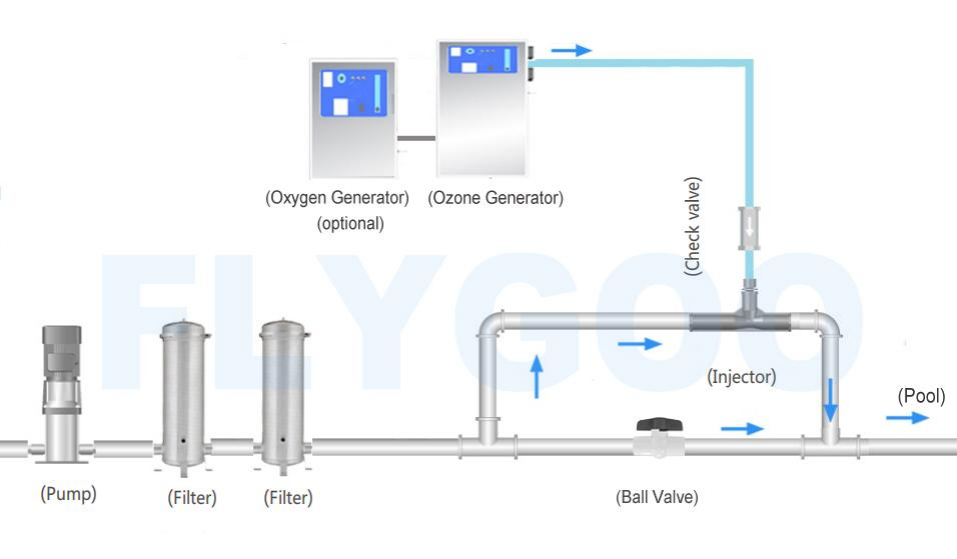

Step 4: Water Injection & Treatment—The ozone gas is injected into the water stream via a venturi injector or mixing system. The ozonated water flows into the pool, water tank, or treatment line for disinfection, oxidation, and odor removal.
The 12G model is ideal for large residential and commercial pools up to 150,000 liters. The 16G model handles resort pools and water parks up to 200,000 liters. Ozone destroys bacteria, viruses, and algae while eliminating chloramines and chemical odors, reducing chlorine consumption by up to 80%.

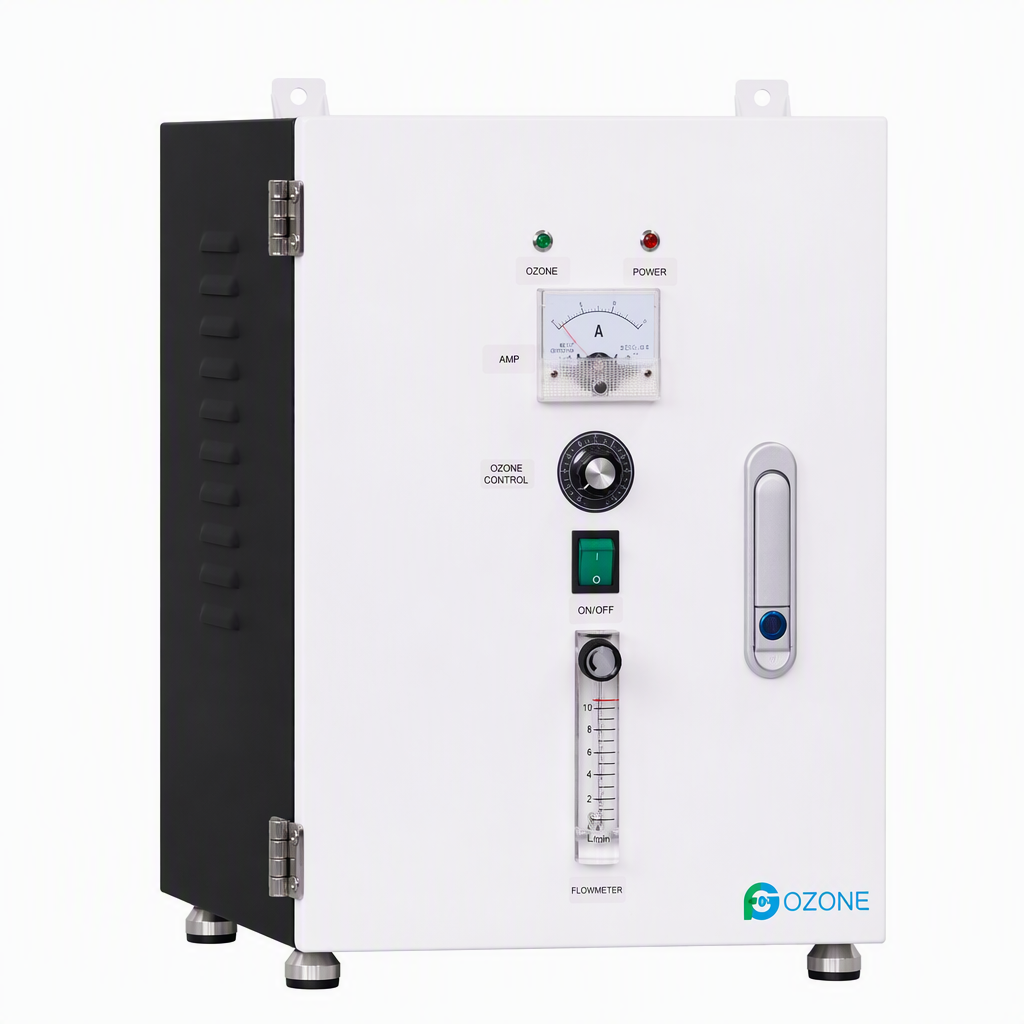

For drinking water treatment, ozone provides powerful disinfection without chemical residues. The 12G/16G models are suitable for municipal water treatment, bottled water production, and point-of-use systems, meeting international drinking water standards.
Ozone laundry systems use cold-water oxidation to sanitize fabrics, remove odors, and reduce detergent use. One OzonLaundry system can serve multiple washing machines, delivering fast ROI and extended linen lifespan.
Ozone is widely used in food processing for surface sanitation and extending shelf life. The 12G/16G models can be integrated into fruit and vegetable rinse systems to reduce pesticides, bacteria, and microbial contamination without chemical residues.
For wastewater treatment, ozone oxidizes organic pollutants, reduces COD and BOD, eliminates odors, and improves overall water quality. The 16G model is particularly suited for industrial effluent treatment and water recycling systems.
Installation is straightforward. The unit can be wall-mounted or floor-standing. The accessories include a check valve, PTFE hose, and air stone for quick setup. The 4-20 mA signal output connects easily to existing control systems.
Maintenance is minimal. Clean the air intake filter periodically and inspect the ceramic ozone tube every 6-12 months. The unit is air-cooled with no water cooling requirements, and the oil-free air pump ensures long service life. The fault indicator lights on the control panel help identify any operational issues quickly.
