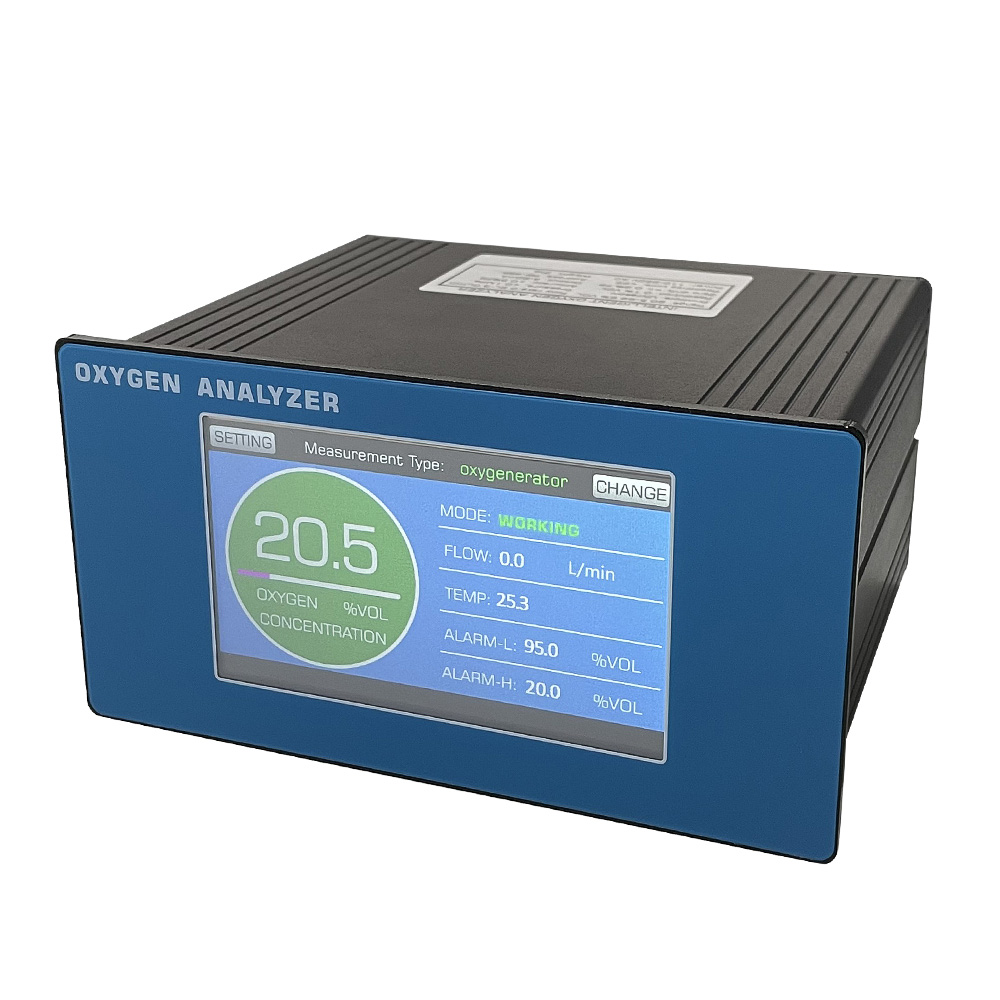

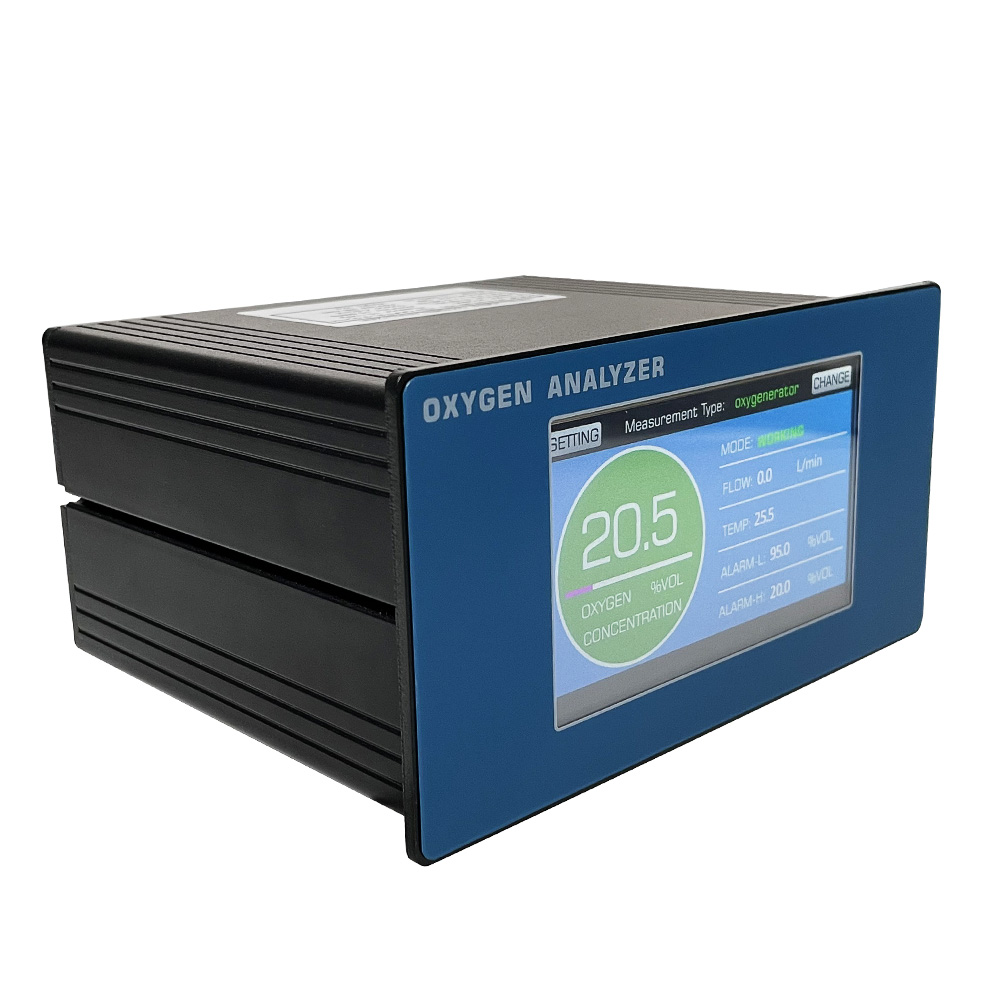

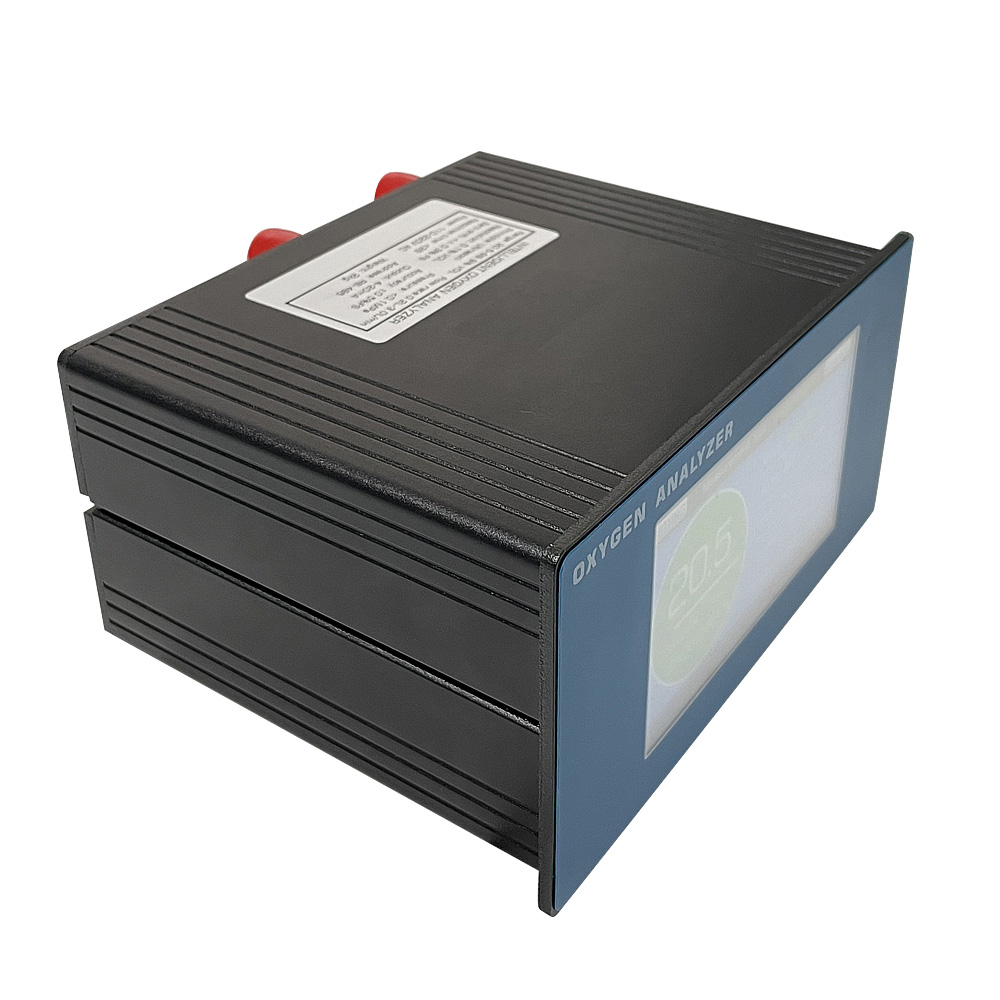

FG-100-O2
FLYGOO
The measurement range is 20.5-99.9% O2
Adopting original imported gas sensors, with accurate measurement results
The entire machine meets EMC design standards
Signal output 4-20mA and RS485 digital signals
Long calibration interval, high accuracy, stability and reliability
Touch screen operation interface
Longer service life and faster response speed

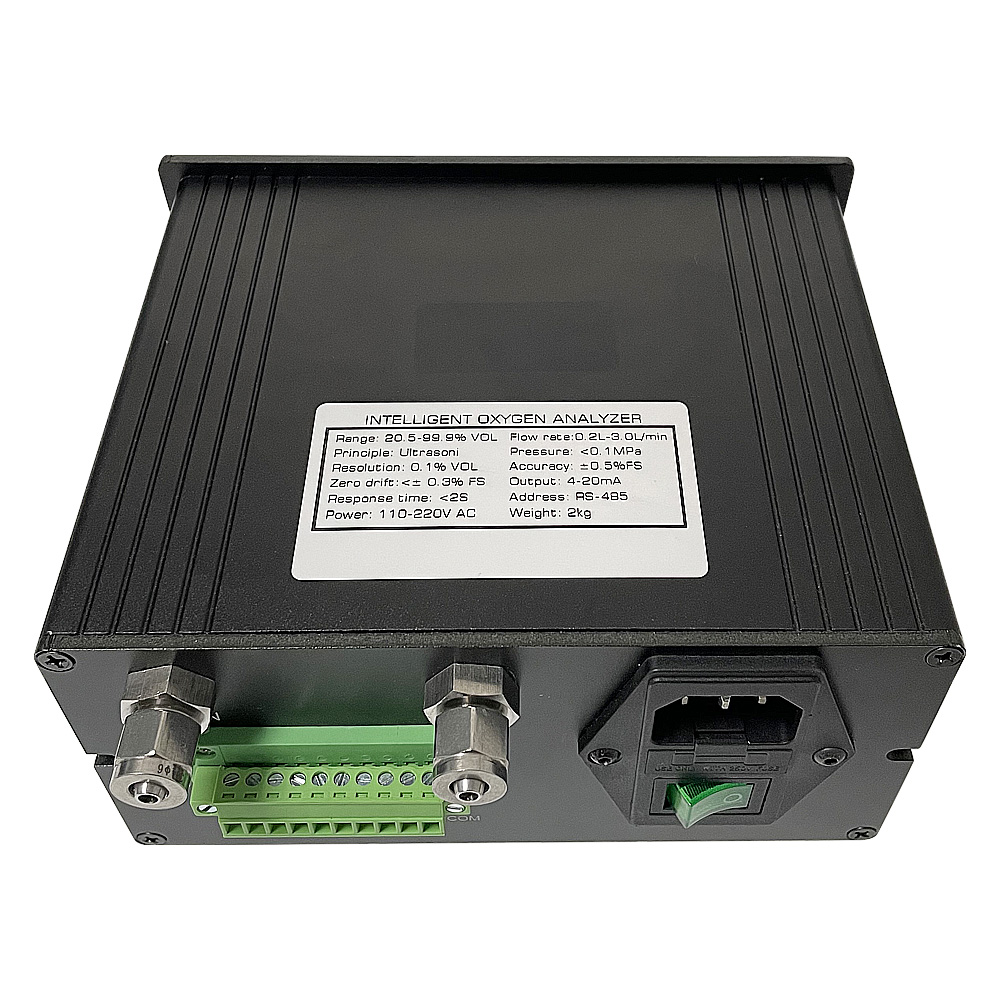

Model | FG-100-O2 |
Concentration Indication Range | 20.5 % ~99.9 % |
Measurement Principle | Ultrasonic |
Repeatability | <± 1% |
Measurement Accuracy | <± 1% FS |
Analog output | 4-20mA |
Operating Ambient Humidity | 5~80%RH |
Environmental Temperature | -40°C~+85°C |
Response Time | T90 ≤ 30 Seconds |
Dimension | 150*75*120mm |
Embedded Installation | 150*75mm |
Weight | 2.0KG |
Power Supply | 110-220VAC |
Max. Pressure | 14Psi (1Bar) |
Input Flow Rate | 0.2L-3.0L/min |
| Flow type |
Adopting original imported gas sensors, with longer service life, stable and accurate measurement results. The entire machine meets EMC design standards, with strong electromagnetic interference resistance, suitable for various complex industrial sites
Multiple signal output methods, capable of simultaneously outputting 4-20mA analog signals and RS485 digital signals Touch screen operation interface, user-friendly human-machine dialogue menu, intuitive and convenient operation; Modular design, users can choose to equip with an altitude measurement module; Compared with electrochemistry, it has a longer service life and faster response speed; Sensors that are not powered on do not consume energy, have a long service life, and are easy to maintain; No reference gas required, unaffected by the oxygen concentration in the working environment; Long calibration interval, high accuracy, stability and reliability; A high-precision temperature automatic compensation system that eliminate the influence of environmental temperature; The measurement range is 20.5-99.9% O2.
Product structure composition

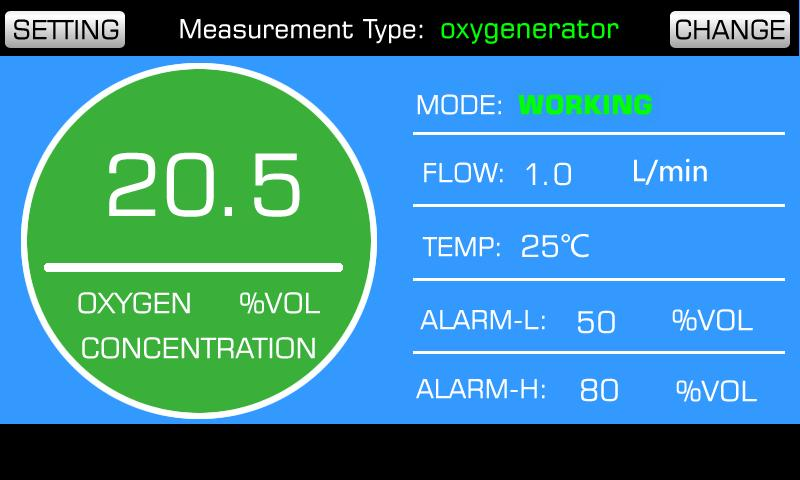

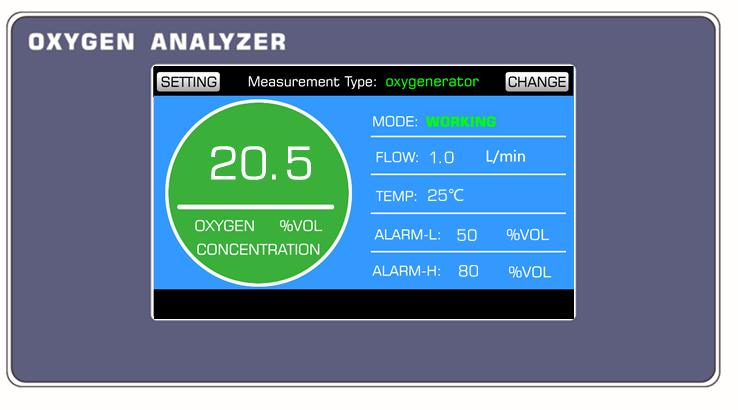

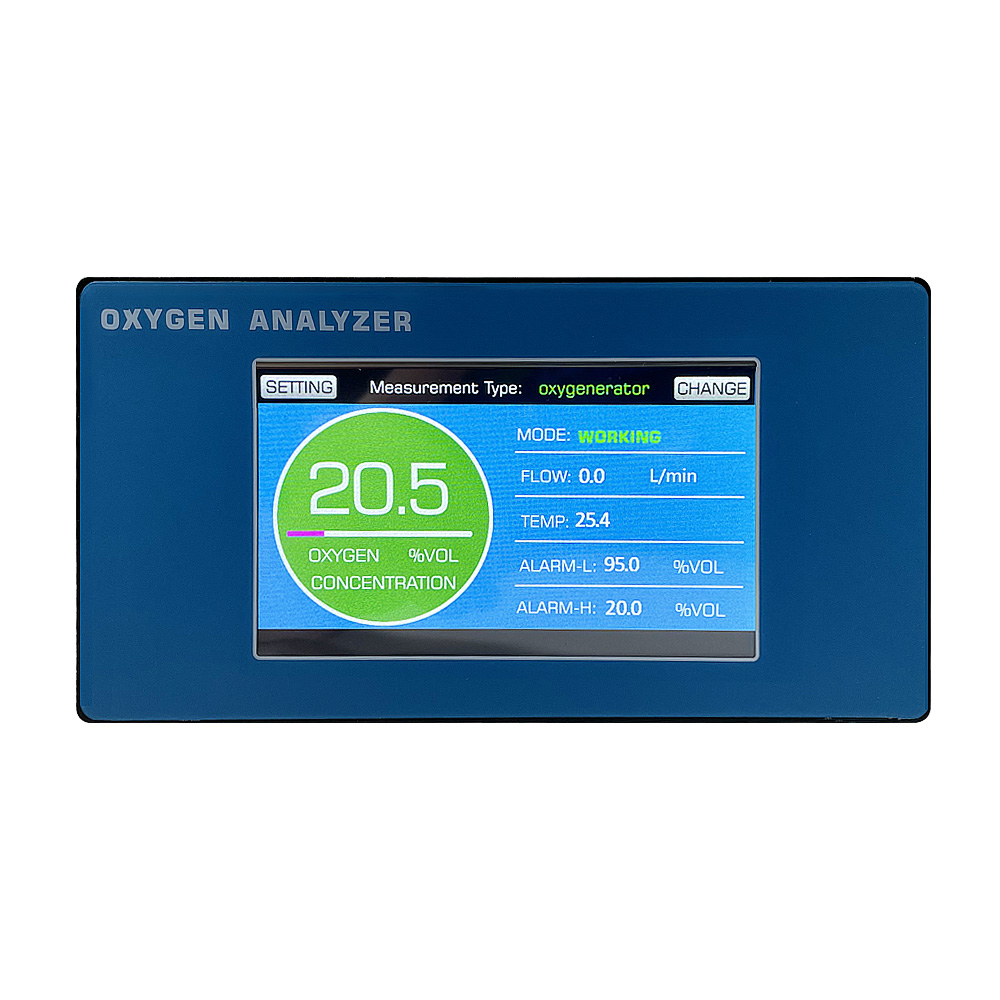

Front panel (detailed instructions can be found in the operation manual)

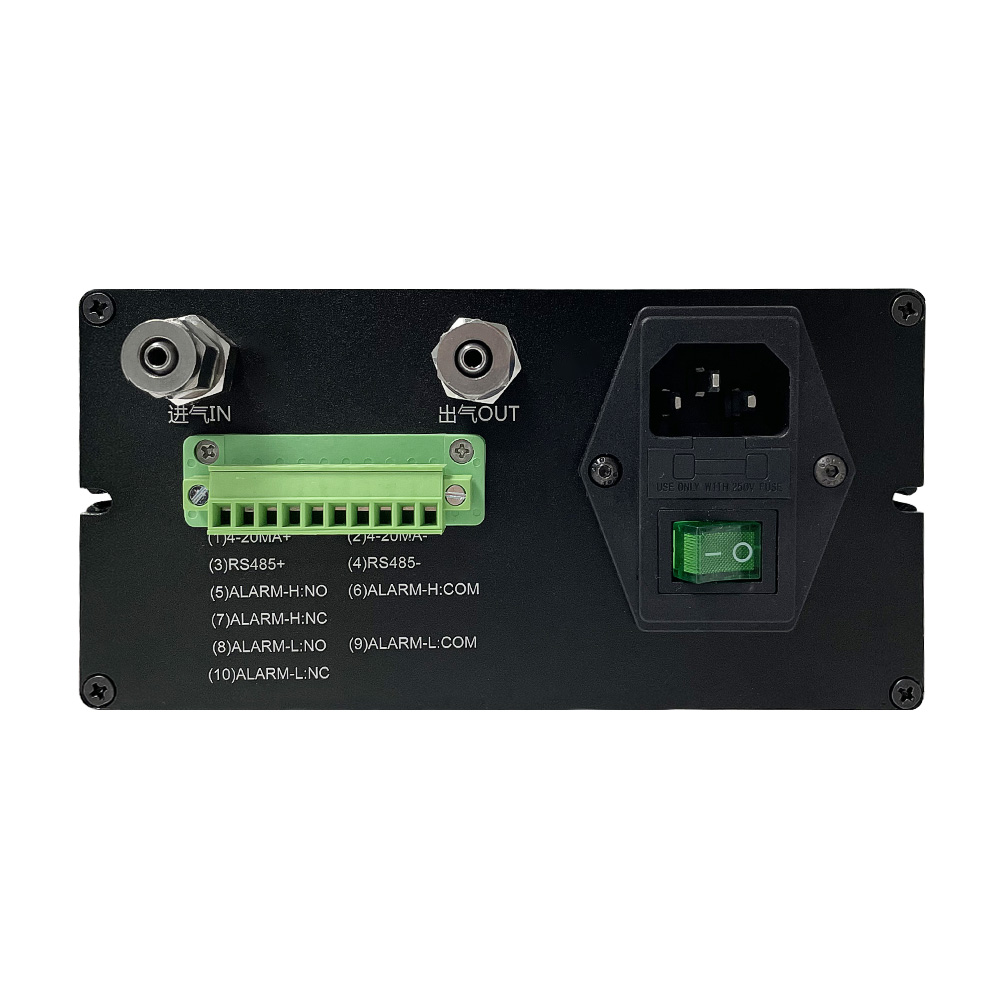

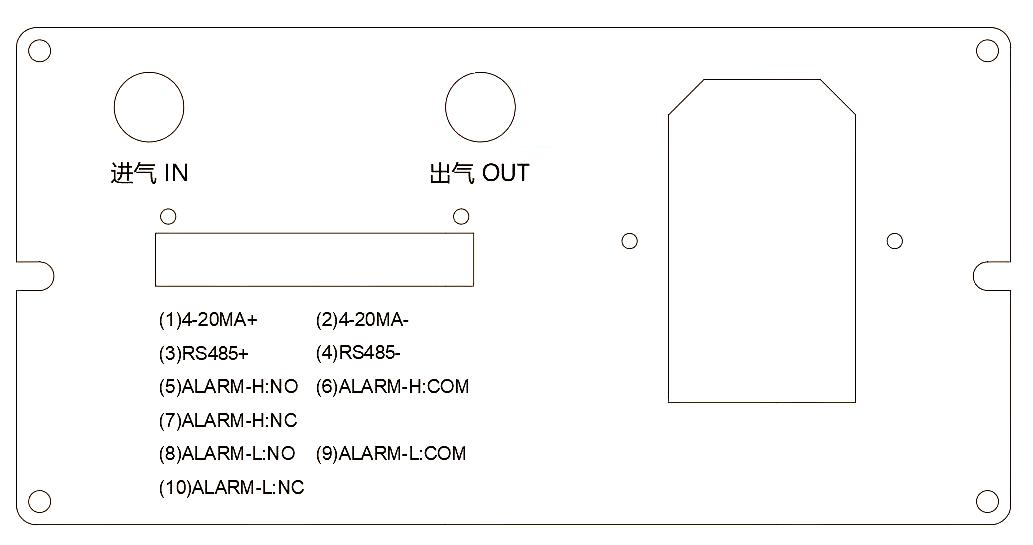

Rear panel: Air inlet, air outlet, power input, signal output (Note: There are differences between the physical product connection and the manual, please refer to the manual document for accuracy)
Product connection process and installation

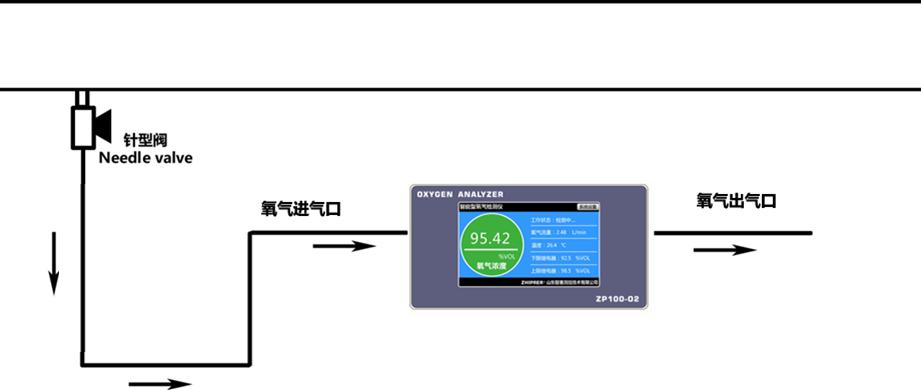

Connection process diagram of ZP100-O2 intelligent oxygen detector A filtering device or dehumidification device must be installed on the inlet of the oxygen detector to ensure clean and dry intake. It is strictly prohibited to connect the outlet to the main pipeline or pipelines with pressure!
Randomly equipped with embedded mounting brackets, the oxygen detector can be embedded and installed on the cabinet. Randomly equipped with needle valves and oxygen pipelines.The intelligent oxygen detector is used for indoor desktop or embedded installation, and enters the working state upon startup. Suggest preheating for 5 minutes before use. It can be used online continuously for 24 hours, and attention should be paid to the safety of the power supply and environmental conditions during use.
