CW-5000AN
FLYGOO

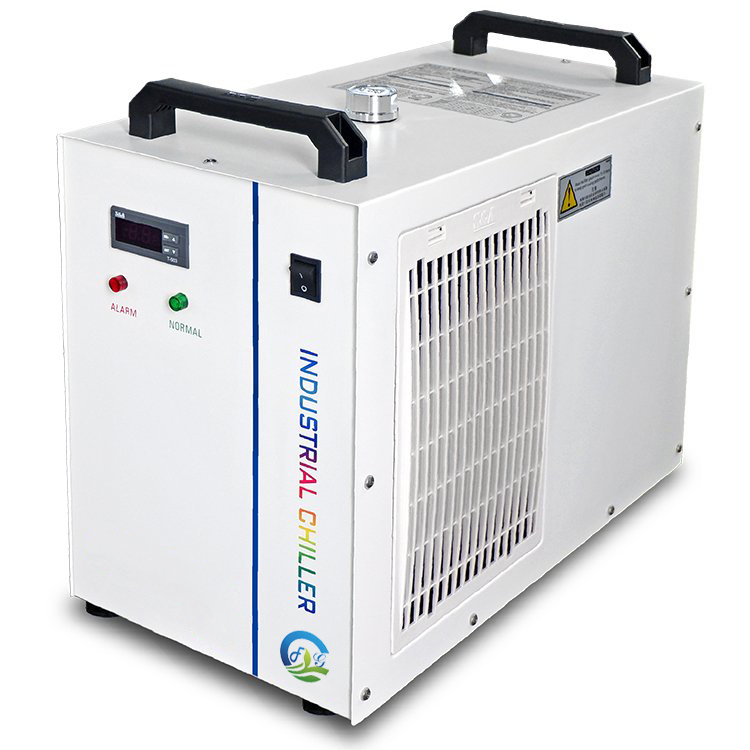

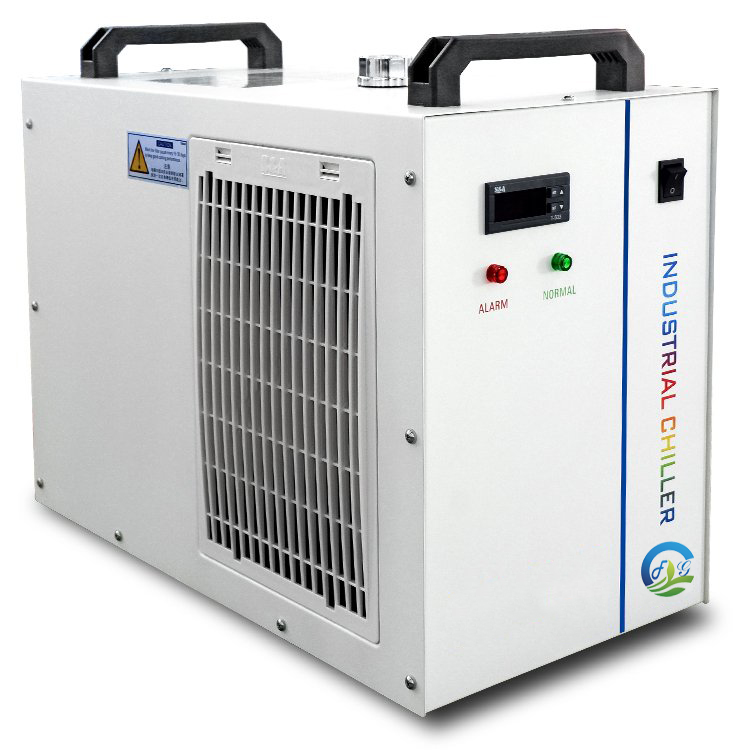

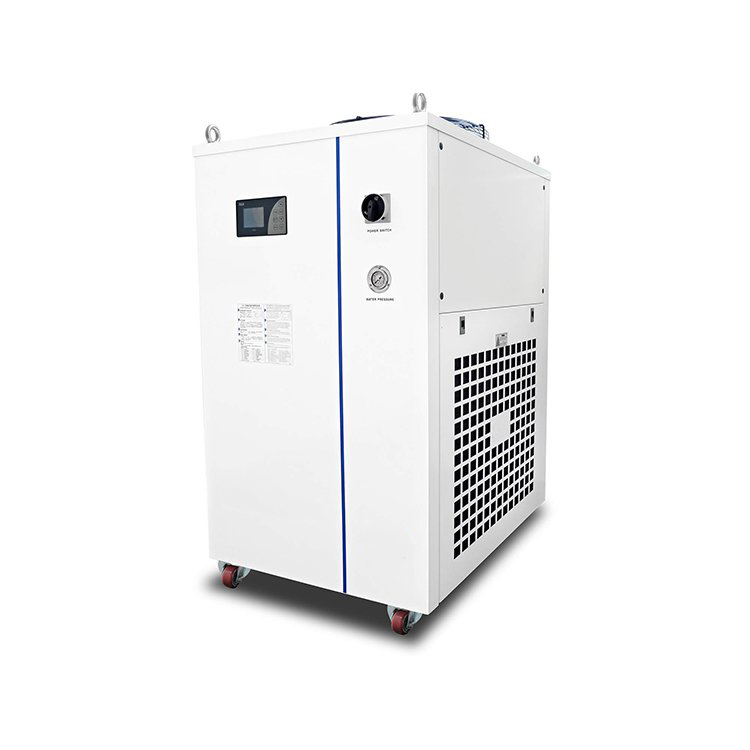

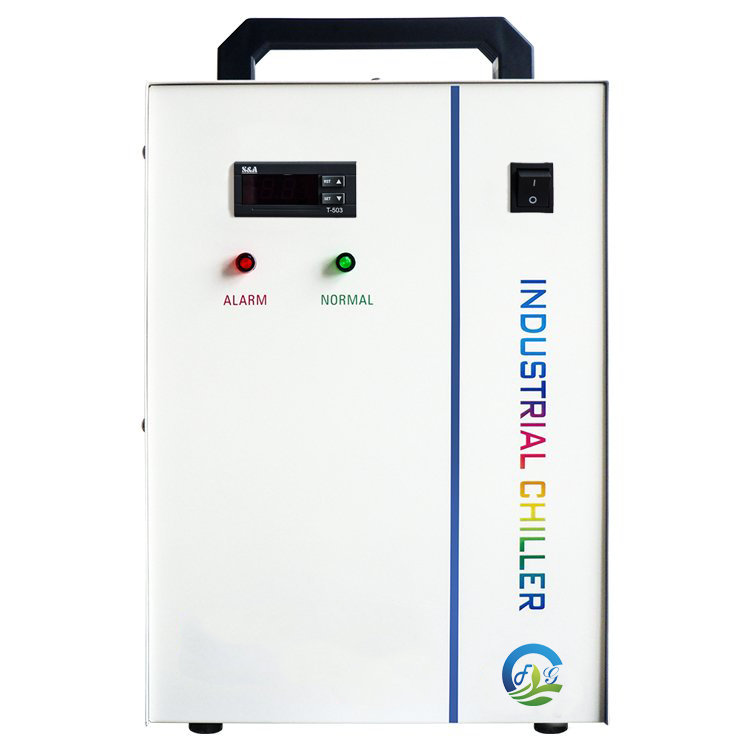

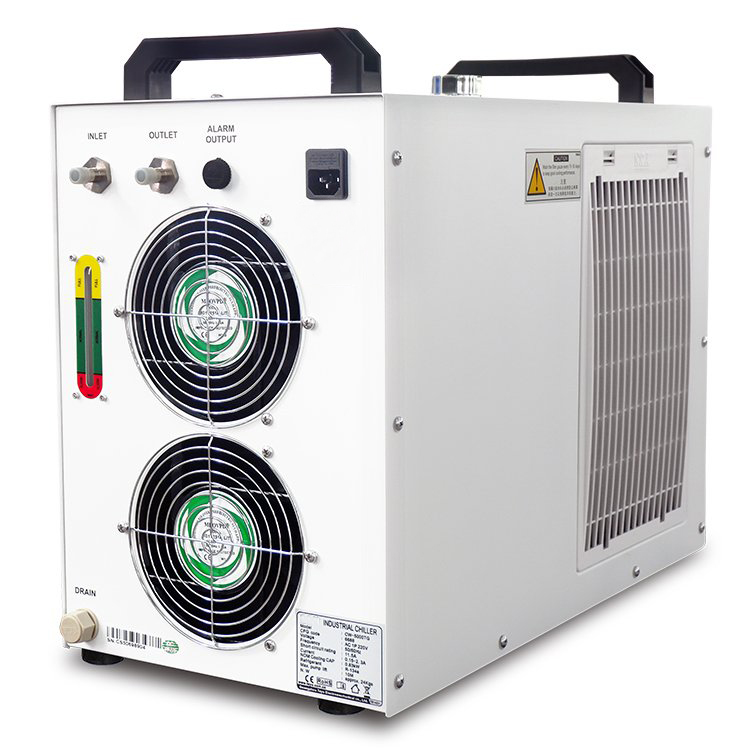

Flygoo industrial water chiller uses external circulating water working with the internal system for efficient refrigeration, smaller size with large cooling capacity with precise PID temperature control of ±0.5°C and less space occupation. It can satisfy cooling applications like water-cooling ozone generators.
Model | FGCW-5000TG | FGCW-5200AH | FGCW6000AI | FGCW6200AN |
Voltage | AC 1P 220V/110V | AC 1P 220V/110V | AC 1P 220V/110V | AC 1P 220V/110V |
Frequency | 50/60Hz | 50/60Hz | 50Hz | 50Hz |
Current | 0.4~3.1A | 0.8~5.8A | 0.8~7.5A | 2.3~13.9A |
Machine power | 0.44/0.46KW | 0.77/0.86KW | 1.03KW | 2.43KW |
Compressor power | 0.37/0.39KW | 0.82/0.95KW | 0.84KW | 1.75KW |
0.5/0.53HP | 1.1/1.3HP | 1.14HP | 2.38HP | |
Refrigerant charge | 280g | 420g | 780g | 1100g |
Pump power | 0.03KW | 0.1KW | 0.1KW | 0.37KW |
Max. lift | 10M | 25M | 25M | 27M |
Max. flow | 10L/Min | 16L/Min | 16L/Min | 70L/Min |
N.W | 21kgs | 27kgs | 53kgs | 67kgs |
G.W | 24kgs | 30kgs | 63kgs | 79kgs |
Refrigerant | R-134a | R-407c | R-410a | |
Precision | ±0.3℃ | ±0.5℃ | ||
Reducer | Capillary | |||
Tank capacity | 6L | 14L | ||
Inlet and outlet | OD 10mm barbed connector | 10 mm fast connector | Rp1/2'' | |
Dimension | 58×29×47cm | 67×47×89cm | ||
Package dimension | 70×45×66cm | 75×60×120cm | ||

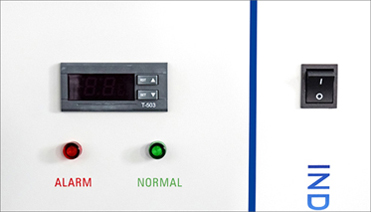

User-Friendly Control Panel
The temperature controller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes -constant temperature mode and intelligent control mode.

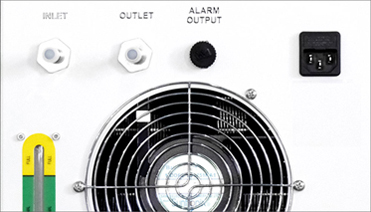

Inlet and Outlet Connector Equipped
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

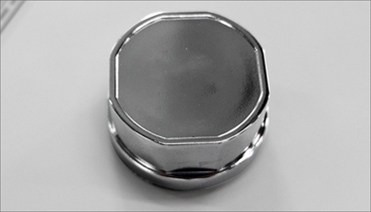

Ease to Move and Water Filling
The firm handle can help move the water chillers easily.

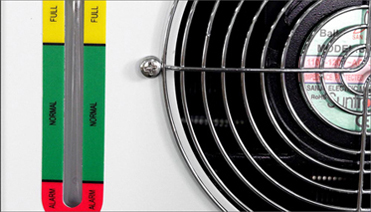

Easy-to-Read Water Level Indicator
The water level indicator has 3 color areas - yellow, green and red.

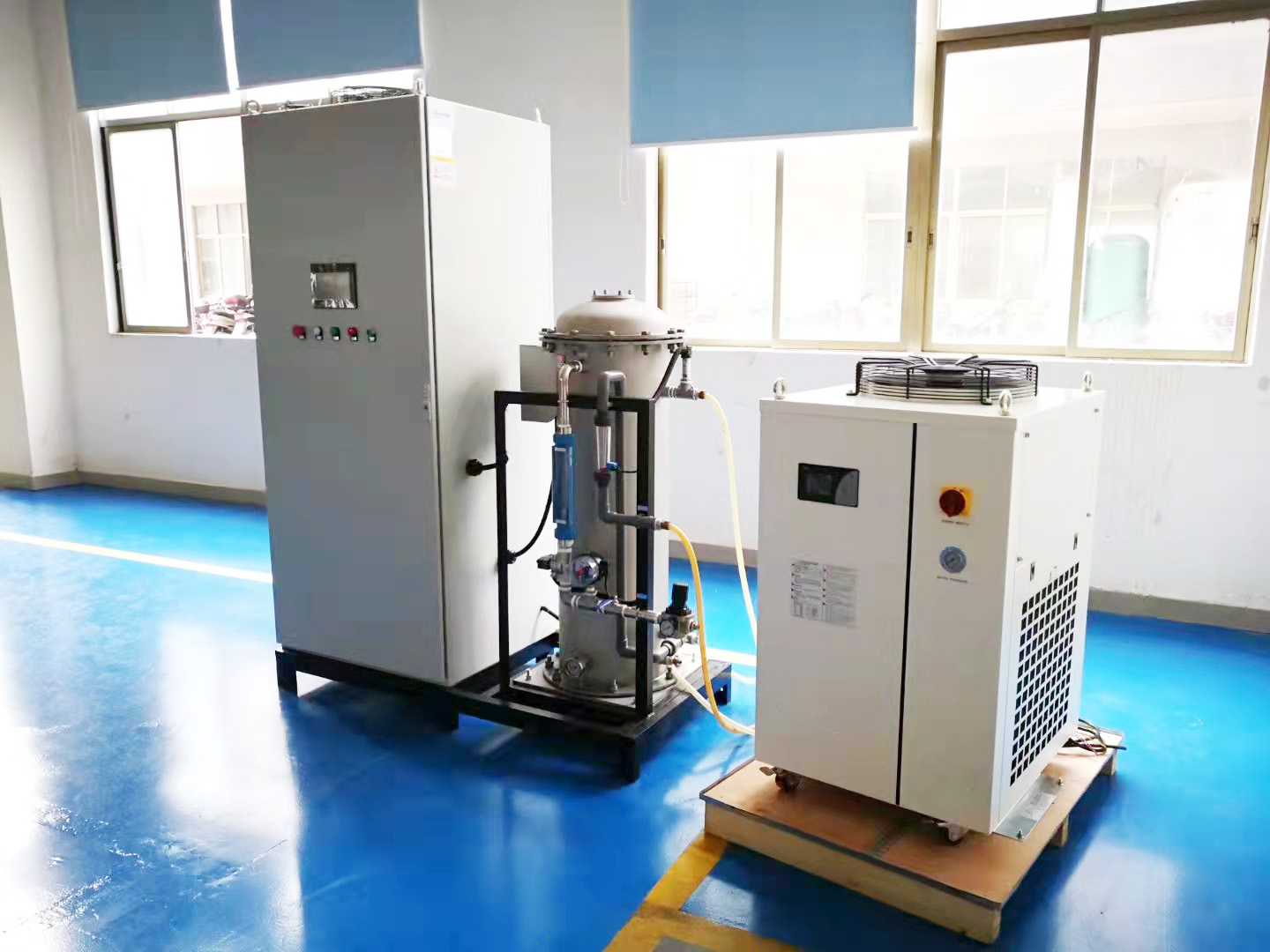

Application
A water chiller is often an essential component in both water treatment systems and swimming pool installations to precisely control temperature, thereby enhancing process efficiency and user comfort. In ozone‑based water treatment, especially when treating large volumes or during hot weather, the chiller cools the feed water or the recirculating medium to lower temperatures, which significantly increases the solubility and stability of ozone—since colder water holds dissolved ozone longer and improves mass transfer.
Additionally, ozone generators themselves generate heat during operation, and a chiller is sometimes used to cool the corona discharge tube or the dielectric element, maintaining consistent ozone output and preventing performance degradation. In swimming pool applications, the chiller serves a dual purpose: it keeps the pool water at a comfortable temperature for swimmers in warm climates, and when an ozone sanitation system is installed, the chiller helps maintain cooler water to reduce ozone off‑gassing and extend the residual effect. Beyond thermal management, chillers also aid in condensing humidity in indoor pool environments when integrated with dehumidification systems.
By ensuring stable, lower temperatures, a properly sized chiller improves ozone dissolution efficiency, reduces chemical by‑products, and prolongs the lifespan of both the ozone generator and the pool or treatment equipment, making it a valuable addition to any professional ozone‑integrated water management setup.
To learn more about ozone generators , please contact Flygoo Ozone Sales :
