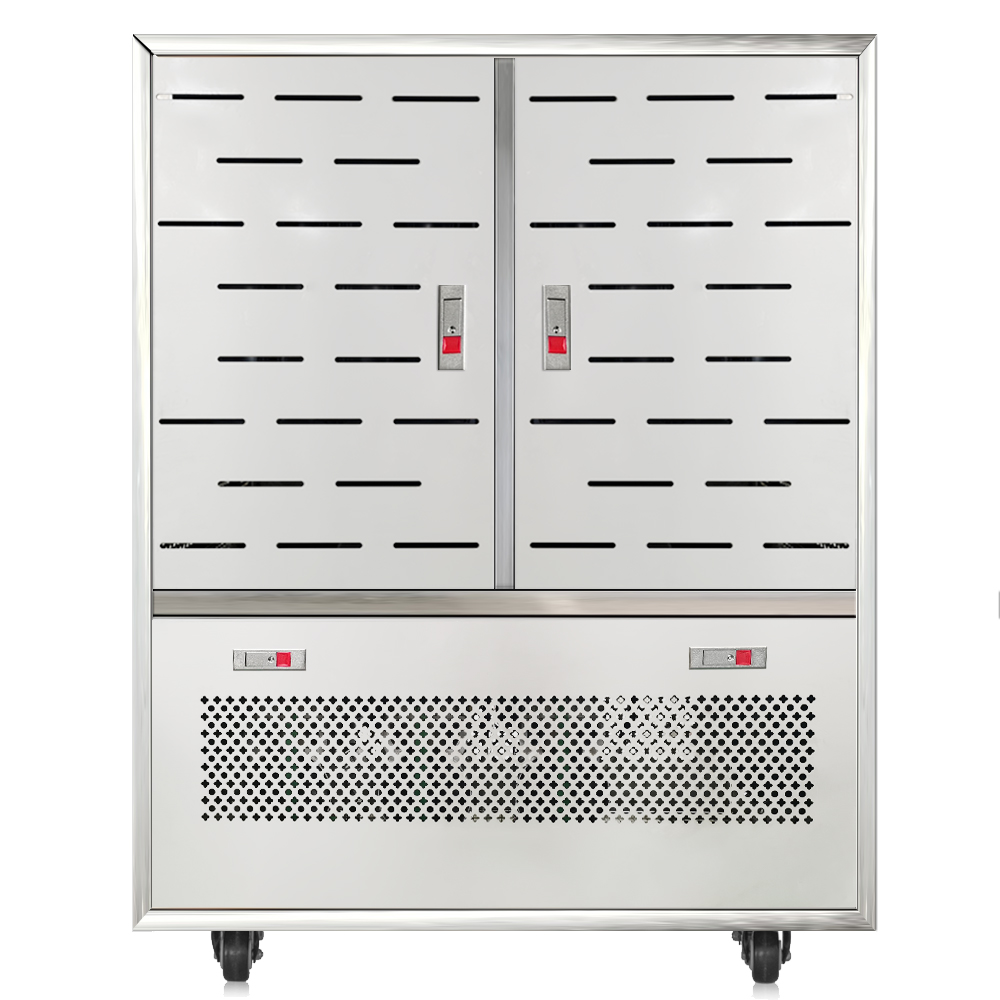

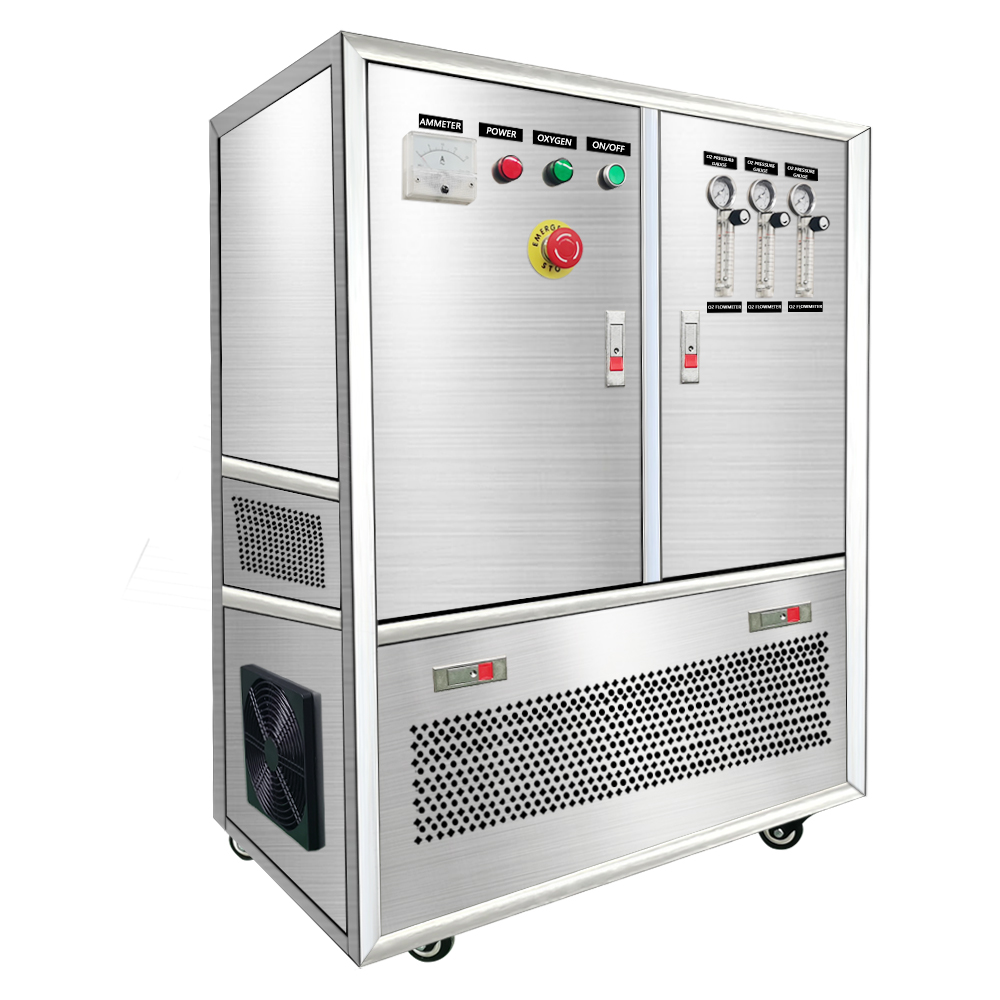

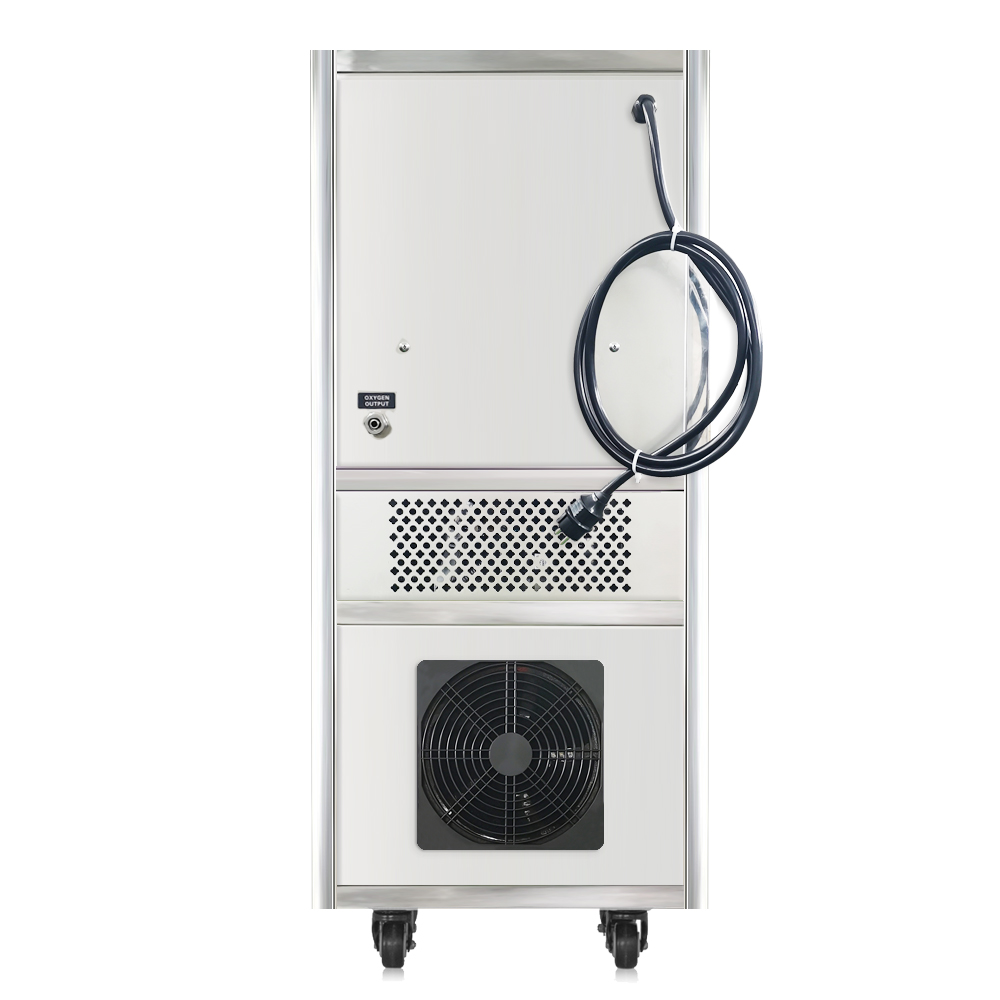

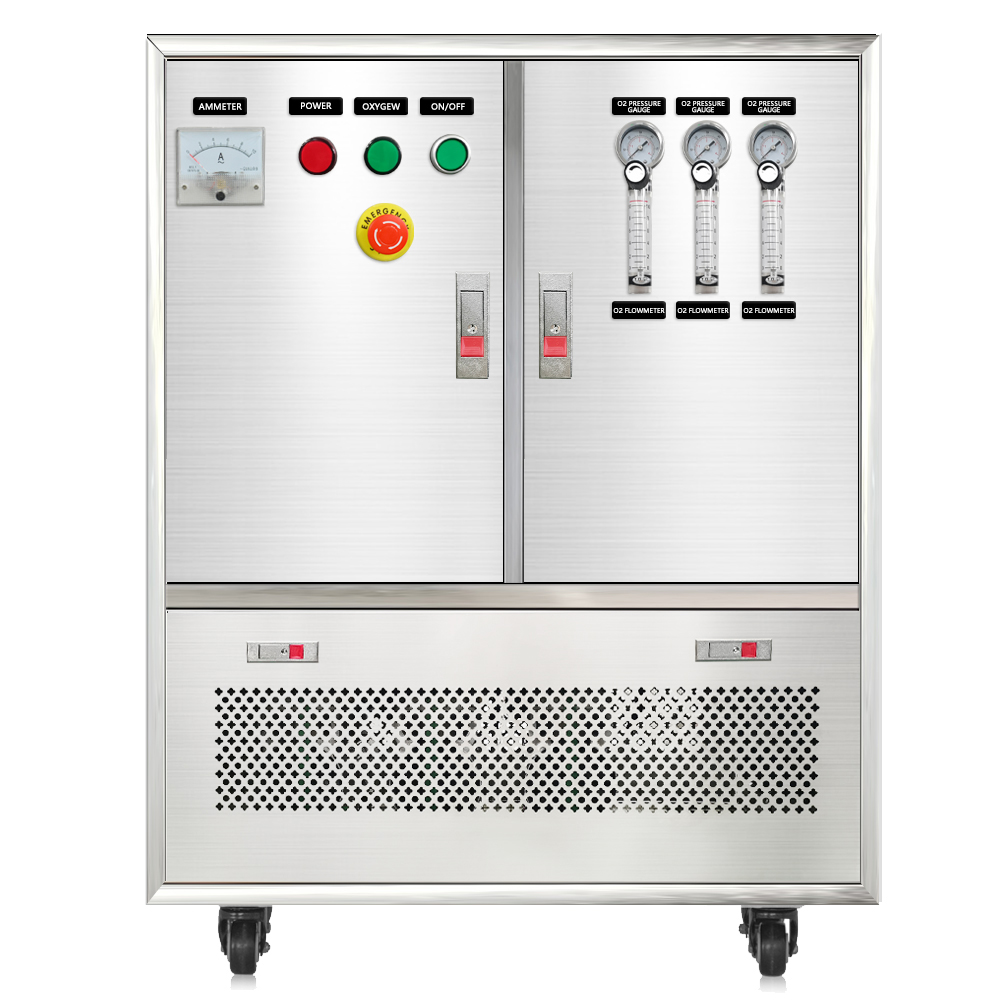

Industrial PSA 30L Oxygen Generator O2 Concentrator for Aquaculture Fish Pond Farming

The FG-OX series of equipment is used France CECA zeolite molecular sieve adsorbent, separating oxygen from nitrogen in the air using pressure swing adsorption (PSA) principle, and filter harmful substances in the air, so as to obtain a high concentration oxygen in line with medical oxygen standards.PSA oxygen generating equipment provide you with the purity of 90%-95% oxygen to meet all requirements; The installation and operating costs fan less than bottled or liquid oxygen.

Availability:

Quantity:



Inquire Add to Basket

Model:
FG-OX
Brand:
FLYGOO

Product Description

Oxygen Production Technology

Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation. Specific absorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbed material.

1.Highly automated, fast generation of oxygen, a single press on the switch can start or stop the equipment, and oxygen can be generated in 1 minute.

2.Air feeding input with no additive required and low power consumption which ensures lower total cost.

3.Highly purified and convenient, output oxygen purity is only influenced by output flow and can be adjusted in the ranged of 90%~95%

4.Adjustable oxygen flow meter

5.The whole gas circuits work in low pressure which makes it safe and reliable

6.Stainless steel enclosure and SUS304 oxygen outlet

Item	Unit	20L	30L	40L
Oxygen Output	L /M	20	30	40
Power	W	≤1400W	≤2120W	≤2850W
Electric	VAC/HZ	220~240/50~60 (110v/60Hz, customzied)
02 Concentration	%	94.4
Voltage	/	AC220V+ 10%, 50/60Hz
Net Weight	kg	64	98	112
Size(L WH)	mm	5504301000mm	8504501090mm
Molecular Sieve	/	France CECA
Temperature	°C	-10°C ~40°C
Ambient Humidity	%	≤75%
Atmospheric Pressure	KPa	86.0-106
Cooling Way	/	Air Cooled

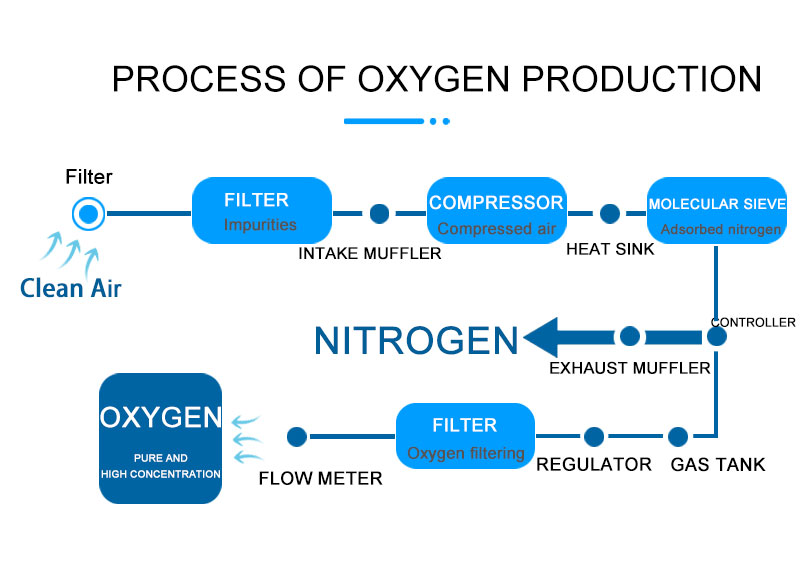

Working Principle:

1. Using molecular sieve physical adsorption and desorption technology. That is, the oxygen generator is filled with molecular sieves, which can adsorb nitrogen in the air when pressurized, and the remaining unabsorbed oxygen is collected, and after purification, it becomes high-purity oxygen;

2.The molecular sieve discharges the adsorbed nitrogen back into the ambient air during decompression, and can absorb nitrogen and produce oxygen during the next pressurization. The whole process is a periodic dynamic cycle process, and the molecular sieve is not consumed.

● High flexibility: Our oxygen generator is small in size, light in weight, easy to carry and move, can be used in different places as needed, and is suitable for various application scenarios.

● Efficient and energy-saving: Using advanced noxygen trogen production technology, it can efficiently separate nitrogen and other impurities in the air to generate high-purity nitrogen. Compared with traditional gas supply methods, it can save energy and costs and improve the yield and purity of oxygen.

● Environmentally friendly and safe: There is no need to use gas cylinders oxygen, which avoids safety hazards in the transportation and storage of gas cylinders and reduces environmental pollution.

● Easy to operate: This machine adopts an automated control system, which is simple and convenient to operate without manual intervention, reducing the workload and technical requirements of the operator.
