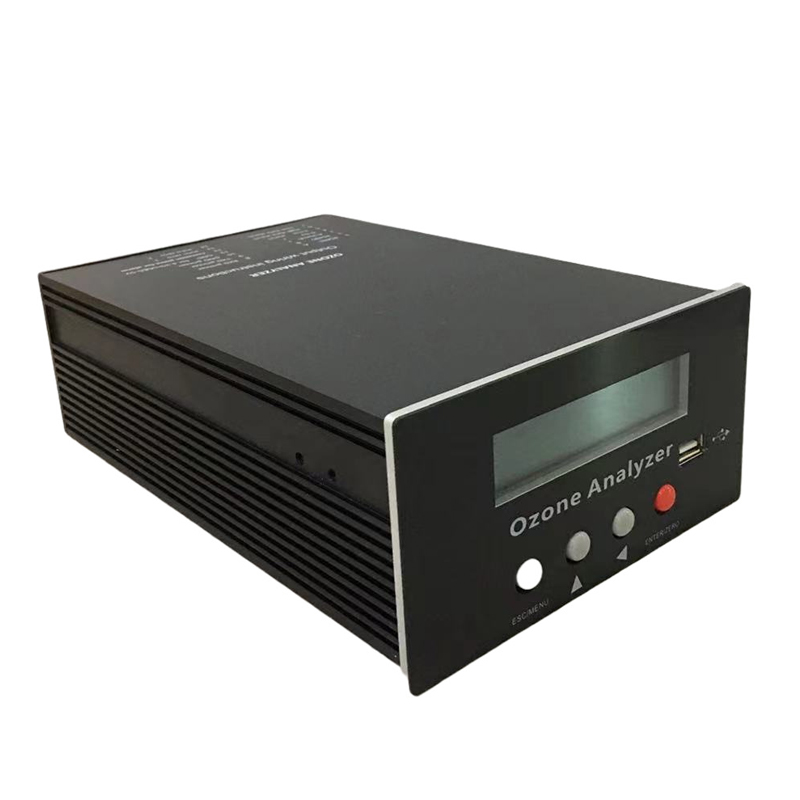

FGUVOZ-300
FLYGOO
Key Features:
Variety of Measurement Ranges: Available in 0-200mg/L and customizable up to 0-600mg/L to suit different needs.High Accuracy:
Ensures stable and precise ozone measurements.Good Repeatability: Consistently delivers reliable data for critical applications.
Versatile Applications: Ideal for ozone generator companies, medical ozone concentration analysis, laboratories, and online ozone detection.
Benefits:
* Cost-Effective: Smaller size translates to lower costs, making high-quality ozone analysis more accessible.
* Efficient Monitoring: Provides real-time, accurate ozone measurements, enhancing operational efficiency.
* Wide Usage: Perfect for various industries, ensuring versatility and broad application.
Choose the FGUV-300 for precise, reliable, and cost-effective ozone measurement solutions. Perfect for businesses looking to optimize their ozone analysis processes with a compact and affordable device.
Detection Range | 0-200mg/L and 0-600mg/L(customized) |
Measurement method | UV light double optical receiver with high precision measurement |
Ozone Concentration Unit | mg/L or g/m3 |
Resolution | 0.1 mg/L |
Precision | 0.5% |
Input gas flow | 0.1-1.2 L/min |
Input pressure | <0.2Mpa |
Zero Shift | <0.2% |
Voltage | 110V-240V / 50Hz,60Hz |
Response Time | < 1 second |

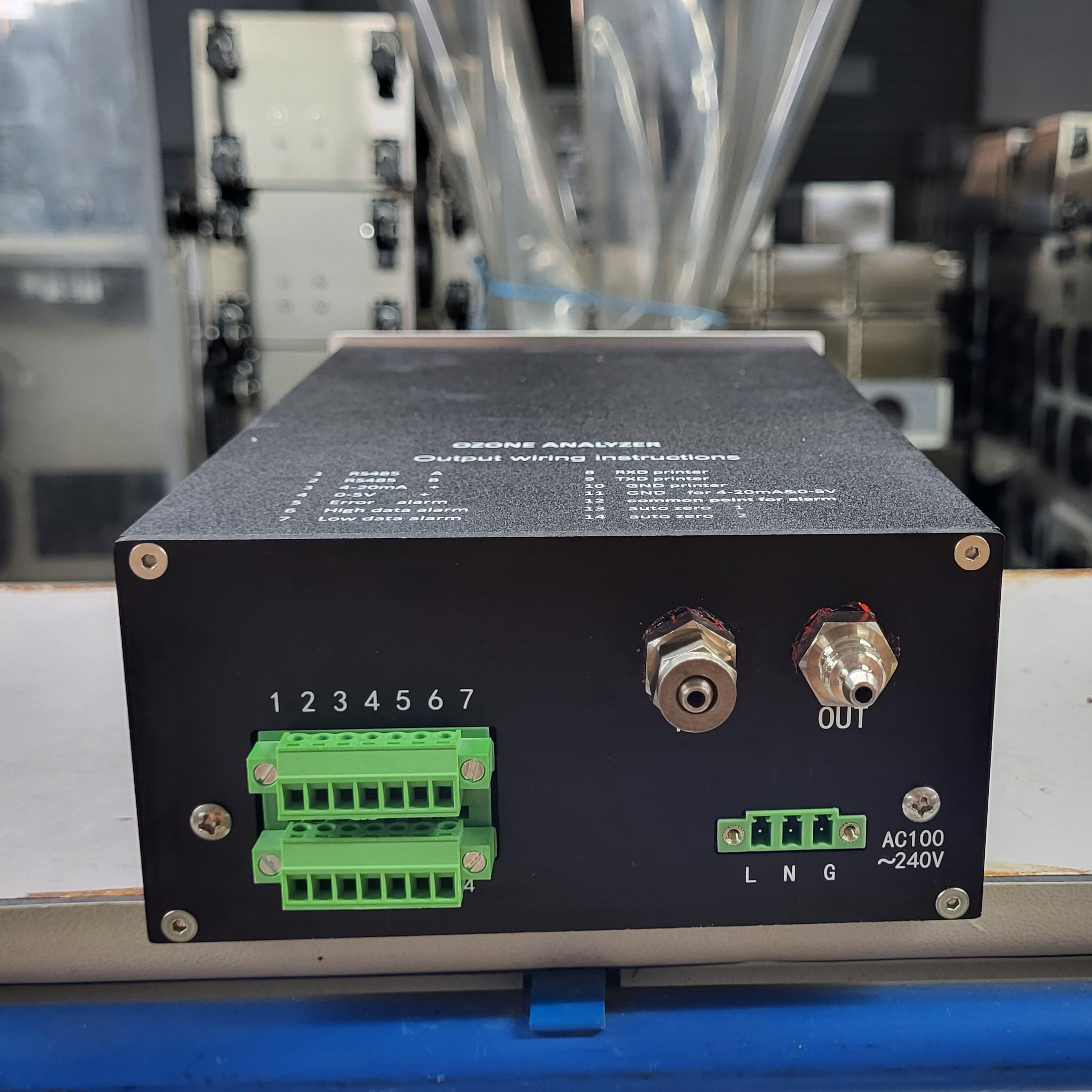

Gas Input and Output Diameter | Φ6 (6mm*4mm) |
Dimension | 145×75×260 mm |
Installation Hole Size | 140x68mm |
Net Weight | 2kgs |
Warranty | 12 months |
Communication mode | RS485 |
Output Signal | 4-20mA (double way alarm of low and high concentration)；printer interface; |
Remarks | 1mg/L=1g/m3=467PPM |

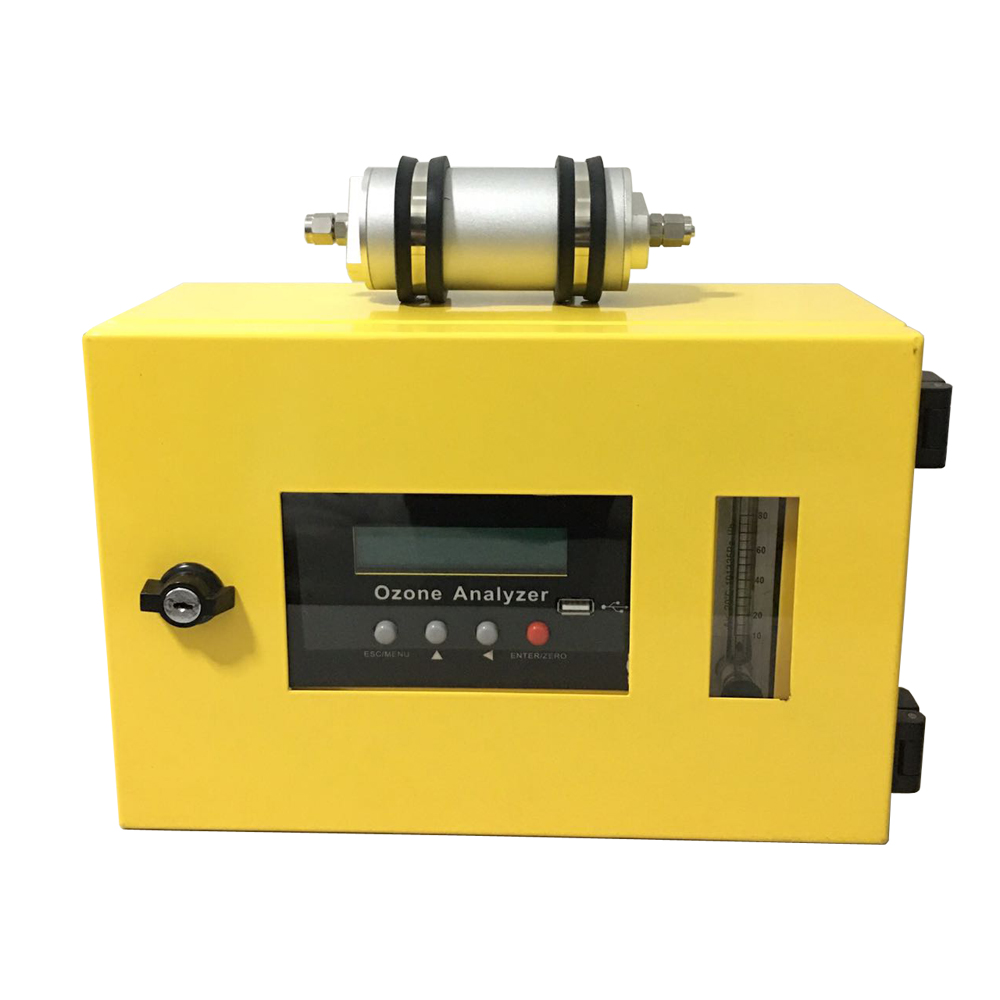

Optional (extra charges) | 01* ozone destructor 01* flowmeter |
Technology Parameter
Working theory:254nm ultraviolet absorbing way, double optical path design.
Ultraviolet bulb lifespan: More than 10,000 hours

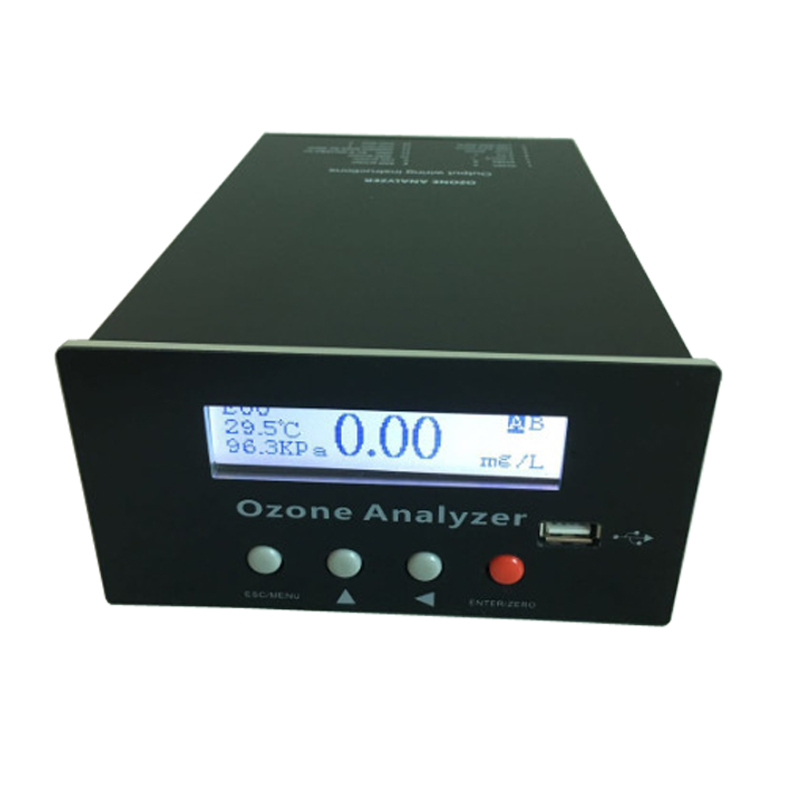

Display: graphic character matrix (scalar concentration value, pressure, temperature shown in the same time)
Different choice of concentration unit: mg/L, G/M3,
Model: FGUVOZ-300
Measuring range: 0-200mg/L; (1mg/L=467ppm)
Resolution: 0.1 mg/L
Precision: 0.5%
Time of reaction: Less than 1s
Zero drift:Less than 0.2%
Pressure:Less than 0.2Mpa
Flow range: 0.1-1L/min

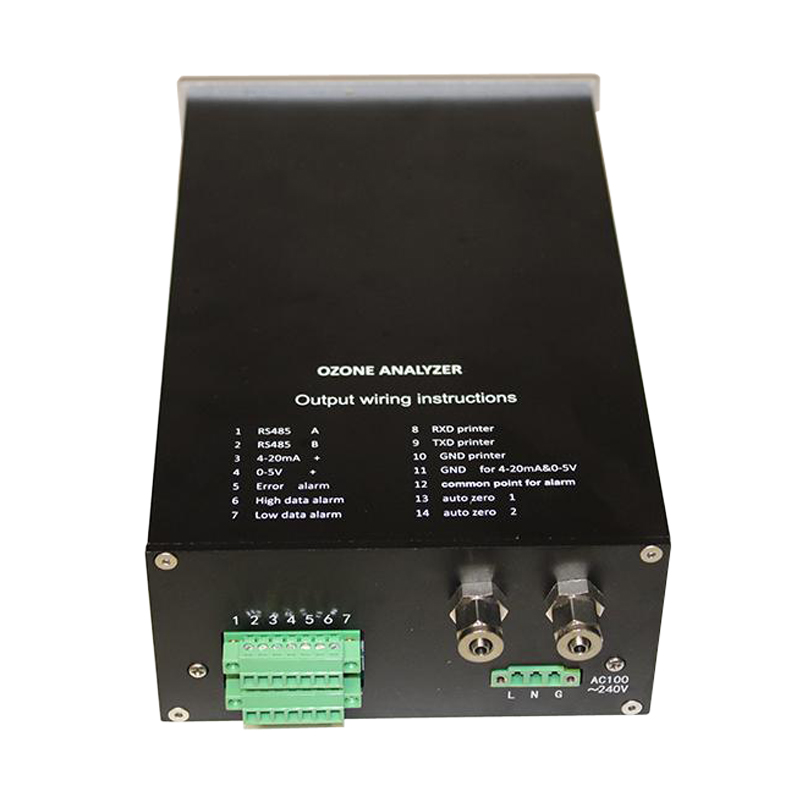

Output signal:4-20mA; 0-5V, double way alarm of low and high concentration (concentration value can be set freely); Printer interface;
Network connection: RS485
With USB interface, real time data saving
Temperature of working environment: 0-50℃
Ozone Gas pipe of input and output Size: 6×4mm
Power Input:AC 100-240V; 10VA
Power consumption: Less than 5W
