FG-OXSP
FLYGOO
Technology

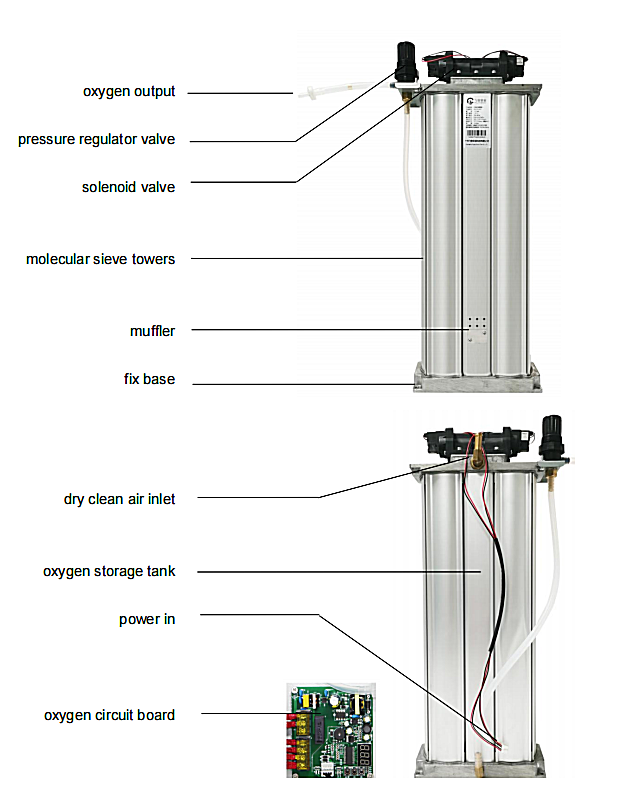

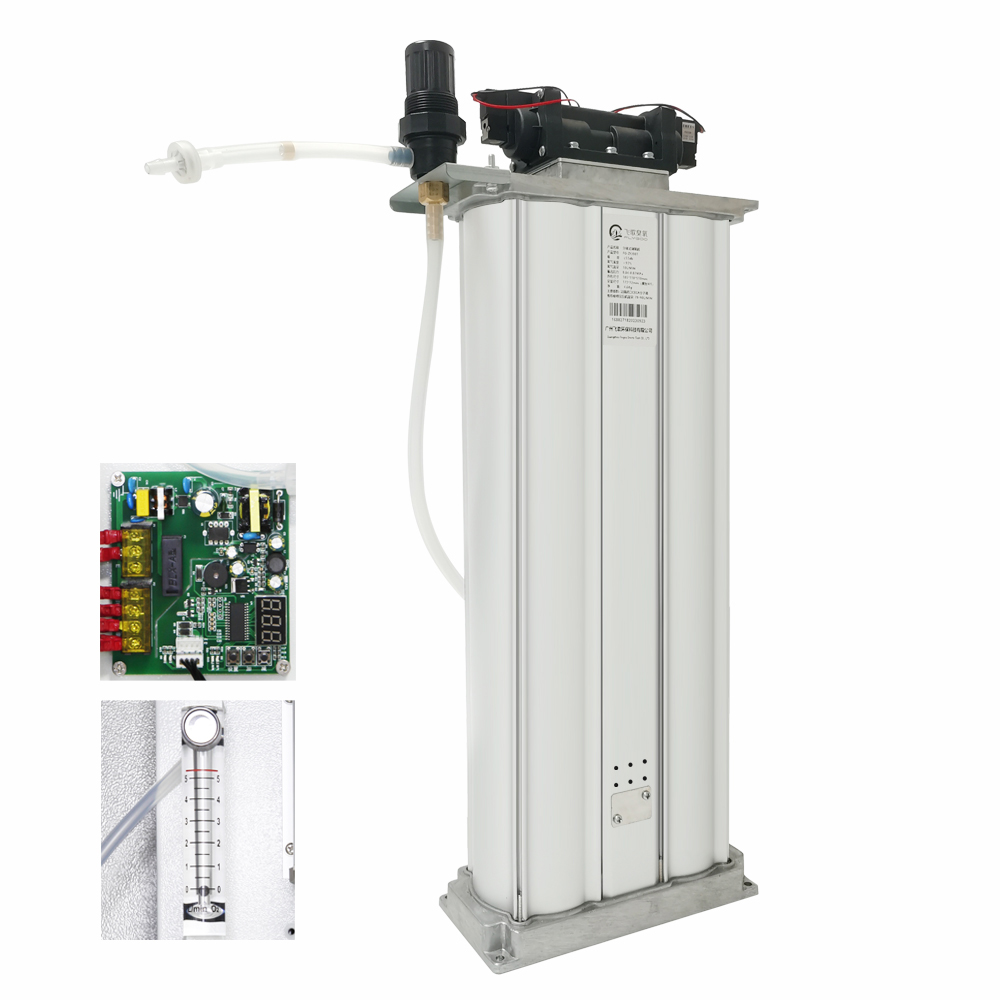

Flygoo PSA oxygen generator is uses the advanced physical oxygen production principle, through the molecular sieve pressure adsorption action, at room temperature under certain pressure directly separates the oxygen nitrogen in the air, obtains the high purity oxygen, and the sustainable oxygen supply.
Technical features: The use of pressure sensing control mode, according to the molecular sieve of the best operating pressure value set to switch control points, can detect abnormal pressure, there is a fault alarm function.
Alarm Warning:
A, Fault Alarm: Under the working state of the machine, when the main airway pressure is not normal, the line failure,then issued a beep warning.
B, High-temperature compressor stop working alarm, if cooling system problems, or air compressor temperature is higher than a certain temperature, the air compressor is automatically stop working, issued a beep warning.
Item | Unit | FG-OXSP-2 | |
Oxygen Output | L/Min | 5 | 10 |
Electric | VAC/Hz | 220~240/50~60; 110V/60 | |
O2 Concentration | % | 92-96 | |
Size(L*W*H) | mm | 540*173*176 | |
Recommend Inlet Air flow | L/Min | 90 | 110 |
Pressure(inlet) | Mpa | 0.2 | |
Pressure(outlet) | Mpa | 0.04-0.06 | |
Noise | Db | ≤55 | |
Weight | kg | 4.65 | 4.55 |
Working Temperature | °c | -5~40 | |
Working Humidity | % | 60-80% | |
Features
1.Highly automated, fast generation of oxygen, a single press on the switch can start or stop the equipment, and oxygen can be generated in 1 minute
2.Air feeding input with no additive required and low power consumption which ensures lower total cost
3.Highly purified and convenient, output oxygen purity is only influenced by output flow and can be adjusted in the ranged of 92%~96%
4.Adjustable oxygen flow meter
5.The whole gas circuits work in low pressure which makes it safe and reliable
6.Stainless steel enclosure and SUS304 oxygen outlet
