FGZLA-02-05
FLYGOO

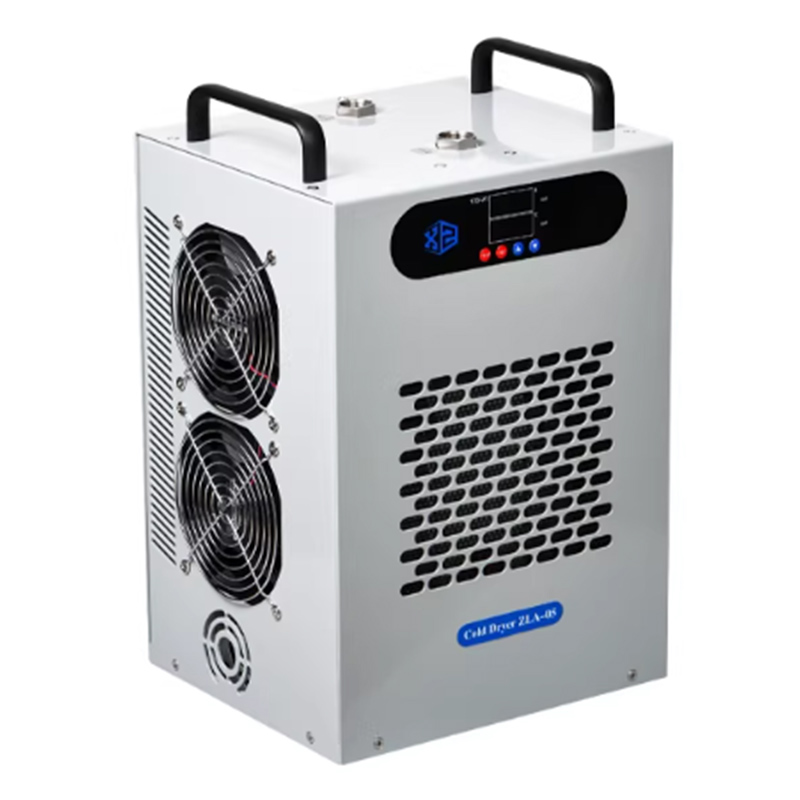

Compact refrigerated air dryer for ozone generators and oxygen generators. Removes moisture, lowers dew point, protects ozone tubes. Stable performance, low maintenance, CE certified.

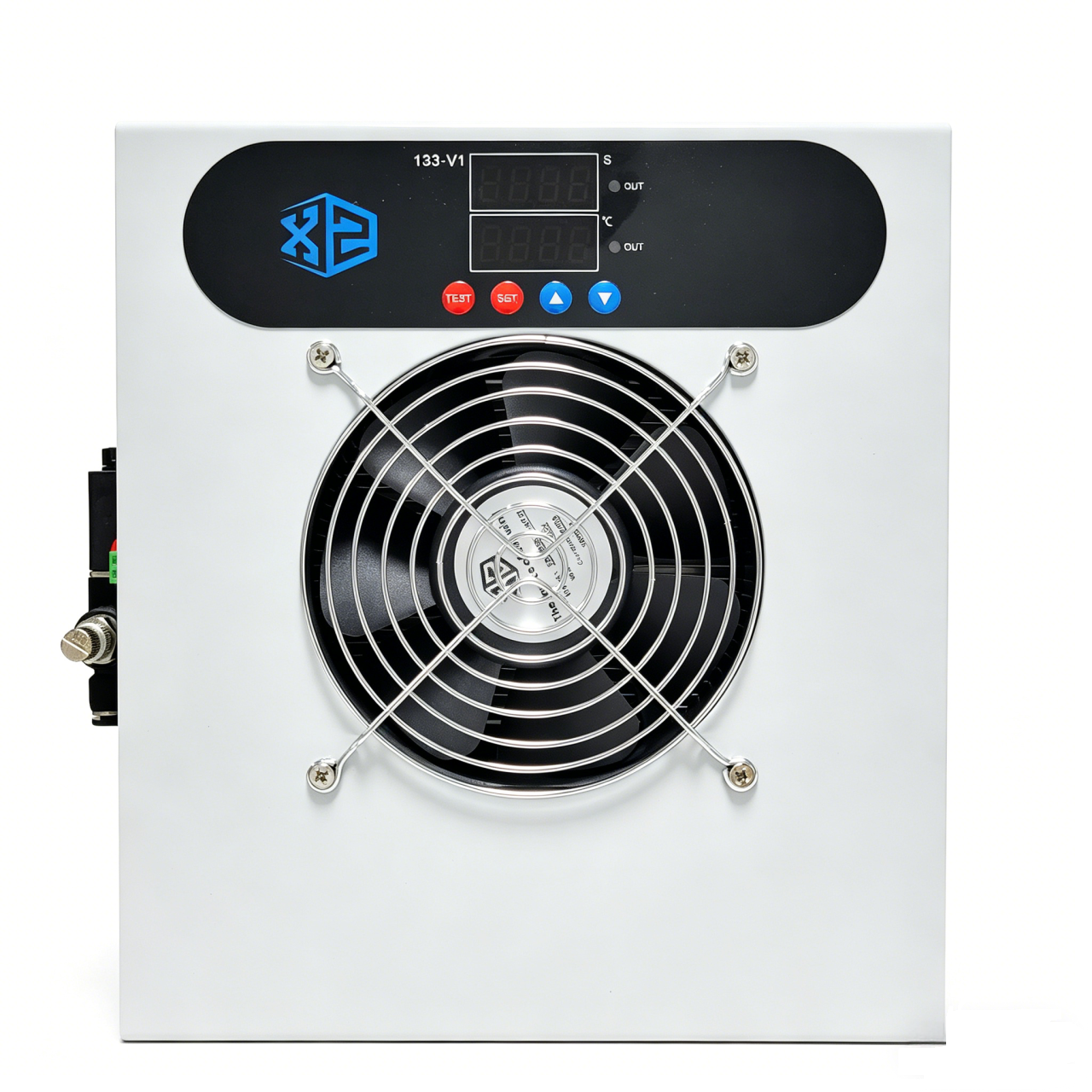

The Flygoo Freezed Air Dryer is an electronically refrigerated gas condenser designed to cool and dry hot, humid gas. It reduces moisture content in the sample gas, achieving gas-liquid separation. Primarily used as a pre-air treatment unit for ozone generators and oxygen generators, it lowers the gas dew point and prevents water carryover that can damage downstream equipment. The intelligent temperature control module maintains cold cavity temperature with ±0.1°C accuracy, and the automatic drainage system operates on a cyclic timer (0-9999 seconds adjustable).

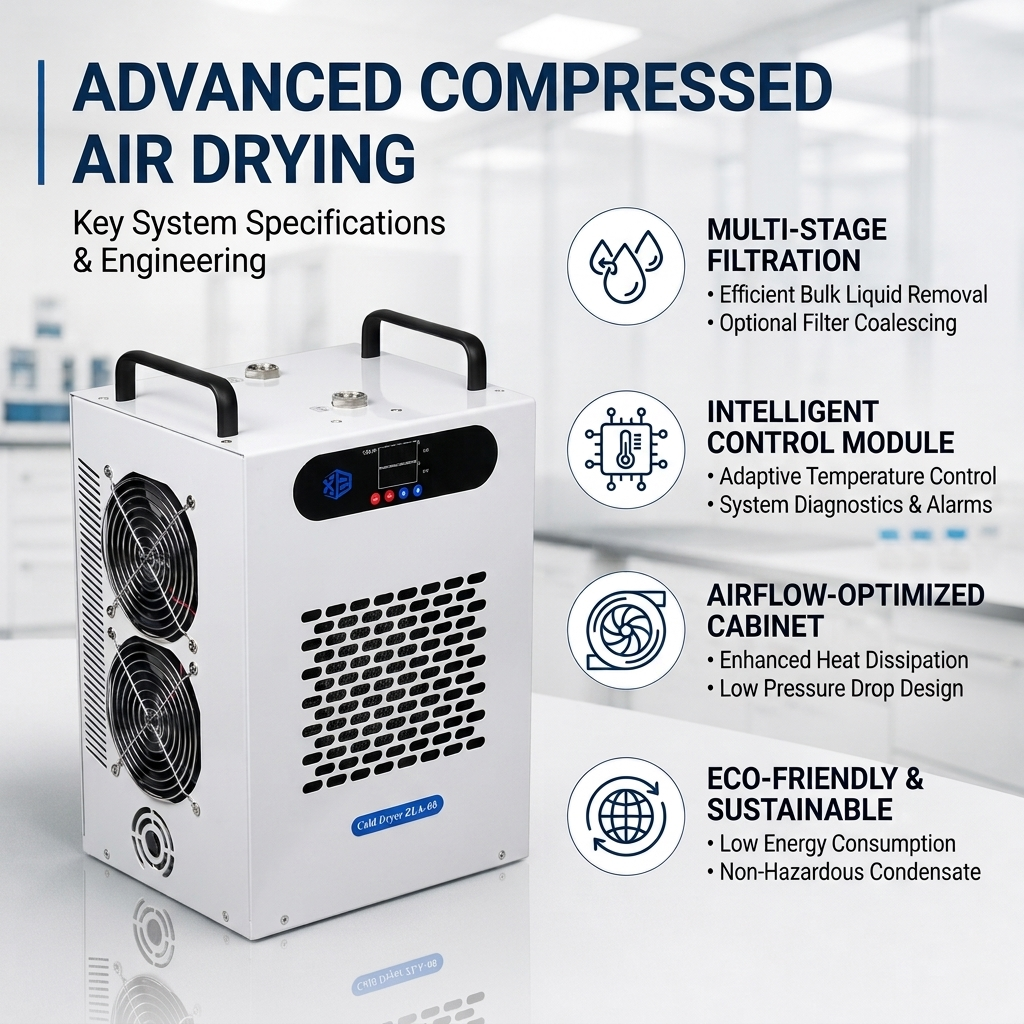

Efficient bulk liquid removal with optional filter coalescing, ensuring clean and dry air output for sensitive ozone generation.
Adaptive temperature control and system diagnostics with alarms, maintaining stable dew point and reliable operation.
Enhanced heat dissipation and low pressure drop design, ensuring efficient cooling and energy savings.
Low energy consumption and non-hazardous condensate, making it an environmentally responsible choice.
Intelligent module keeps cold cavity temperature constant at set value with ±0.1°C accuracy, ensuring stable dew point and efficient moisture removal.
Solenoid valve drainage with adjustable drain time and interval (0-9999 seconds), preventing water accumulation and ensuring continuous operation.

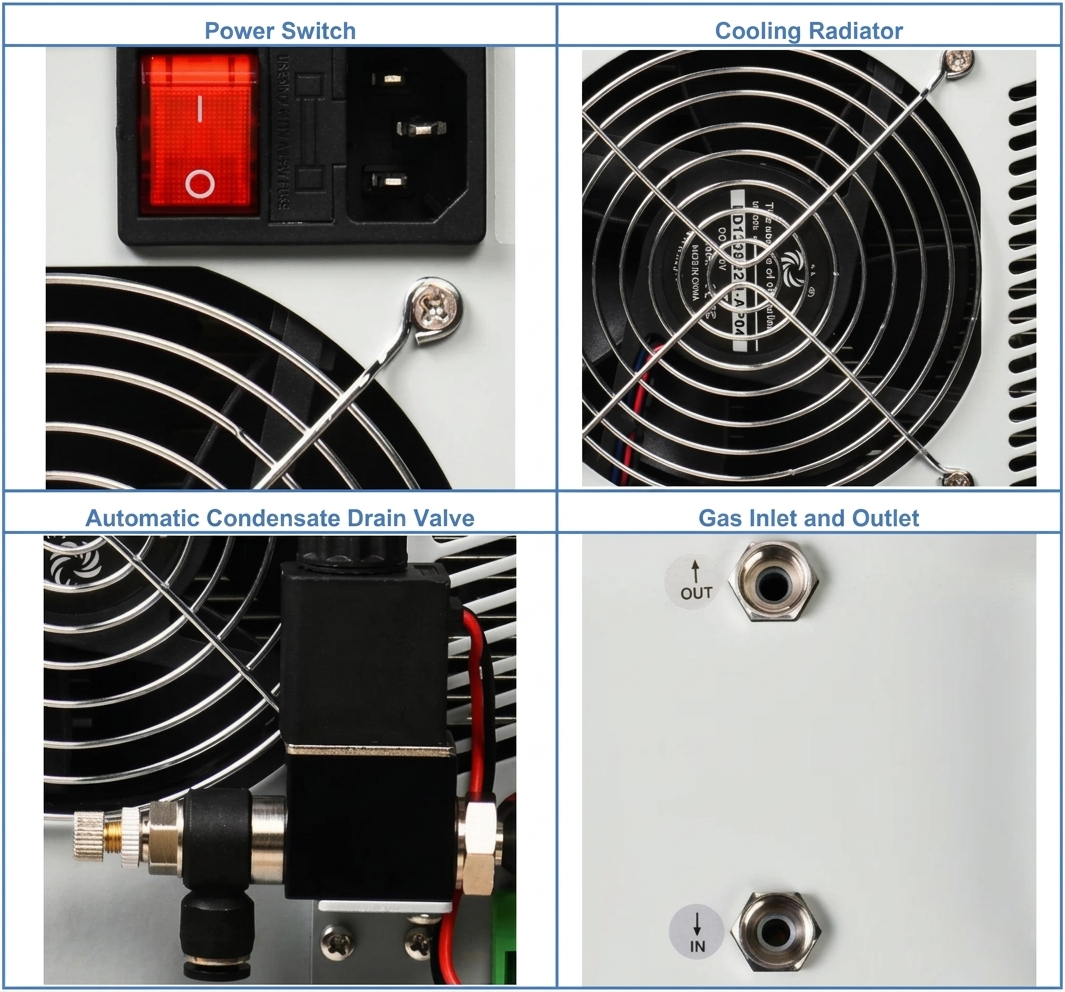

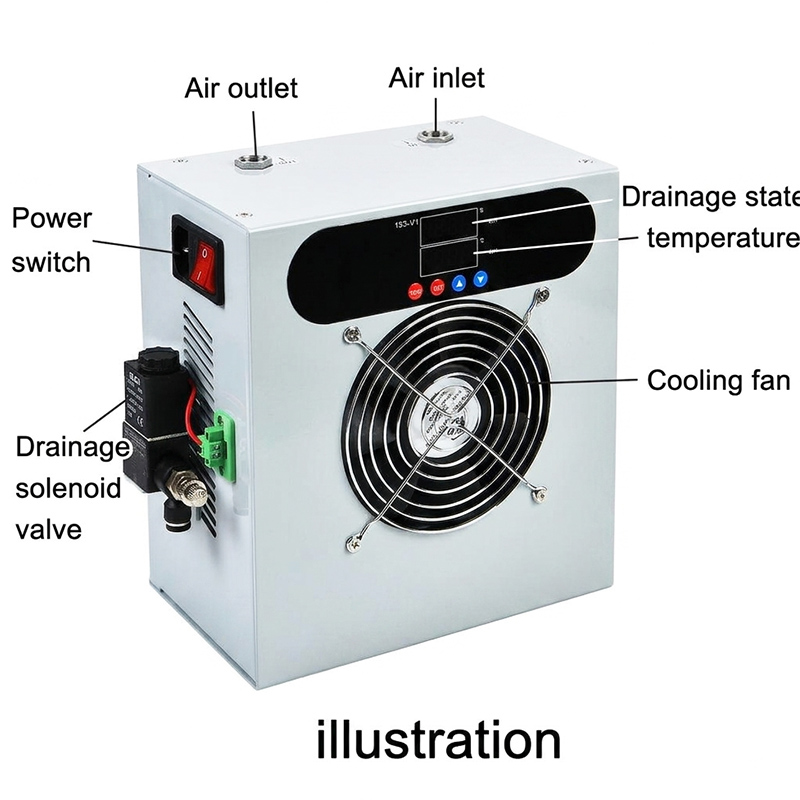

Robust metal housing with powder-coated finish, efficient cooling fan, and standard threaded ports (G1/4 or G1/2) for secure, leak-free connections.

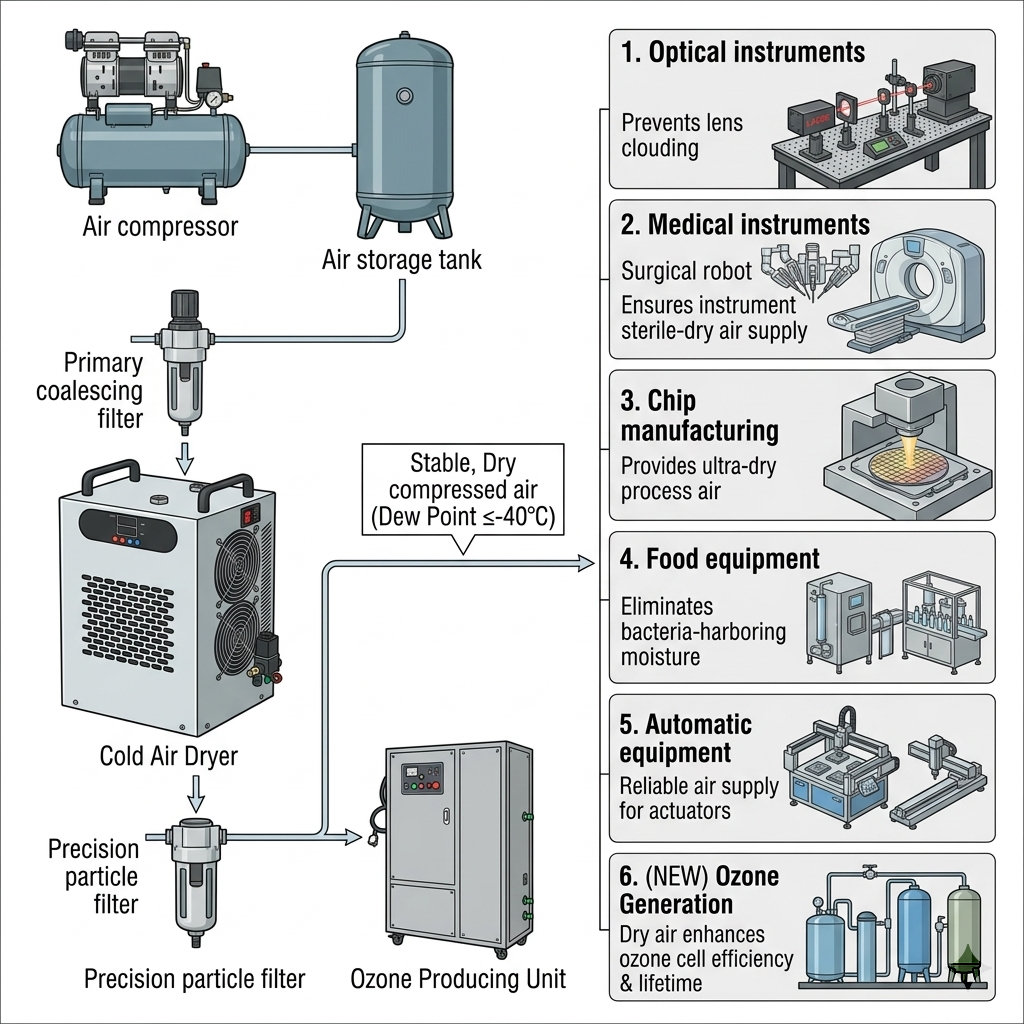

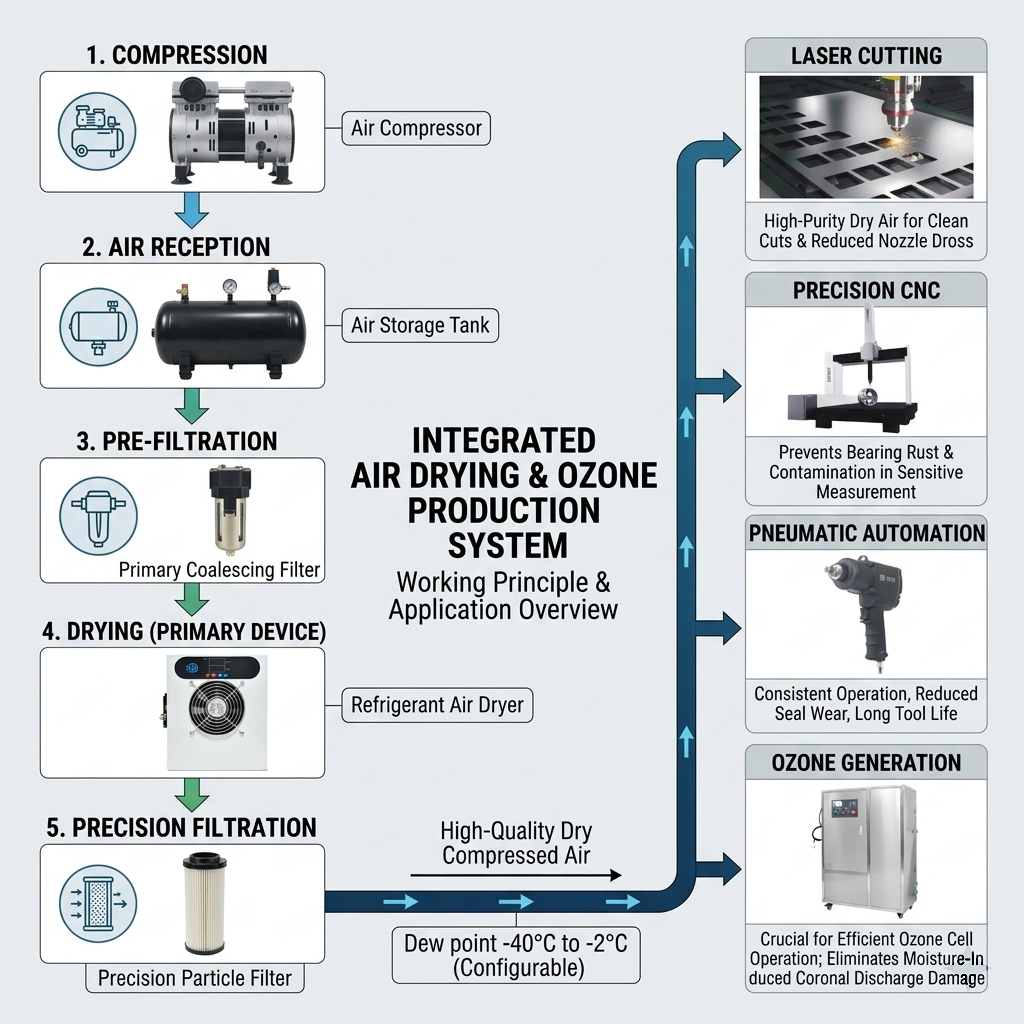

Compression → Air Reception → Pre-Filtration → Drying (Refrigerant Air Dryer) → Precision Filtration → High-Quality Dry Compressed Air → Ozone Generation
Air compressor supplies compressed air.
Air storage tank stabilizes pressure.
Primary coalescing filter removes bulk liquid and particles.
Refrigerant air dryer cools air to remove moisture, achieving dew point as low as -40°C to -2°C (configurable).
Precision particle filter ensures ultra-clean air for ozone generation.
Model | FGZLA-02 | FGZLA-03 | FGZLA-05 |
Input Voltage | AC 1P 220V (110V) | AC 1P 220V (110V) | AC 1P 220V (110V) |
Input Current | 0.95A | 1.2A | 3.8A |
Rated Power | 210W | 260W | 590W |
Rated Flow | 120NL/min | 200NL/min | 400NL/min |
Outlet Dew Point | ≤10°C | ≤10°C | ≤10°C |
Rated Pressure | 4-8 bar | 4-8 bar | 4-8 bar |
Inlet Port | G1/4 | G1/4 | G1/2 |
Outlet Port | G1/4 | G1/4 | G1/2 |
Drain Port (quick connect) | Φ 6 | Φ 6 | Φ 6 |
Drain Method | Solenoid valve timed drain | Solenoid valve timed drain | Solenoid valve timed drain |
Operating Ambient Temperature | Normal temperature (room temperature) | Normal temperature (room temperature) | Normal temperature (room temperature) |
Inlet Temperature | ≤35°C | ≤35°C | ≤35°C |
Cold Cavity Temperature | 0-10°C (adjustable) | 0-10°C (adjustable) | 0-10°C (adjustable) |
Drain Time | 0-9999s (adjustable) | 0-9999s (adjustable) | 0-9999s (adjustable) |
Drain Interval Time | 0-9999s (adjustable) | 0-9999s (adjustable) | 0-9999s (adjustable) |
Dimensions (LxWxH) | 290x140x260mm | 250x200x250mm | 287x225x398mm |
Weight | 6.0kg | 7.8kg | 14.9kg |
Package Dimension | 320x320x220mm | 300x280x300mm | 480x350x300mm |
Need help selecting the right model? Contact our team for a free recommendation.

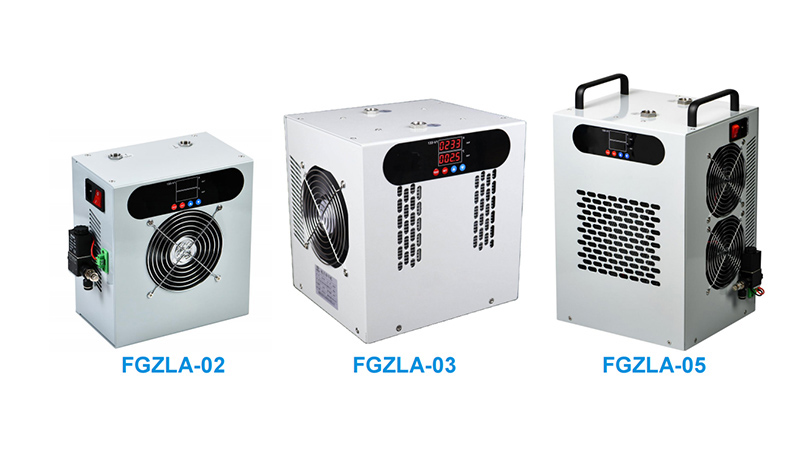

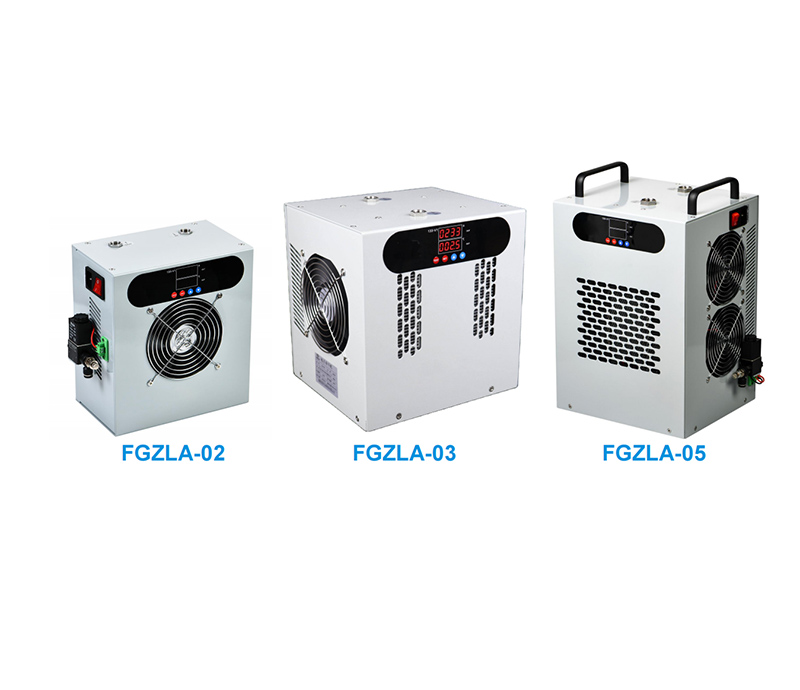

120 NL/min flow rate, ideal for small ozone generators up to 10g/h.
200 NL/min flow rate, suitable for medium ozone systems up to 20g/h.
400 NL/min flow rate, designed for larger ozone generators up to 50g/h or multiple units.
The freezed air dryer cools and dehumidifies the feed air before it enters the ozone generator. This lowers the dew point and prevents moisture from causing corrosion, reducing ozone output, or damaging the dielectric components. It ensures stable ozone production and extends equipment life.
The drain valve is a solenoid valve controlled by a timer. You can set both the drain time (how long the valve stays open) and the drain interval (how often it opens) from 0 to 9999 seconds. This allows you to match the drainage cycle to your specific humidity and flow conditions.
The outlet dew point is ≤10°C under rated conditions. The cold cavity temperature is adjustable from 0 to 10°C, and the intelligent control module maintains it with ±0.1°C accuracy.
Yes, all models are available in AC 1P 220V or 110V versions. Please specify your required voltage when ordering.
The inlet temperature should not exceed 35°C, and the rated pressure range is 4-8 bar. Operating outside these ranges may reduce drying efficiency or damage the unit.
Maintenance is minimal. The automatic drain system requires no manual attention. We recommend periodically checking the cooling radiator for dust buildup and cleaning it with compressed air. There are no desiccant cartridges to replace.
Model selection depends on your required gas flow rate. FGZLA-02 (120 NL/min) is suitable for small ozone generators up to 10g/h. FGZLA-03 (200 NL/min) fits medium systems up to 20g/h. FGZLA-05 (400 NL/min) is ideal for larger ozone generators up to 50g/h or multiple units. Please consult our technical team for a tailored recommendation.
Yes, the Flygoo Freezed Air Dryer is CE certified, meeting the essential health, safety, and environmental protection requirements of the European Union. It is suitable for global export markets.
