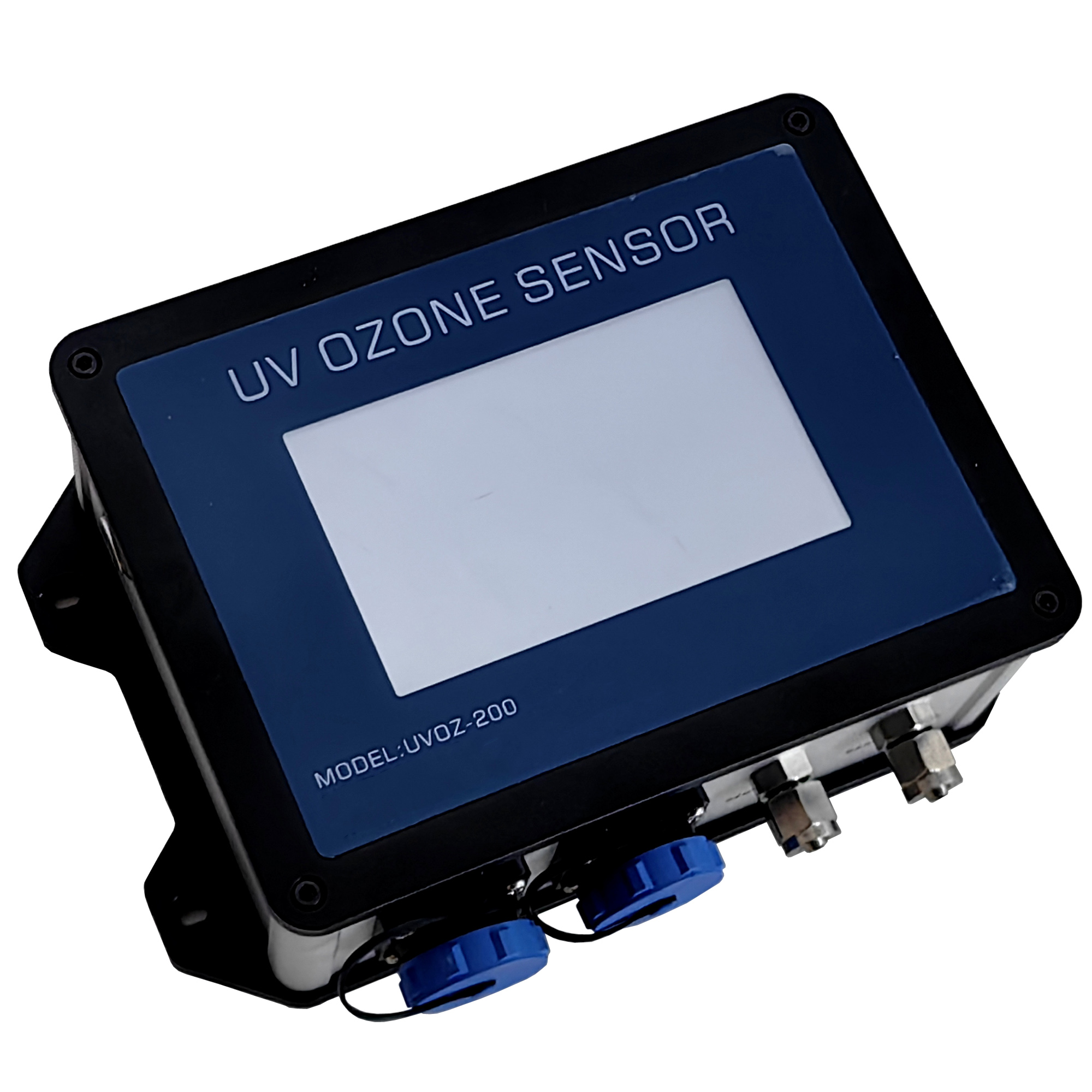

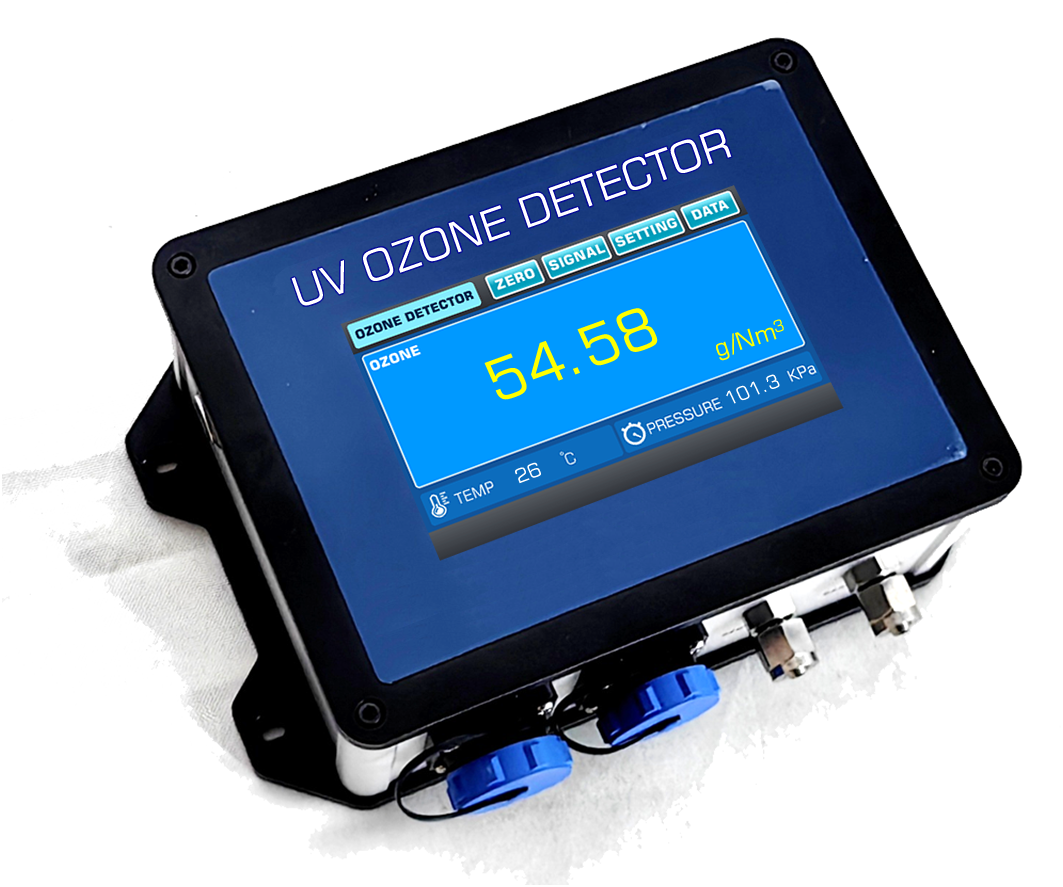

The ozone analyzer has touch screen operation interface, which shows the real-time ozone concentration. And the touch screen is also with pressure & temperature compensation display. For the high concentration (g/Nm3) range, it has the function of flow input, which can display the output of the ozone generator in real time. The core component adopts long-life uv light system with the high light transmittance quartz to prevent zero drifting from affecting the detection accuracy. It’s no need to close ozone inputing when zeroing to ensure the equipment can run continuously 24 hours. The ozone concentration is displayed in either percent weight of ozone (%wt/wt), grams of ozone per normal cubic meter of sample gas (g/Nm3) or ppmv (AQ: g/m3 or ppm) on alphanumeric display. The concentration unit can be changed during operation.
Range | Sampling Method | Application Areas |
0-300g/Nm3 | Active pressure sampling, with pressure,temperature compensation | Real-time detection of ozone Generator outlet concentration |
0-100g/Nm3 | Active pressure sampling, with pressure,temperature compensation | Real-time detection of ozone generatoroutlet concentration |
0-50g/Nm3 | Active pressure sampling, with pressure,temperature compensation | Real-time detection of ozone generator outlet concentration |
Installation and Power Connection
For the sample gas connection 6 x 4 mm PTFE tubing should be used (which we will
supply on request). The sample gas has to be connected via the sample gas filter ("IN"). The time lag of the concentration measurement depends on, a) the flow rate of the sample gas, b) the length of the tubing to the analyzer, c) the cross section of the tubing (we recommend tubing 6x4 mm, not more!), d) the time lag of the analyzer itself. At the recommended flow rate of .2 to 1 l/min time lag will be 2 to 0.4 s with a 6 x 4 mm tubing length of 2 m.
Product features:
Measurement features: patented technology with zero point automatic adjustment function, dual path ultraviolet absorption principle, foreign long-life ultraviolet LED light source, continuous operation, ensuring the stability of detection concentration.
Test method: Dual path UV absorption method, long-life light source system, high measurement accuracy.
Measurement principle: According to the Lambert Beer law, accurate measurements are made through the principle of photometric absorption.
Light source system: Foreign long-life ultraviolet light source system (ultraviolet LEDlight source with lens), with a free warranty of 2 years.
Usage: It is recommended to install and use it indoors, equipped with waterproof aviation plugs.
Light pool system: Separate light pool technology, leak free, high pressure resistance, and resistance to high flow sampling gas impact.
Intelligent compensation: Built in temperature and pressure compensation and display, with automa

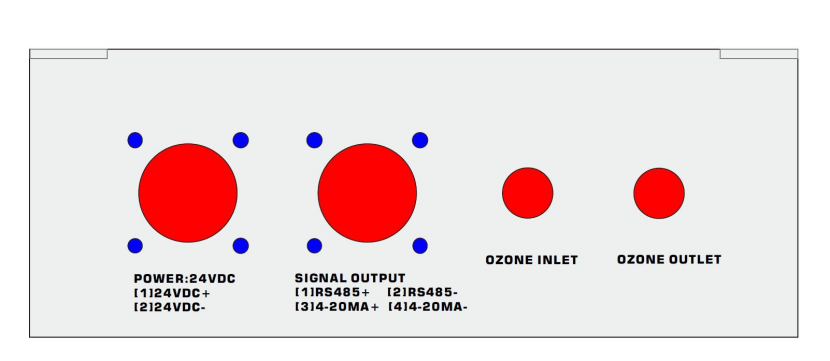

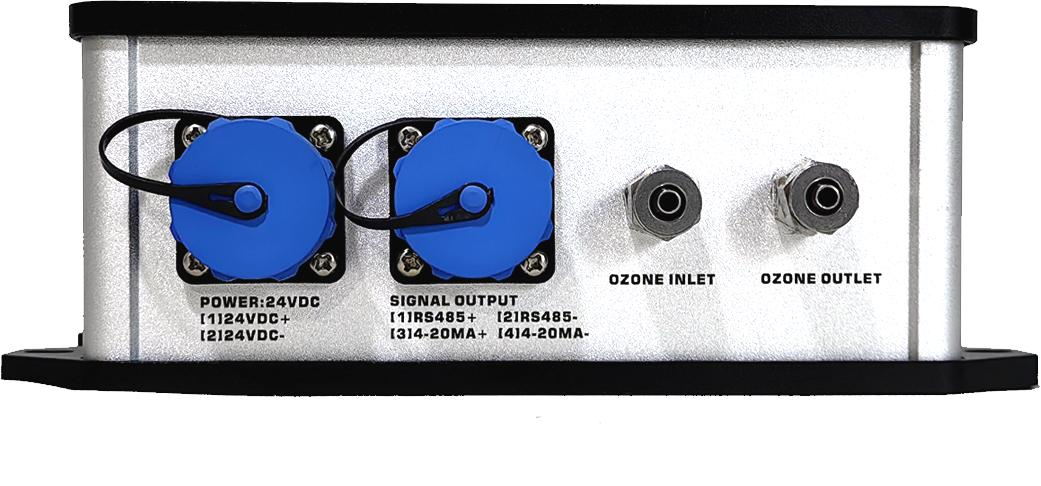

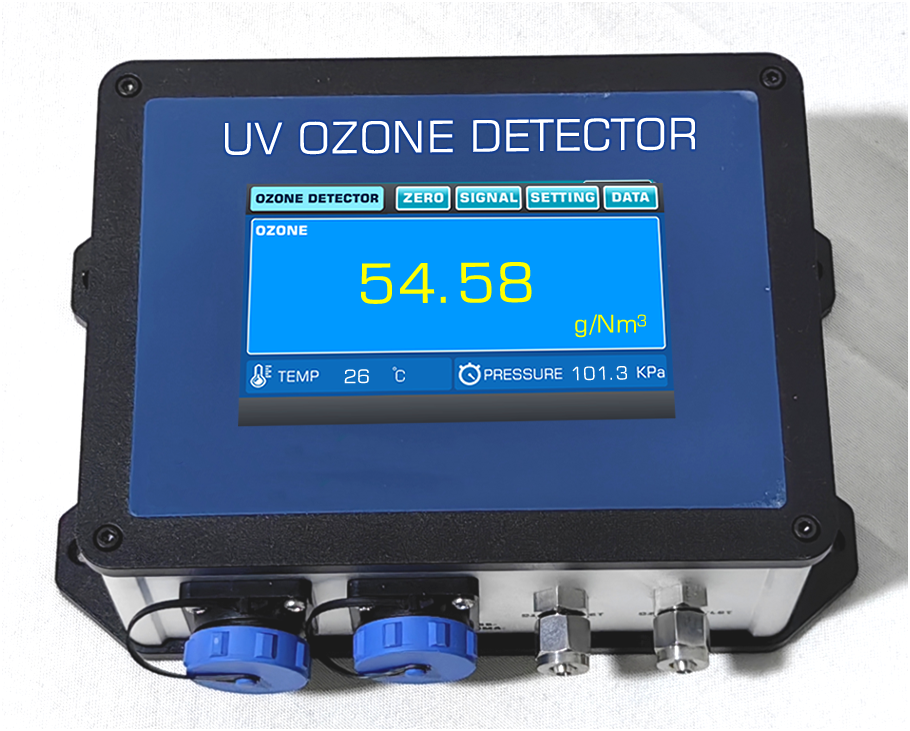

Power input, signal output, ozone inlet, ozone outlet
Power input:
(01) 24V DC+ | (02) 24V DC- |
Signal terminal output:
(01)RS485+ （MODBUS） | (03)4-20MA+ |
(03)4-20MA+ (02)RS485- （MODBUS） | (04)4-20MA- |
The connection and process

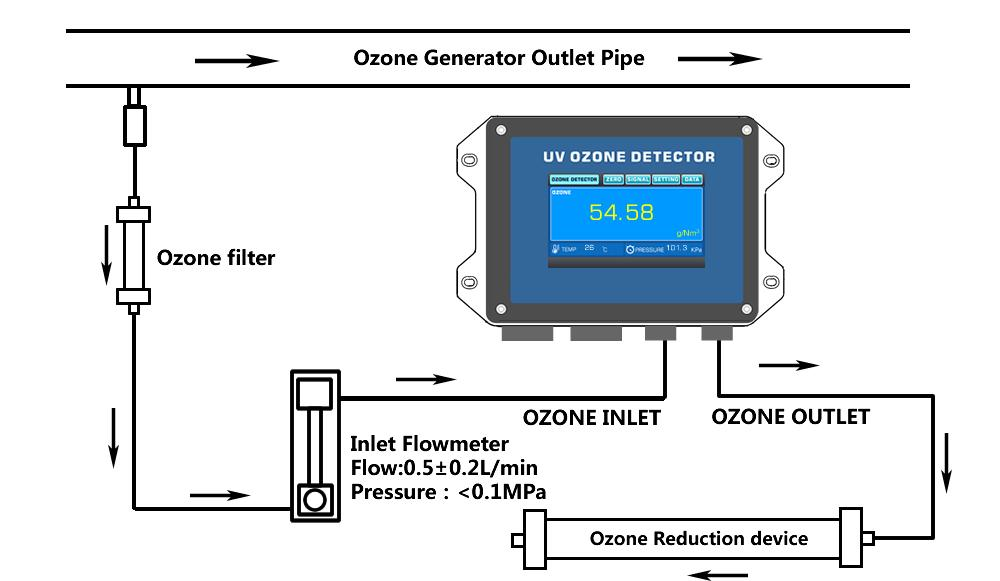

UVOZ-200 ozone detector, parallel branch sampling connection diagram(Note: It is recommended to use this connection process, separate sampling, and exhaust the atmosphere after passing through the ozone exhaust destruction device.)

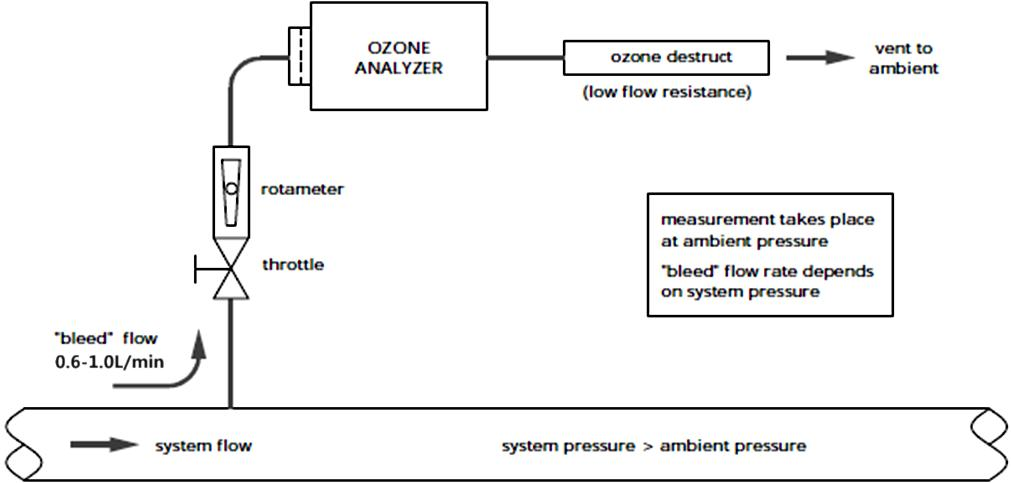

UVOZ-200 ozone detector, series sampling connection diagram (Note: When using this connection process, it is important to note that the pressure in the outlet pipeline of the ozone generator must be stable. The built-in pressure transmitter compensation will cause the detected ozone concentration value to fluctuate within a certain range.)
