Flygoo Factory Direct Sale Air Source Ozone Generator for Water Purification

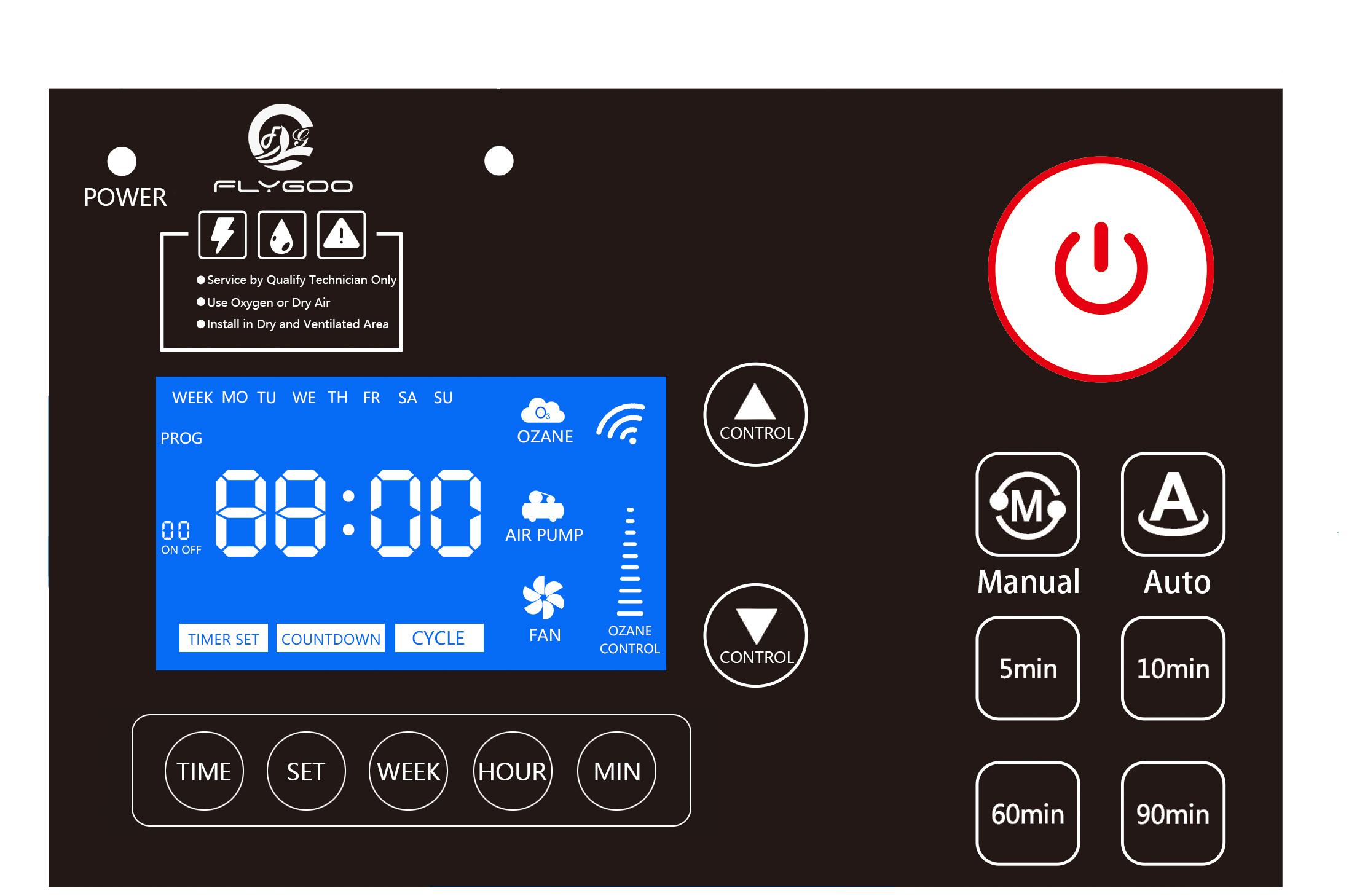

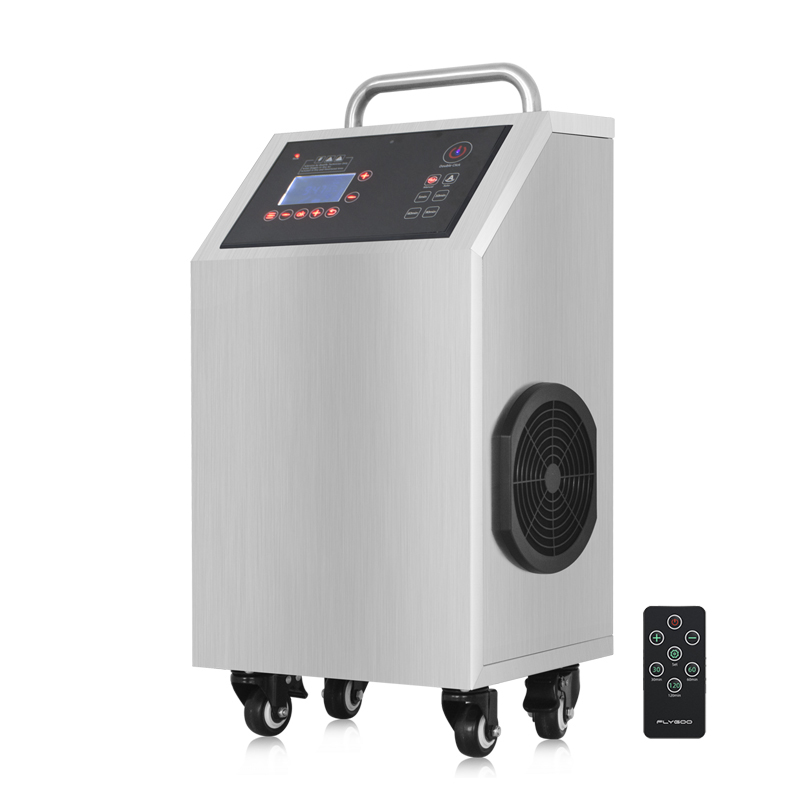

The FG-M series products are corona discharge type ozone generators, with advanced Insulated Gate Bipolar Transistors (IGBT) power supply and generation chambers utilizing dehydroxylation quartz structure dielectric.The units are air-cooled and feature in-built in air pump. The units generating components are housed in an all stainless steel enclosure and touch screen are easy to use and view. The unit features: timer remote control, LCD display, IOT WiFi control, weekly programmable timer and various ozone output (10-100%).

Availability:

Quantity:



Inquire Add to Basket

Model:
FG-M
Brand:
FLYGOO

Product Description

OZONE GENERATOR FEATURES:

1. Multi-point malfunction detection. Over voltage, over current and over temperature protection

2. The equipment will be stopped operation and the corresponding fault indicator on the circuit board lights up when a fault is detected;

3. The equipment utilized large power IGBT modules, high efficiency, long lifespan quartz structure with air cooling parts;

4. Ozone amount continuous adjustable (20~100%);

5. Corona discharging ozone technology;

6. Variable timing control;

7. Stainless steel enclosure;

8. Remote control and Wi-Fi control;

9. External oxygen feeding is available (optional);

10. CE, ROHS Certification

Item	Unit	FG-M
Ozone Output	g/hr	3	5	10
Ref. Disinfection Area*	m2	30-40	40-90	60-120
Power	w	60	100	135
Control		IOT WiFi /Remote Control/ Hand Manual
Electric	VAC/Hz	220~240/50~60; 110/60
Gas Feed	/	Dry Clean Air / External Oxygen
Ozone Concentration	mg/l	Air supply:5~15
Size(LWH)	mm	250180480
Weight	kg	8.9	10.2	10.7
Cooling Way	/	Air-cooled
Inner Air Pump	Yes/No	Yes
Ambient Humidity	%	<70
Ambient Temperature	ºC	<40

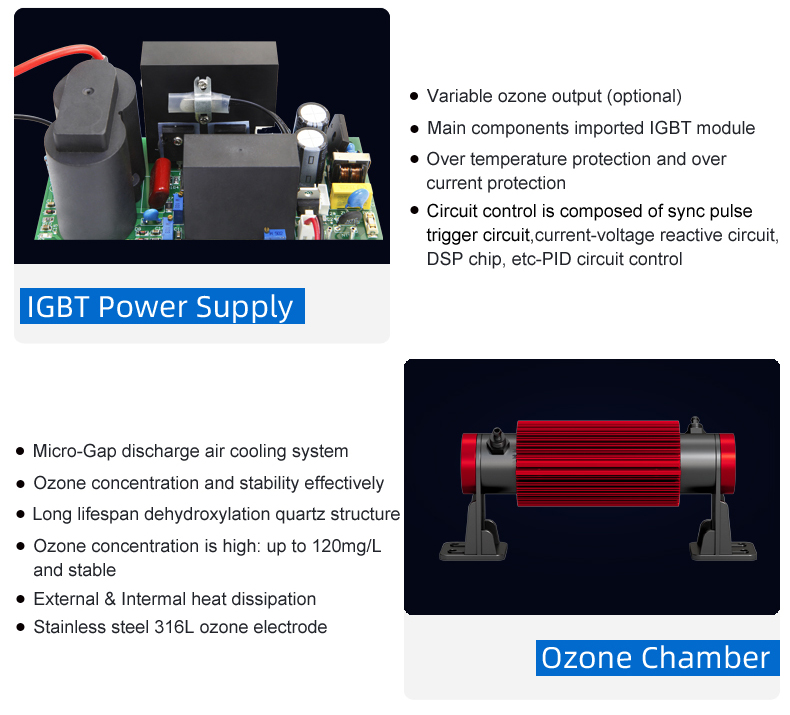

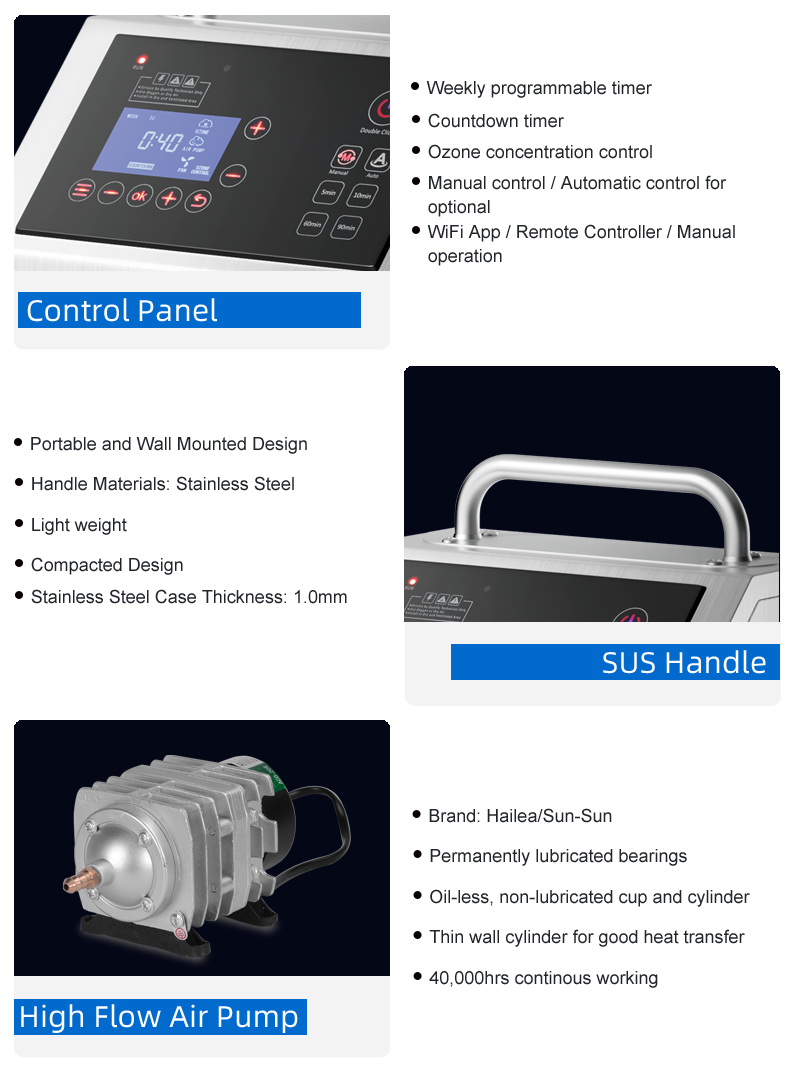

The ozone generators feature a compact, portable, and wall-mounted design housed in a durable 1.0mm stainless steel case. They are powered by an advanced IGBT power supply with PID control, incorporating a micro-gap air cooling system and a long-life dehydroxylation quartz ozone chamber that achieves a stable, high concentration of up to 120mg/L. The units offer flexible operation via WiFi App, remote control, or manual control with programmable timers, and utilize a reliable, oil-less Hailea/Sun-Sun air pump designed for 40,000 hours of continuous operation.

Ozone generators are widely used for both air and water treatment applications. They are highly effective for drinking water disinfection, aquaculture water purification, and food preservation. For air quality management, they excel in workshop sterilization, formaldehyde removal, and farm air purification, providing an environmentally friendly solution with no chemical consumables.
