FG-YT-95H
FLYGOO
Monitor the specific gas concentration in environment or pipeline and alarm.
With self-calibration and zero calibration function, makes the detection more accurate and reliable.
With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
Two-stage alarm with sound and light, alarm point is settable.

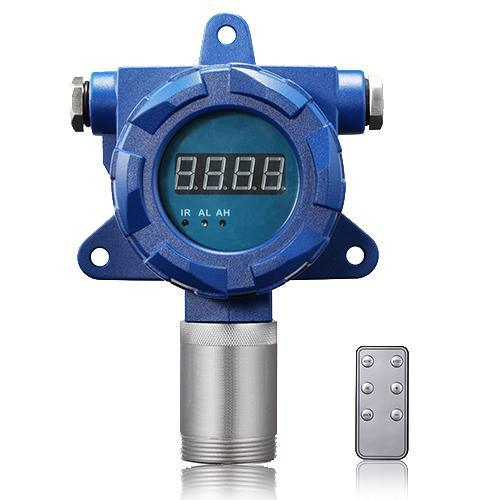

Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
Working Voltage:12-36V DC
Case:die-cast aluminum + stainless steel (alarm light)
Gas Detected | O3, ozone | ||
Detection principle | Electrochemistry | ||
Sampling Method | Wall-mounted, piping type, flow-type(according to the detected environment) | ||
Measure Range | 0-1ppm, 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-5000ppm | ||
Resolution | 0.001ppm, 0.01ppm, 0.1ppm, 1ppm | ||
Precision | ≤± 3% F.S. | ||
Signal Output | 4-20MA, 0-5V, RS485, RS232, relay, wireless digital(optional) | ||
Response Time | ≤10S | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(F.S/year) | Display | High light nixie tube display |
Connection mode | G1/2 external thread explosion-proof flexible pipe | Gas unit | ppm |
Temperature | -20ºC~50ºC | Humidity | 0-90%RH |
Explosion-Proof | Exd II CT6 | Degree of protection | IP65 |
Power | 12-36V DC | Operating time | 24h |
Dimensions | 180*150*90mm | Weight | 1.6kg |
FEATURES
1.Employing original imported ozone sensor.
2.Standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output (optional)
3.Unique infrared ray control function, which can non-contacted Control the device.
4.Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
5.Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex dⅡCT6
6.With self-calibration function, and three standard keys will be used to realize on-site maintenance.
7.Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
8.Working Voltage:12-36V DC
9.Case:die-cast aluminum + stainless steel (alarm light)
1.Petrochemical industry, industrial manufacture, smelting, electricity, coal mining, tunneling, environment monitoring, waste water treatment.
2.Bio-pharmaceutical plant, green household, livestock breeding, green house cultivating, warehouse logistics, brewing and fermentation, agricultural production.
3.Fire control, fuel gas, building, municipal enterprise, school lab, research centre.
