FG-OWS
FLYGOO
Flygoo ozone laundry system for hotels, hospitals, and commercial laundries. Cold water disinfection, cuts chemical use, extends linen life. Fast ROI. CE certified.
The Flygoo OzonLaundry Series empowers commercial laundries to shift away from costly, chemical-heavy, high-temperature cycles and embrace an intelligent cold-water oxidation process. This next-generation system drastically cuts utility bills, shortens both washing and drying durations, minimizes reliance on harsh detergents, and gently preserves textile integrity to prolong linen lifespan.

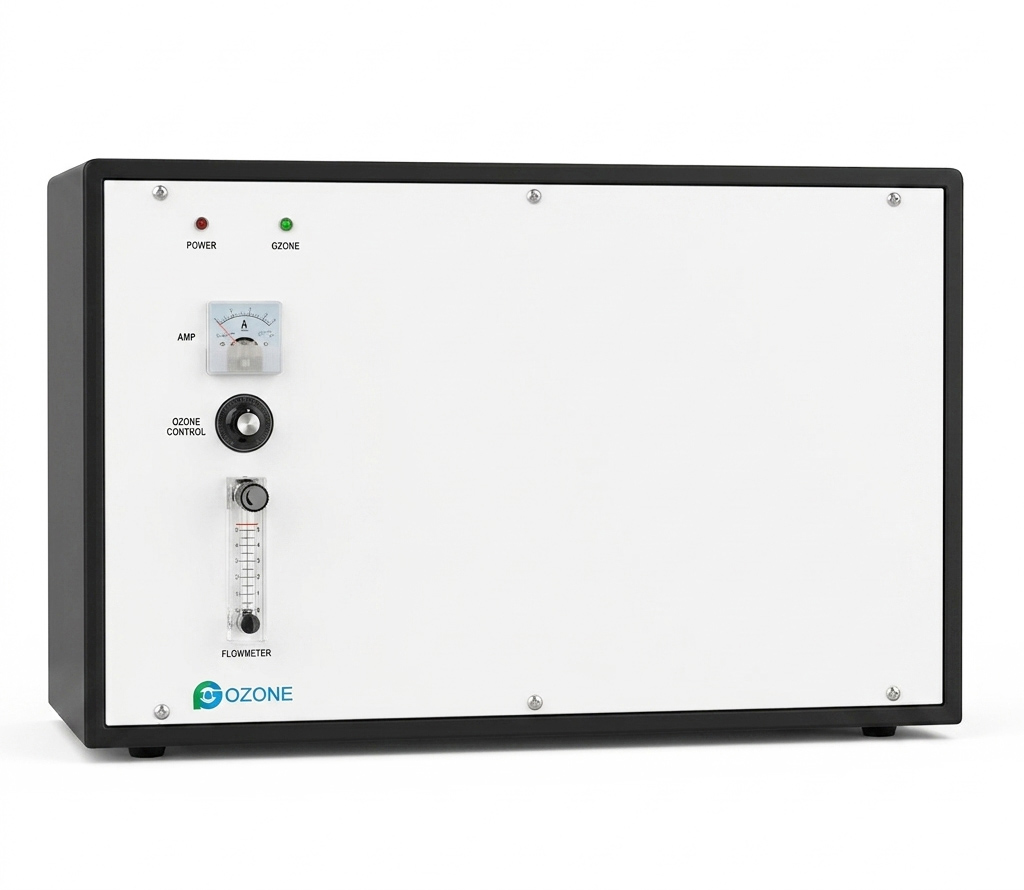

With rapid operational savings that typically deliver full payback in under 14 months, the Flygoo solution turns sustainable laundry management into a measurable financial advantage. This turnkey laundry ozone system integrates the ozone generator and gas-water mixing device into a single unit. It delivers up to 24 g/hr of ozone using an external oxygen concentrator. Available in air-cooled, wall-mounted, or floor-standing configurations, the unit is extremely versatile and easy to operate.

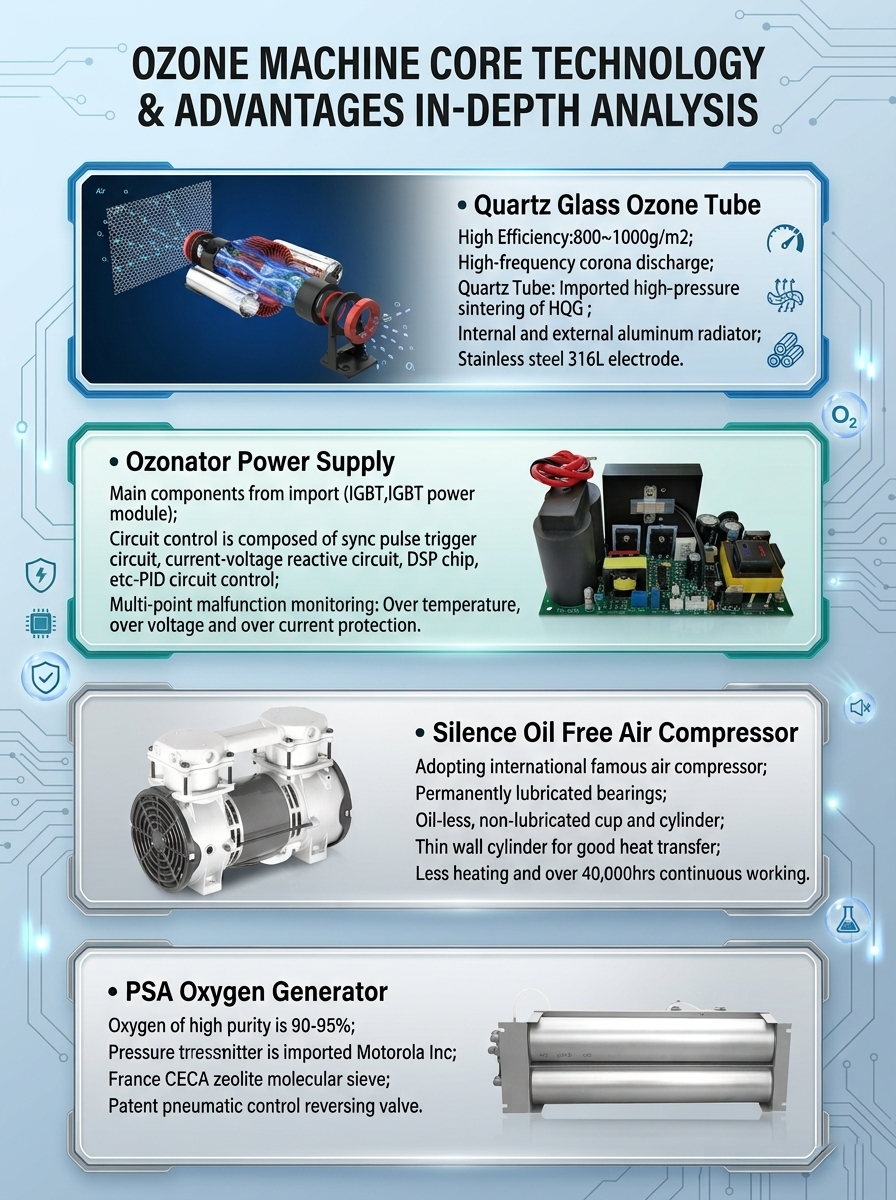

High efficiency: 800-1000 g/m²; high-frequency corona discharge; imported HQG quartz tube with high-pressure sintering; internal and external aluminum radiator; stainless steel 316L electrode.
Main components imported (IGBT, IGBT power module). Circuit control composed of sync pulse trigger circuit, current-voltage reactive circuit, DSP chip, and PID circuit control. Multi-point malfunction monitoring: over-temperature, over-voltage, and over-current protection.
Adopting international famous air compressor; permanently lubricated bearings; oil-less, non-lubricated cup and cylinder; thin wall cylinder for good heat transfer; less heating and over 40,000 hours continuous working.
Oxygen of high purity is 90-95%; pressure transmitter is imported Motorola Inc; France CECA zeolite molecular sieve; patent pneumatic control reversing valve.

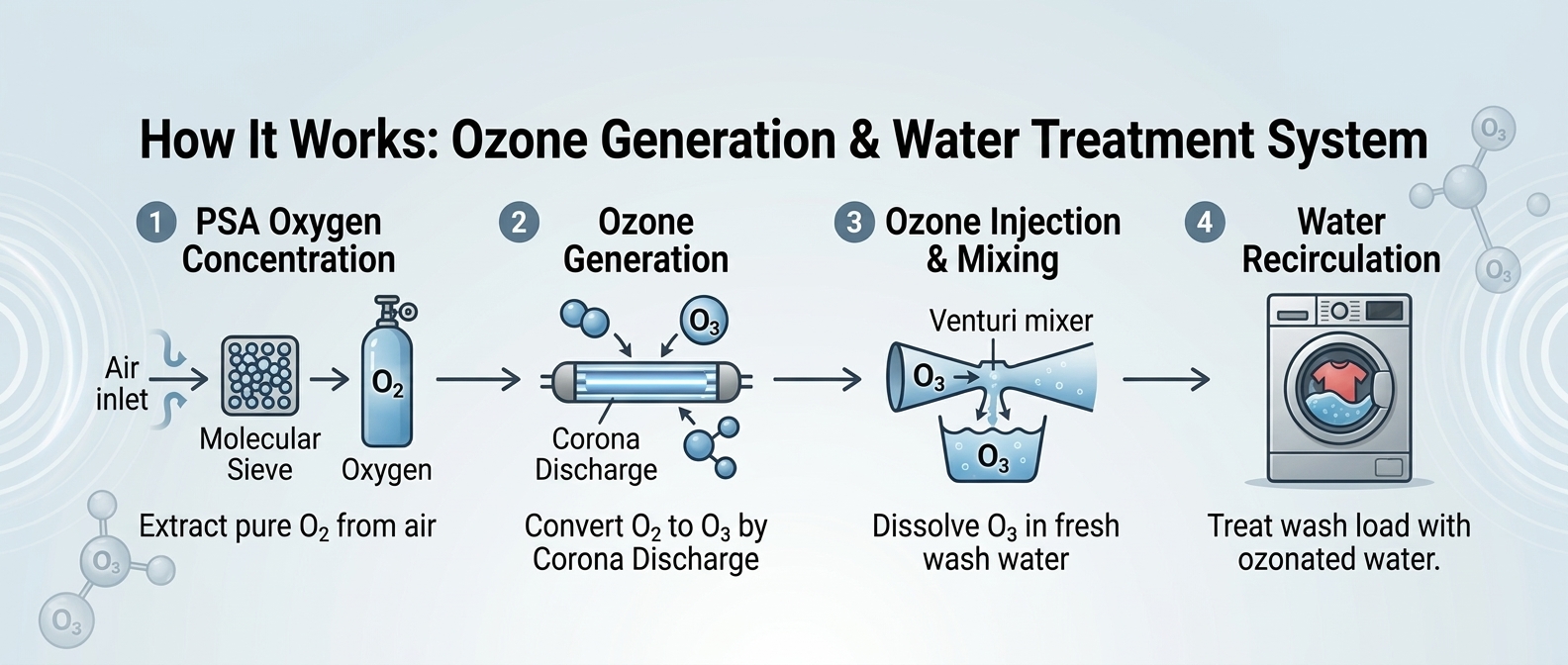

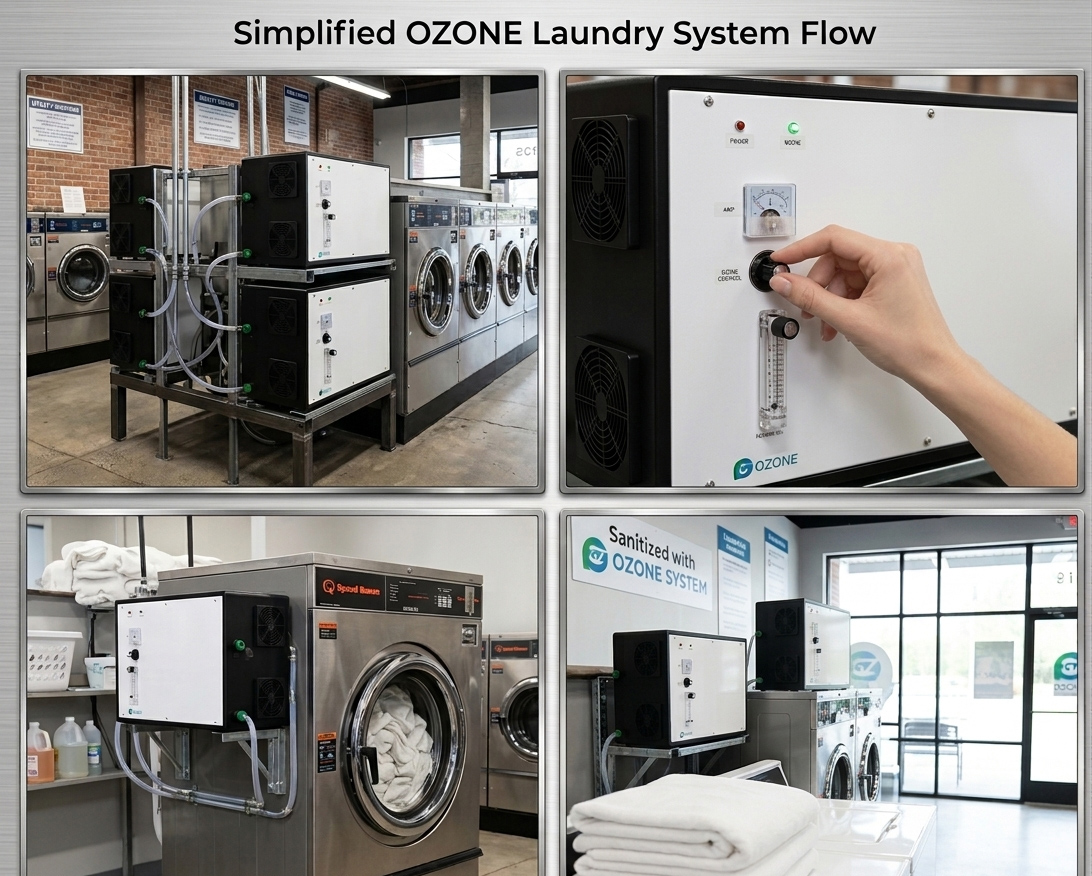

PSA Oxygen Concentration → Ozone Generation → Ozone Injection & Mixing → Water Recirculation
Air inlet → Molecular sieve → Pure O₂. Extract pure O₂ from air.
O₂ → Corona Discharge → O₃. Convert O₂ to O₃ by corona discharge.
Venturi mixer → O₃ dissolves in fresh wash water.
Treat wash load with ozonated water for disinfection and cleaning.
Eliminates bacteria and viruses in cold water, reducing energy costs and extending linen lifespan.
Delivers measurable savings on energy, water, chemicals, and linen replacement.
Powerful disinfection using external oxygen feed for commercial laundry needs.

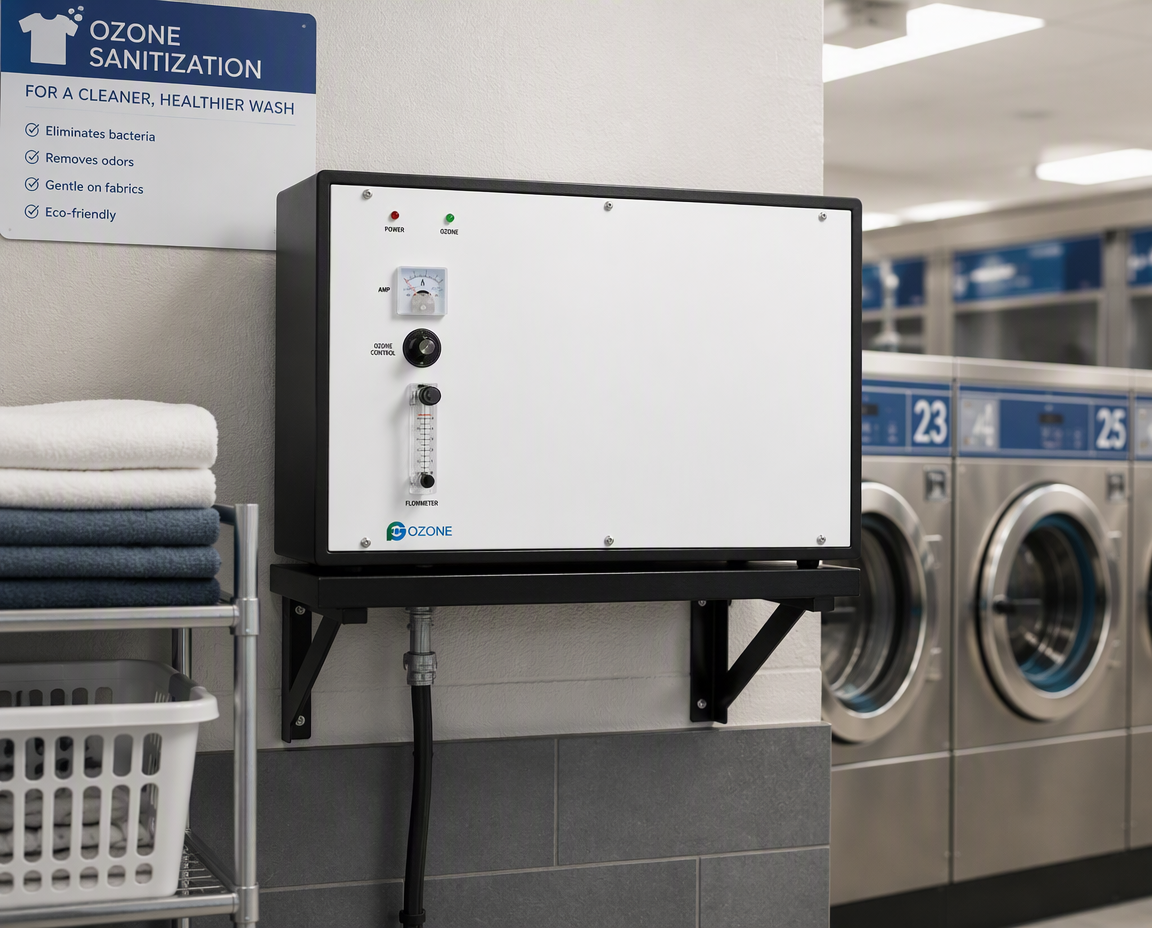

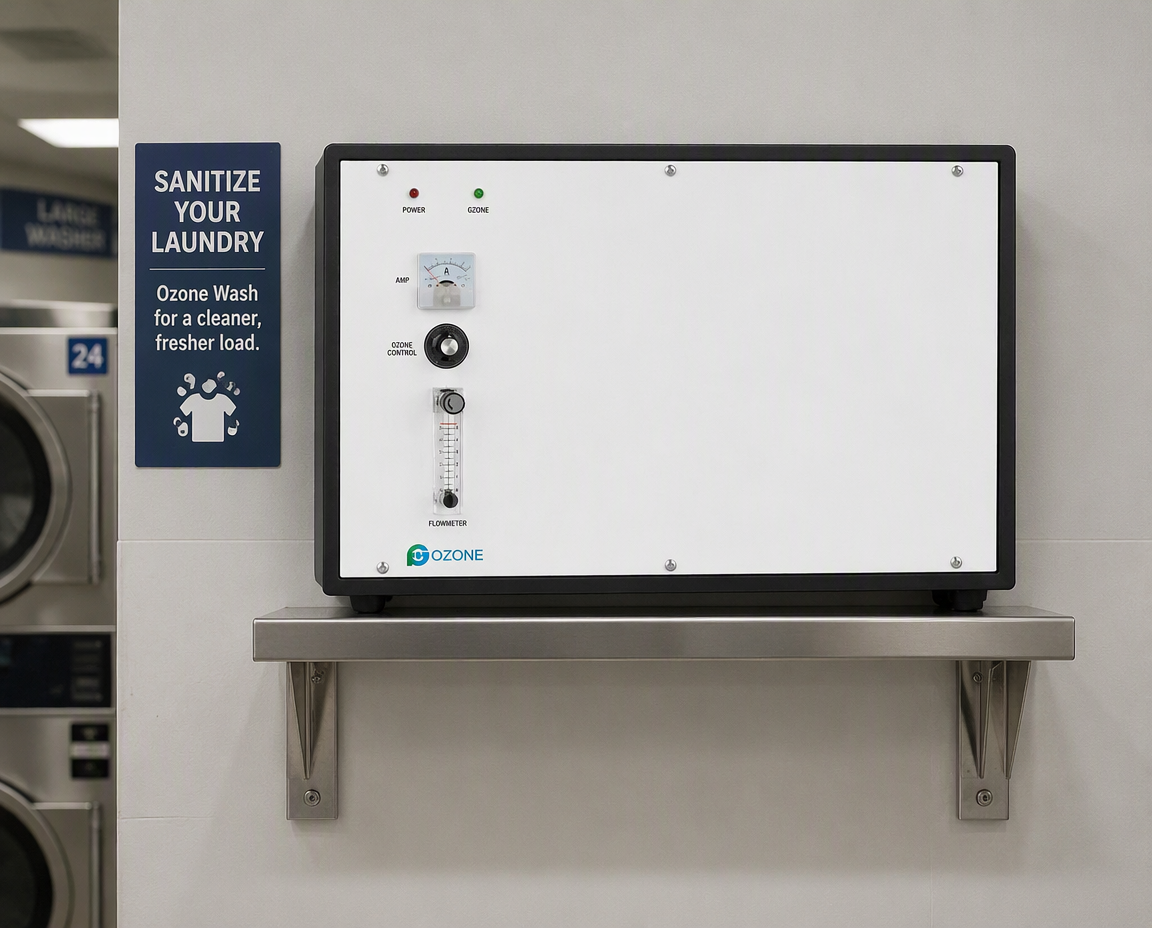

Combines ozone generator and gas-water mixer in one compact wall-mounted unit.

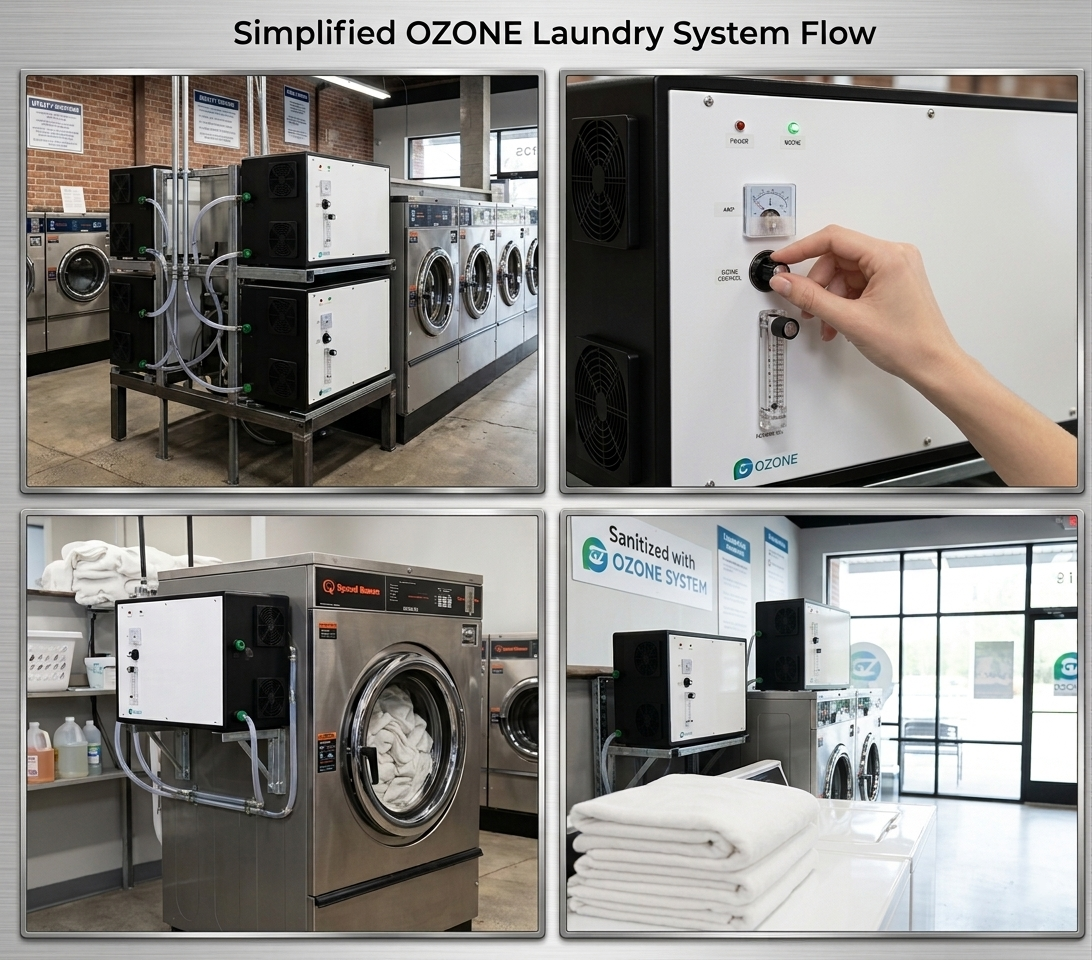

One OzonLaundry system serves multiple washing machines simultaneously.
Consumes only 550-840W for energy-efficient continuous operation.
Minimizes detergent reliance, lowers chemical discharge, and protects the environment.
Over-temperature, over-voltage, and over-current protection with CE certification.
Item | Unit | Model: FG-OWS | |||
Series | / | OZLAUN-1 | OZLAUN-2 | OZLAUN-3 | OZLAUN-4 |
Recommend Washer* | kg (lb) | 20 to 80 kg | 60-135 kg | 115-230 kg | 180-400 kg |
(44 to176 lb) | (110-300 lb) | (200-500 lb) | (400-880 lb) | ||
Power | W | 550 | 580 | 720 | 840 |
Dimension(L*W*H) | mm | 700*350*420 | |||
Net Weight | kg | 22 | 22 | 29 | 32 |
Oxygen Feed | L/Min | 3 | 4 | 5 | 8 |
Cooling System | - | Air Cooled | |||
Enclosure | - | Mild Steel | |||
Electric | VAC/Hz | 220~240V/50~60Hz ; (110V/60Hz) | |||
Ozone Control | % | 20-100 | |||
Ambient Humidity | %RH | <70 | |||
Ambient Temperature | °C | <40 | |||
Need help sizing? Contact our team for a free recommendation.
Application | Description |
Hotels & Resorts | Reduce chemical use, extend linen lifespan, provide fresher bedding and towels for guests. |
Hospitals & Clinics | Cold water ozone disinfection eliminates bacteria and viruses without harsh chemicals, meeting strict hygiene standards. |
Senior Care Facilities | Gentle ozone laundry treatment removes odors and stains while protecting sensitive skin. |
Commercial Laundries | One system serves multiple washing machines, delivering high-volume processing and lower operating costs. |
Institutional Facilities | Chemical-free laundry disinfection for schools, universities, and government facilities. |
The Flygoo OzonLaundry is a turnkey ozone water system that integrates an ozone generator and gas-water mixing device. It injects ozone into cold water wash cycles to eliminate bacteria and viruses, reducing the need for hot water and harsh chemicals.
Four models are available: OZLAUN-1 (20-80kg), OZLAUN-2 (60-135kg), OZLAUN-3 (115-230kg), and OZLAUN-4 (180-400kg). One OzonLaundry machine can disinfect multiple commercial laundry units simultaneously.
The system operates with cold water, drastically cutting utility bills and reducing detergent usage. Most customers achieve full payback in under 14 months through lower energy, water, and chemical costs.

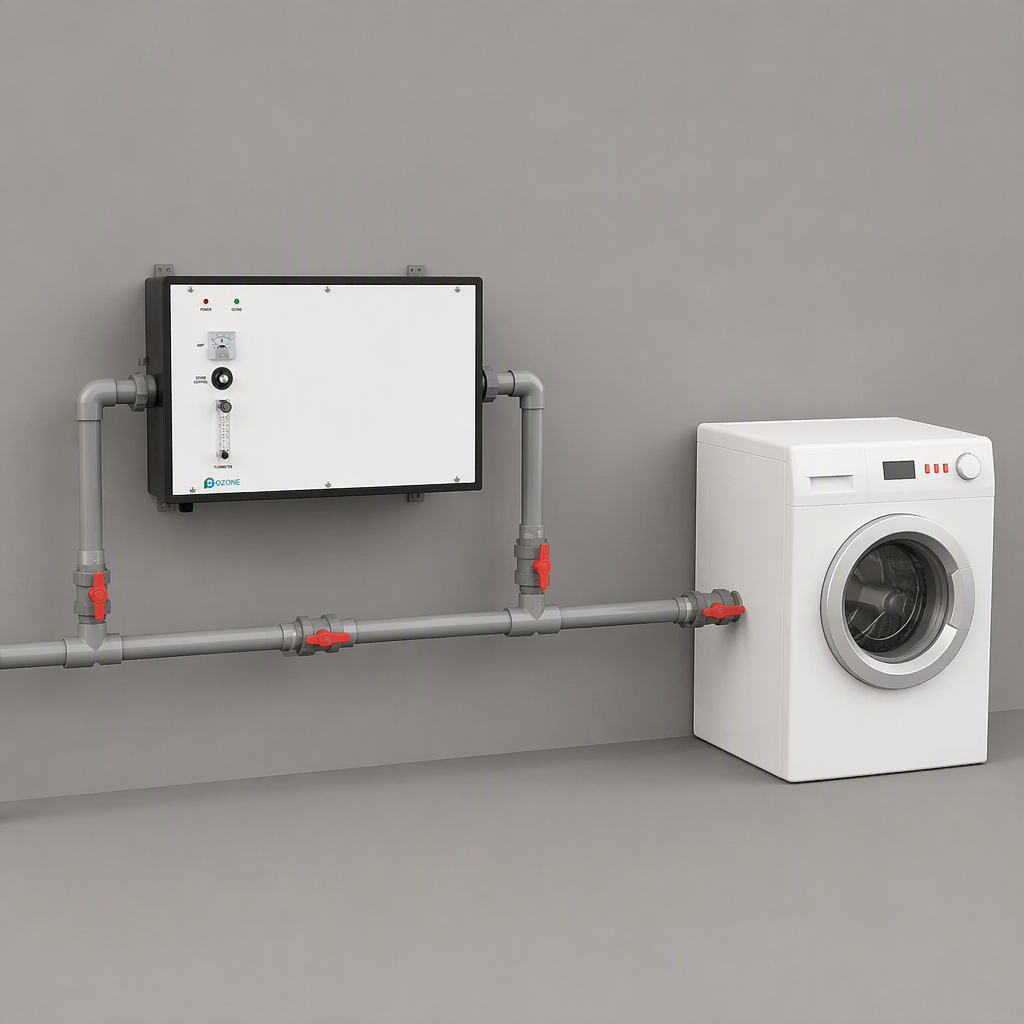

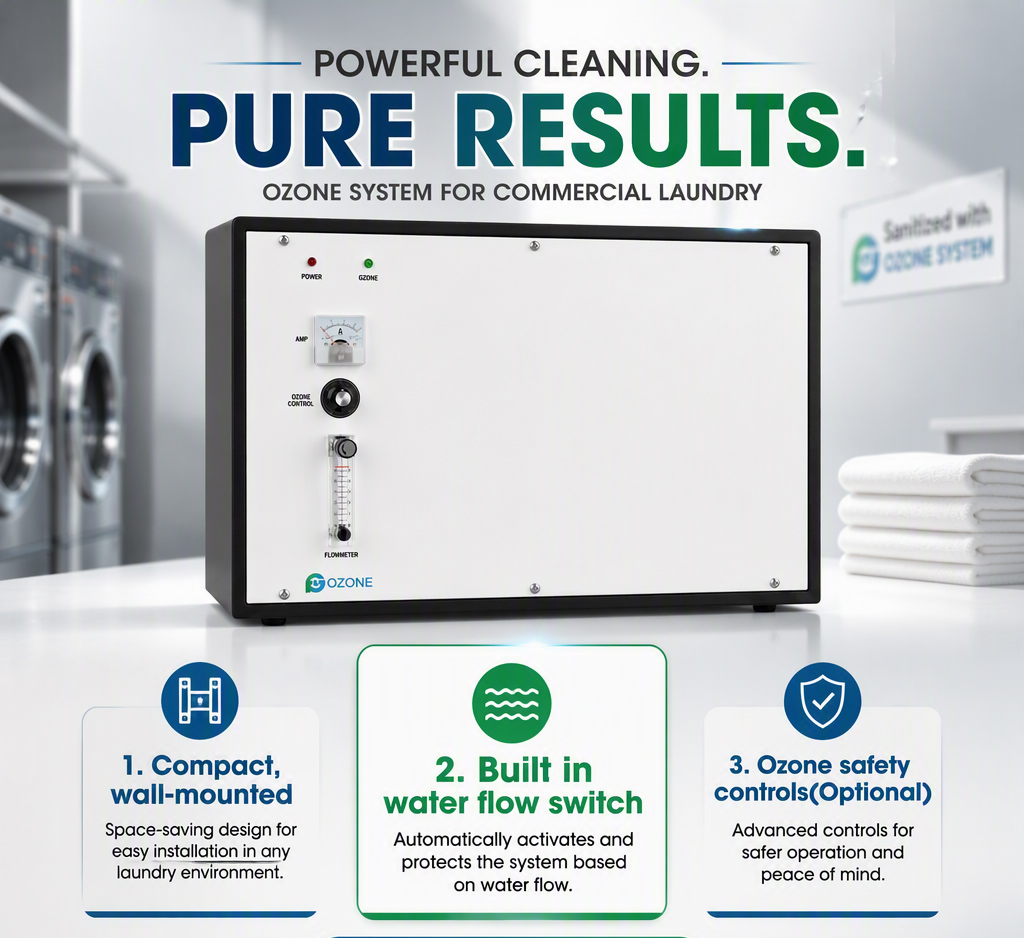

No. The unit features a compact, wall-mounted design with self-suction continuous ozone injection. It comes as a complete turnkey package—simply connect to your existing laundry equipment and oxygen feed.
No, it actually extends linen life. The cold-water oxidation process is gentler on textiles than hot water and harsh chemicals, keeping linens whiter, fresher, softer, and lasting longer.
The system uses an external oxygen feed system (wall-mount kit available). It delivers up to 24 g/hr of ozone with 90-95% purity oxygen from an integrated PSA oxygen generator using France CECA zeolite molecular sieve.
Yes. The system is CE approved and features multi-point malfunction monitoring with over-temperature, over-voltage, and over-current protection. Ozone safety controls are also available as an option.
It is ideal for senior care facilities, hospitality, institutional facilities, hospitals, and commercial laundries—anywhere that requires hygienic, cost-effective, and eco-friendly textile processing.
