FG-BFP-I
FLYGOO

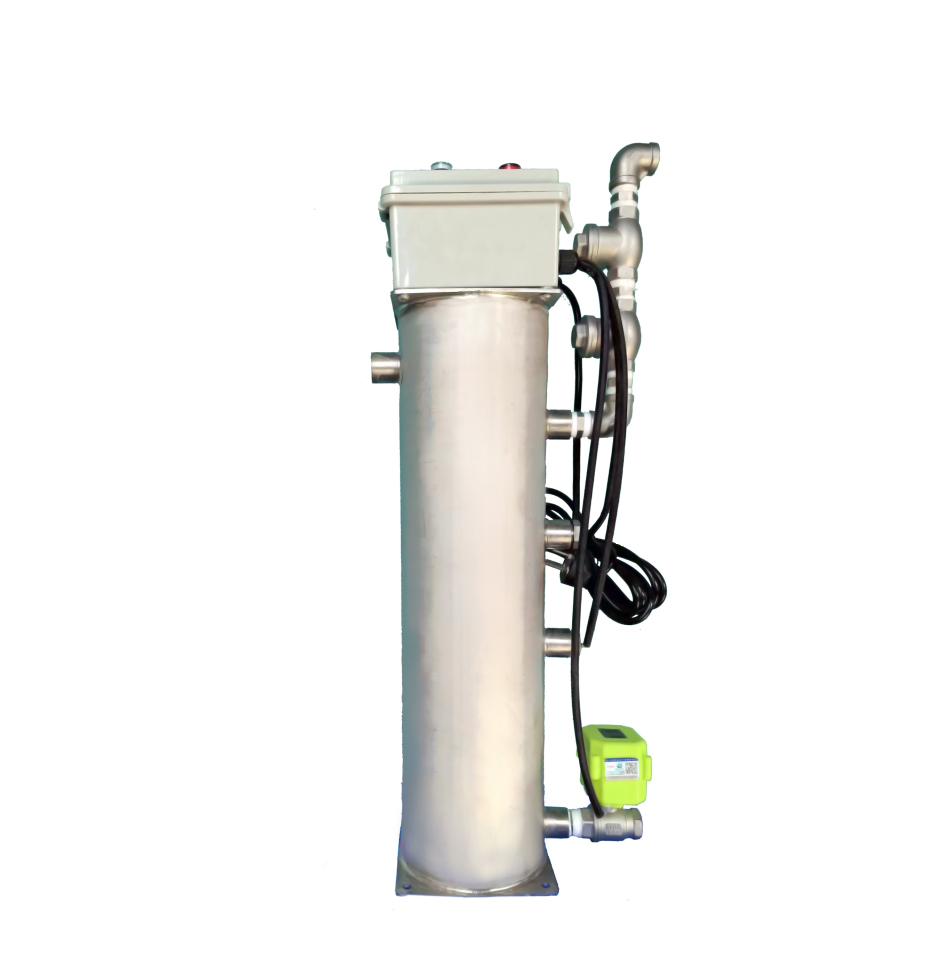

Use the FG-BFP-I Back Flow Preventer whenever you use a venturi injector with an Ozone Generator. It is design for large water flow rate system, such as commercial swimming pool, large water treatment,etc. Actively block, trap, and drain water that could potentially damage your Ozone Generator. This Back Flow Prevention unit is designed to keep your Ozone Generator safe, by taking the water that backs up from you venturi and actively trapping and draining the water.
Model | FG-BFP-I | Net Weight | 6.5 kg |
Nominal Gas Flow Rate | 100 LPM | Power Requirements | ≤ 10W |
Operating Pressure | 0-4.0Mpa | Enclosure | SUS 304 |
Waterproof level | IPX0 | Warranty | 1 Year |
Gas Connections | 1/2" | Voltage | AC220V±10%, 50/60Hz; AC110V/60Hz (option) |
Dimensions | 320*140*635mm |

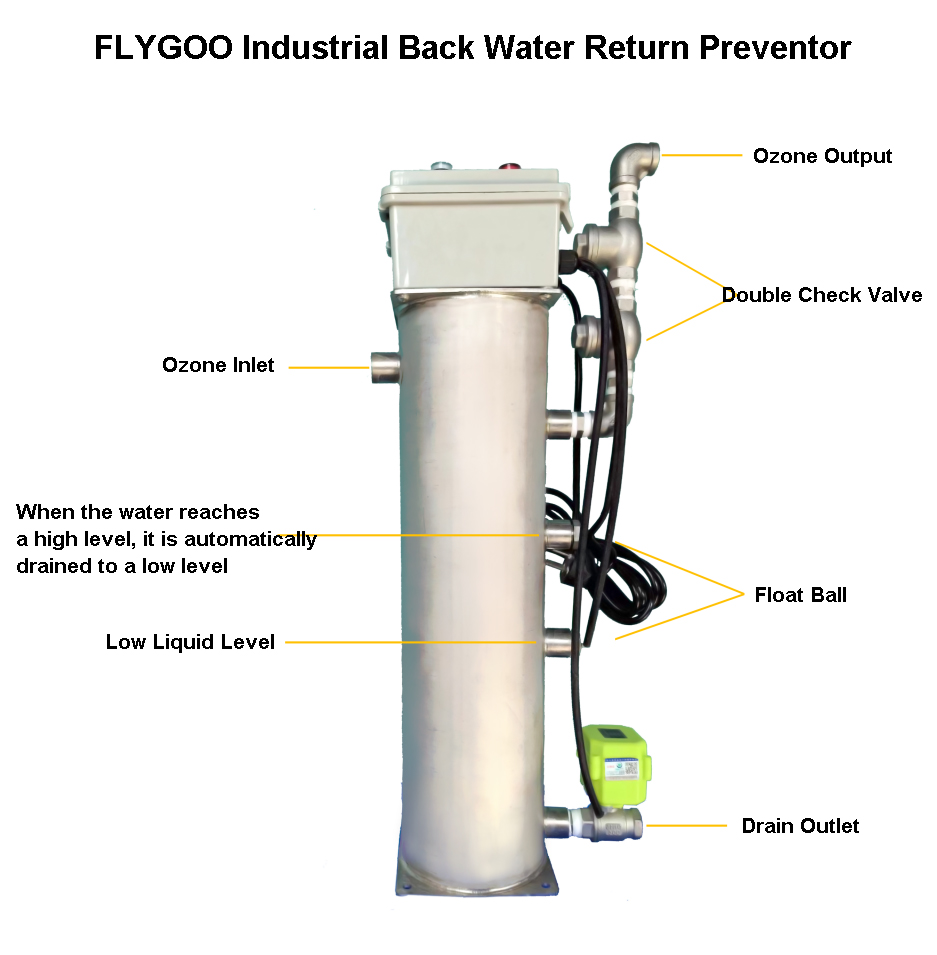

This industrial backflow preventor, comes with two check valves, water,high and low liquid level control system, and electronic drain valve. The stainless steel check valve, is used on the outlet of the FG-BFP-I. This intended design is to block water back-flow with the stainless steel check valve. When the water reaches a high level, it automatically drains to a low level,meanwhile, the electronic drain valve will be opened, the backwater will be drained out. This system will actively, block, trap, and drain water to protect your ozone generator in every ozone injection application.
Note: Ozone Outlet *: Connect to venturi injector or gas water mixing pump (must be negative suction device)
To learn more about ozone generators , please contact Flygoo Ozone Sales :
