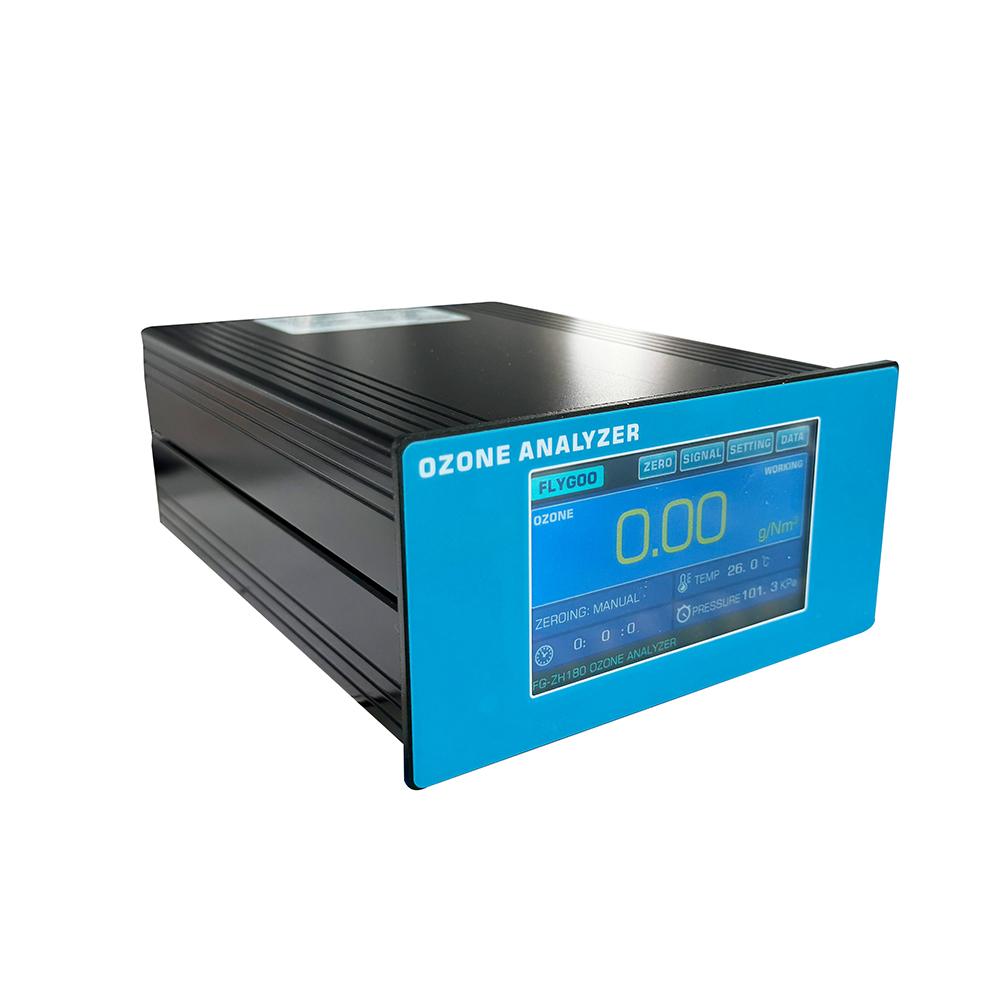

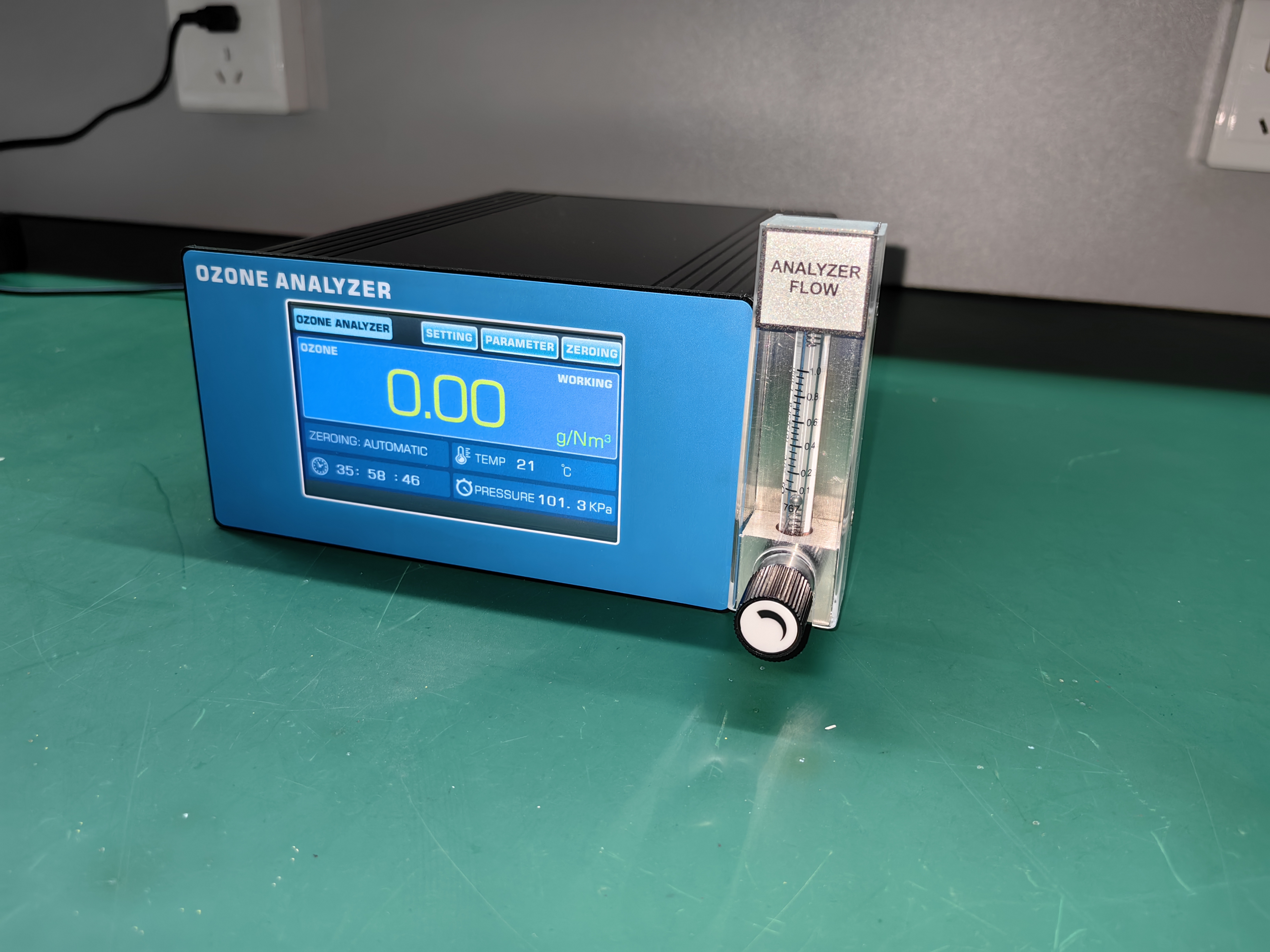

Detection principle: UV dual path absorption method, used for real-time detection of ozone generator outlet concentration or exhaust ozone concentration detection. Product features: Embedded desktop ozone analyzer, patented technology, with automatic zero calibration function, dual light path ultraviolet absorption principle, long life ultraviolet LED light source, continuous operation, ensuring the stability of detection concentration.
This product has an automatic zero calibration function, which can also be calibrated normally during the ozone detection process. It belongs to our company's patented process.
Model | FGZH-180 |
Working principle | UV LED absorption method |
Range | 0-200g/Nm3; 0-100g/Nm3; 0-50g/Nm3 |
Display resolution | 0.01g/Nm3 |
Gas flow rate | 0.3L-0.8L/min |
Input pressure | <0.1MPa |
Concentration error | maximum 0.5% FS |
Linear error | maximum 0.5% FS |
Zero drift | <± 0.4%. FS |
Sampling port diameter | Φ 6 (6mm*4mm) |
Communication method | RS-485 |
Output mode | 4-20mA |
Power supply | 24V DC |
Size | 150 x 75 x210mm |
Hole size | 152 x 76mm |
| 3KG |
ZH-180 ozone analyzer is designed and manufactured based on Lambert Beer's law and the verification and calibration methods for measuring ozone gas using ultraviolet spectrophotometry. By measuring the changes in light signal intensity before and after the absorption of ultraviolet light by ozone, the current ozone concentration value can be calculated. The equipment uses an advanced dual path ultraviolet light source system, which is equipped with an intelligent lamp management system. After startup, the ultraviolet lamp can quickly reach the measurement state.
It adopts foreign separated light cell technology, and the equipment has the characteristics of no leakage, high pressure resistance, resistance to large flow sampling gas impact, easy cleaning, easy maintenance, simple operation, and low cost of use. Mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in operating pipelines, containers, and other environments. Widely used in pharmaceutical, chemical, municipal, sewage treatment and other industries, to measure the outlet concentration and output of ozone generators.
Product Technical Features
Test method | Dual path UV absorption method, long lifespan light source system, high measurement accuracy. |
Measuring Principle | According to Lambert Beer's law, accurate measurements are made using the principle of photometric absorption. |
Light source system | Long life UV light source with a free warranty of 1 year. |
Usage | Indoor installation and use, equipped with power and signal terminals. |
Light pool system | Foreign separated light cell technology, leak free, high pressure resistance, and resistance to high flow sampling gas impact. |
Intelligent compensation | Built in temperature and pressure compensation and display, with automatic light source compensation function. |
Operation mode | Users can choose between manual and automatic zero calibration based on their operating status, and can set the automatic zero calibration time. |

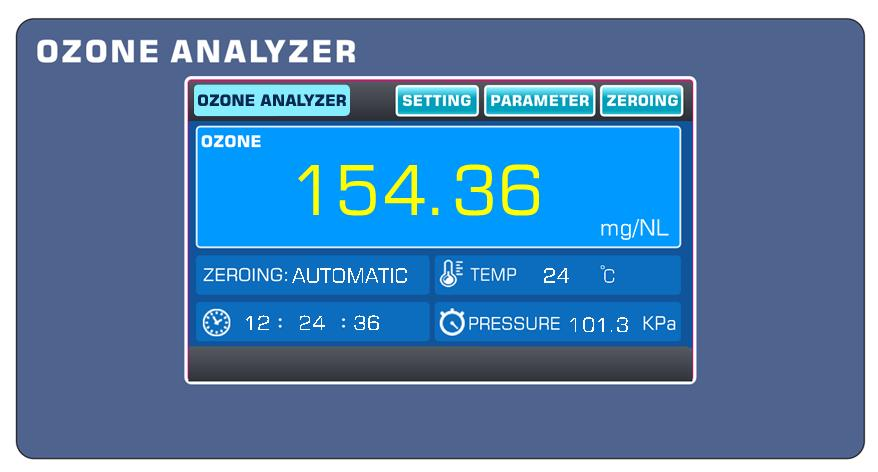

Display units | 4.3 inch high-definition color touch screen. Display unit: g/Nm3; mg/NL。 |
Output function | 4-20mA, RS485 communication (optional). |
Optional configuration | Anticorrosive flow meter, ozone exhaust destructor, intake filter. |

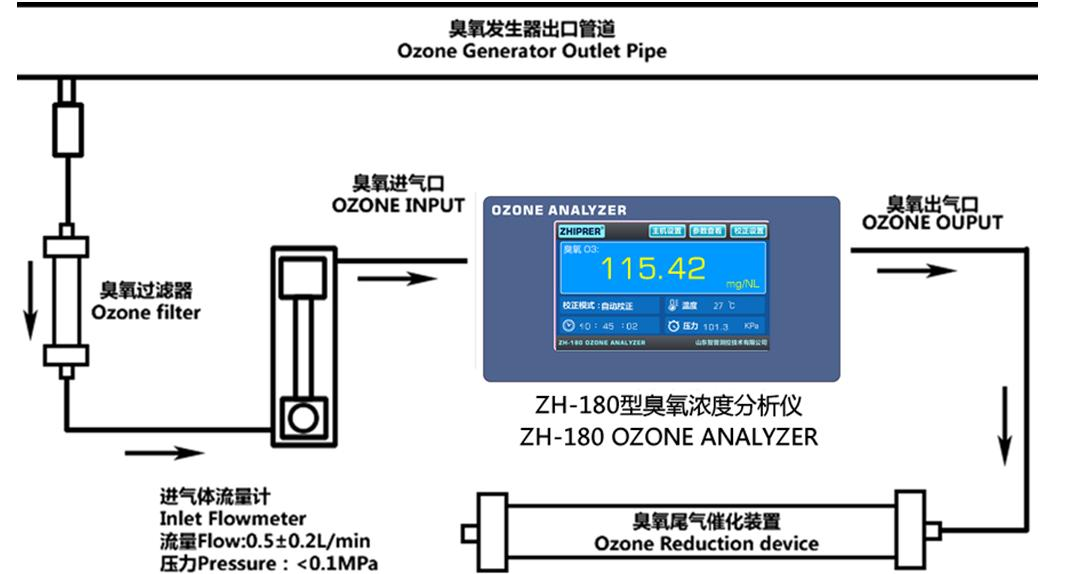

Product structure composition

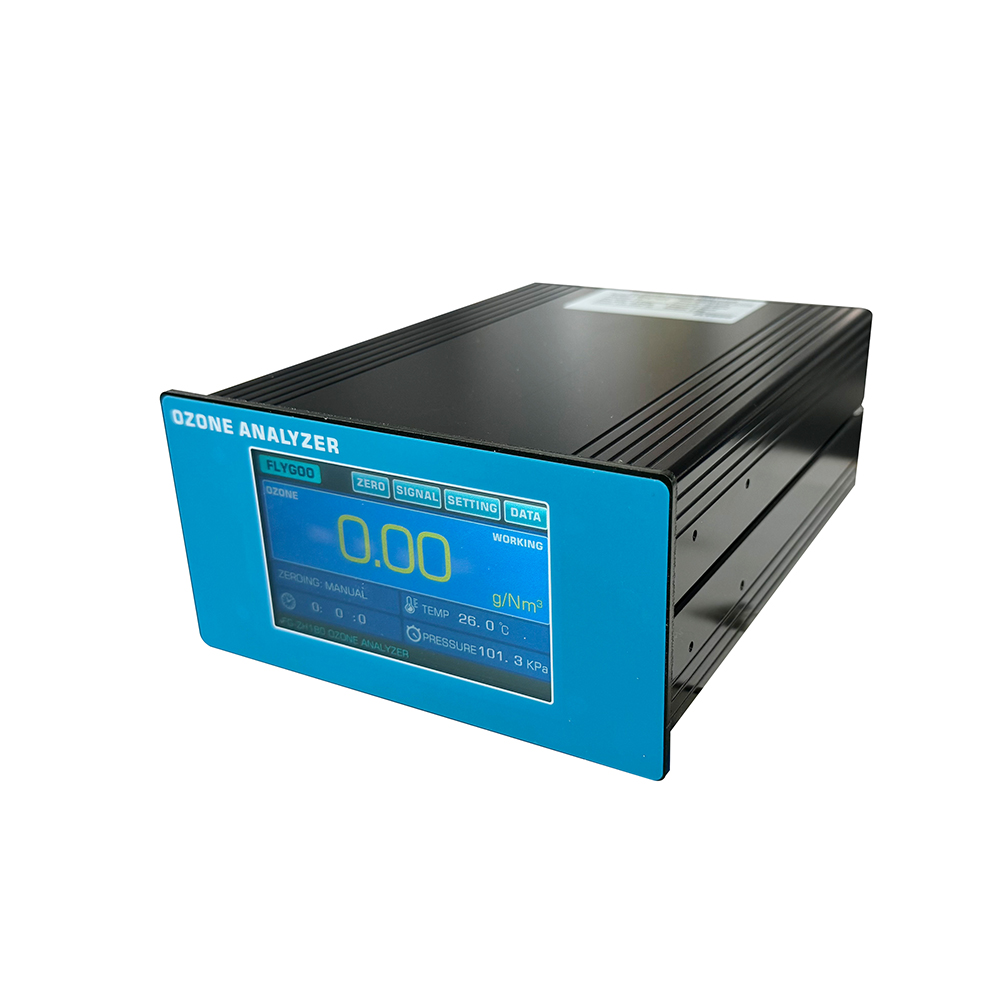

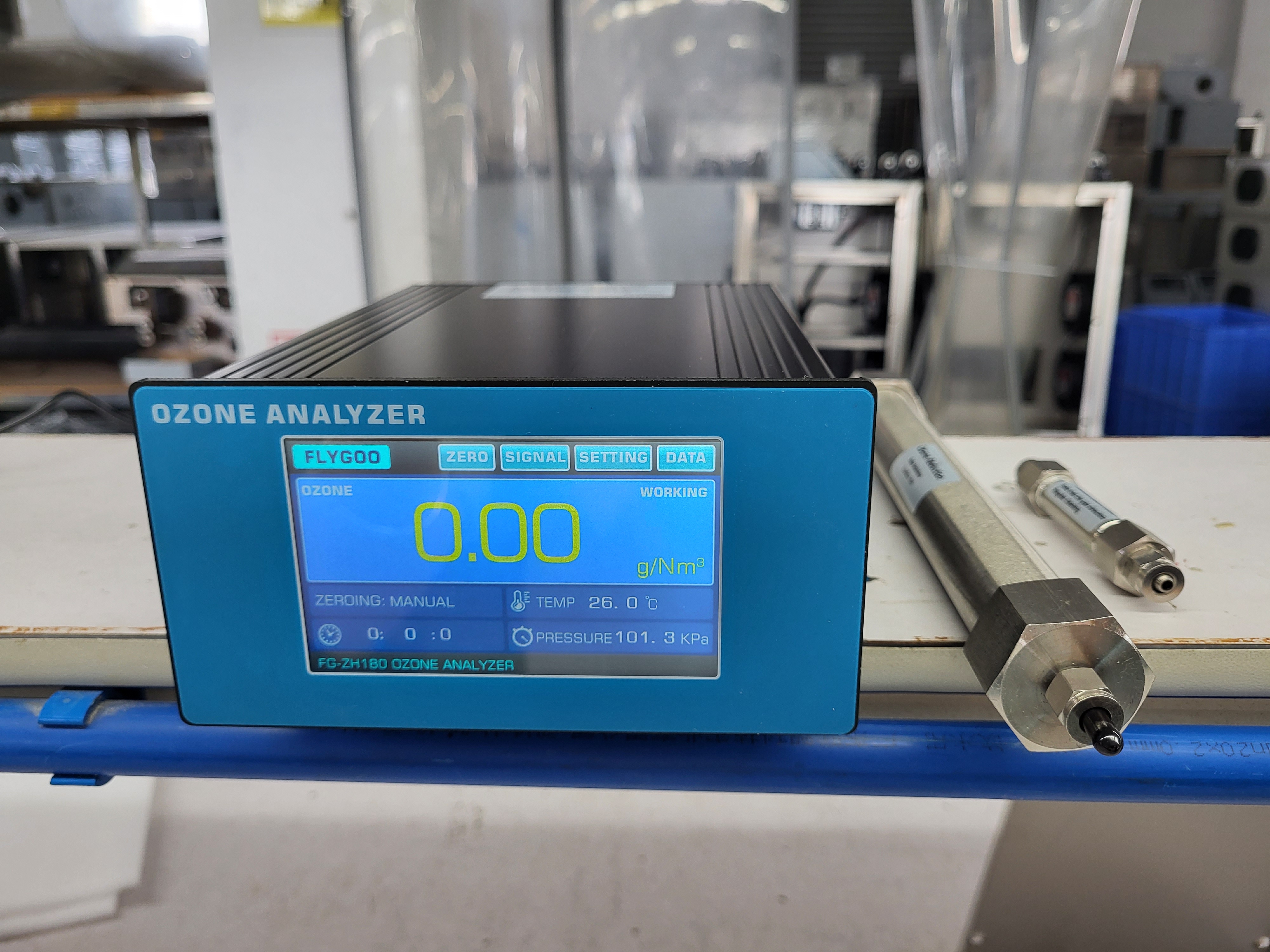

Front panel (detailed instructions can be found in the operating instructions)

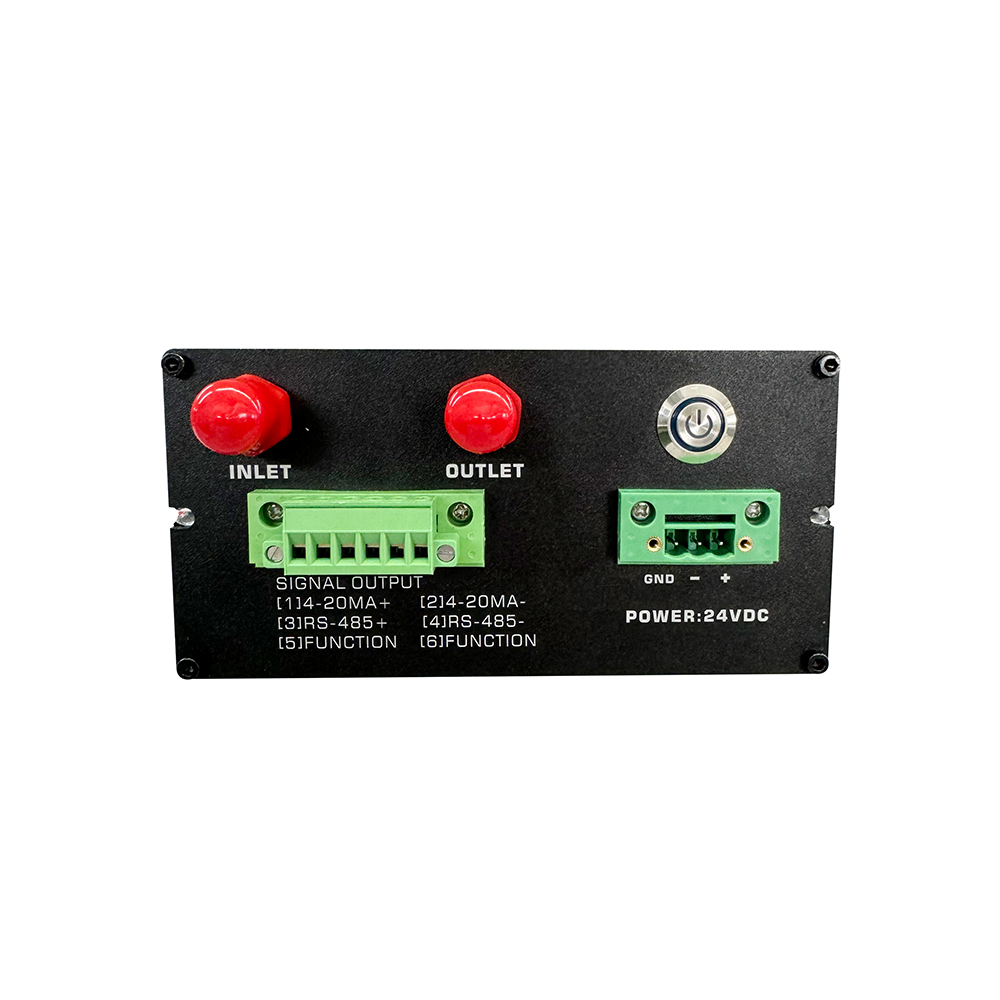

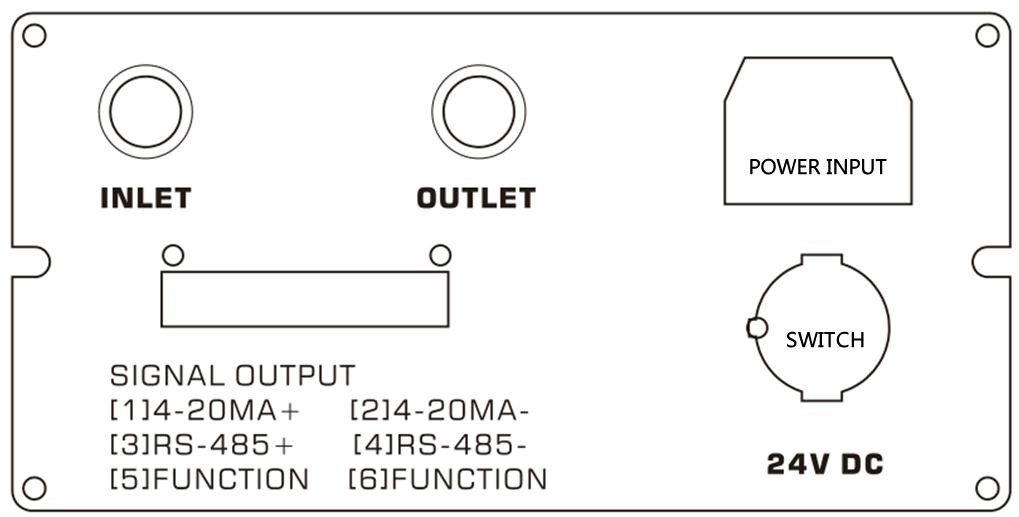

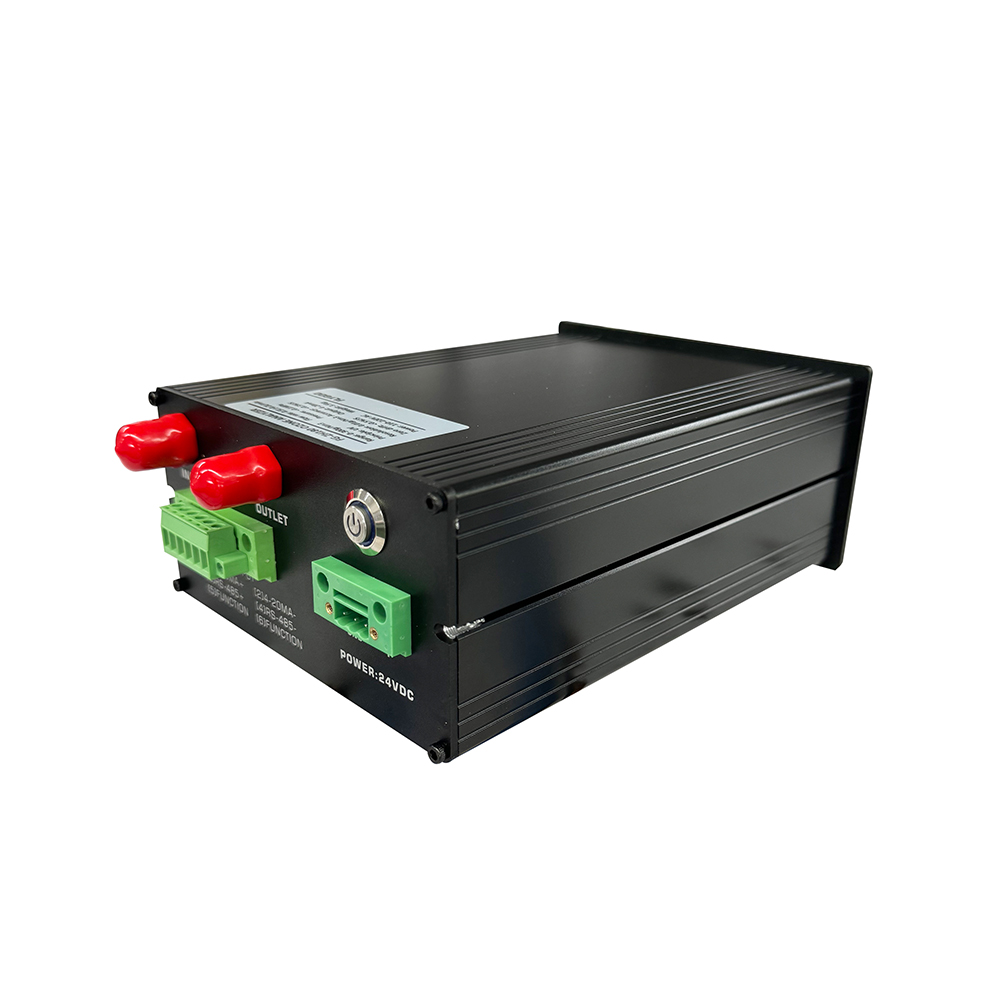

Rear panel: Air inlet and outlet signal output (note: if there is a difference in the identification
between the instruction manual and the instrument, the instruction manual document shall prevail)
(1) RS485+: Digital signal output RS485+
(2) RS485-: Digital signal output RS485-
(3) 4-20mA: current output 4-20mA+
(4) 4-20mA: current output 4-20mA - G
(5) Function: Reserved Function Interface
(6) Function: Reserved Function Interface
