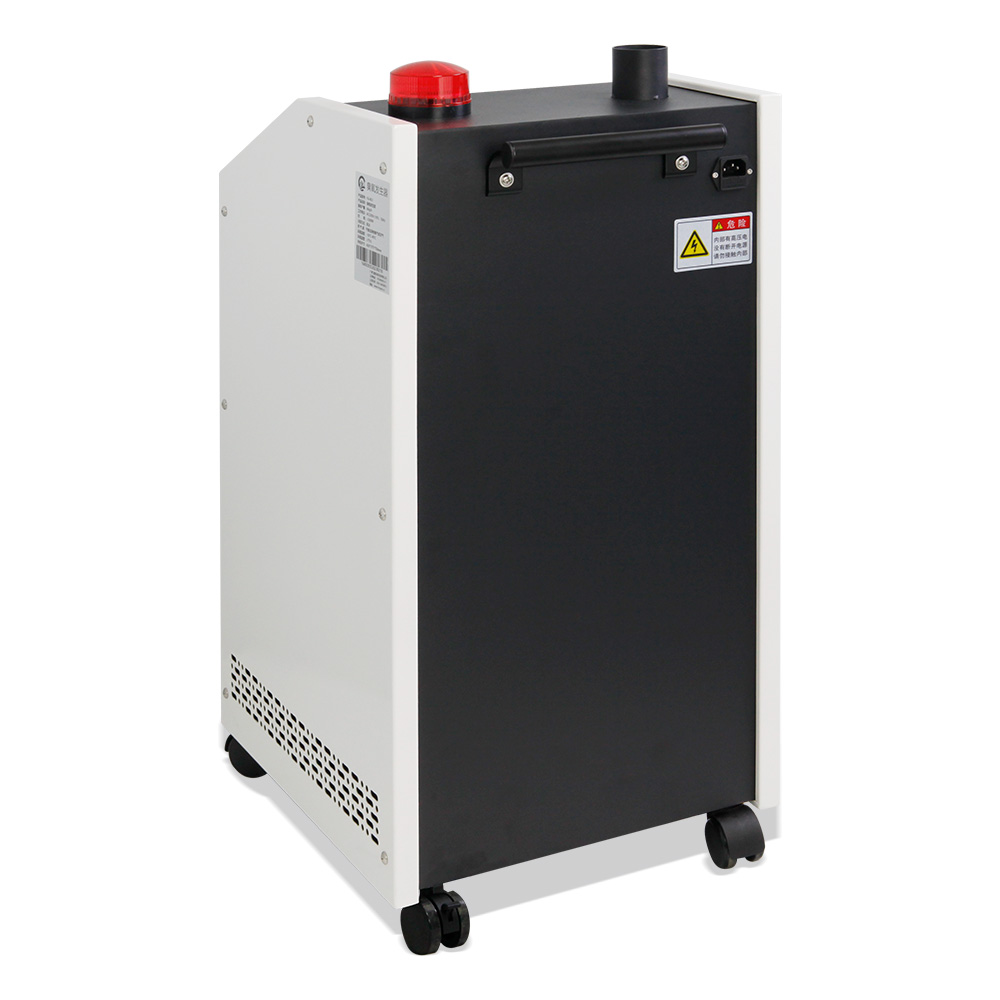

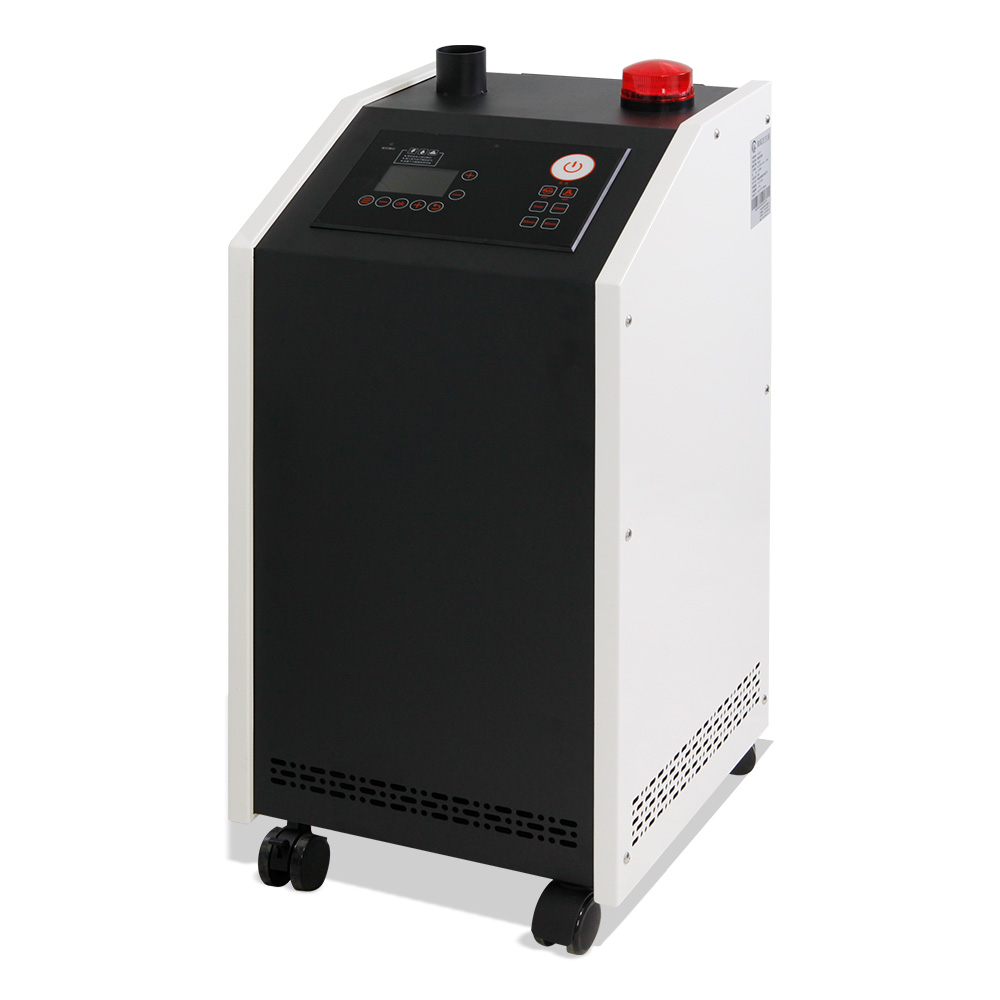

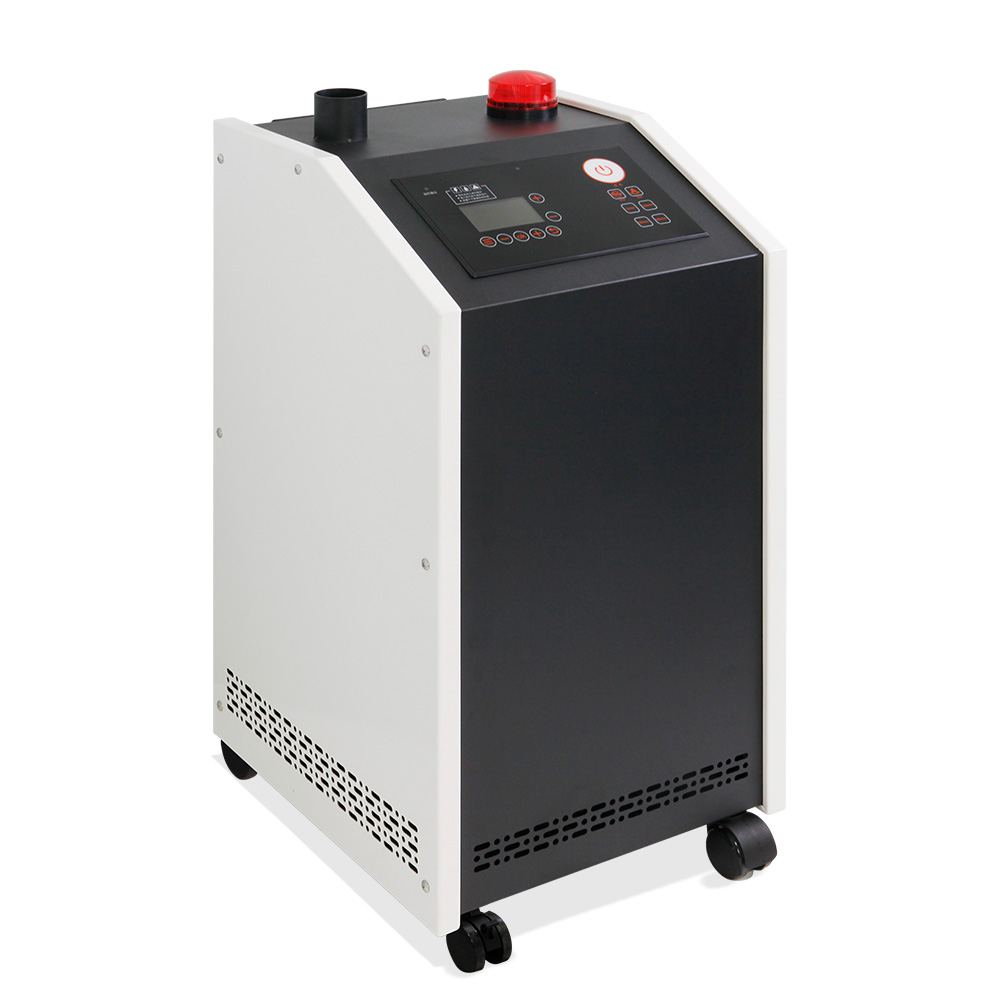

Commercial High Concentration Air Purifier Deodorizer Ozone Generator Sterilizer Factory

The FG-M series products are corona discharge type ozone generators, with advanced Insulated Gate Bipolar Transistors (IGBT)power supply and generation chambers utilizing dehydroxylation quartz structure dielectric.
Availability:
Quantity:
Inquire Add to Basket

  • FG-M

  • FLYGOO

Product Description

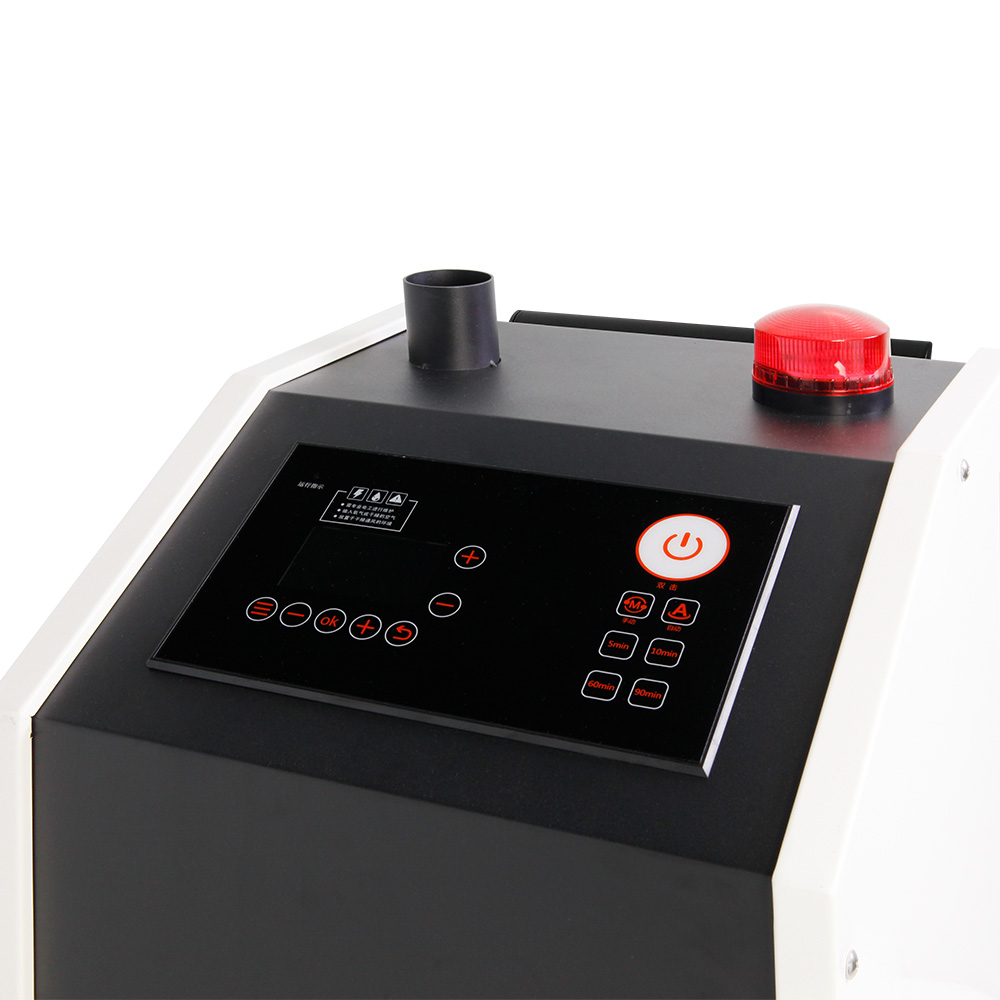

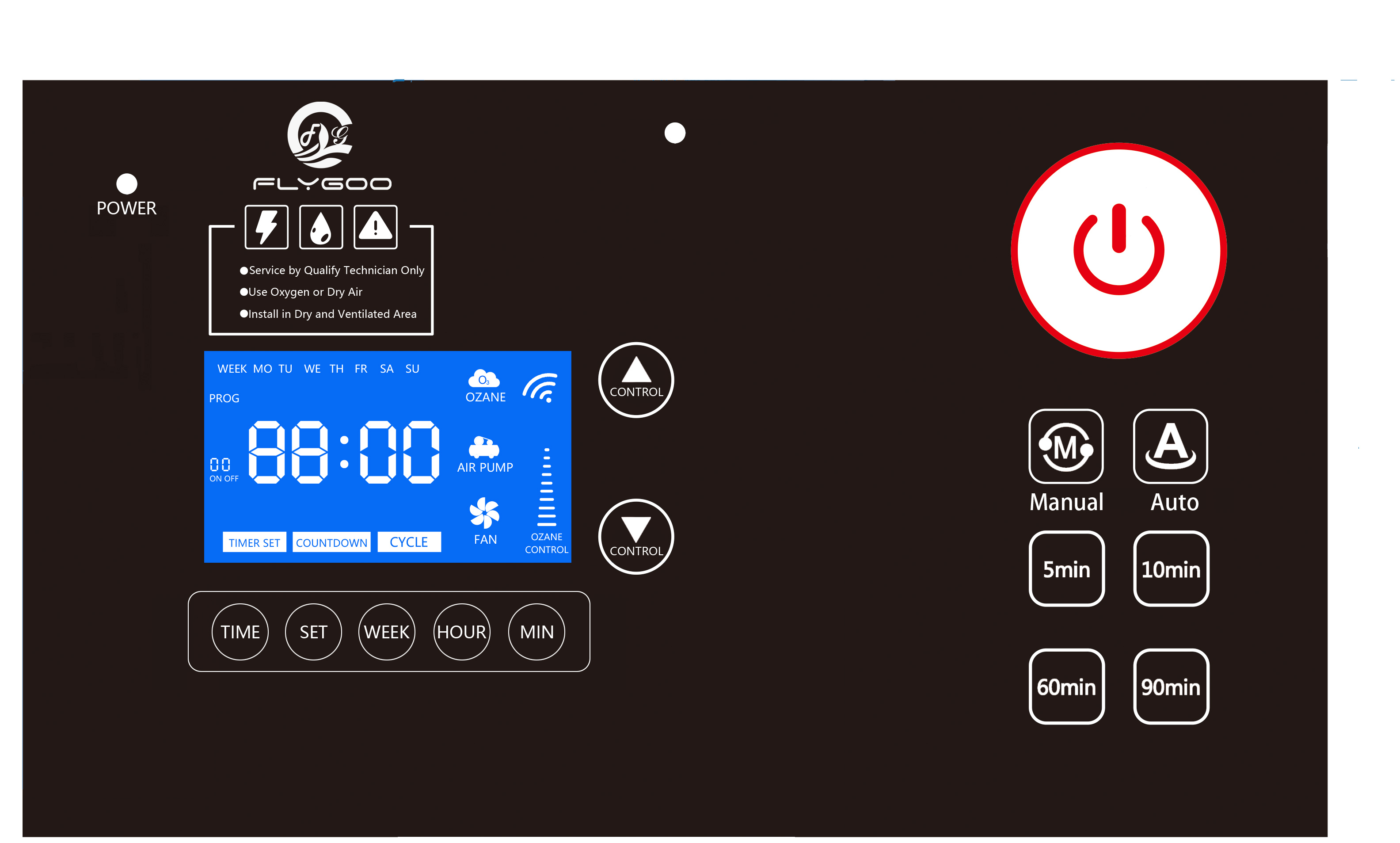

The units are air-cooled and feature in-built in air blower. The units generating components are housed in an all stainless steel and baking painted enclosure and touch screen are easy to use and view. The unit features: timer remote control, LCD display, IOT WiFi control, weekly programmable timer.

Unit

FG-M-1

Ozone Output

g/hr

30

40

50

60

Power

w

280

340

420

500

Net Weight

kg

17

18

19

24

O3 Output Diamete

mm

Φ 50

Electric

VAC/Hz

220~240/50~60 ; 110/60

Size (L*W*H)

mm (inch)

420*375*750 (16.54*14.76*29.52)

Drive Flow

m3/h

140

Gas Feed

/

Dry clean air

Inner Air Blower

Yes/No

Yes

Ambient Humidity

%

<60

Ambient Temperature

°C

<40
FG-M AIR OZONE.jpg

Ozone Generator Features:

1. Multi-point malfunction detection. Over voltage, over current and over temperature protection

2. The equipment will be stopped operation and the corresponding fault indicator on the circuit board lights up when a fault is detected;

3. The equipment utilized large power IGBT modules, high efficiency, long lifespan quartz structure with air cooling parts;

4. Ozone amount continuous adjustable (20~100%);

5. Corona discharging ozone technology;

6. Variable timing control;

7. Stainless steel enclosure;

8. Remote control and Wi-Fi control;

9. External oxygen feeding is available (optional);

10. CE, ROHS Certification

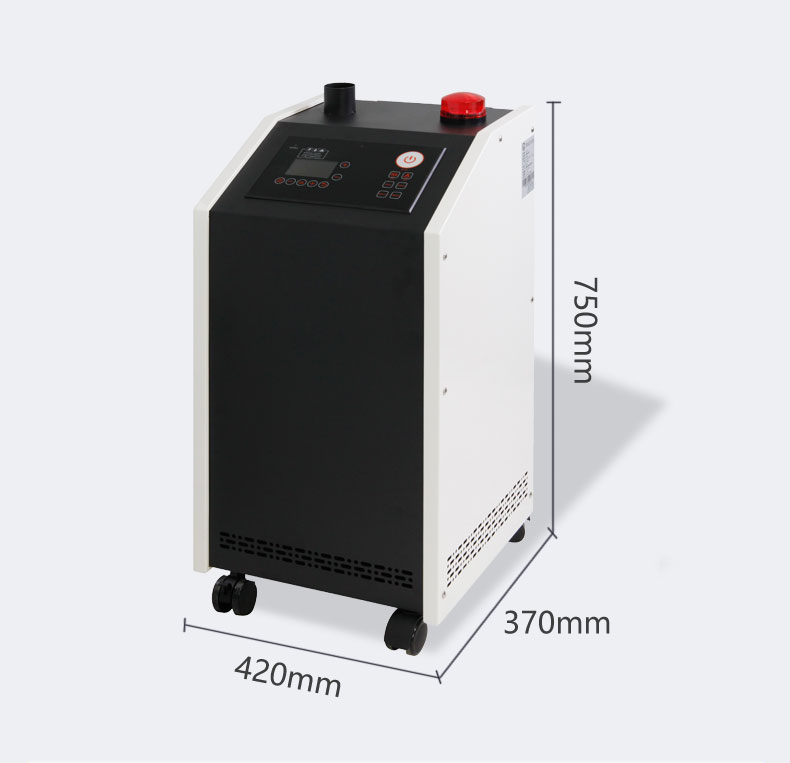

ozone machines for sale.jpg

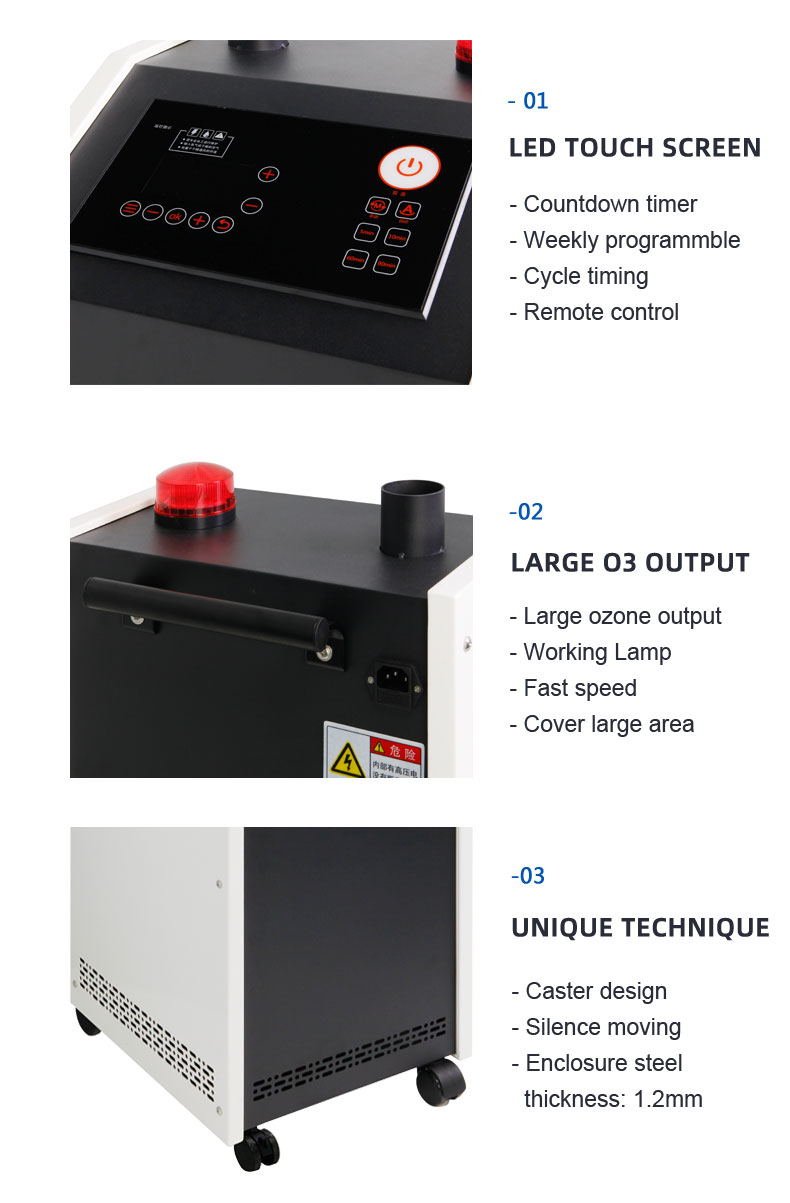

ozone generator for house.jpg

To learn more about ozone generators , please contact Flygoo Ozone Sales :

info@flygoo-ozone.com
