FG-H
FLYGOO
Beyond programmable settings, the smart IoT capabilities enable remote monitoring and data logging, allowing for predictive maintenance and seamless integration into modern facility management systems. This combination of robust construction, precise output control, and advanced connectivity delivers a low-maintenance, high-efficiency solution for achieving consistent disinfection and oxidation results.
OZONE GENERATOR FEATURES:
1. Multi-point malfunction detection. Over voltage, over current and over temperature protection
2. The equipment will be stopped operation and the corresponding fault indicator on the circuit board lights up when a fault is detected;
3. The equipment utilized large power IGBT modules, high efficiency, long lifespan quartz structure with air cooling parts;
4. Ozone amount continuous adjustable (20~100%);
5. Corona discharging ozone technology;
6. Variable timing control;
7. Stainless steel enclosure;
8. Remote control and Wi-Fi control;
9. External oxygen feeding is available (optional);
10. CE, ROHS Certification
PRODUCT PARAMETERS
Item | Unit | FG-H | ||
Ozone Output | g/hr | 2 | 3 | 5 |
Ref. Disinfection Area* | m2 | 20-30 | 30-40 | 40-90 |
Power | w | 55 | 65 | 85 |
Control | IOT WiFi /Remote Control/ Hand Manual | |||
Electric | VAC/Hz | 220~240/50~60; 110/60 | ||
Gas Feed | / | Dry Clean Air | ||
Ozone Concentration | mg/l | Air supply:5~15 | ||
Size(L*W*H) | mm | 250*180*480 | ||
Weight | kg | 5.0 | 5.4 | 6.0 |
Cooling Way | / | Air-cooled | ||
Inner Air Pump | Yes/No | Yes | ||
Ambient Humidity | % | <70 | ||
Ambient Temperature | ºC | <40 | ||
CORE TECHNIQUE

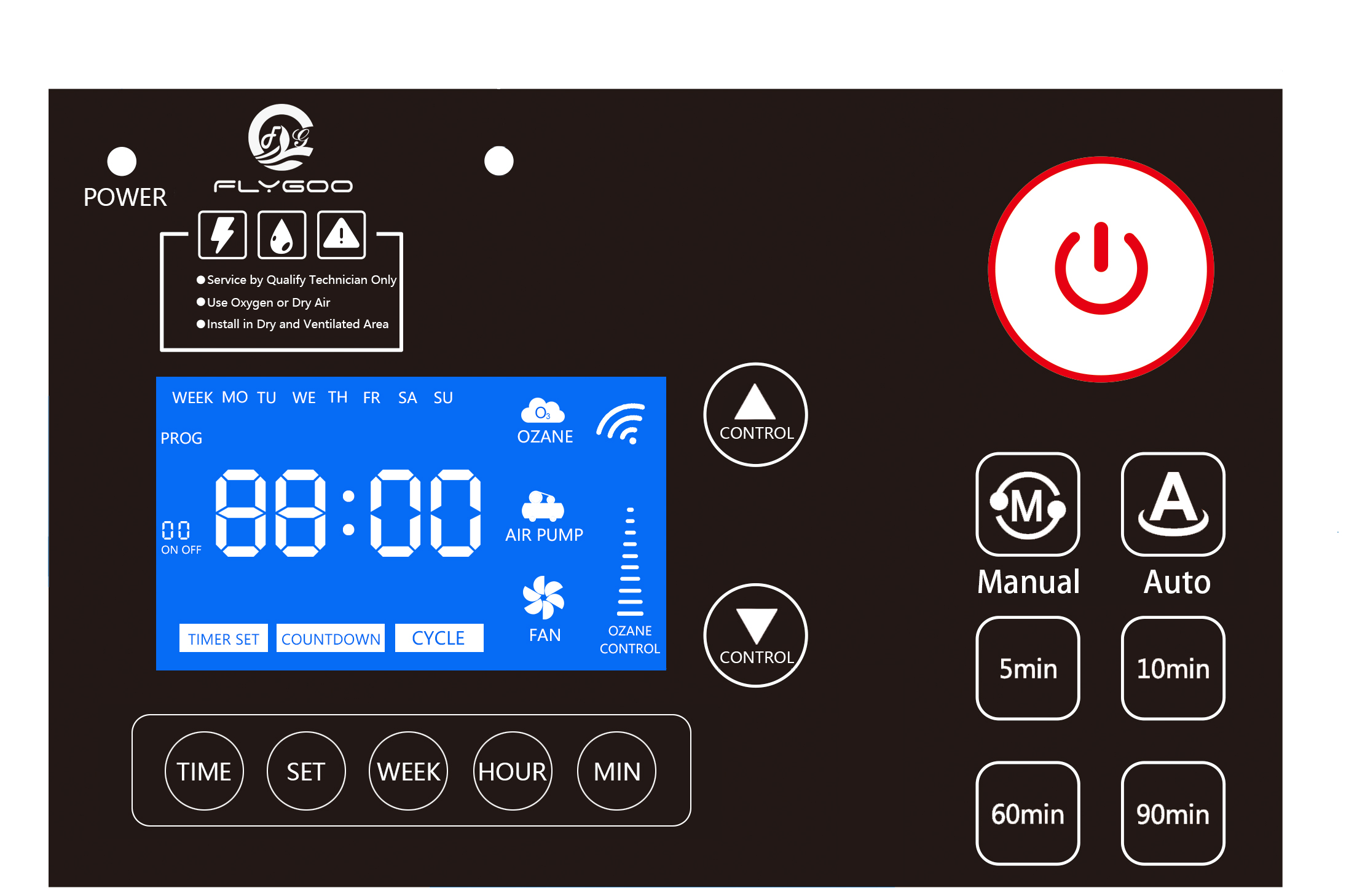

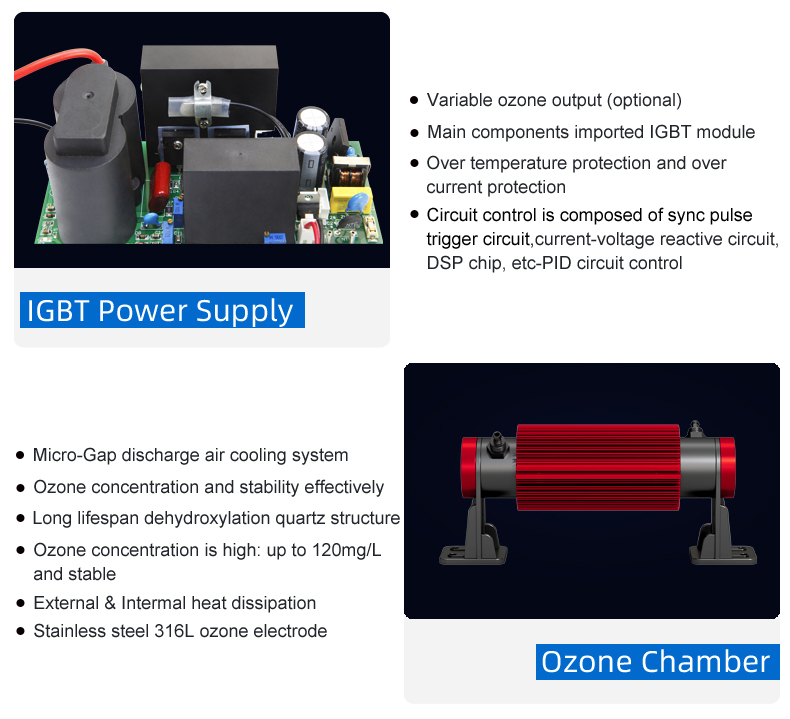

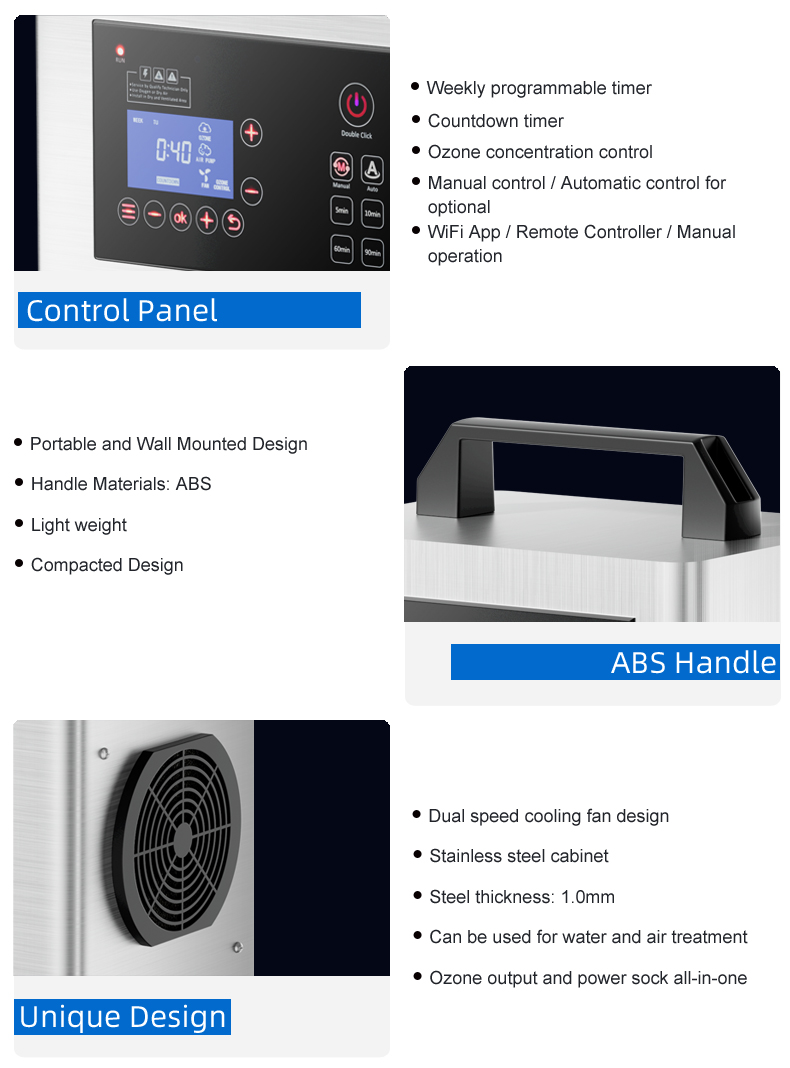

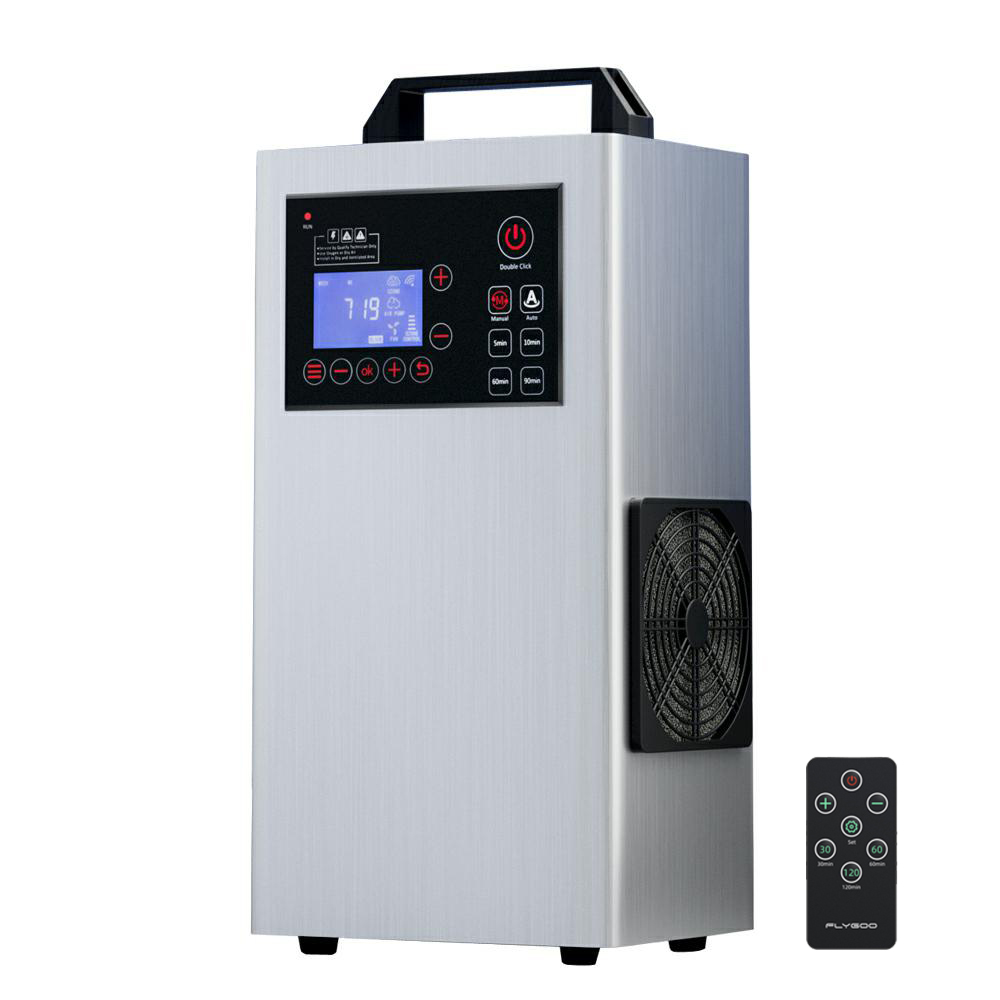

The ozone generator features a compact, portable, and wall-mounted design with an ABS handle and a durable 1.0mm stainless steel cabinet. It is powered by an advanced IGBT power supply with PID control, incorporating a micro-gap air cooling system and a long-life dehydroxylation quartz ozone chamber that delivers a stable, high concentration of up to 120mg/L. The unit offers flexible operation via WiFi App, remote control, or manual control with programmable timers, dual-speed cooling fans, and comprehensive protections for reliable performance.
APPLICATION
Ozone generators are widely used for both air and water treatment applications. They are highly effective for drinking water disinfection, aquaculture water purification, and food preservation. For air quality management, they excel in workshop sterilization, formaldehyde removal, and farm air purification, providing an environmentally friendly solution with no chemical consumables.
