FG-OF
FLYGOO

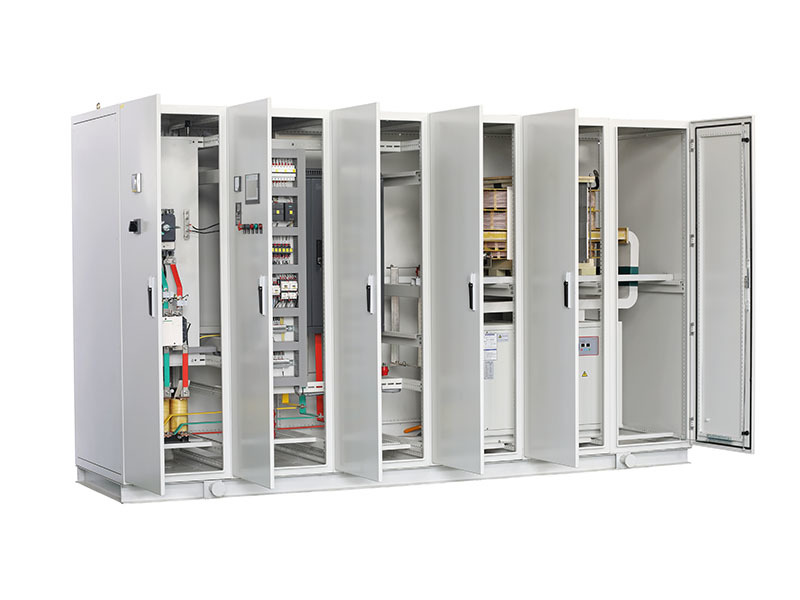

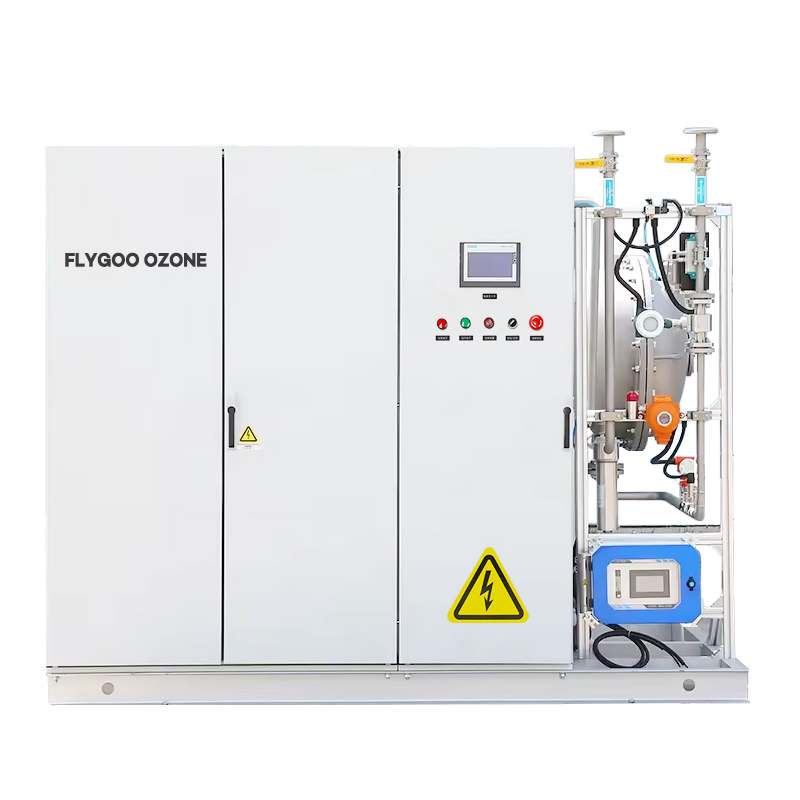

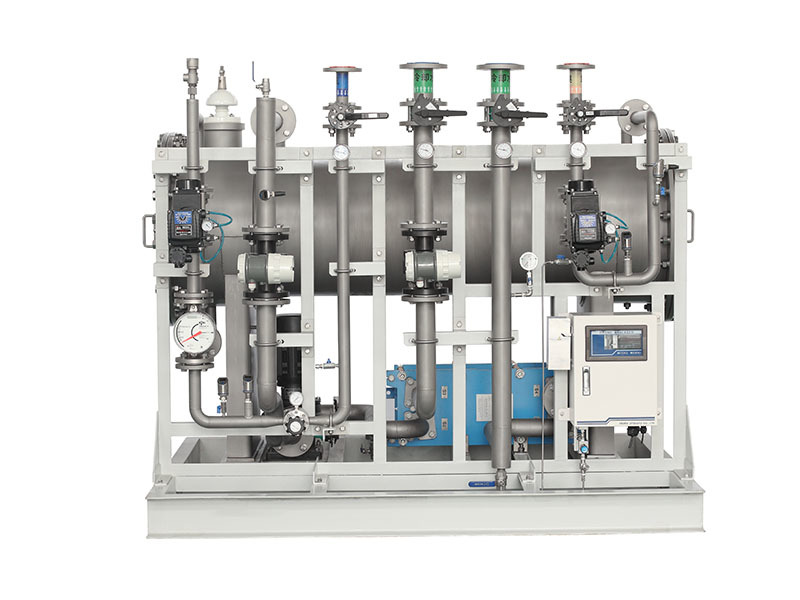

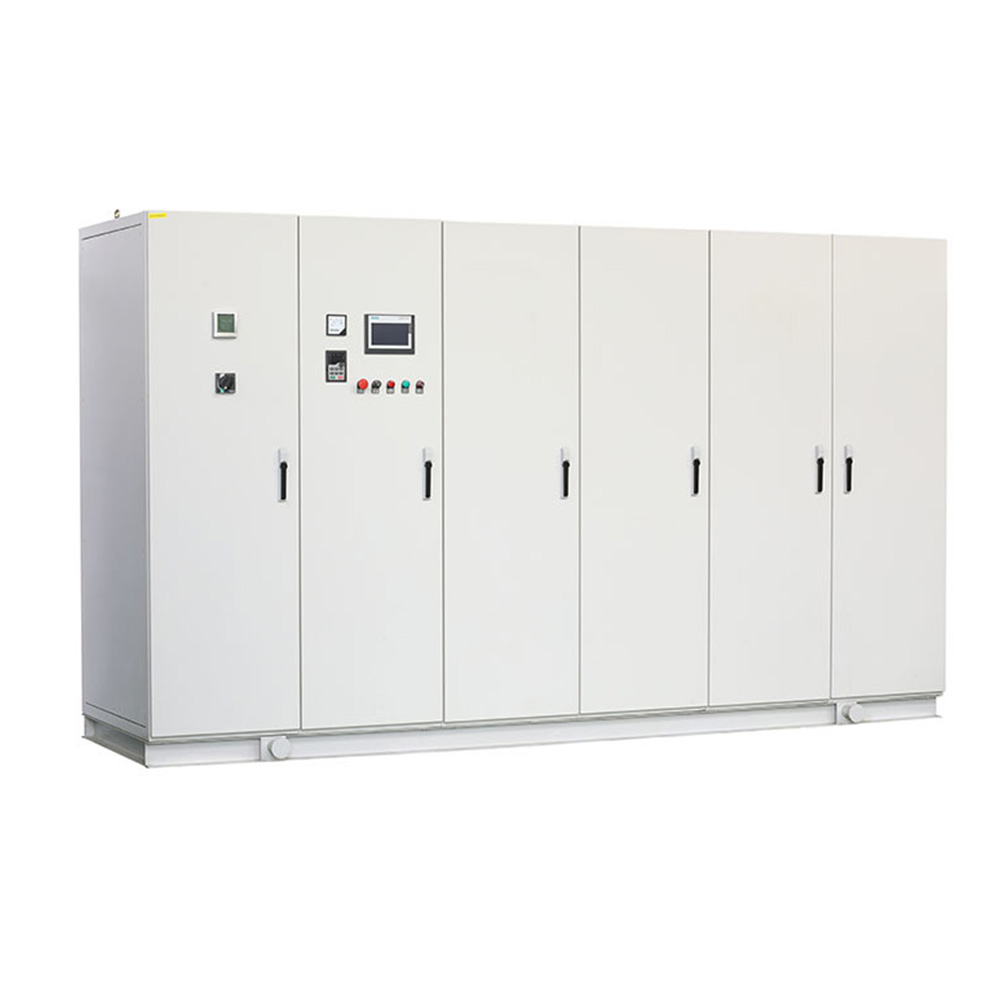

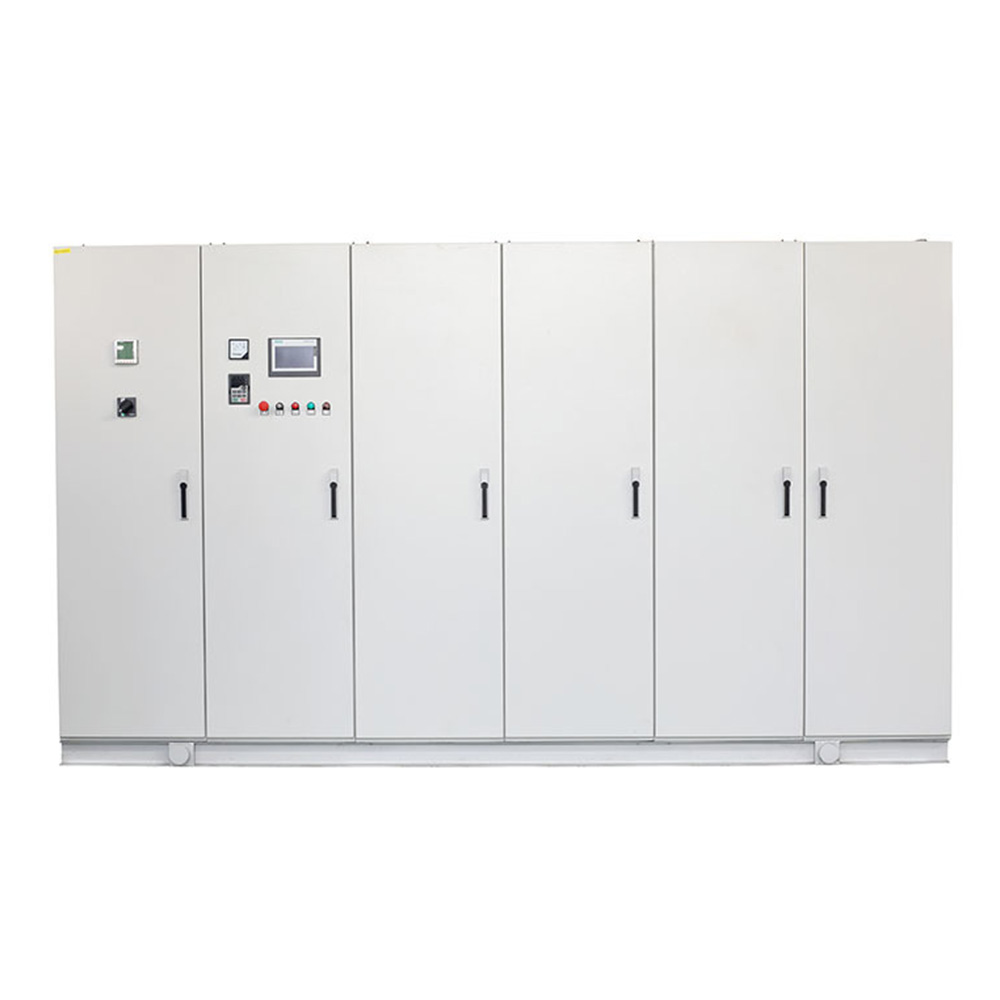

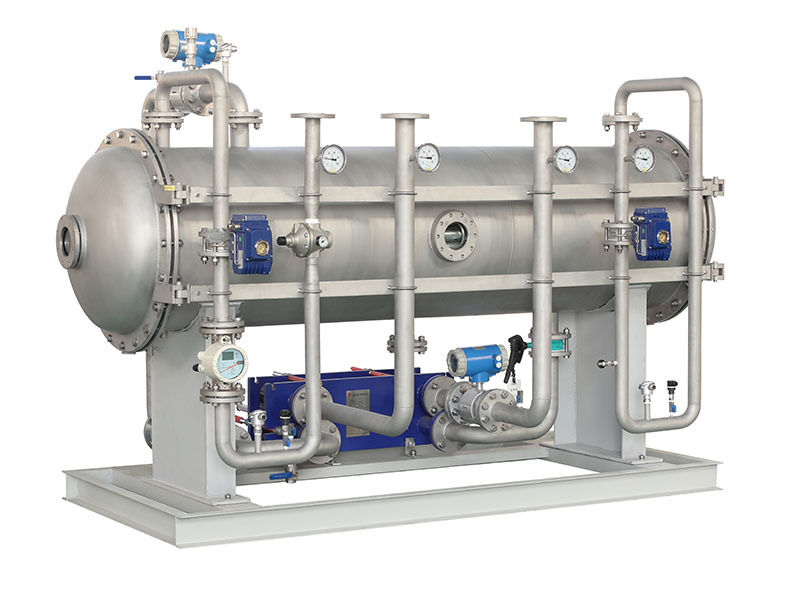

Flygoo large-scale ozone generator system is a high-quality product made by our company by applying the advanced ozone generating technology in the ozone industry at home and abroad and refining it with great care.The whole system is composed of gas source pre-treatment system, ozone generation system, ozone power supply system, central control system and ozone gas application system. At present, the ozone output of our single machine is 0.5-10kg/h, and the concentration of ozone export can reach 20-150mg/L. Compared with other large-scale ozone equipment in China, it has the features of compact structure, small surface area, stable ozone operation and low cost of use.
Oxygen Source Ozone Generator
Type | Feed gas flow | Ozone Concentration | Cooling water flow (m³/h) | Power consumption | Dimension |
FG-OF-1KG | 6.8-8.5 | 8-10 | 1.7-2 | 6-8 | 1260*800*1900 |
FG-OF-2KG | 13.5-17 | 8-10 | 3.4-4 | 6-8 | 2000*800*1900 |
FG-OF-3KG | 20.2-25.5 | 8-10 | 5.1-6 | 6-8 | 2400*1700*1920 |
FG-OF-4KG | 27.1-39 | 8-10 | 6.8-8 | 6-8 | 2400*1700*1920 |
FG-OF-5KG | 33.8-42.5 | 8-10 | 8.5-10 | 6-8 | 2400*1700*1920 |
FG-OF-6KG | 40.6-51.1 | 8-10 | 10.2-12 | 6-8 | 2500*950*2000 |
| 54.1-68.1 | 8-10 | 13.6-16 | 6-8 | 2600*1000*2000 |
Air Source Ozone Generator
Type | Feed gas flow | Ozone Concentration | Cooling water flow | Power consumption | Dimension |
FG-OF-1KG | 30.9*-38.7 | 2-2.5 | 3-4 | 14-16 | 2100*900*1700 |
FG-OF-2KG | 61.9*77.4 | 2-2.5 | 6-8 | 14-16 | 2700*1700*1920 |
FG-OF-3KG | 92.8-116.1 | 2-2.5 | 9-12 | 14-16 | 3050*950*1950 |
FG-OF-4KG | 123.7-154.8 | 2-2.5 | 12-16 | 14-16 | 3200*1100*1250 |
FG-OF-5KG | 154.7-193.5 | 2-2.5 | 15-20 | 14-16 | 3300*1150*2100 |
FG-OF-6KG | 185.6-232.2 | 2-2.5 | 18-24 | 14-16 | 3300*1200*2150 |
| 247.5-309.6 | 2-2.5 | 24-32 | 14-16 | 3400*1380*2250 |
Professional FAQs for Large Industrial Ozone Generators (5kg-10kg/h)
For more questions, please consult Flygoo Ozone Company
1. Q: What is included in a complete large ozone system? Do you offer a full package solution?
A: A complete industrial ozone system consists of more than just the generator. Our full-package solution includes: the ozone generator unit (with high-grade 316L stainless steel dielectric tubes), oxygen source system (PSA oxygen generator or liquid oxygen vaporizer), water cooling unit with flow and temperature control, ozone injection & contact system (venturi injectors or diffusers), off-gas ozone destructor (thermal or catalytic), and a PLC-based control panel with HMI touchscreen and remote monitoring capabilities . This integrated approach ensures seamless compatibility and single-source accountability.
2. Q: What is the expected energy consumption and operating cost for a 5-10kg/h system?
A: Our systems are engineered for energy efficiency. With oxygen feed gas, specific power consumption is typically 7-8 kWh per kilogram of ozone produced . For a 5kg/h system running 24/7, this translates to approximately 840-960 kWh/day. Compared to air-fed systems (14-16 kWh/kg), our oxygen-fed configuration can reduce your annual electricity cost by up to 50% , quickly offsetting the initial investment .
3. Q: Can the system run continuously 24/7, and do you offer redundant configurations for critical applications?
A: Yes, our systems are purpose-built for continuous, uninterrupted operation. For applications that cannot tolerate downtime—such as municipal water treatment or critical industrial processes—we recommend a redundant configuration (N+1 or 2×50%) . This can be achieved through parallel generator modules or a complete standby unit, ensuring production continuity during routine maintenance or unexpected service events .
4. Q: What is your service response time, and do you provide global technical support for large systems?
A: We provide 24/7 technical support with a 2-hour response time and can arrange on-site service within 24-48 hours for urgent issues . We maintain a global spare parts inventory for critical components such as dielectric tubes, power supplies, and sensors. Our service package includes installation supervision, operator training, and remote diagnostics via PLC connectivity—all backed by a comprehensive warranty (typically 12-24 months on major components) .
5. Q: What safety and compliance certifications do your large ozone systems carry?
A: Our systems comply with CE, RoHS, and ISO 9001 standards. They feature multiple safety protections, including: automatic shutdown on high temperature or pressure, ozone leak detection sensors, emergency ventilation interlocks, and ground fault protection . All materials in contact with ozone are ozone-resistant (316L stainless steel, PTFE, or ceramic), and we provide full documentation to support local regulatory compliance in your country
