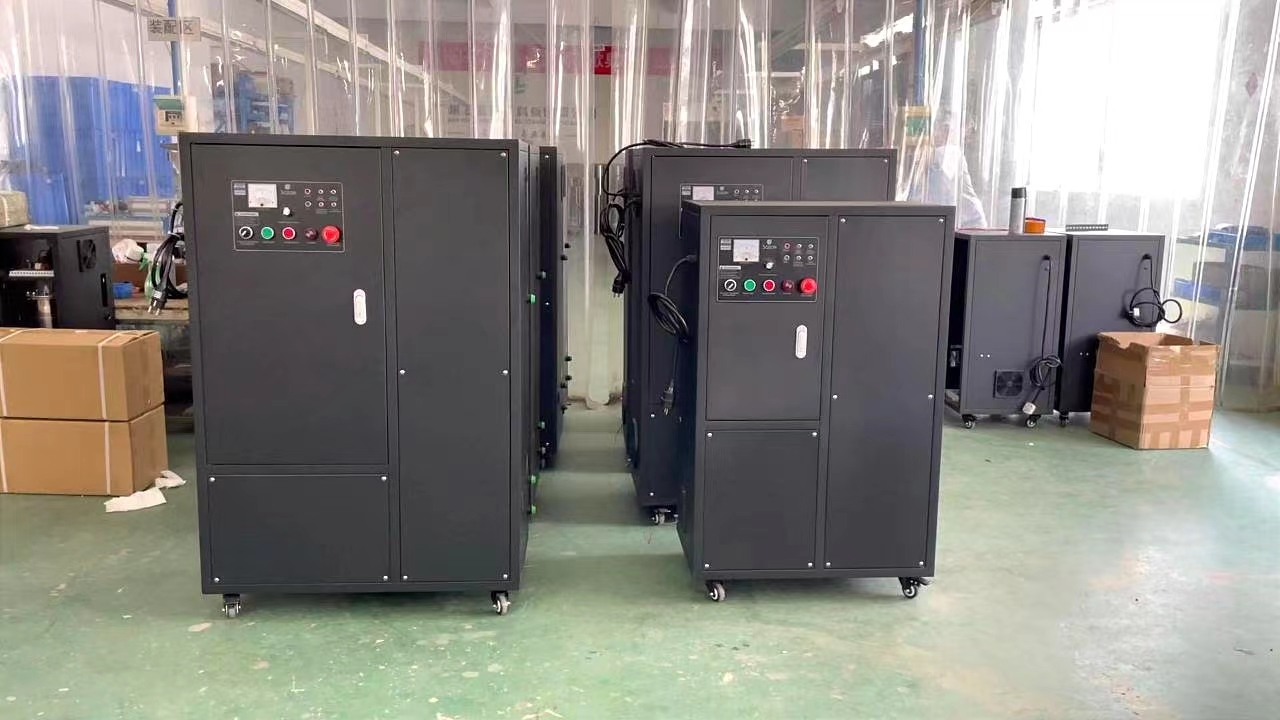

40gHr Drinking Water Waste Water Treatment Ozone Generator for Aquaculture

The FG-OF series of unit utilize oxygen from the internal oxygen generator as gas source, and high concentration ozone is generated by the CD ozone generation technology. The equipment has integrated oil-free air compressor, filtering system, PSA oxygen generator, condenser, multi-point malfunction monitoring system, etc.

Availability:

Quantity:



Inquire Add to Basket

Model:
FG-OF
Brand:
FLYGOO

Product Description

The Flygoo ozone machine is an ideal solution for waste water treatment in municipal and industrial facilities that require high-quality water purification. This system purifies water without using harmful chemicals and is environmentally friendly. It is also highly effective in eliminating bacteria, viruses, and other microorganisms that cause water-borne diseases.

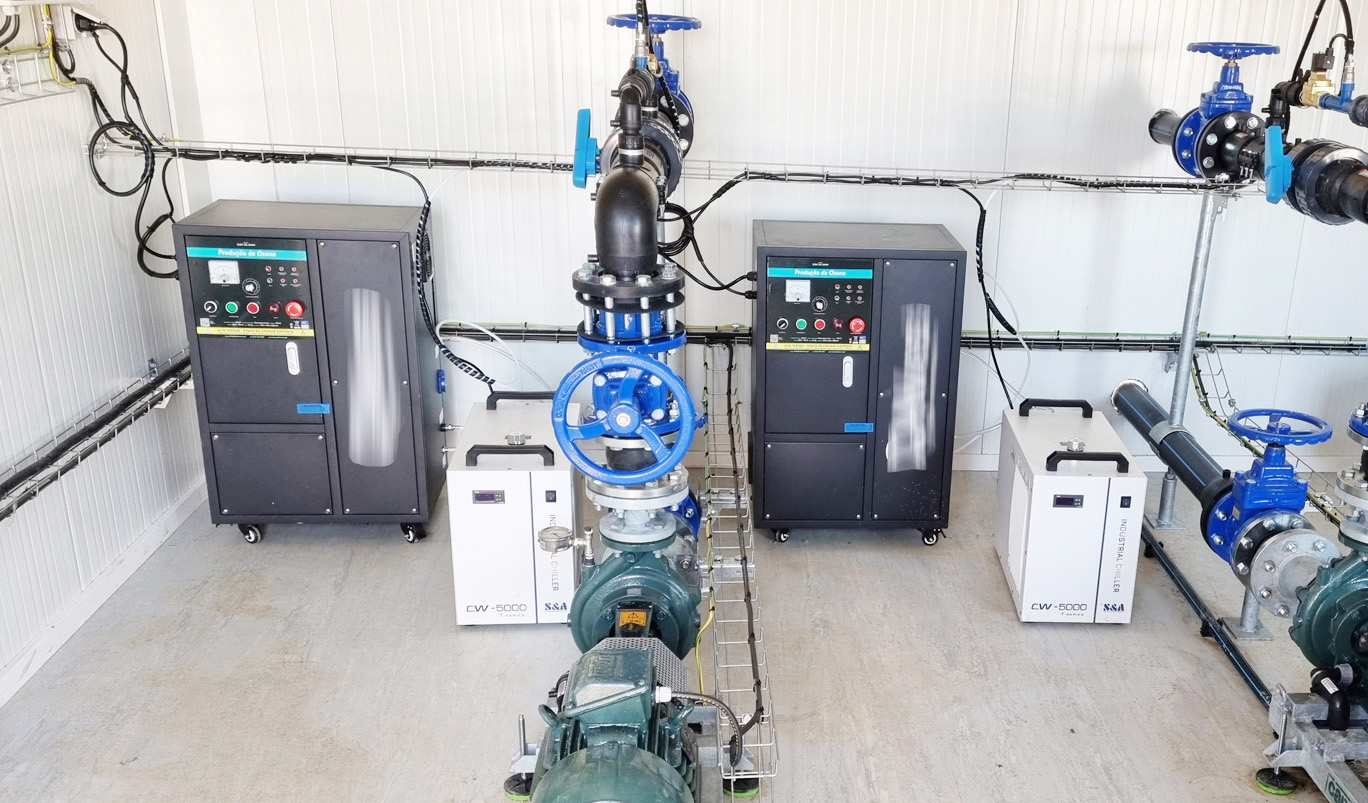

ozonizer machine

Item	Unit	FG-OF
Ozone Output	g/hr	20	30	40
Power	w	750	850	950
Electric	VAC/Hz	220~240/50~60
Ozone Concentration	mg/l	Oxygen supply:80~120
Oxygen Concentration	%	90-94.4
Oxygen Flow Rate	L/Min	5	8	8
Size(LWH)	mm	560420880
Weight	kg	56	57	58
Water Cooling (22ºC)	m3/h	0.2~0.3
Inner Air Compressor	Yes/No	Yes
Ambient Humidity	%	<70
Ambient Temperature	ºC	<40
Warranty	Year	1

Ozone Generator Features:

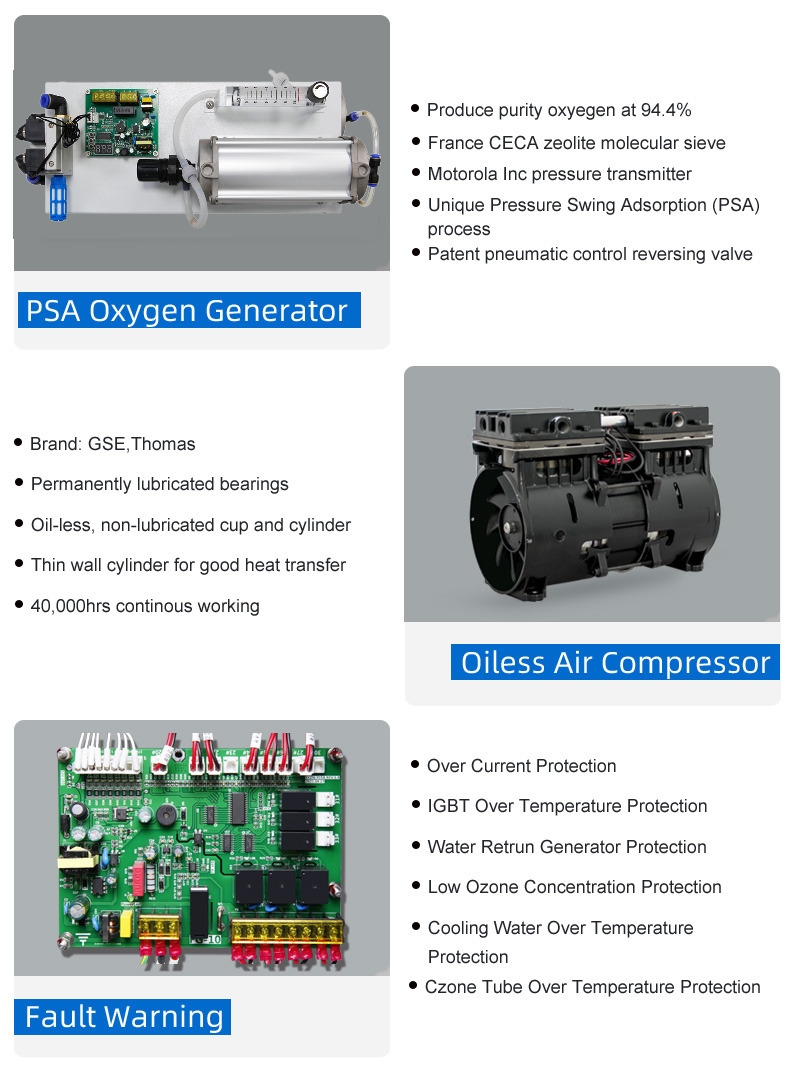

1. The equipment utilize a molecular sieve as an adsorbent from the top quality joint venture,and .PSA oxygen generating equipment provide you with the purity of 90%~95% oxygen to meet all requirements; Installation and operation costs far less than cylinder or liquefied oxygen.

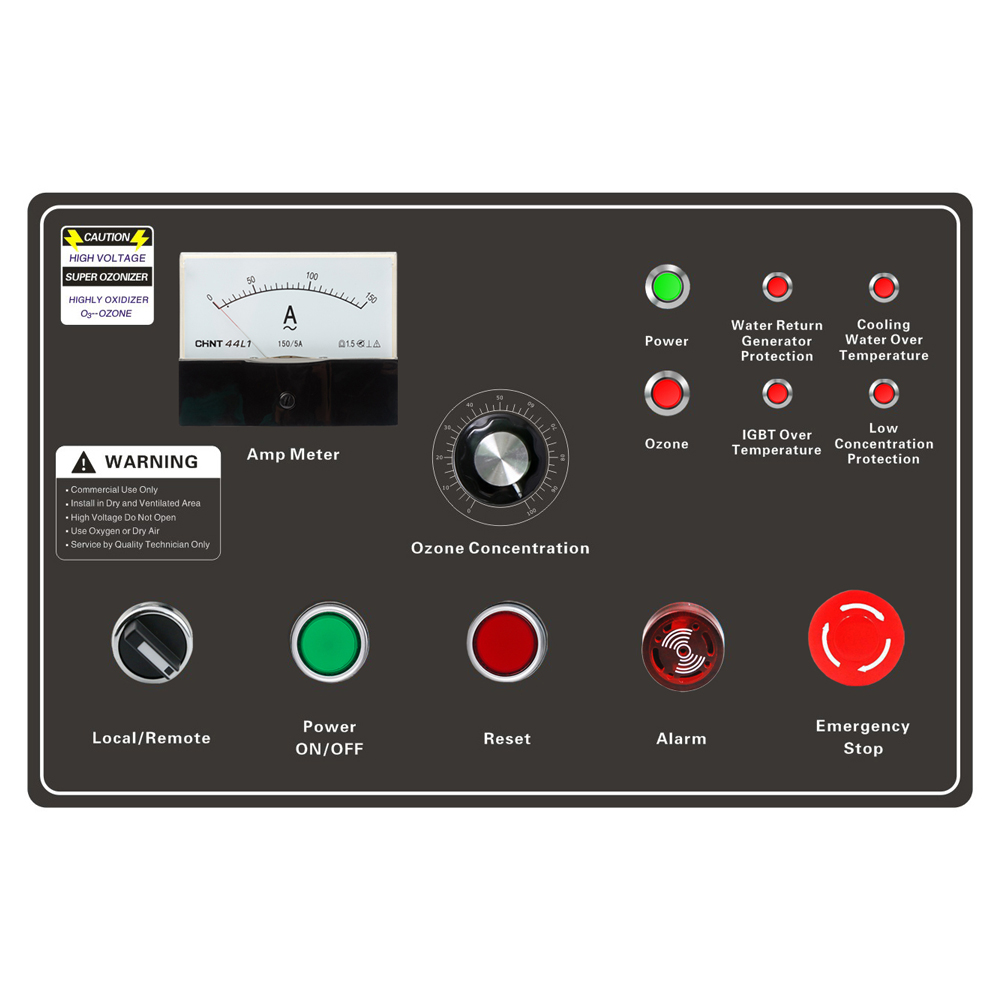

2. Multi-point malfunction monitoring, main board temperature detection, high voltage transformer temperature detection,over current protection detection,etc. The equipment stop operation and the corresponding fault indicator on the control panel lights up when a fault is detected.

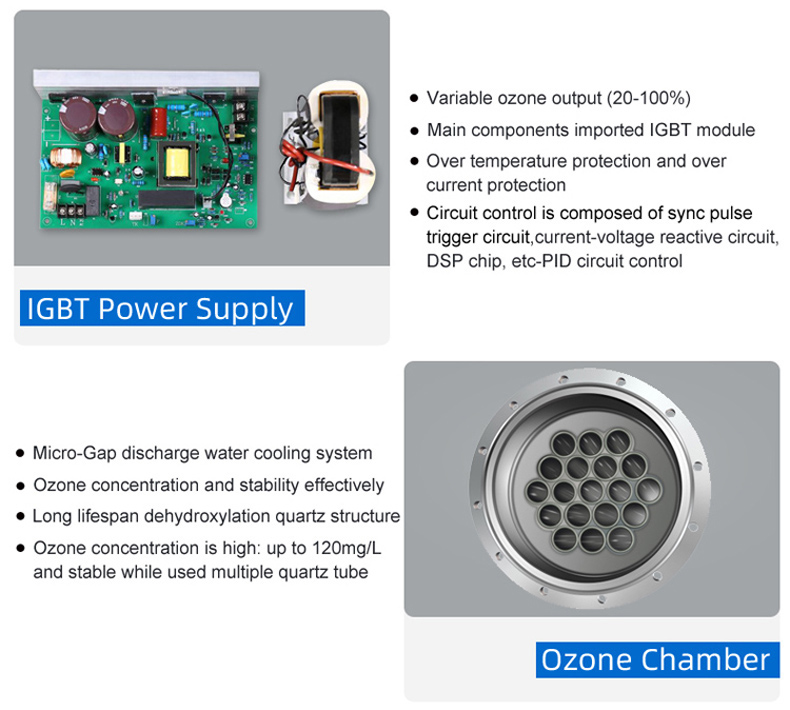

3. The equipment utilized large power IGBT modules,extremely stable,high efficiency,long lifespan dehydroxylation quartz structure,air cooling parts ,world-class essential components and world-leading intelligent design.

4. Adjustable oxygen flow rate, which will change ozone output & concentration for meeting with different lines requirements.

5. With ultra-filter and condenser for removing water in the air which can protect the oxygen &ozone unit for long service life in good working condition

6. Ozone output adjustable, with low noise level

7. Stainless steel / Painted steel case and SUS304 ozone outlet

8. CE Approved

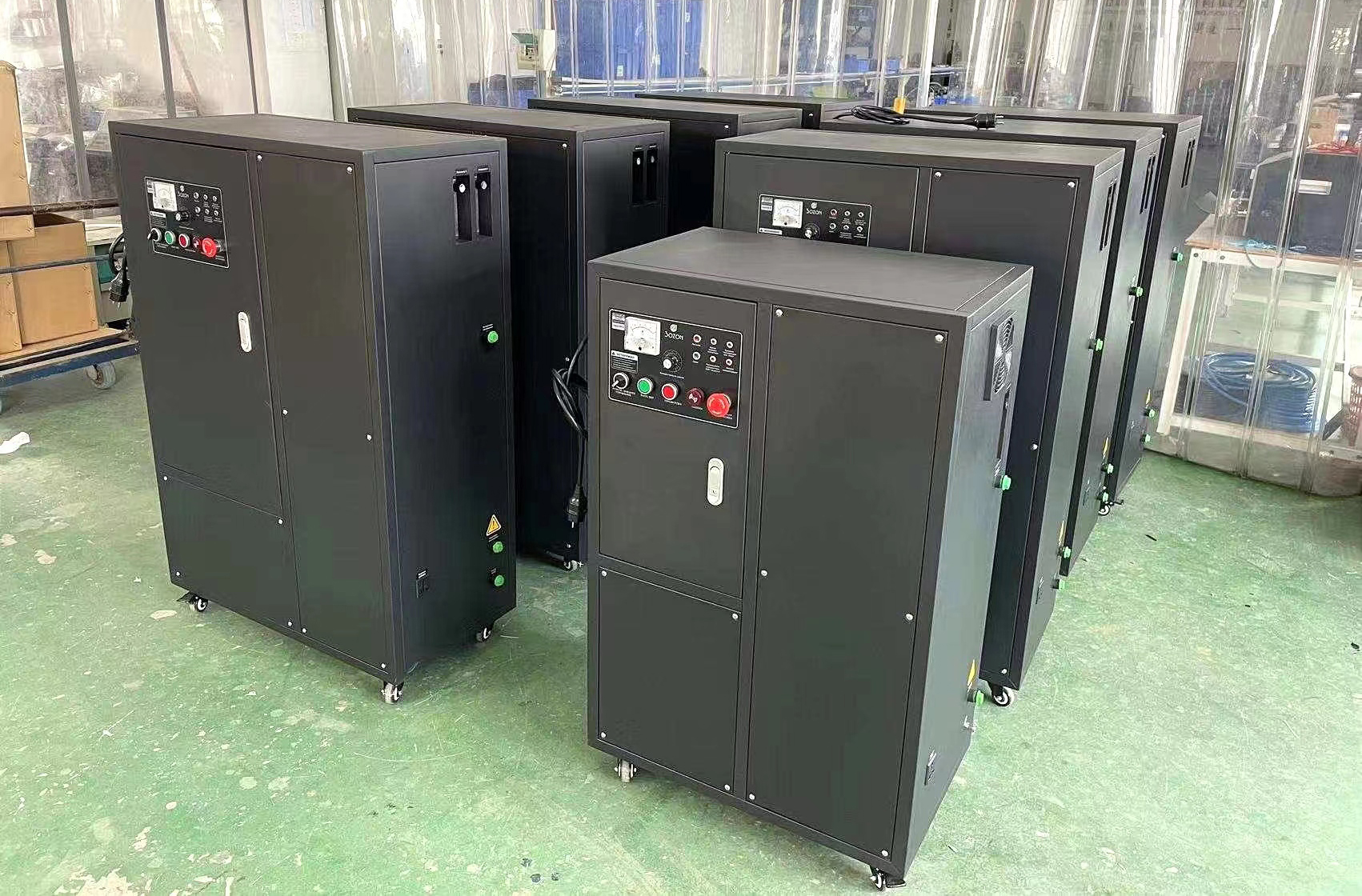

ozone water purifier

1.What is an ozone generator for water treatment?

An ozone generator is a device that produces ozone (O₃), a powerful oxidizing agent, to disinfect and purify water by eliminating bacteria, viruses, algae, and organic contaminants.

2.How does ozone water treatment work?

Ozone is generated by passing oxygen (O₂) through a high-voltage electrical discharge (corona discharge) or ultraviolet light. The ozone is then dissolved into water, where it oxidizes and destroys microorganisms and organic pollutants.

3.What are the benefits of using ozone for water treatment?

Strong disinfection: More effective than chlorine against pathogens.

No harmful byproducts: Unlike chlorine, ozone does not produce trihalomethanes (THMs).

Removes odors & tastes: Eliminates unpleasant smells and flavors.

Oxidizes metals: Removes iron, manganese, and sulfur.

Environmentally friendly: Decomposes into oxygen, leaving no residue.
