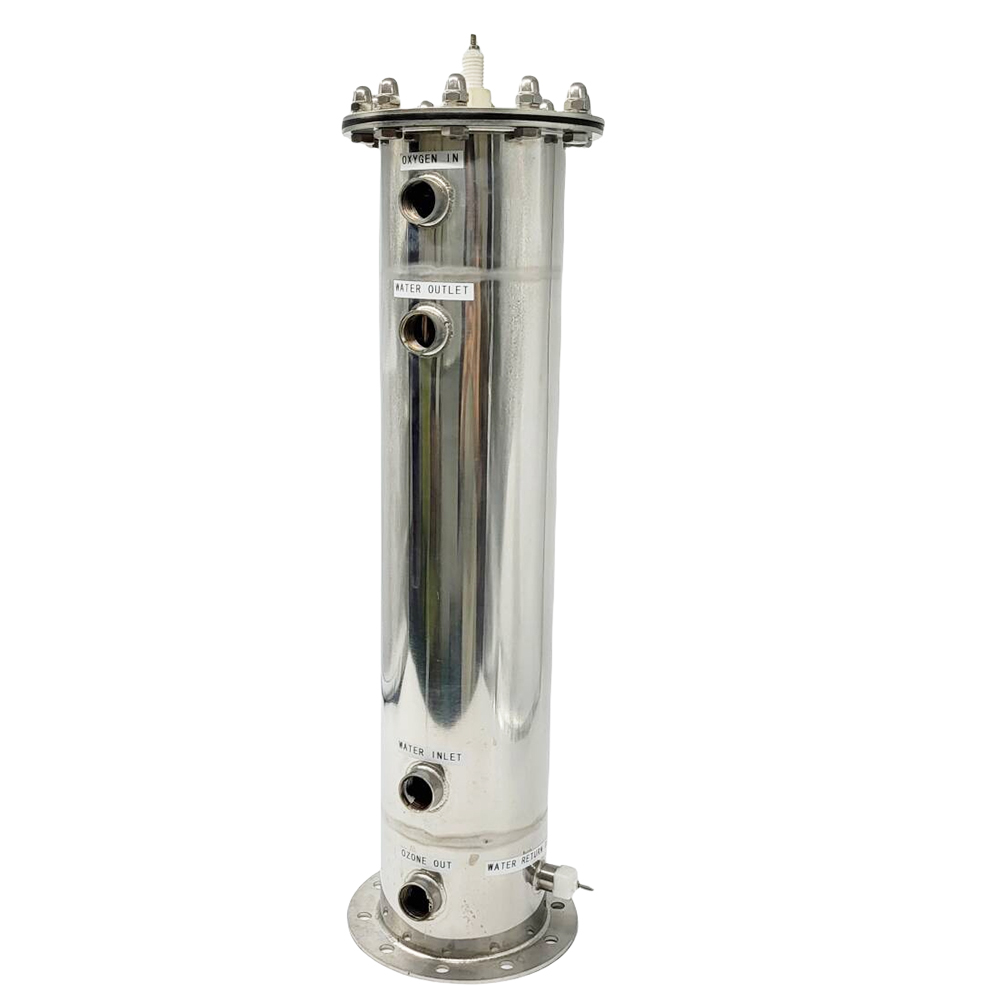

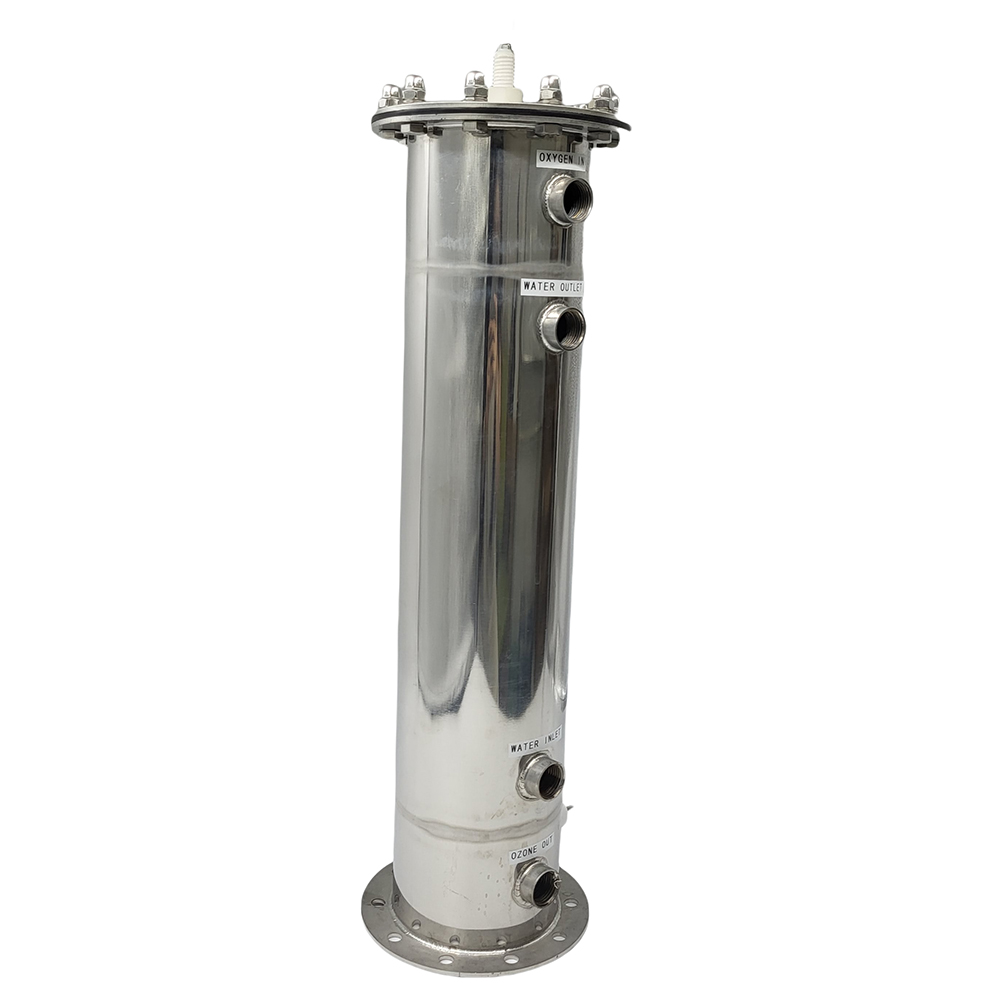

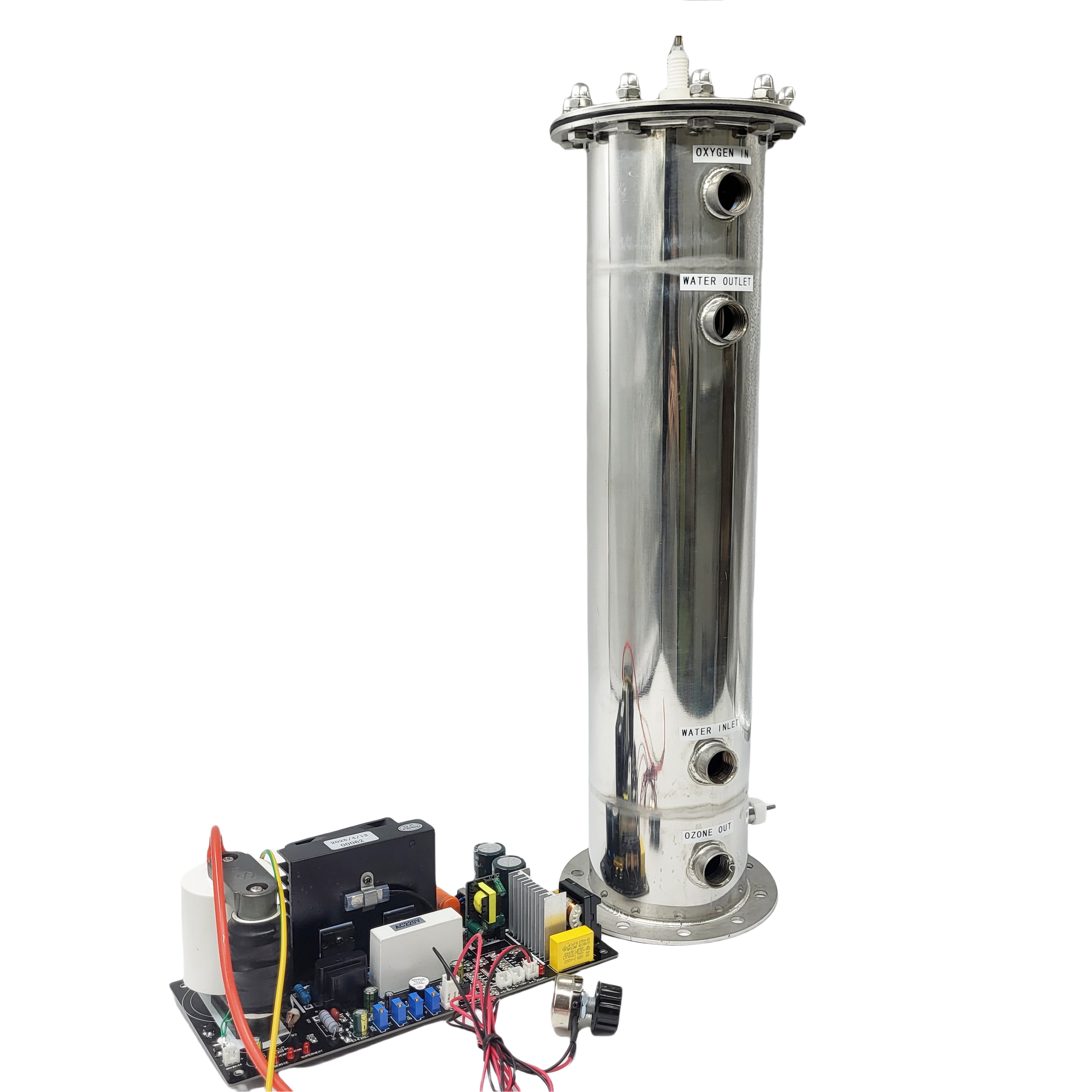

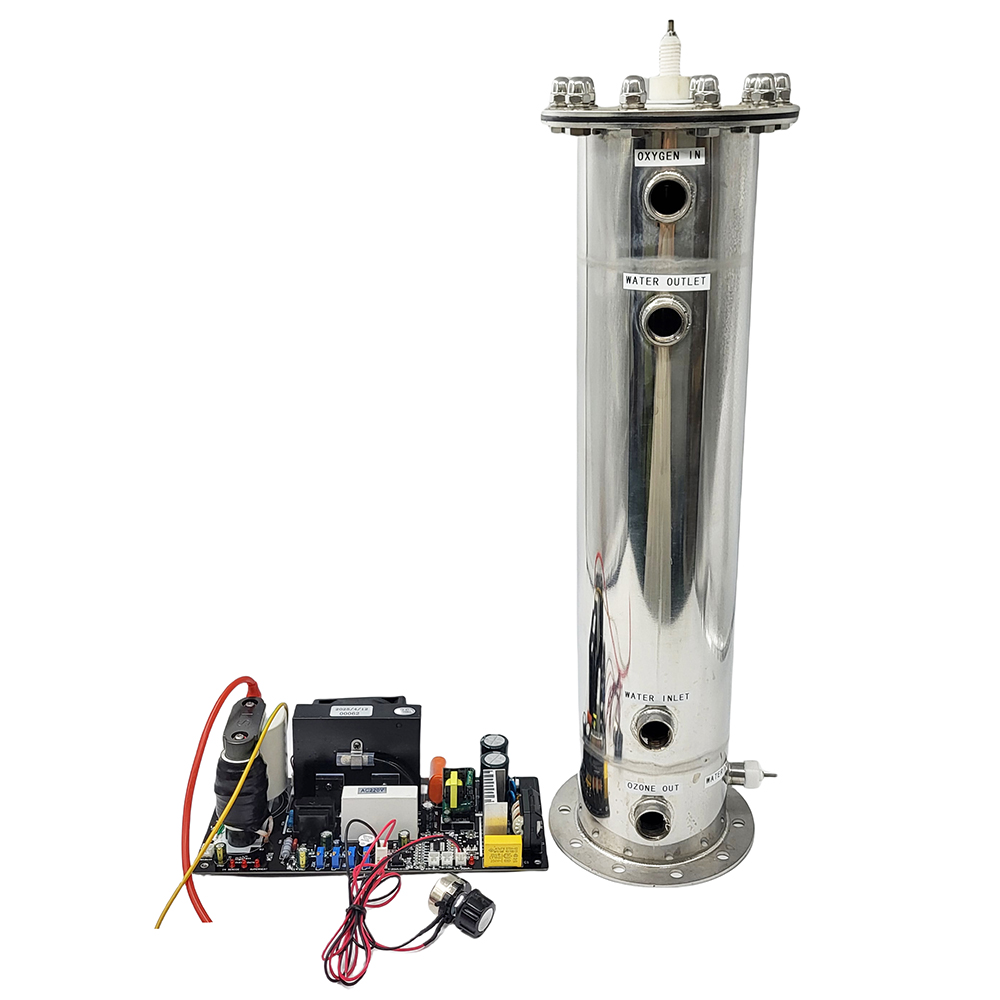

20g 30g Water Cooled Quartz Glass Ozone Tube Ozone Generator Parts

Flygoo ozone module use the latest corona discharge technology. With a high performance, we use accurate quartz tube and 316L stainless steel electrode for the generator part, we sure a stable unit will help you win more business.
Availability:
Quantity:
Inquire Add to Basket

  • FG-SP

  • FLYGOO

Product Description

Imported material of high quality glasses, Stainless Steel 316L of internal electrode, water returned detection, teflon seal rings which are best anti-oxidation material for ensuring several years running. The IGBT ozone power supply, which is optimized the PWM pulse width adjustment, the overall design of control technology and electromagnetic compatibility, and has excellent discharge efficiency. Also the FG ozone PCB has over temperature protection, over current protection, and various ozone control.

Item

FG-C-1 Ozone Tube and Power Supply

Ozone Output

20g/h

30g/h

50g/h

60g/h

Ozone Concentration

80-120mg/l

80-120mg/l

80-120mg/l

80-120mg/l

Oxygen Flow Rate

5lpm

8lpm

10lpm

12lpm

Voltage

220V/50,60Hz, 1 phase

Power

190W

292W

480W

505W

Output Pressure

<0.1Mpa

<0.1Mpa

<0.1Mpa

<0.1Mpa

Frequency

5-10

5-10

5-10

5-10

Water Cooling Flow

0.2-0.3m3/hr

0.2-0.3m3/hr

0.3-0.4m3/hr

0.3-0.4m3/hr

Ozone Chamber Size

150*150*550mm

150*150*550mm

150*150*730mm

150*150*730mm

Power Supply Size

200*88*75mm

200*88*75mm

148*157*90mm

148*157*90mm

Ozone Chamber Weight

6.8kg

6.9kg

8.7kg

8.8kg

Power Supply Weight

1.0kg

1.0kg

1.4kg

1.4kg

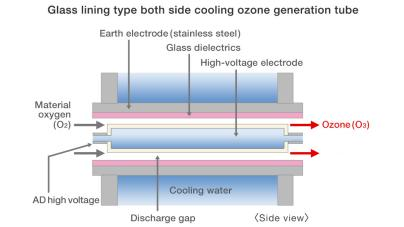

High-efficiency Ozone Generation Tube

To perform ozone generation by silent discharge efficiently, the dimensional accuracy of a discharge section on an electrode and efficient cooling of the ozone generation tube are important. The ozone generation tube developed by Flygoo Ozone. has realized an excellent dimensional accuracy and offers high cooling efficiency. Thanks to this structure, high-efficiency ozone generation is possible.

IGBT Ozone Power Supply

■ Main components imported IGBT module

■ Multi-point mal-function monitoring frequency autotracking, ensure ozone regulated output

■ Ozone output and concentration is adjustable via

frequency-converter control system

■ Circuit control is composed of sync pulse trigger circuit, current-voltage reactive circuit,DSP chip, etc -PID circuit

Control

quartz ozone tube.png

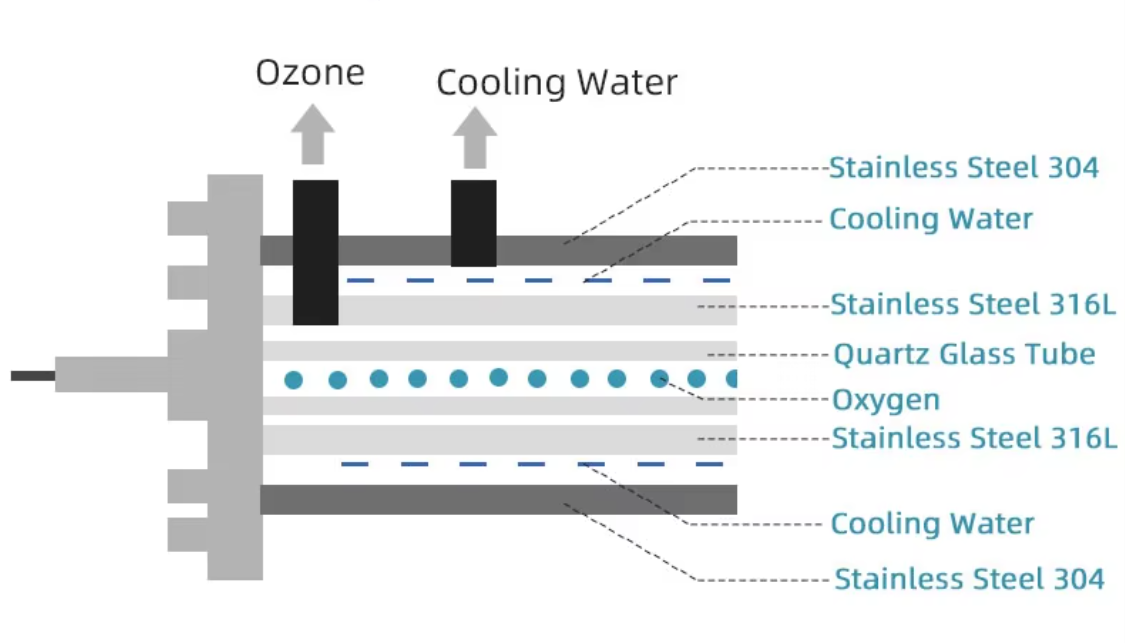

WORKING PRINCIPLE

Work Environment: Ambient Temperature: 20°C, Oxygen Purity>94%,Dew Point>-45°C


To learn more about ozone generators , please contact Flygoo Ozone Sales :

info@flygoo-ozone.com
