FG-OF
FLYGOO

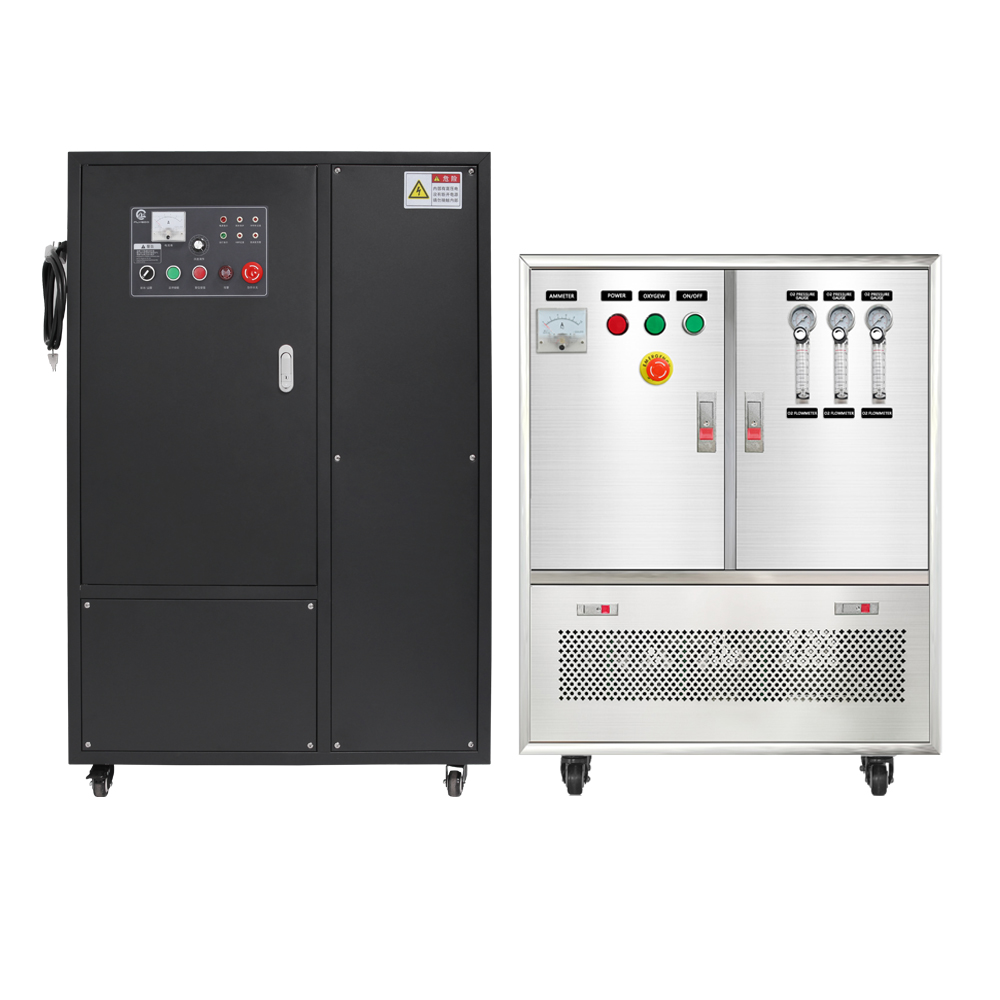

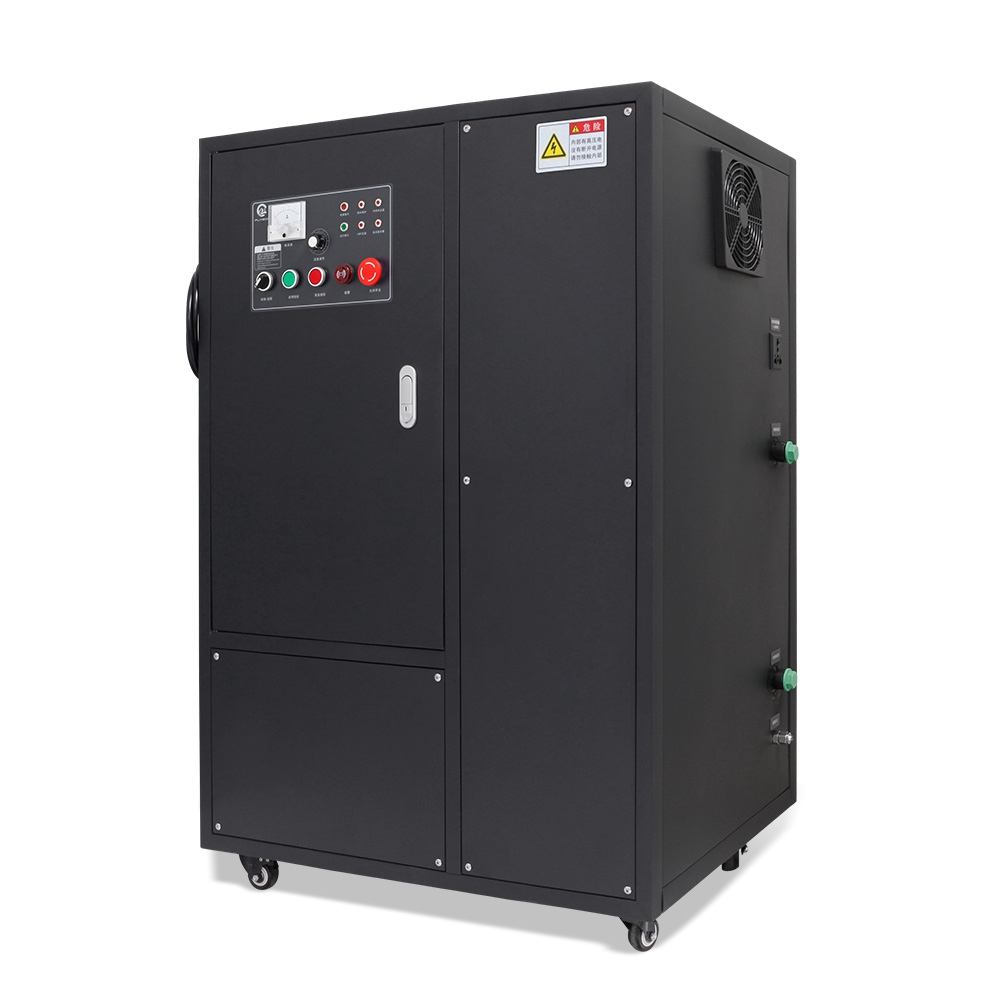

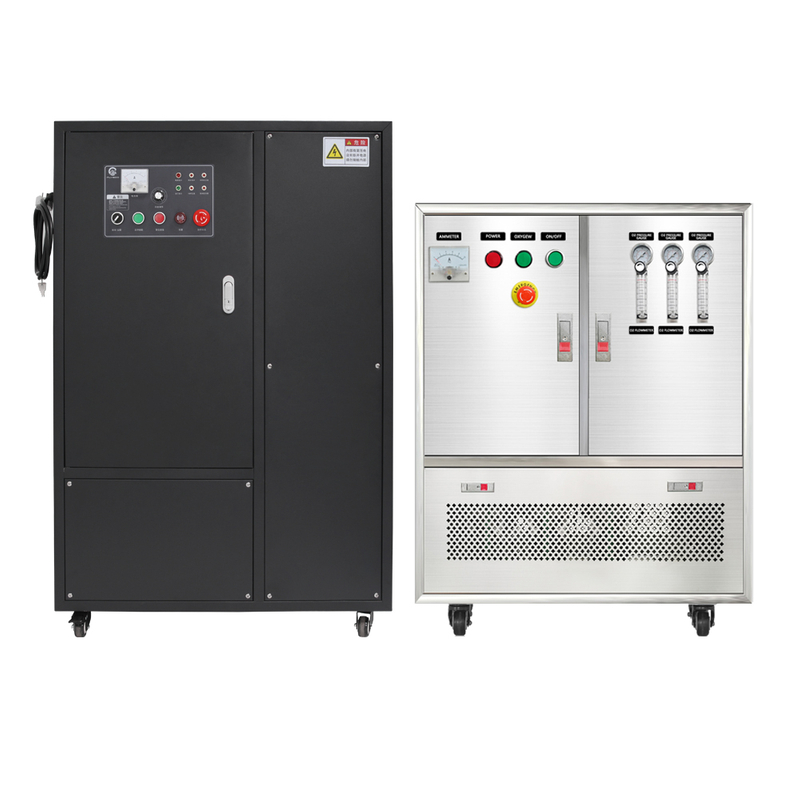

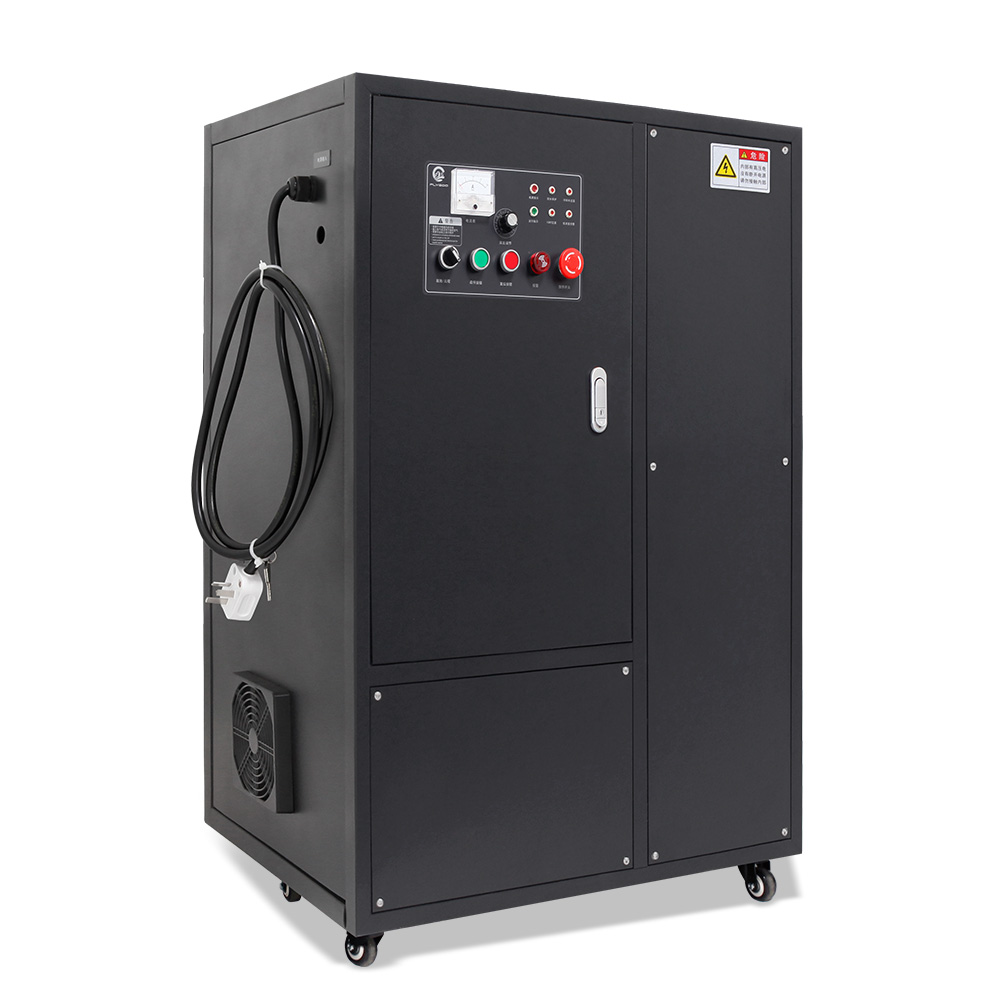

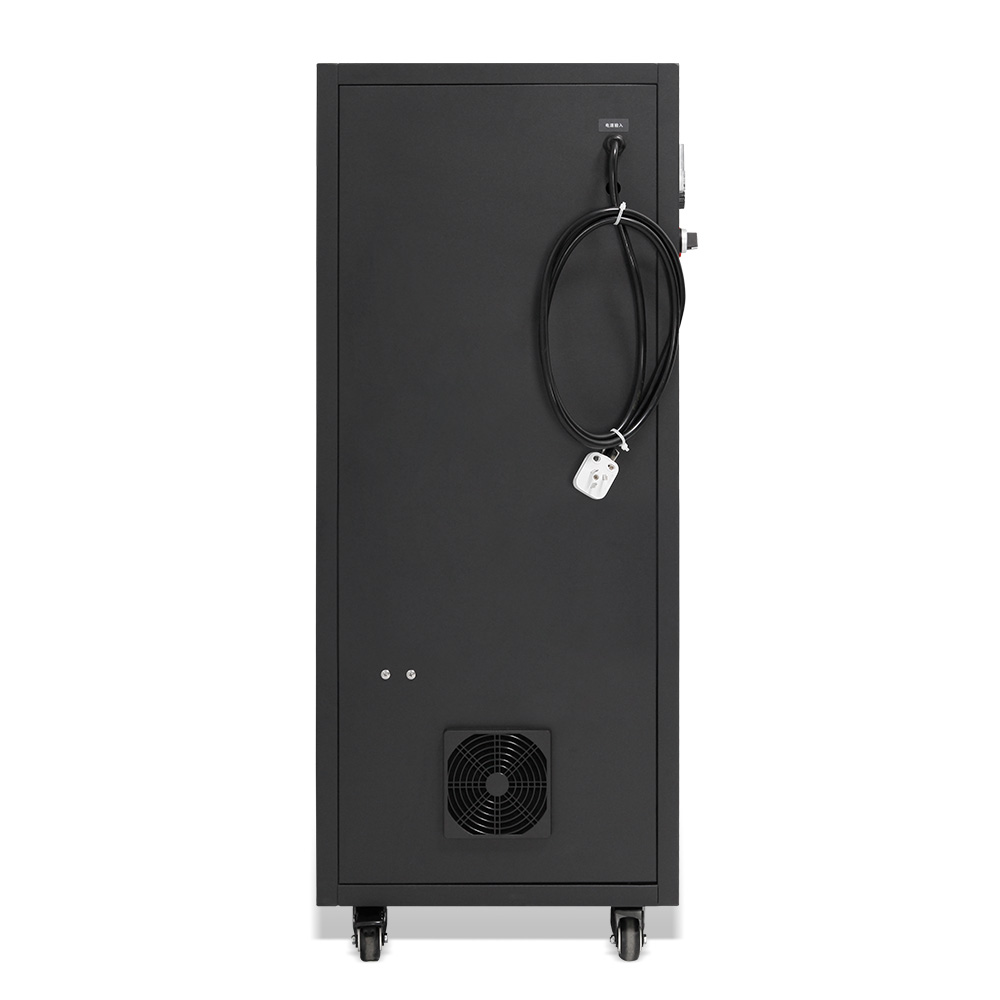

The Flygoo ozone machine is an ideal solution for waste water treatment in municipal and industrial facilities that require high-quality water purification. This system purifies water without using harmful chemicals and is environmentally friendly. It is also highly effective in eliminating bacteria, viruses, and other microorganisms that cause water-borne diseases.Engineered for demanding industrial environments, this system supports continuous 24/7 operation, making it ideal for large-scale water treatment, factory air purification, and process oxidation.
Item | Unit | FG-OF | |||
Ozone Output | g/hr | 150 | 200 | 250 | 300 |
Power | w | 3400 | 4500 | 5600 | 6700 |
Electric | VAC/Hz | 220~240/50~60 | |||
Ozone Concentration | mg/l | Oxygen supply:80~120 | |||
Oxygen Concentration | % | 90-94.4 | |||
Oxygen Flow Rate | L/Min | 30 | 40 | 50 | 60 |
Output Pressure | Mpa | 0.04-0.1 | |||
Size(L*W*H) | mm | 800*400*1230; 950*430*1290 | 800*500*1230; 950*810*1290 | ||
Weight | kg | 199 | 217 | 263 | 281 |
Water Cooling (22ºC) | m3/h | 0.5~0.8 | 0.6-0.8 | ||
Inner Air Compressor | Yes/No | Yes | |||
Ambient Humidity | % | <70 | |||
Ambient Temperature | ºC | <40 | |||
Warranty | Month | 12 | |||
Ozone Generator Features:
1. The equipment utilize a molecular sieve as an adsorbent from the top quality joint venture,and pressure swing adsorption(PSA) process to separate oxygen and nitrogen and filters harmful substance from the air. The high-level oxygen is created which meets the standard of medical oxygen.PSA oxygen generating equipment provide you with the purity of 90%~95% oxygen to meet all requirements; Installation and operation costs far less than cylinder or liquefied oxygen.
2. Multi-point malfunction monitoring, main board temperature detection, high voltage transformer temperature detection,over current protection detection,etc. The equipment stop operation and the corresponding fault indicator on the control panel lights up when a fault is detected.
3. The equipment utilized large power IGBT modules,extremely stable,high efficiency,long lifespan dehydroxylation quartz structure,air cooling parts ,world-class essential components and world-leading intelligent design.
4. Adjustable oxygen flow rate, which will change ozone output & concentration for meeting with different lines requirements.
5. With ultra-filter and condenser for removing water in the air which can protect the oxygen &ozone unit for long service life in good working condition
6. Ozone output adjustable, with low noise level
7. The whole gas circuits work in a low pressure which makes the machine safe and reliable
8. Stainless steel / Painted steel case and SUS304 ozone outlet

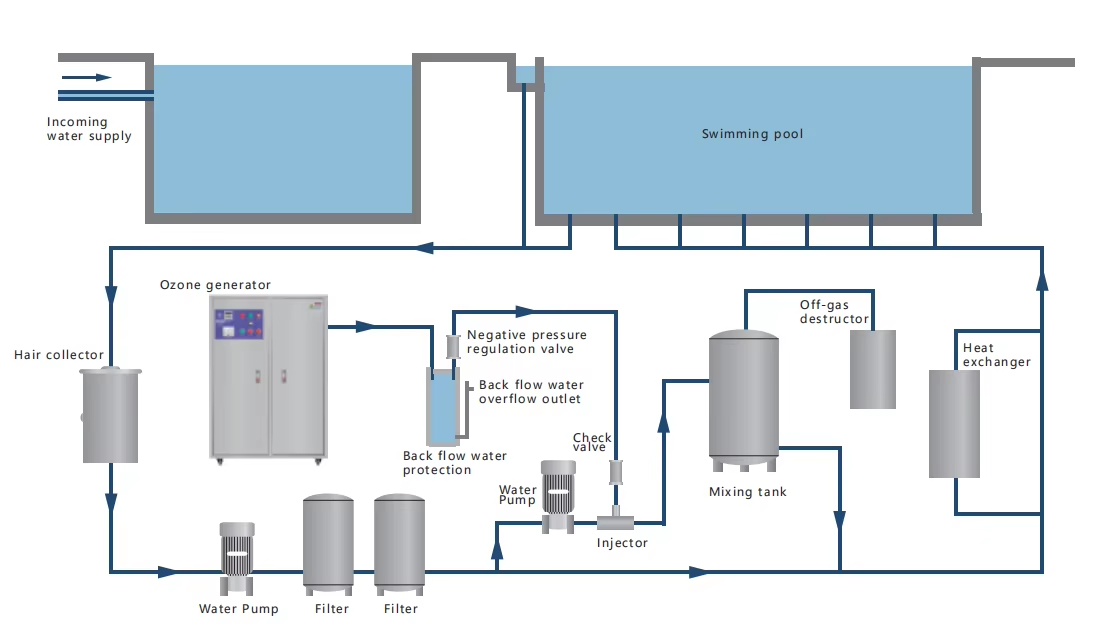

How is ozone generator work in water treatment?
Water from the swimming pool first passes through the hair collector to remove large debris, then is drawn by the water pump and pushed through the filters for physical clarification. A side stream of the filtered water is directed to the ozone generator, which produces ozone (typically via corona discharge). The generated ozone is then injected into the water stream through the negative pressure regulation valve, which ensures safe and efficient mixing by creating a vacuum that draws the ozone gas into the water. The ozone-rich water oxidizes organic contaminants and kills bacteria, viruses, and algae. This treated water then rejoins the main circulation line and returns to the swimming pool via the back flow water overflow outlet, while the incoming water supply compensates for any water loss. The system continuously repeats this cycle to maintain clean and disinfected pool water.
❓1.What are the benefits of using ozone for water treatment?
✔Strong disinfection: More effective than chlorine against pathogens.
✔No harmful byproducts: Unlike chlorine, ozone does not produce trihalomethanes (THMs).
✔Removes odors & tastes: Eliminates unpleasant smells and flavors.
✔Oxidizes metals: Removes iron, manganese, and sulfur.
✔Environmentally friendly: Decomposes into oxygen, leaving no residue.
❓2.What types of water can ozone treat?
✔ Drinking water
✔Wastewater
✔Swimming pools & spas
✔ Industrial process water
✔Bottled water
✔Aquaculture & hydroponics
❓3.Is ozone treatment safe?
✔Yes, when used correctly. Ozone is highly effective but must be controlled to avoid overexposure, which can be harmful to humans if inhaled. Proper ventilation and monitoring are essential.
❓4.How long does ozone last in water?
✔ Ozone has a short half-life (about 20-30 minutes in water) and decomposes back into oxygen. This means it must be generated on-site and used immediately.
❓5.Does ozone leave any residual in water?
✔ No, ozone does not leave a long-lasting residual, which is why some systems combine it with small amounts of chlorine for prolonged protection.
❓6.Can ozone remove all contaminants from water?
✔ Ozone is highly effective against microorganisms and many organic compounds but may not remove dissolved salts, heavy metals, or certain chemicals. Additional filtration (e.g., activated carbon, reverse osmosis) may be needed.
