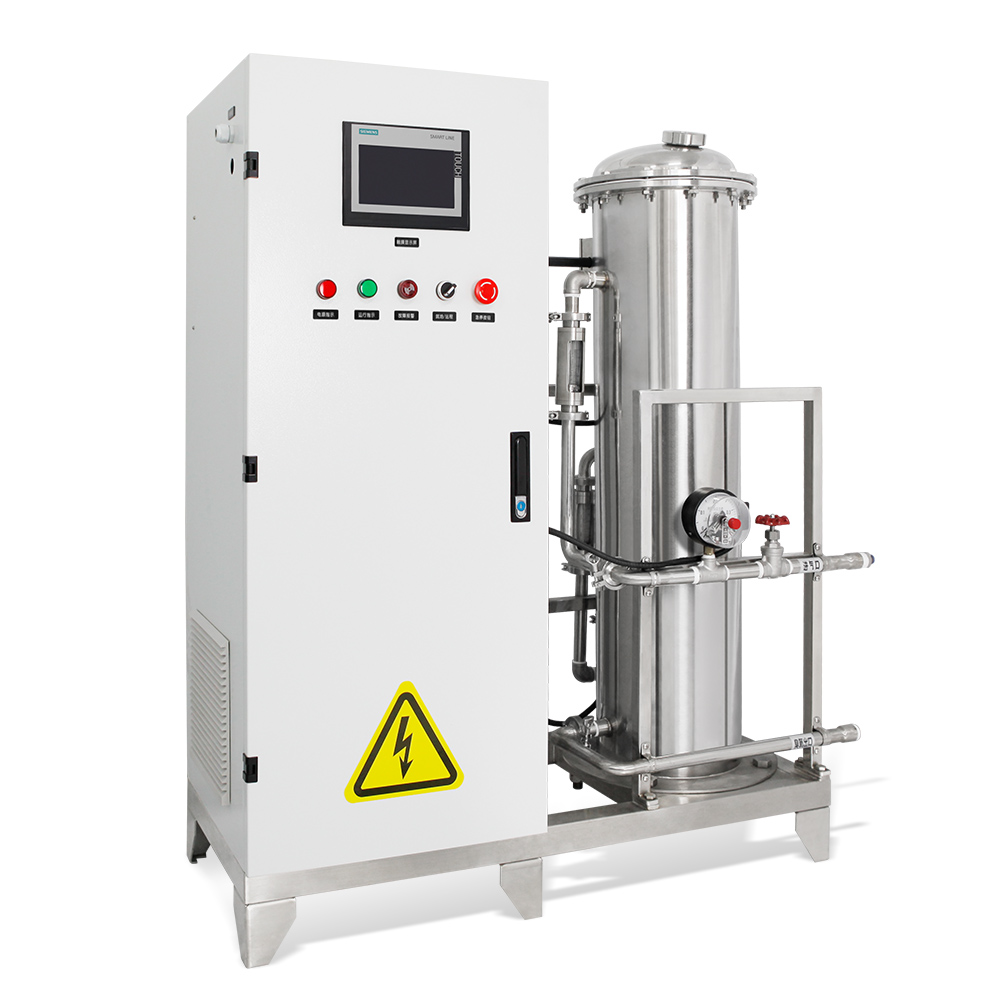

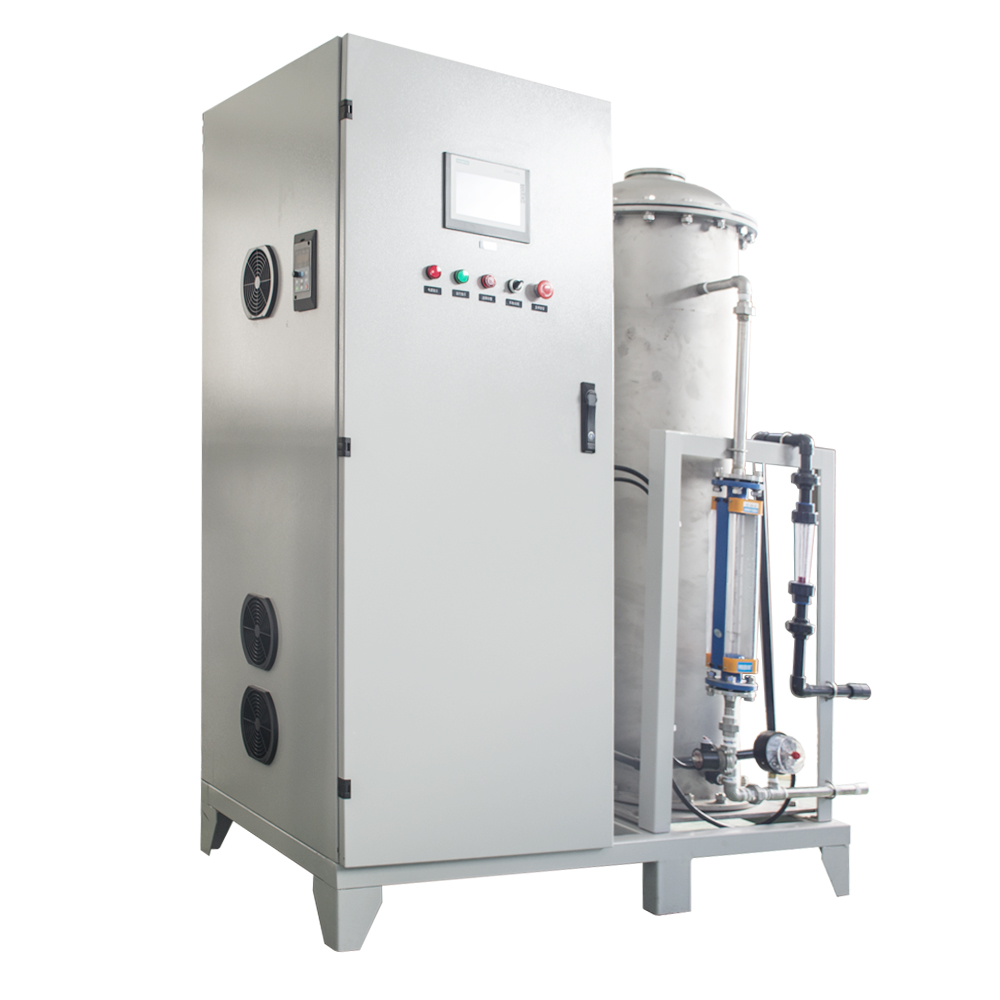

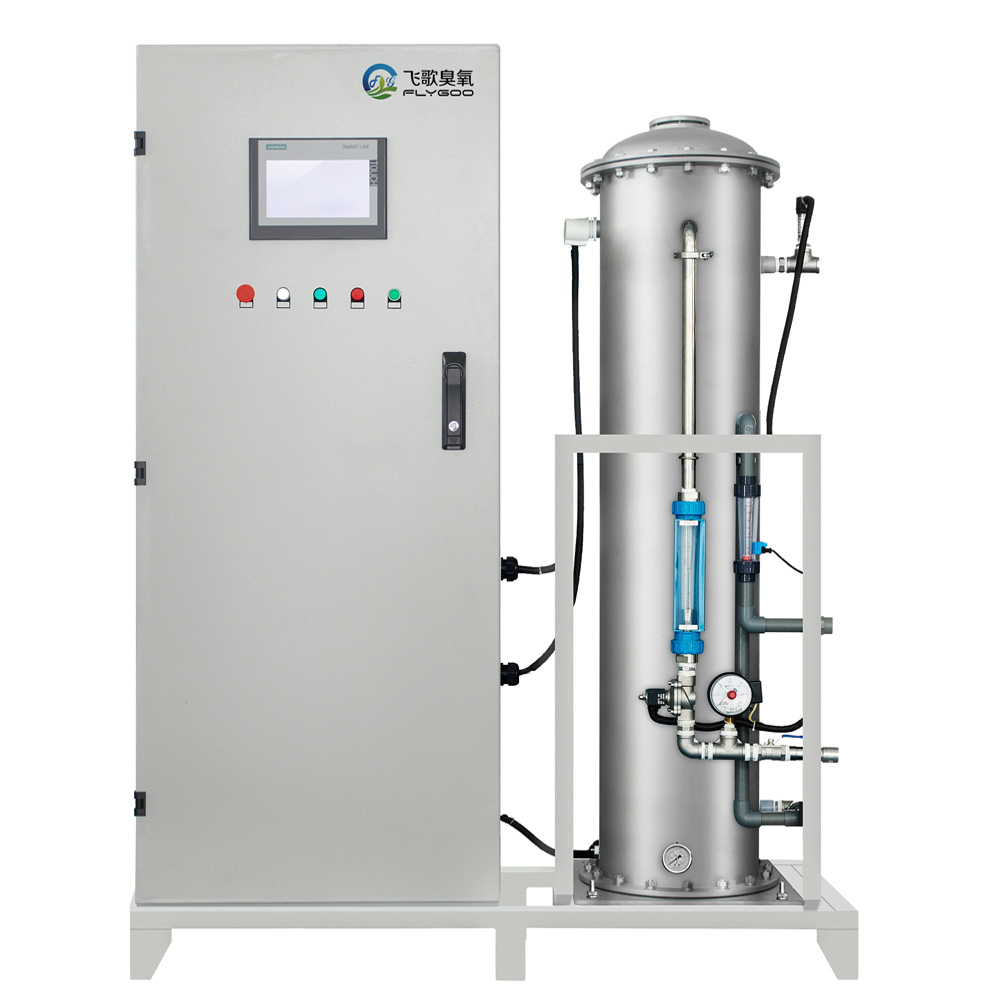

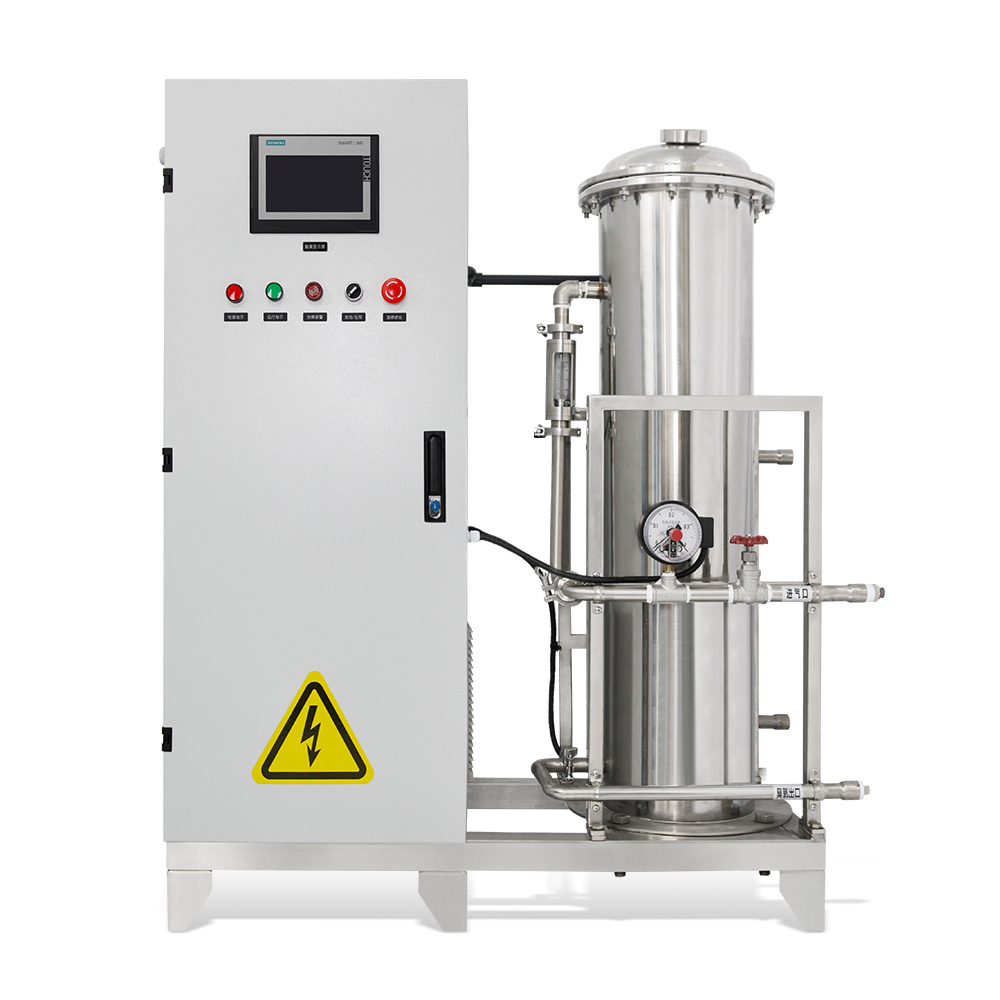

1kg 2kg 3kg Large Ozone Generator Water Purification System for Water Treatment

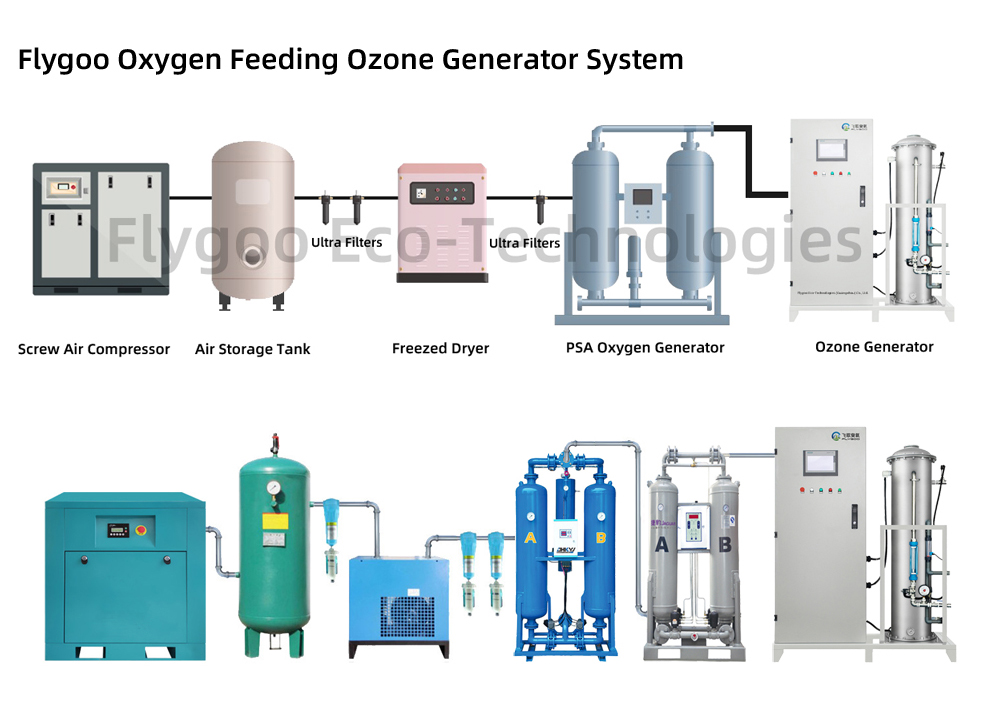

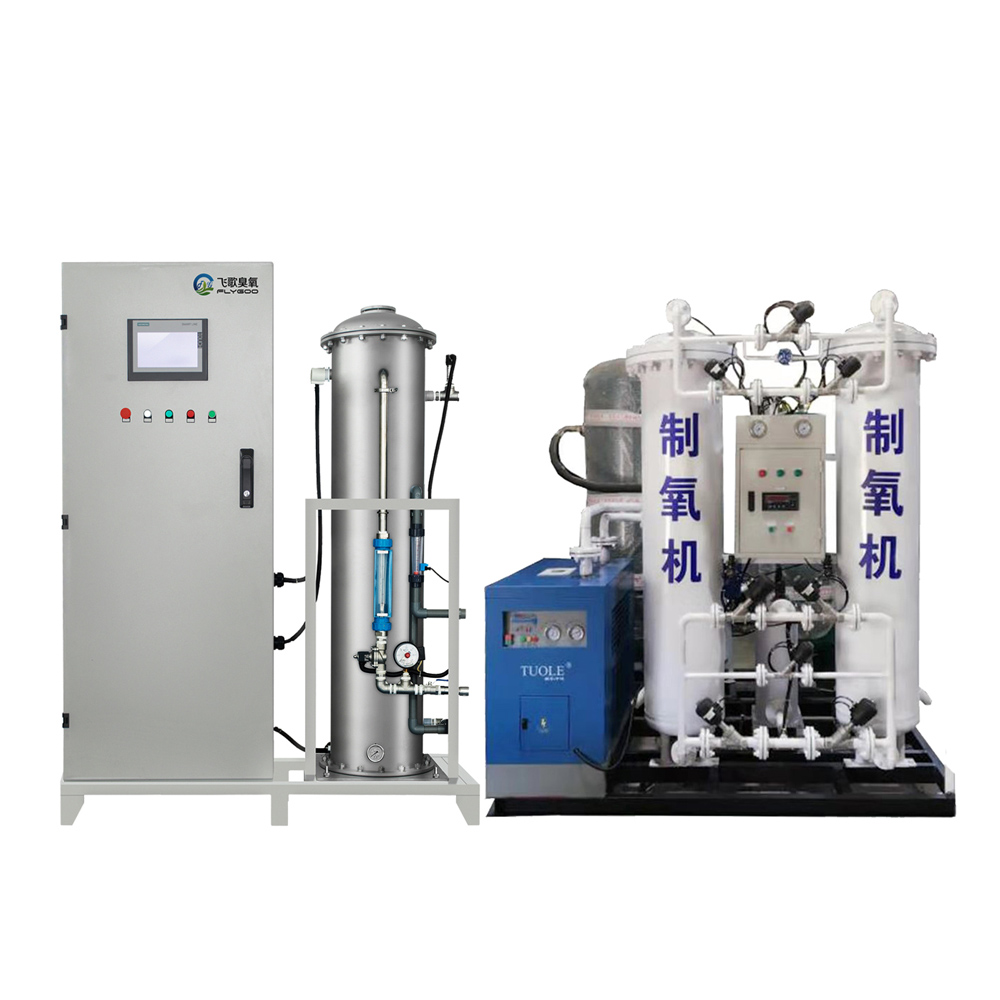

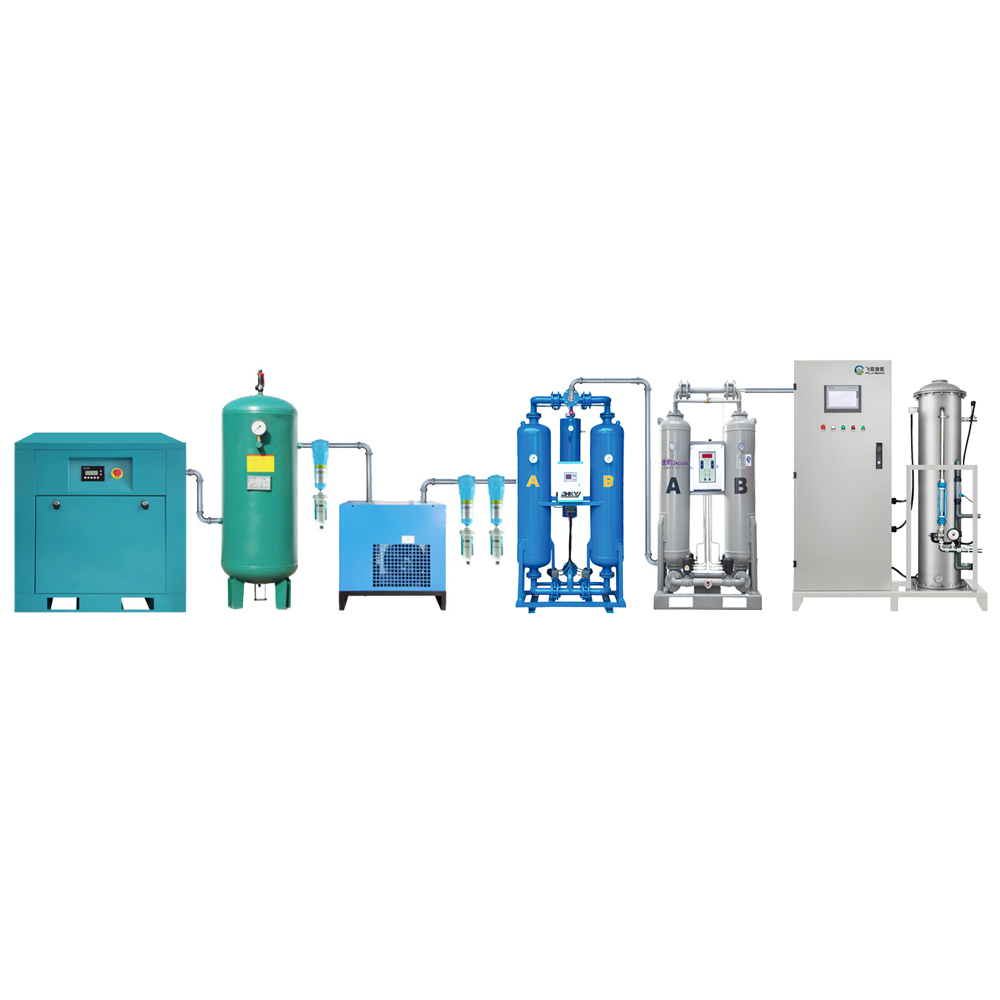

Flygoo large ozone generators utilize automatic control system, HMI control, Chinese-English LCD display, and real-time monitoring of system status and operation parameters. The automatic control system can be designed and configured according to the site requirement, and the PLC operation system is from Siemens. 1500 G/Hr oxygen-fed ozone generator typically comprises an ozone generator, an PSA oxygen generator, a refrigerated air dryer, an screw air compressor, and a storage tank.
Availability:
Quantity:
Inquire Add to Basket

  • FG-OF

  • FLYGOO

Product Description

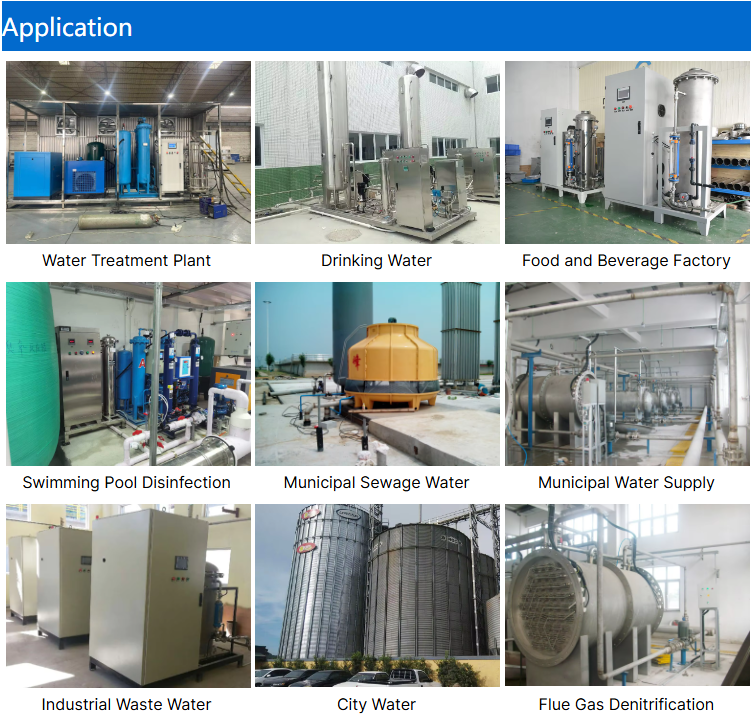

Engineered for demanding industrial environments, this system supports continuous 24/7 operation, making it ideal for large-scale water treatment, factory air purification, and process oxidation. Its integrated design includes built-in air preparation units, ensuring optimal ozone production and system longevity.

2 (2).jpg

1500G Oxygen Feed Ozone Generator

Ozone Model

FG-OF-1500G

Cooling Water Flow Rate

3m3/h

Weight

780kg

Ozone Output

1500g/h

Electric

380V/50(60)Hz/3PH

Ozone Concentration

70-100mg/L

Power  Consumption

12 kw

Dimension

1540*700*2060mm

PSA Oxygen Generator

Ozone Model

FG-OX-12

Power Consumption

/

Weight

/

Dimension

2000*1100*2450mm

Oxygen Flow Rate

12m3/h

Oxygen Purity

92-94%

Adsorption Air Dryer

Model

FG-6.5/8

Power Consumption

200W

Weight

240kg

Dimension

1000*430*1980mm

Air flow rate

6.5m3/min

Gas source dew point

≤-40ºC

Air Storage Tank

Model

FG-C-1.0

Working pressure

1Mpa

Weight

100kg

Dimension

¢900*2300mm

Screw Air Compressor

Model

FG-40A

Power Consumption

30kw

Weight

580kg

Dimension

1460*980*1410mm

Air flow rate

5.1m3/min

Method

Screw Type

Water Chiller

Model

FG-CW6.7

Power Consumption

6.2KW

Weight

280kg

Dimension

1100*650*1300mm

Cooling Power

14.5kw,6.73p

Refrigerant

R410A

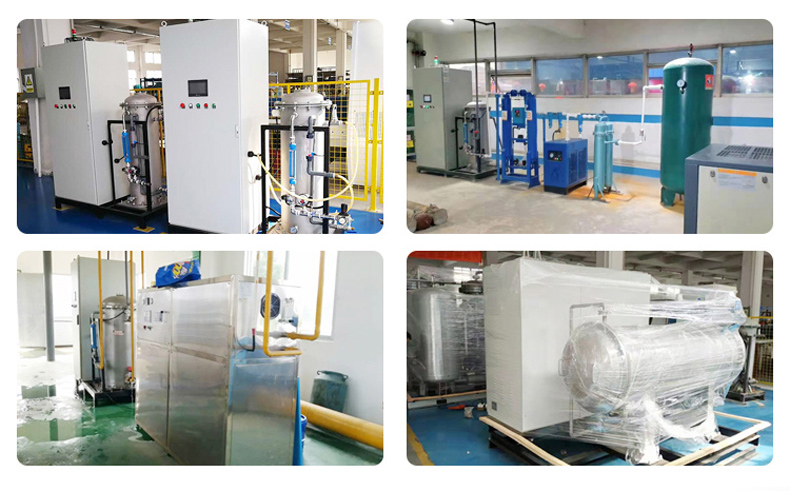

ozone generator.jpg

Ozone Generator Features:

1. Multi-point malfunction monitoring, main board temperature detection, high voltage transformer temperature detection, cooling water temperature detection, IGBT over temperature protection, PSA input air temperature detection, back flow water of the corona discharge tube detection.The equipment stop operation and the corresponding fault indicator on the control panel lights up when a fault is detected.

2. The equipment utilized large power IGBT modules,extremely stable,high efficiency ,long lifespan dehydroxylation quartz glass structure,water cooling parts ,world-class essential components and world-leading intelligent design.

3. 4-20 mA interface for automatic output control

4. Variable Ozone Output 10-100%

5. High Voltage, High Frequency Corona Discharge Technology

6. Stainless steel case and SUS304 ozone outlet

7. Main components from Siemens (PLC,IGBT module)et

8. CE Approved


To learn more about ozone generators , please contact Flygoo Ozone Sales :

info@flygoo-ozone.com
