FG-OXSP
FLYGOO
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation. Specific adsorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbed material.
Item | Unit | FG-OXSP-2 | |||
Oxygen Capacity | LPM | 3 | 5 | 8 | 10 |
Power | w | 400 | 500 | 510 | 550 |
Electric | VAC/Hz | 220~240/50~60; 110/60 | |||
Output Pressure | Mpa | 0.04-0.08Mpa | |||
Inlet Pressure | Mpa | 0.18-0.2 | |||
Oxygen Purity | % | 92%-94.4% | |||
Size(L*W*H) | mm | 500*160*160 | 540*173*176 | 540*173*176 | 585*173*176 |
Weight | kg | 6.0 | 6.8 | 6.9 | 7.2 |
Air with Dust Content | <=20mg/m3 | ||||
Air with H2S,SO2 | <=5PPM | ||||
Air with CO2 | <=250PPM | ||||
Air with C2H2 | <=0.5PPM | ||||
Air with CmHm | <=20ppm | ||||
Ambient Humidity | % | <70 | |||
Ambient Temperature | ºC | <40 | |||
Technology
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation. Specific absorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbed material.
Features
1.Highly automated, fast generation of oxygen, a single press on the switch can start or stop the equipment, and oxygen can be generated in 1 minute
2.Air feeding input with no additive required and low power consumption which ensures lower total cost
3.Highly purified and convenient, output oxygen purity is only influenced by output flow and can be adjusted in the ranged of 90%~95%
4.Adjustable oxygen flow meter
5.The whole gas circuits work in low pressure which makes it safe and reliable
6.Stainless steel enclosure and SUS304 oxygen outlet

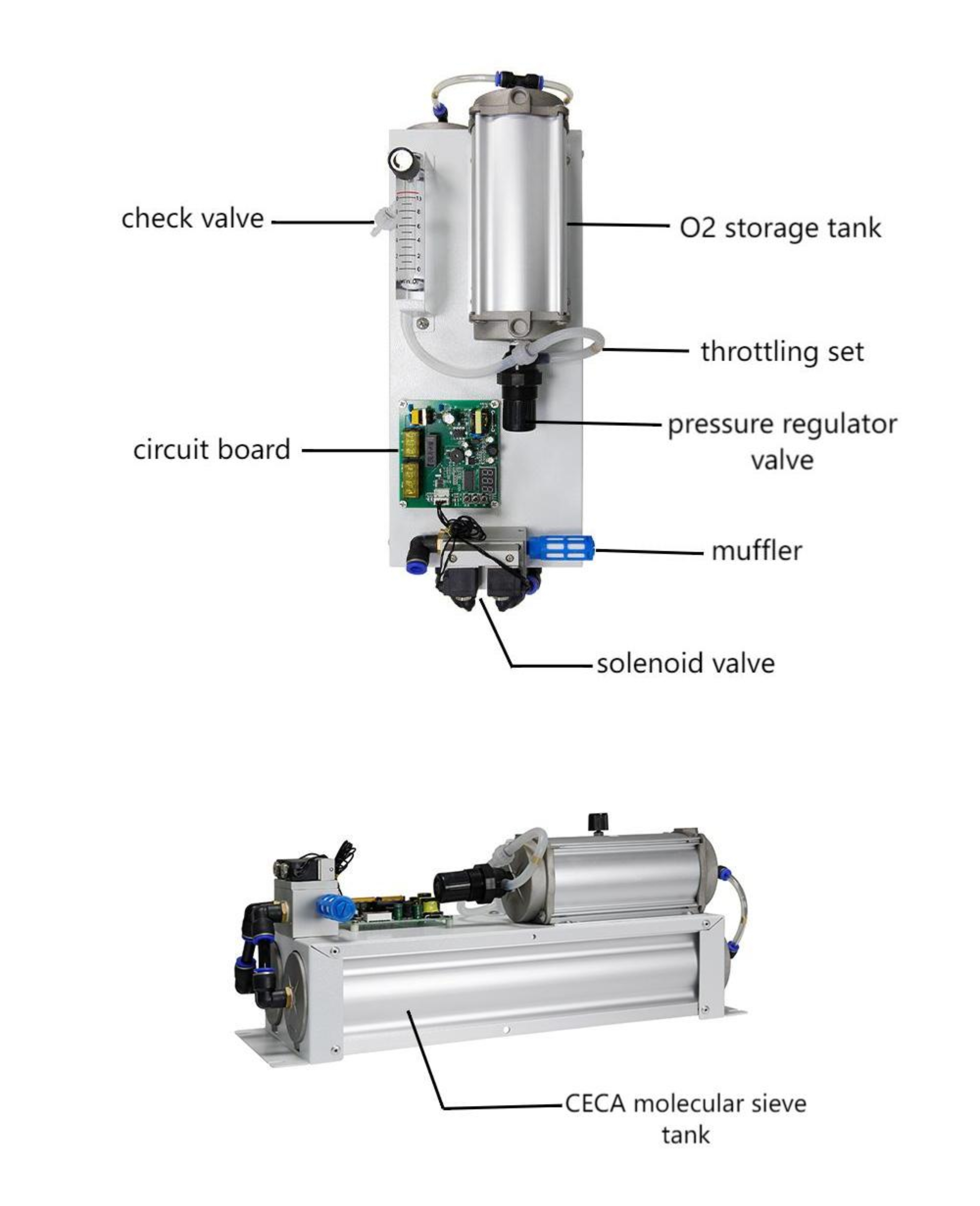

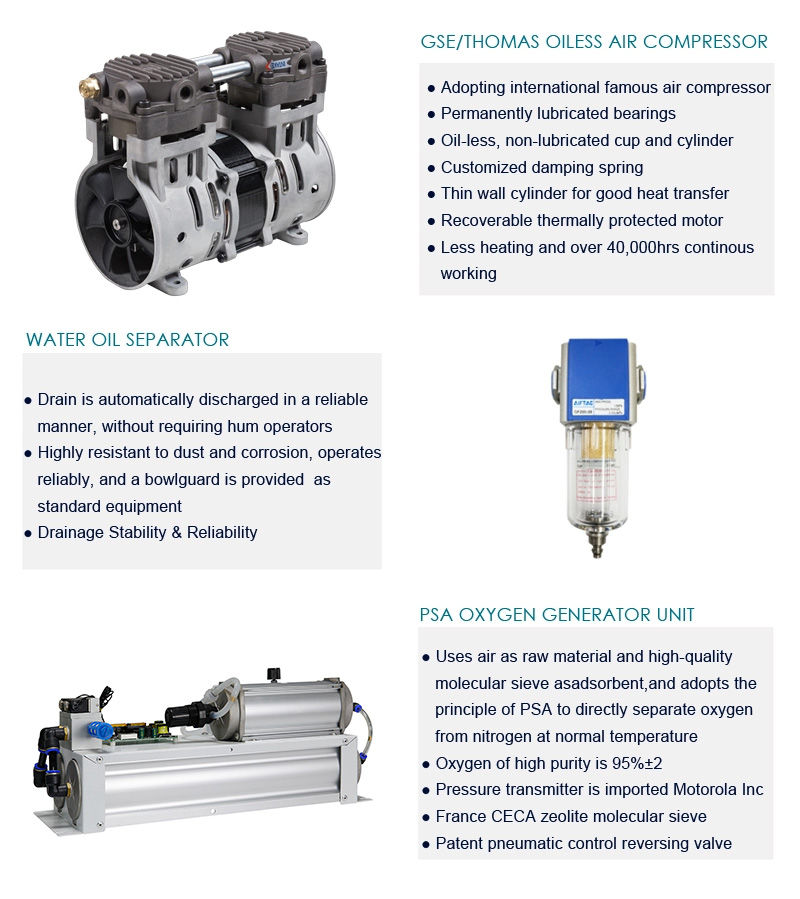

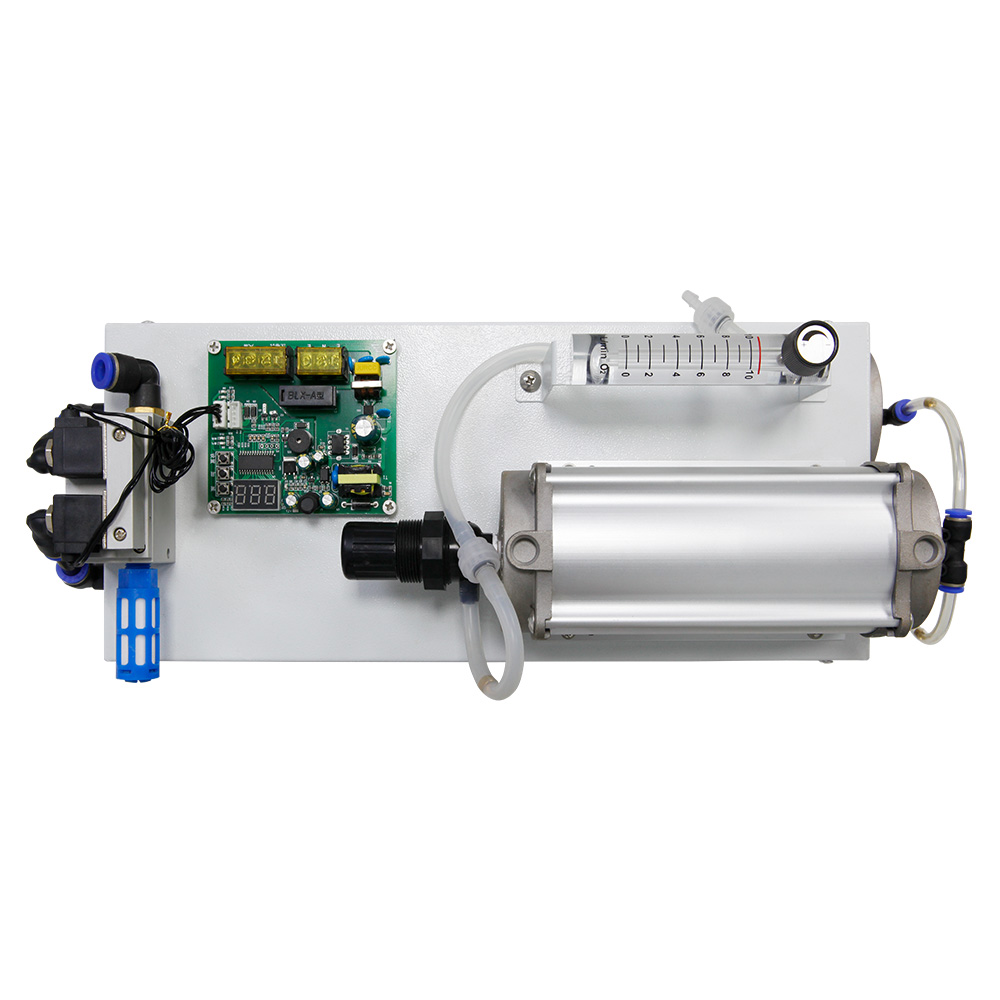

COMPONENTS
A-B tower oxygen generation units (France CECA modular sieve) module
Gas water separator
Switching board
Moisture separator
Ultra-filters
O2 outlet pressure
Built-in Oil free air compressor
