FG-SP
FLYGOO

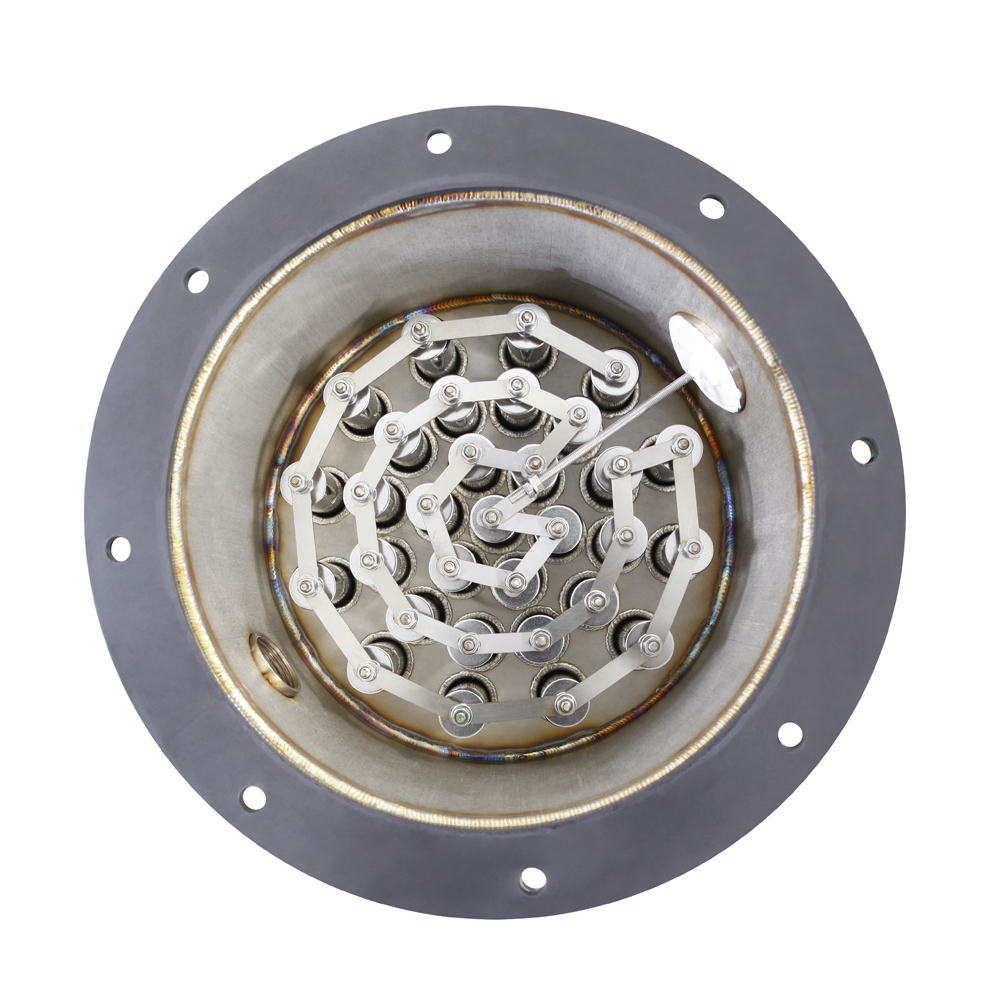

To perform ozone generation by silent discharge efficiently, the dimensional accuracy of a discharge section on an electrode and efficient cooling of the ozone generation tube are important. The ozone generation tube developed by Flygoo Ozone. has realized an excellent dimensional accuracy and offers high cooling efficiency. Thanks to this structure, high-efficiency ozone generation is possible.This precision engineering ensures perfectly uniform discharge, which minimizes localized overheating and energy loss. The result is exceptionally stable ozone output and extended operational life, as the electrode is protected from the rapid degradation common in less accurately made tubes.
The high-efficiency cooling system directly maintains the optimal temperature of the reaction chamber. This allows the unit to sustain maximum ozone yield and concentration consistently, even during prolonged high-demand operation, while also preventing performance decay over time.

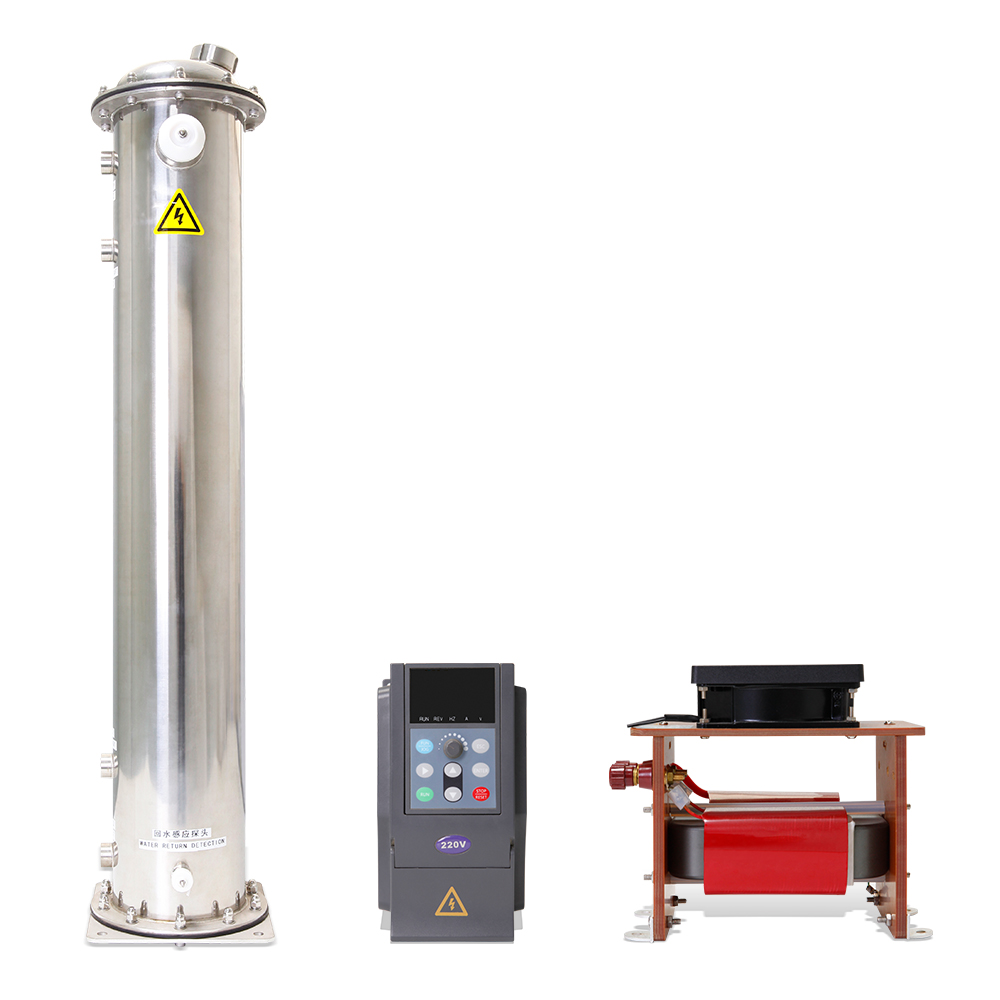

Item | FG-C-1 Ozone Tube and Power Supply | |||
Ozone Output | 100g/h | 200g/h | 300g/h | 500g/h |
Ozone Concentration | 80-120mg/l | 80-120mg/l | 80-120mg/l | 80-120mg/l |
Oxygen Flow Rate | 20m3/h | 40m3/h | 60m3/h | 80m3/h |
Voltage | 220V/50,60Hz, 1 phase | 380V/50,60Hz,3P | ||
Power | 1000W | 2015W | 2050W | 5000W |
Output Pressure | <0.1Mpa | <0.1Mpa | <0.1Mpa | <0.1Mpa |
Frequency | 0.2-10 | 0.2-8 | 0.2-8 | 0.2-8 |
Water Cooling Flow | 0.4-0.5m3/hr | 0.6-0.8m3/hr | 0.7-0.8m3/hr | 1.0-1.5m3/hr |
Ozone Chamber Size | 178*178*870mm | 280*280*1030mm | 280*280*1030mm | 403*403*1050mm |
Inverter Power Size | 116*100*151mm | 186*160*248mm | 208*194*322mm | 280*210*436mm |

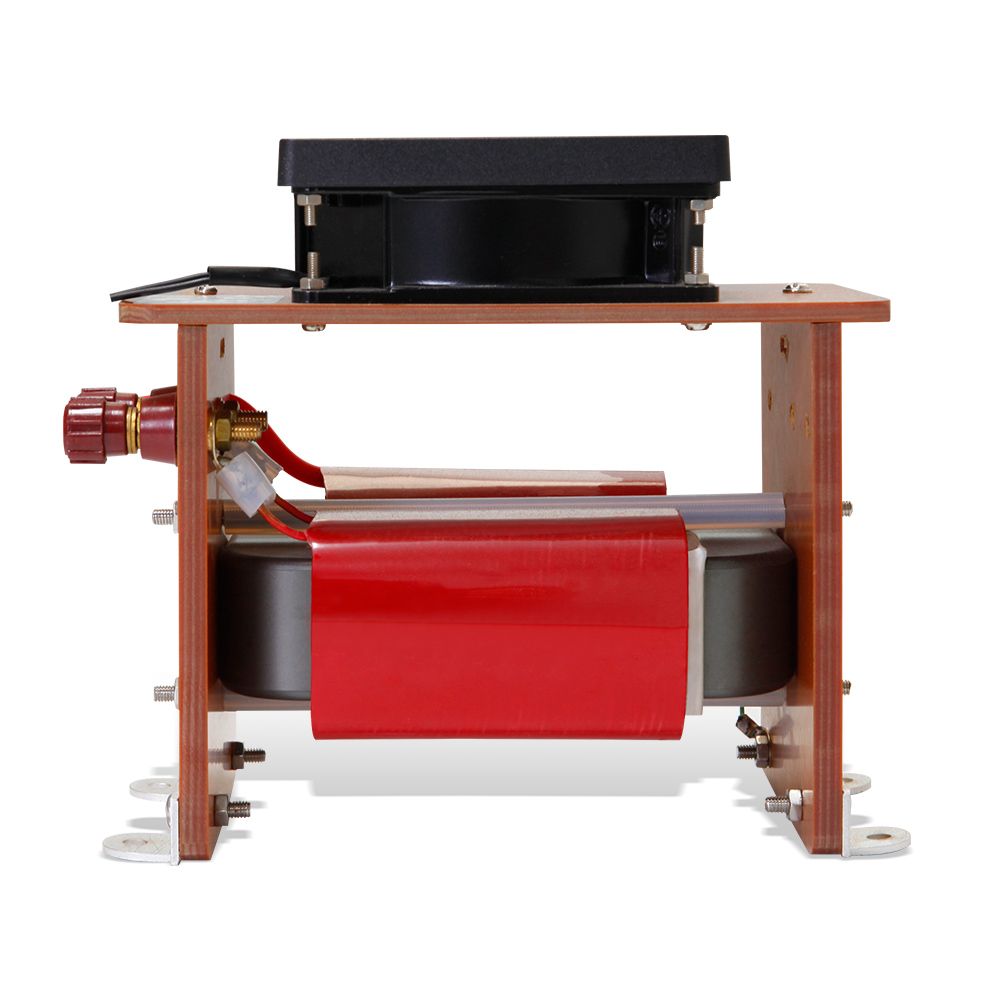

Transformer Size | 180*100*150mm | 210*125*170mm | 210*125*170mm | 240*160*240mm |
Ozone Chamber Weight | 13kg | 36.7kg | 43.4kg | 69kg |
Power Supply Weight | 1.4kg | 1.6kg | 1.7kg | 3.4kg |
Transformer Weight | 2.5kg | 2.9kg | 3.1kg | 10.6kg |

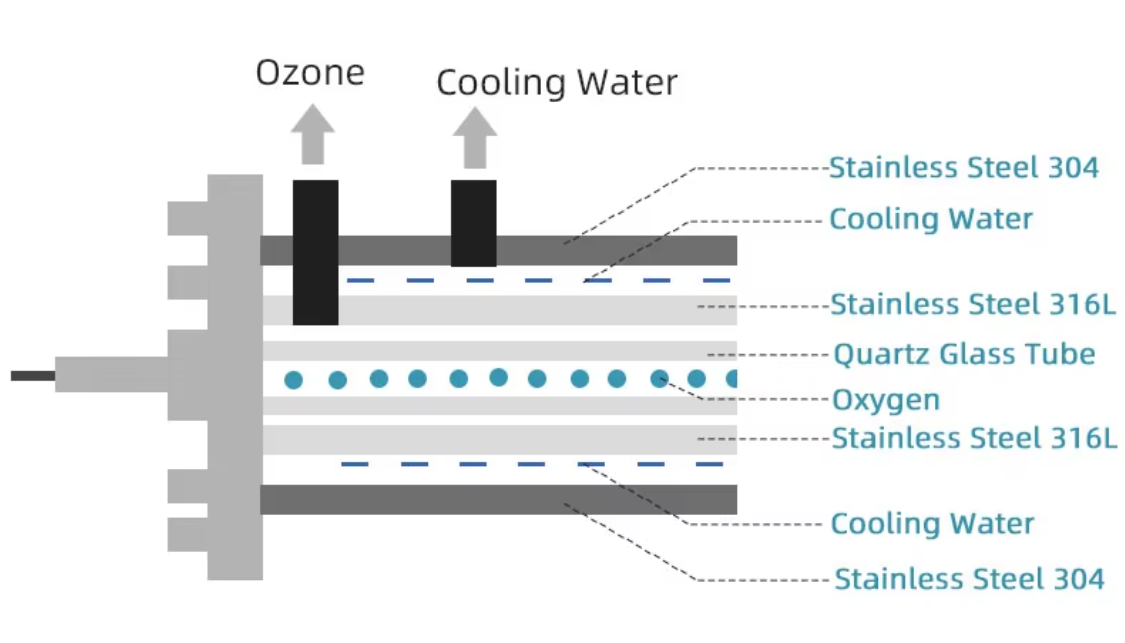

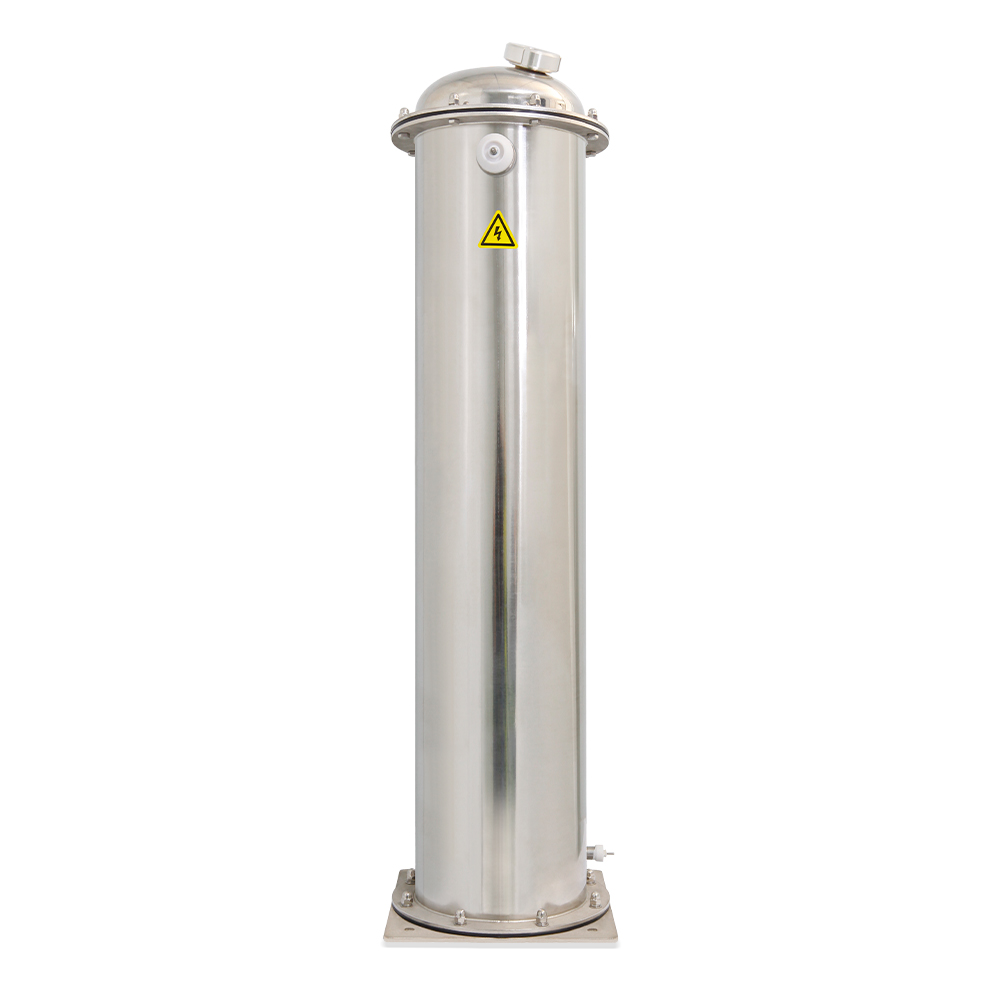

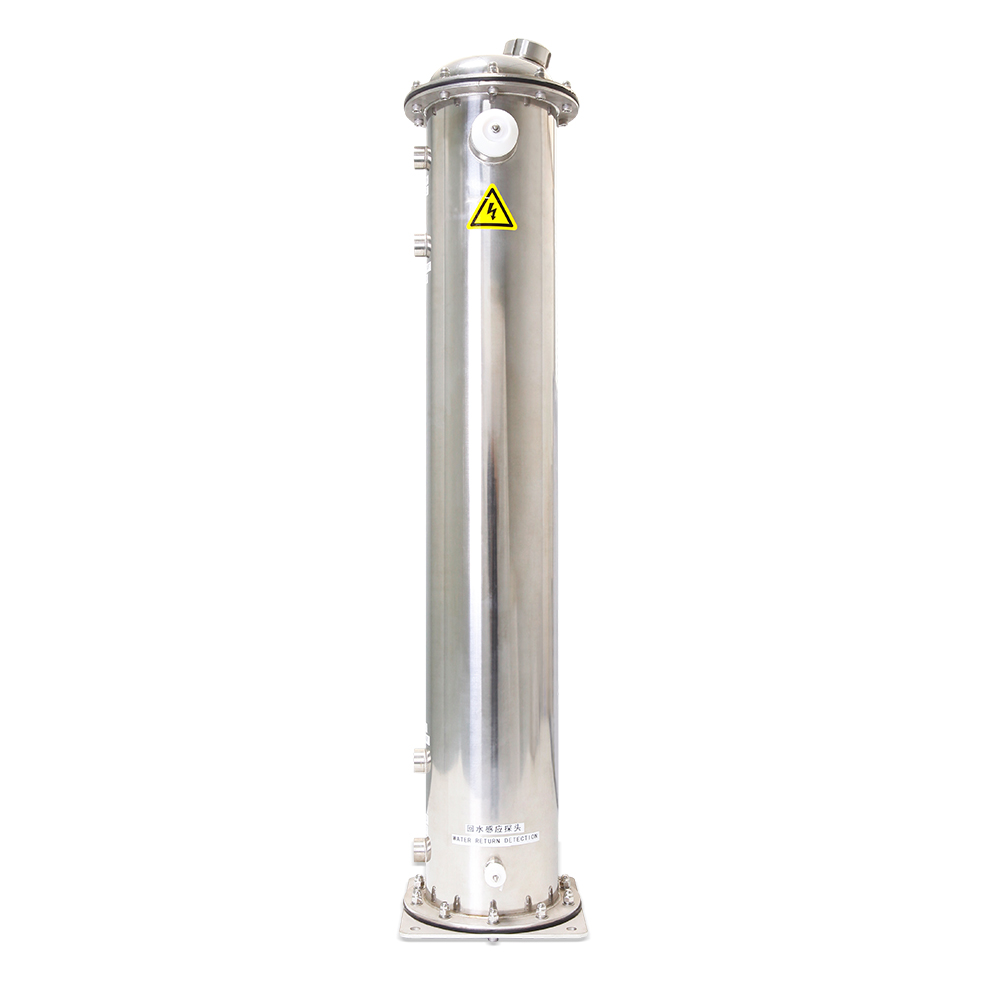

High-efficiency Ozone Generation Tube
To perform ozone generation by silent discharge efficiently, the dimensional accuracy of a discharge section on an electrode and efficient cooling of the ozone generation tube are important. The ozone generation tube developed by Flygoo Ozone. has realized an excellent dimensional accuracy and offers high cooling efficiency. Thanks to this structure, high-efficiency ozone generation is possible.

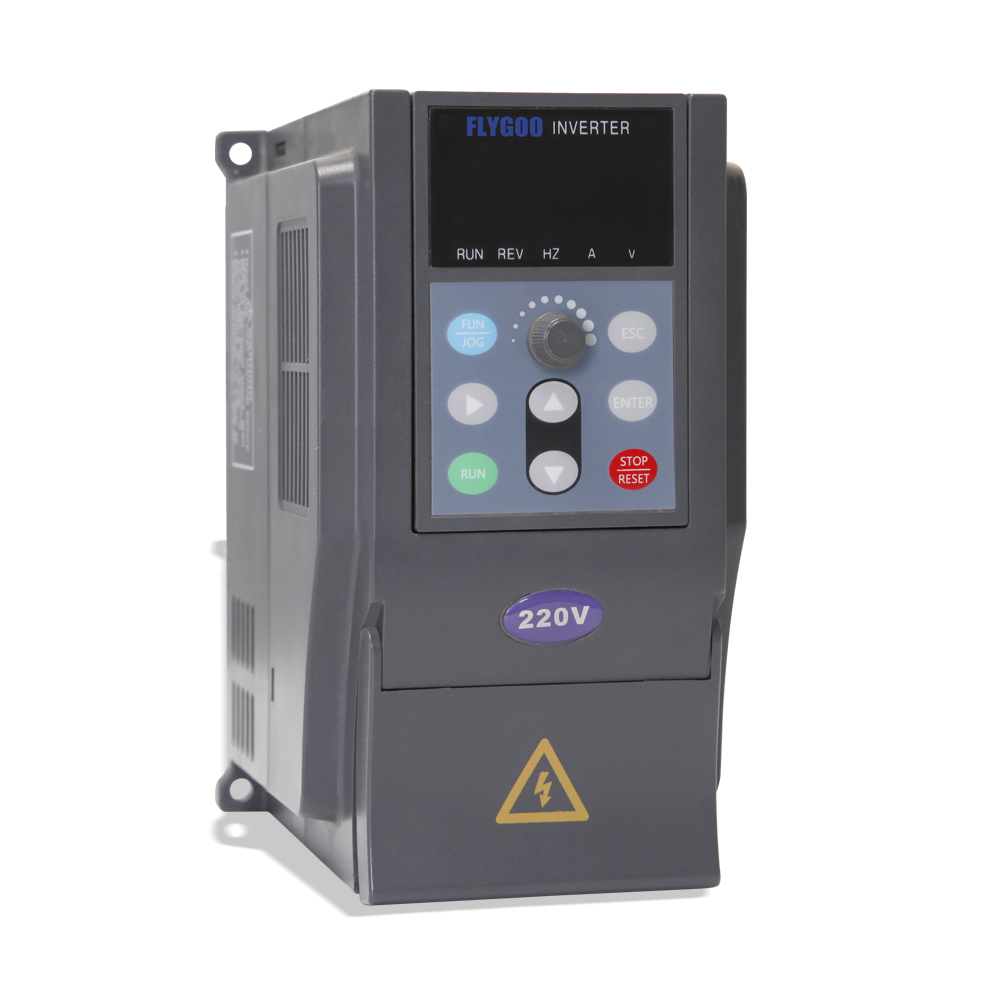

IGBT Ozone Power Supply
■ Main components imported IGBT module
■ Multi-point mal-function monitoring frequency autotracking, ensure ozone regulated output
■ Ozone output and concentration is adjustable via frequency-converter control system
■ Circuit control is composed of sync pulse trigger circuit, current-voltage reactive circuit,DSP chip, etc -PID circuit Control

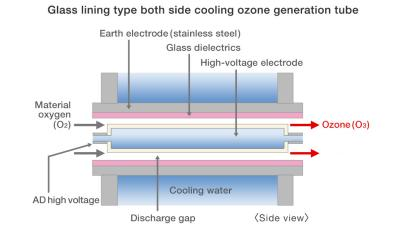

WORKING PRINCIPLE
Work Environment: Ambient Temperature: 20°C, Oxygen Purity>94%,Dew Point>-45°C
