When an ozone generator reaches the 1kg/h class, it moves from a “device” into the category of industrial process equipment. At this scale, ozone output is measured in kilograms per day, and the gas is often routed into closed contact chambers, pipelines, or large water treatment loops. The margin for error shrinks. A small leak, a drifted concentration, or a failed valve can no longer be treated as a minor nuisance—it becomes a safety, environmental, and equipment-integrity issue.

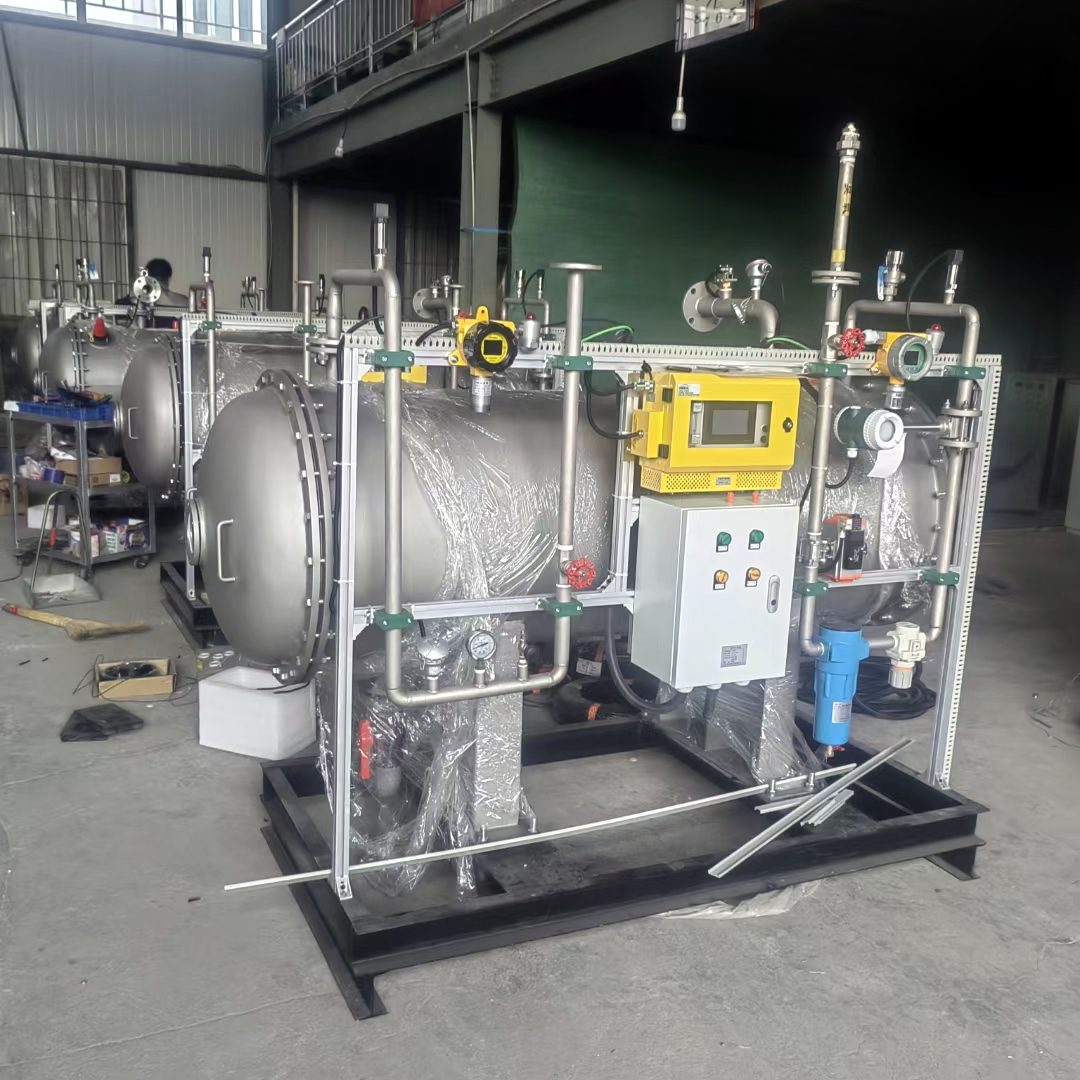

This is where the FGUVOZ-3300C wall-mounted ozone detector enters the picture. Installed alongside a 1kg/h ozone generator, it continuously samples the ambient air or process gas, converts the ozone concentration into a standard signal, and feeds that data back to the generator’s control system. The result is not just a number on a screen—it is an active safety and process-control loop that keeps the entire system within its designed operating envelope.
At lower output levels, a handheld ozone meter and periodic manual checks may be sufficient. At 1kg/h, the risk profile changes in three important ways.
First, leakage risk becomes continuous rather than episodic. Industrial ozone generators operate with valves, fittings, and electrical connections that are subject to pressure fluctuations and long-term wear. A slow leak around a generator cabinet or pipe connection can go undetected by human senses until corrosion has already damaged nearby rubber seals, wiring, or electronic components[reference:0]. An online detector catches the trend before it becomes a repair bill.
Second, process concentration must be held within a narrow band. For water treatment, aquaculture, or chemical oxidation, the ozone dose is a process parameter. If the concentration drifts due to feed-gas variation or electrode aging, treatment efficiency drops silently. A detector with a 4-20mA or RS485 output allows the PLC to adjust generator power or valve position automatically, maintaining the setpoint without operator intervention[reference:1].
Third, safety compliance is not optional. Industrial ozone systems are designed around exposure limits such as OSHA guidelines. When ambient ozone exceeds a preset threshold—often due to a leak, a valve failure, or a destruct-unit fault—the detector must trigger an alarm and, in integrated systems, initiate a controlled shutdown of the generator, compressor, and oxygen concentrator[reference:2]. A wall-mounted detector provides that first line of defense 24 hours a day.

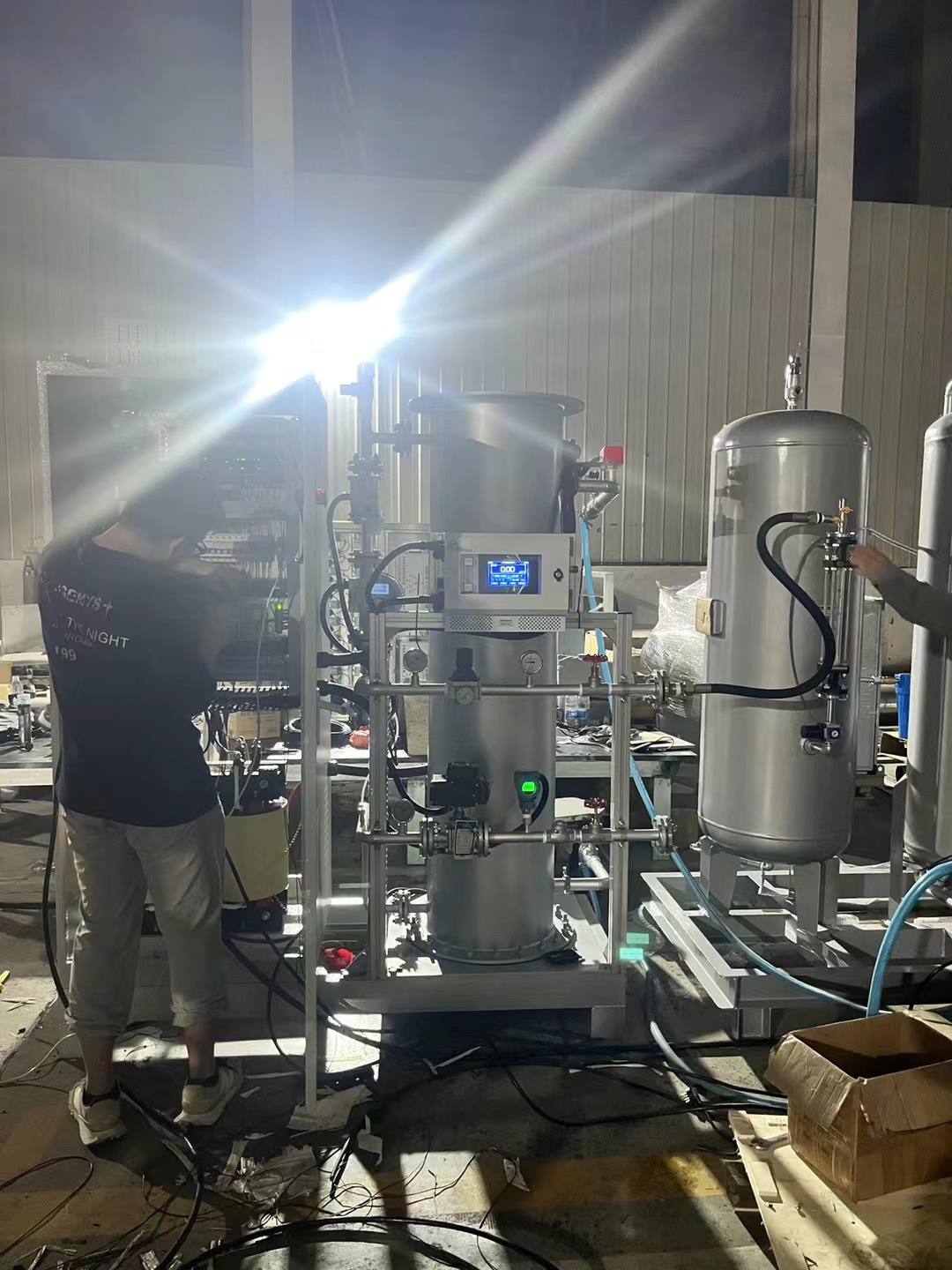

The FGUVOZ-3300C is a wall-mounted online ozone analyzer. Its sensing element reacts to ozone in the sampled gas stream—either ambient air in the generator room or a slipstream from the process. The sensor generates an electrical response proportional to ozone concentration, which the internal electronics linearize and convert into a standard output.
The unit provides 4-20mA analog output and relay contacts as standard, with RS485/Modbus available for digital integration[reference:3][reference:4]. In a typical 1kg/h installation, the 4-20mA signal is wired to the generator’s PLC or a dedicated safety controller. The PLC uses this signal in two ways:
Process control: If ozone concentration falls below the target range, the PLC increases generator power or opens the ozone valve further. If concentration rises above the setpoint, it reduces output to avoid over-dosing.
Safety interlock: If concentration exceeds a high-high threshold—or if the signal drops to zero when ozone should be present, indicating sensor or system failure—the PLC initiates a shutdown sequence, closing valves and stopping the generator and feed-gas supply[reference:5].
Because the detector is wall-mounted and continuously powered, it remains active even when the generator cabinet door is closed or the room is temporarily unoccupied. This continuous presence is what distinguishes an online safety instrument from a portable spot-check tool.

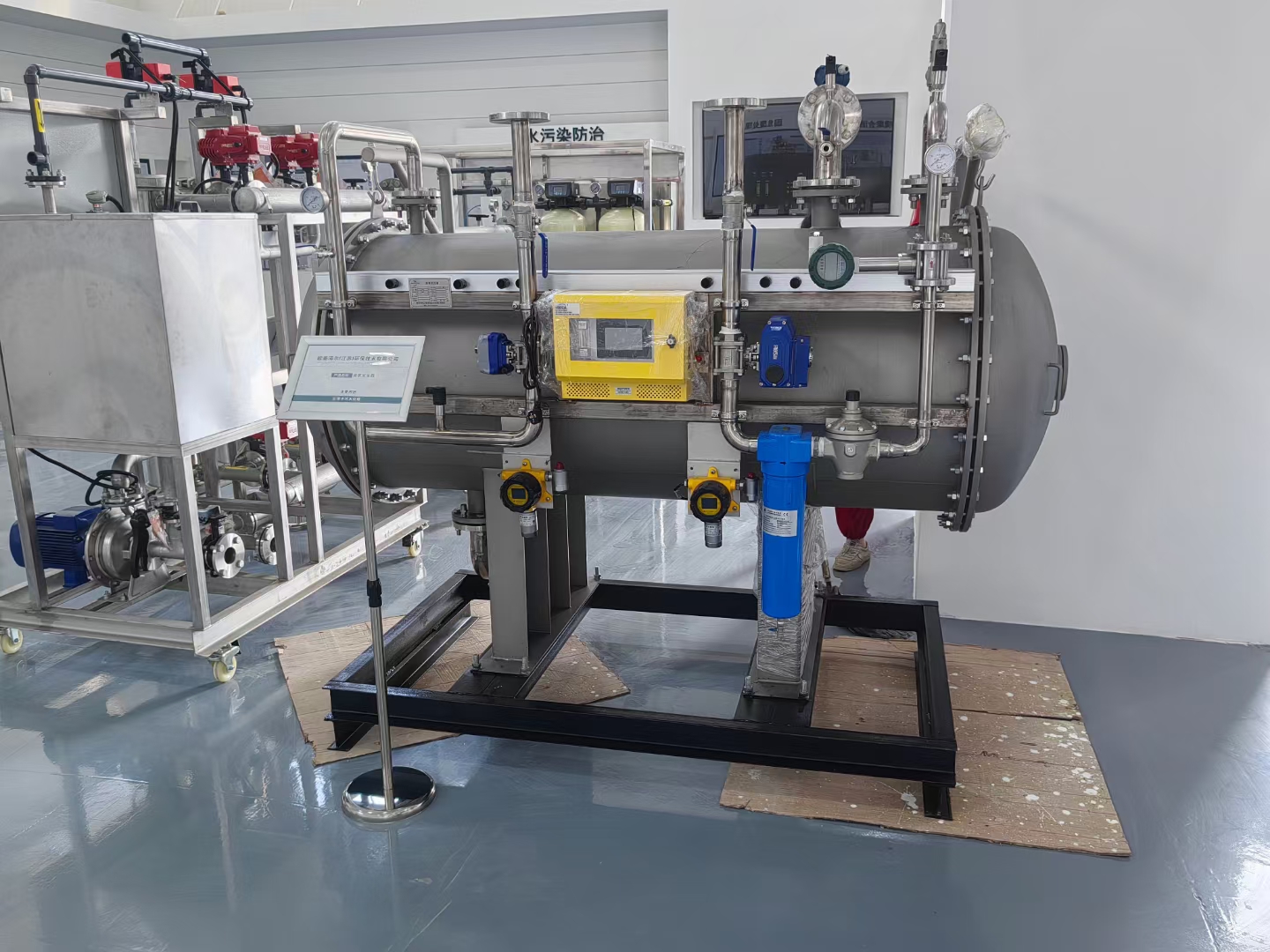

Placement matters. The detector should be mounted where it can sample representative air—typically near the generator cabinet, valve manifold, or the ozone contactor area. It should be away from direct water spray, excessive heat, and strong drafts that could dilute the sample. The wall-mount format keeps the display and wiring accessible for calibration and maintenance without occupying floor space in an already crowded equipment room.
For systems using oxygen feed, the detector’s range and alarm thresholds should be configured for the expected concentration levels. The FGUVOZ-3300C is designed for industrial environments, with a robust enclosure and signal outputs that integrate with common control platforms. During commissioning, a span check against a reference method confirms that the 4-20mA output tracks the actual ozone concentration, so the PLC’s control logic behaves predictably from day one.

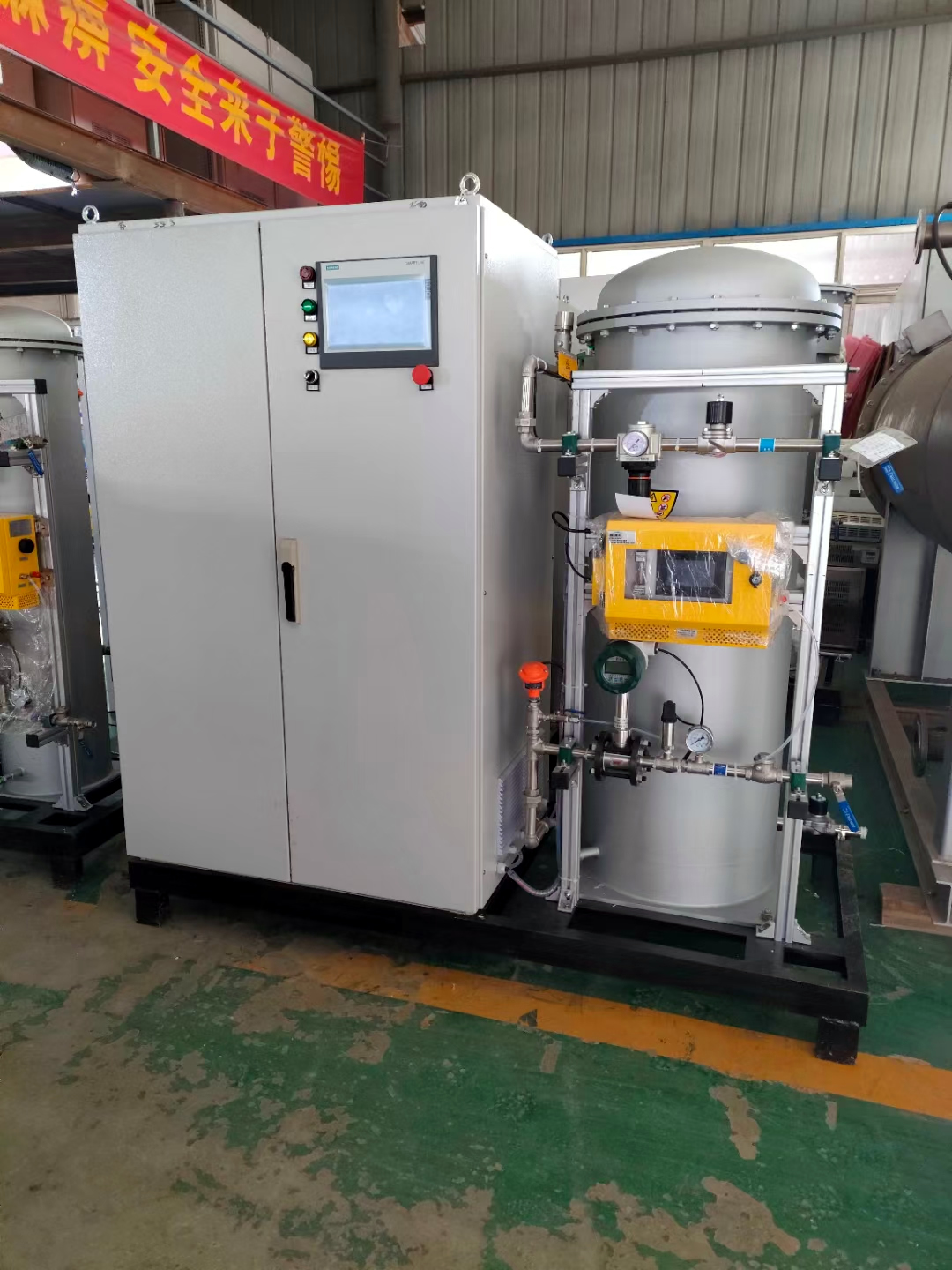

A detector that only displays a number is a passive instrument. A detector that feeds a PLC is part of a control system. With the FGUVOZ-3300C on a 1kg/h generator, the operator gains:
Leak response without delay: the PLC can trip the generator and activate ventilation before personnel are exposed.
Stable treatment dose: the ozone output tracks the process demand automatically, reducing chemical waste and ensuring consistent water quality.
Equipment protection: early detection of abnormal ozone levels prevents corrosion of seals, wiring, and adjacent instrumentation[reference:6].
Data for maintenance: trend logs from the detector reveal gradual sensor drift, electrode aging, or valve wear before they cause a production interruption.
For integrators and end-users building or upgrading a 1kg/h ozone system, the FGUVOZ-3300C provides a practical bridge between the generator and the plant control layer. It is not a substitute for good system design—but it is the instrument that tells the system whether the design is working as intended.
