Flygoo Ozone, a global leader in high-performance ozone disinfection and oxidation systems, is pleased to announce the successful dispatch of 10 units of FG-AF 30G Air Source Ozone Generators to our client in South Africa. Engineered for demanding industrial air purification, commercial water disinfection, and agricultural post-harvest storage, these units deliver dependable 30g/h ozone output with minimal maintenance requirements.
Client Location: South Africa (220V/50Hz custom electrical standard)
Product Model: Flygoo FG-AF 30G Air-Fed Ozone Generator
Total Quantity: 10 Turnkey Units
Key Application: Industrial wastewater oxidation & facility air sanitation
Features: Built-in air compressor, integrated air preparation unit, high-purity quartz corona discharge tube, mobile caster design
South Africa’s diverse manufacturing, agriculture, and municipal operations face strict discharge regulations and increasing water conservation demands. From food processing and beverage bottling to mine wastewater recycling, reliable disinfection is paramount.
The Flygoo FG-AF 30G utilizes advanced Corona Discharge (CD) technology to generate ozone on-demand. When integrated into water treatment loops or large-volume indoor air spaces, ozone rapidly oxidizes:
Chemical Oxygen Demand (COD) & Biochemical Oxygen Demand (BOD): Breaks down complex, non-biodegradable organic pollutants.
Broad-Spectrum Pathogens: Inactivates viruses, bacteria (including E. coli and Salmonella), and mold spores within seconds without chemical residues.
Odor & VOCs: Eliminates foul hydrogen sulfide and organic mercaptan odors common in wastewater collection pits.
Unlike conventional ozone machines that require cumbersome auxiliary gear, the FG-AF series is designed as an all-in-one plug-and-play system:
Built-In Oil-Free Air Compressor: Delivers clean, dry ambient air directly into the ozone reaction chamber without relying on external pneumatic lines.
Dehumidification & Air Drying Train: Ensures consistent dew points, preventing nitric acid accumulation and extending the lifespan of the discharge chamber.
Heavy-Duty 304 Stainless Steel Housing: Withstands humid and corrosive environments commonly found in wastewater rooms and packhouses.
Industrial Ergonomics: Equipped with heavy-duty swivel casters and front-facing diagnostic gauges (ammeter, timer, flowmeter) for seamless on-site deployment.
Item | Unit | FG-AF | ||
Ozone Output | g/hr | 30 | 40 | 50 |
Power | w | 530 | 620 | 700 |
Electric | VAC/Hz | 220~240/50~60; 110/60 | ||
Gas Feed | / | Dry Clean Air or External Oxygen | ||
Ozone Concentration | mg/l | Air supply:5~15 | ||
Size(L*W*H) | mm | 500*370*880 | ||
Weight | kg | 37 | 39 | 41 |
Cooling Way | / | Water-cooled | ||
Water Flow Rate | m3/h | 0.2-0.3 | ||
Inner Air Dryer | Yes/No | Yes | ||
Inner Air Compressor | Yes/No | Yes | ||
Ambient Humidity | % | <70 | ||
Ambient Temperature | ºC | <40 | ||
Before dispatch, each of the 10 units underwent continuous 72-hour load testing at our production facility to guarantee consistent ozone concentration and thermal stability under prolonged runtime.
To guarantee damage-free long-distance maritime and intercontinental transit to South Africa, all units were secured with heavy-duty multi-layer protective packaging:
Internal shock-absorbing protective foam padding.
Reinforced export-grade corrugated cardboard cartons.
Waterproof, tear-resistant outer protective woven wrap, tightly bundled with high-tensile polypropylene strapping.

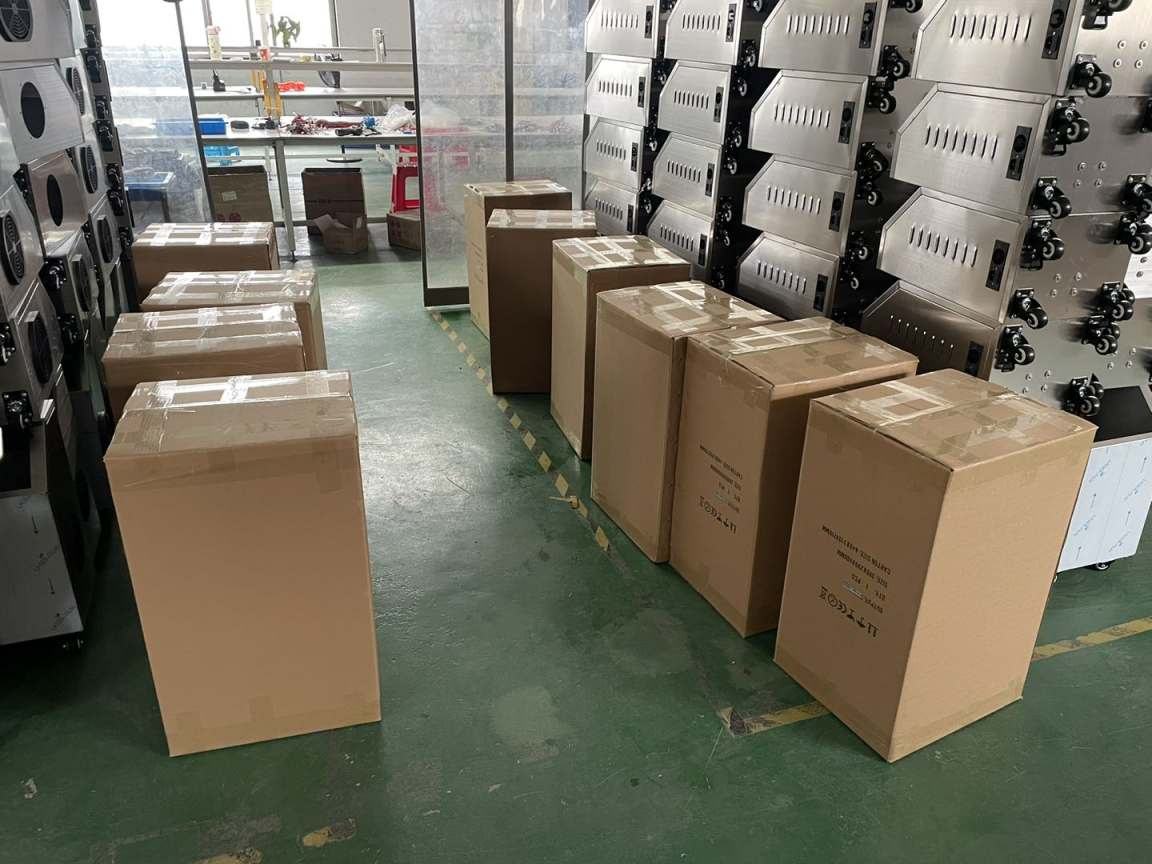

10 Finished Flygoo FG-AF 30G Units Undergoing Final Inspection
Secure Carton Boxing Prior to Waterproof Strapping

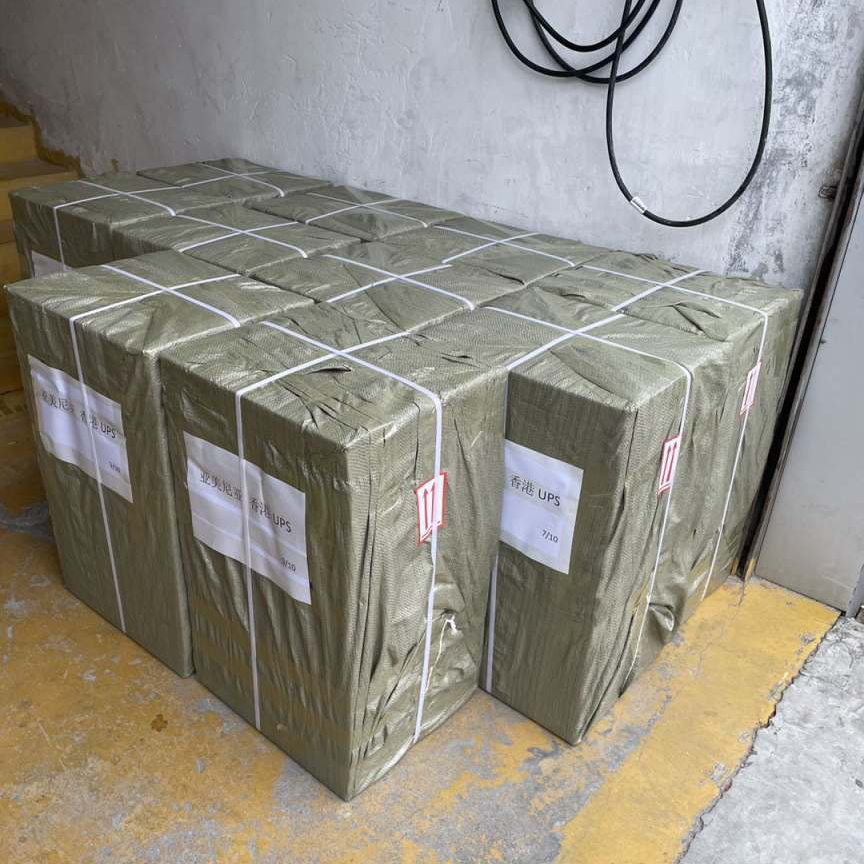

10 Export-Ready Palletized Packages Ready for UPS Transit
Whether you require air-fed systems, oxygen-concentrator-fed ozone generators, or complete municipal ozonation skids, Flygoo provides customized OEM/ODM industrial solutions worldwide.
An air-source ozone generator, such as the FG-AF 30G, draws ambient air through a filtration and dehumidification stage before generating ozone. It is an all-inclusive, economical solution ideal for odor control, ventilation duct sterilization, and light-to-medium water treatment. In contrast, oxygen-source generators use pure concentrated oxygen (93%+) to achieve higher ozone concentrations for heavy industrial oxidation and deep municipal wastewater polishing.
Yes. When paired with a venturi injector and booster pump, the FG-AF 30G easily dissolves 30g/h of ozone into circulating water tanks, commercial laundry lines, agricultural irrigation loops, and aquaculture hatcheries.
Yes. All units destined for South Africa are calibrated and tested for 220V–240V, 50Hz single-phase electrical operation, ensuring stable discharge and safety against grid fluctuations.
Maintenance is minimal. Routine tasks include periodically cleaning or replacing the intake air filter element, checking cooling fan vents for dust accumulation, and inspecting discharge tubes every 12 to 18 months depending on operating hours.
